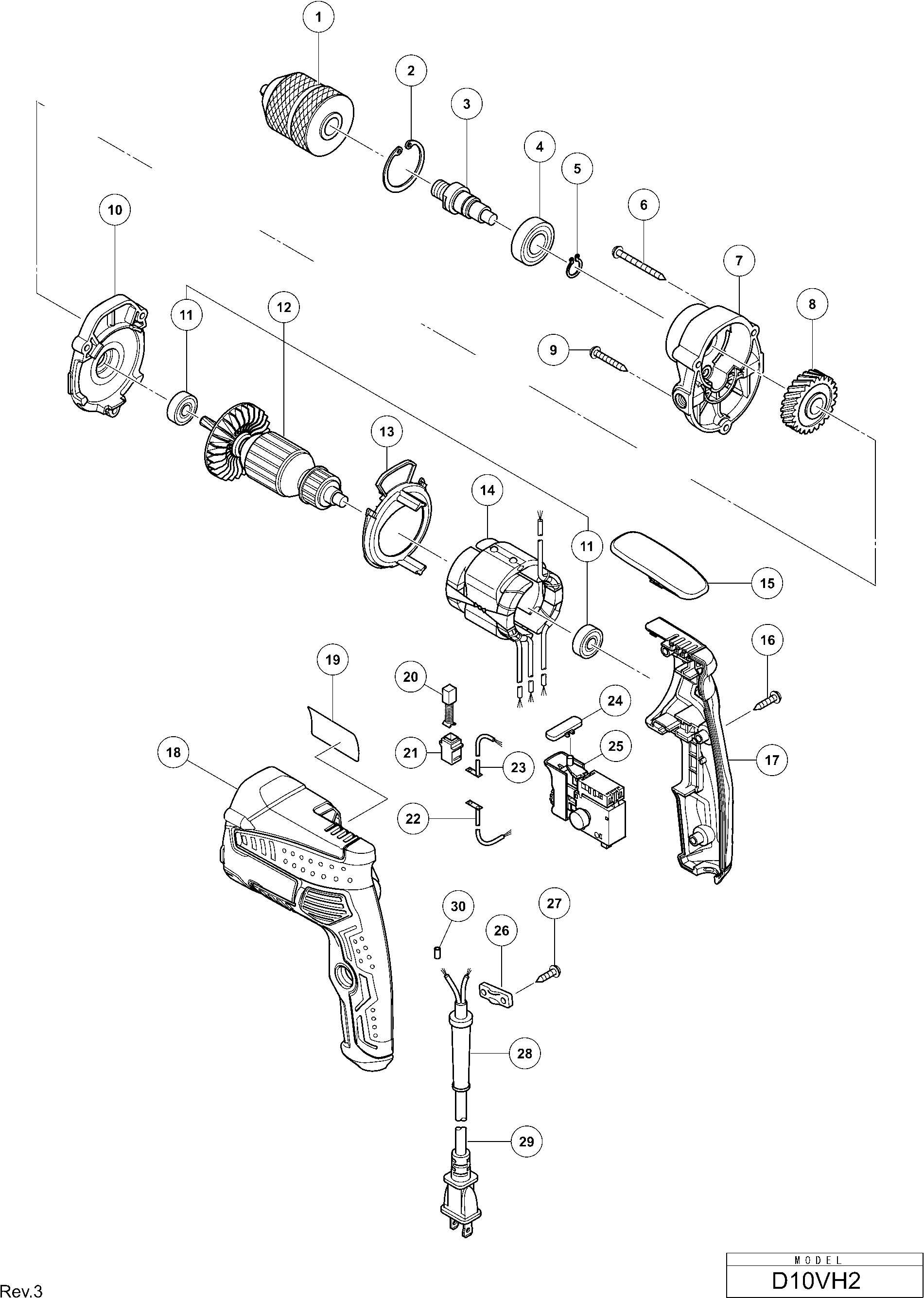

Technical drawing of model Hikoki D10VH2
Spare parts list of model Hikoki D10VH2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 370715 | |||
| Stop Ring D32 | ||||
| 2 | 948001 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 3 | 370712 | |||
| Ball Bearing 6002vvcmps2l | ||||
| 4 | 6002VV | 7.35 | 8.89 | |
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 5 | 939544 | 2.13 | 2.57 | |
| Tapping Screw (w/flange) D4x45 (black) | ||||
| 6 | 301815 | 1.05 | 1.27 | |
| Gear Cover (a) | ||||
| 7 | 370710 | 5.70 | 6.90 | |
| Gear (a) | ||||
| 8 | 370713 | 6.60 | 7.99 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 9 | 305490 | 1.04 | 1.26 | |
| Inner Cover | ||||
| 10 | 370709 | 7.65 | 9.26 | |
| Ball Bearing 608vv | ||||
| 11 | 333945 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 12 | 361050U | |||
| Fan Guide | ||||
| 13 | 370708 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 14 | 340959D | |||
| No information available, not orderable | ||||
| 15 | 370716 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 16 | 301653 | 1.04 | 1.26 | |
| Handle Cover | ||||
| 17 | 370707 | 6.75 | 8.17 | |
| Housing (1) | ||||
| 18 | 370706 | 9.75 | 11.80 | |
| No information available, not orderable | ||||
| 18B | 370706M | |||
| Carbon Brush (1 Pair) | ||||
| 20 | 999041 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 21 | 955203 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 22 | 370705 | |||
| No information available, not orderable | ||||
| 23 | 370704 | |||
| Pushing Button | ||||
| 24 | 321628 | 1.65 | 2.00 | |
| SWITCH 110 VOLT | ||||
| 25 | 370701 | 17.44 | 21.10 | |
| Cord Clip | ||||
| 26 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 27 | 984750 | |||
| No information available, not orderable | ||||
| 28 | 953327 | |||
| Cord (cord Armor D8.8) For Mex | ||||
| 29 | 500240Z | 13.18 | 15.94 | |
| Threaded cable sleeve | ||||
| 30 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 601 | 982593 | |||
| Side Handle For M10 | ||||
| 602 | 981205 | 5.85 | 7.08 | |
