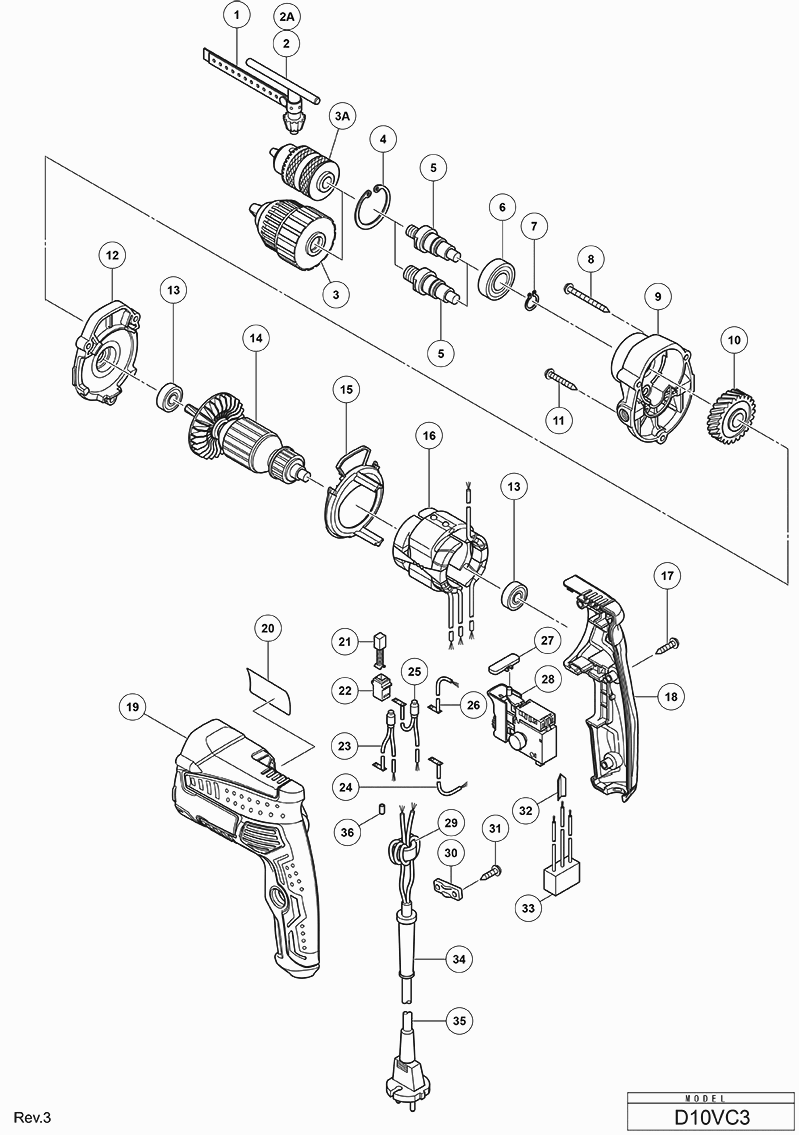

Technical drawing of model Hikoki D10VC3
Spare parts list of model Hikoki D10VC3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Inner Cover | ||||
| *12 | 370709 | 7.65 | 9.26 | |
| INNER COVER (VIOLET BLUE) | ||||
| *12 | 374607 | 3.00 | 3.63 | |
| Armature (b) 230v | ||||
| *14 | 361051E | 23.10 | 27.95 | |
| ANKER (B) 110 VOLT | ||||
| *14 | 361051C | 21.40 | 25.89 | |
| Stator 230v | ||||
| *16 | 340960E | 16.36 | 19.80 | |
| VELD 110 VOLT | ||||
| *16 | 340960C | 15.02 | 18.17 | |
| Handle Cover | ||||
| *18 | 370707 | 6.75 | 8.17 | |
| HANDLE COVER (VIOLET BLUE) | ||||
| *18 | 374608 | 5.55 | 6.72 | |
| Housing (1) | ||||
| *19B | 370706 | 9.75 | 11.80 | |
| HOUSING (VIOLET BLUE) | ||||
| *19B | 374609 | 4.29 | 5.19 | |
| Switch (1) | ||||
| *28 | 371194 | 17.46 | 21.13 | |
| No information available, not orderable | ||||
| *3 | 323250 | |||
| Cord Armor D8.8 | ||||
| *34 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| *34 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *35 | 500468Z | |||
| Spindle (a) | ||||
| *5 | 370711 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 1 | 950288 | |||
| No information available, not orderable | ||||
| 2 | 987576 | |||
| Chuck Wrench 10tlre For Drill Chuck | ||||
| 2A | 371352 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 2B | 303334 | |||
| No information available, not orderable | ||||
| 3 | 950292 | |||
| Drill Chuck 10tlre Includ.1a | ||||
| 3A | 371351 | 7.35 | 8.89 | |
| Stop Ring D32 | ||||
| 4 | 948001 | 1.20 | 1.45 | |
| Spindle (a) | ||||
| 5 | 370711 | 4.50 | 5.44 | |
| Ball Bearing 6002vvcmps2l | ||||
| 6 | 6002VV | 7.35 | 8.89 | |
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 7 | 939544 | 2.13 | 2.57 | |
| Tapping Screw (w/flange) D4x45 (black) | ||||
| 8 | 301815 | 1.05 | 1.27 | |
| Gear Cover (a) | ||||
| 9 | 370710 | 5.70 | 6.90 | |
| Gear (a) | ||||
| 10 | 370713 | 6.60 | 7.99 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 11 | 305490 | 1.04 | 1.26 | |
| Inner Cover | ||||
| 12 | 370709 | 7.65 | 9.26 | |
| Ball Bearing 608vv | ||||
| 13 | 333945 | 1.80 | 2.18 | |
| Armature (b) 230v | ||||
| 14 | 361051E | 23.10 | 27.95 | |
| ANKER (B) 110 VOLT | ||||
| 14 | 361051C | 21.40 | 25.89 | |
| Fan Guide | ||||
| 15 | 370708 | 1.04 | 1.26 | |
| Stator 230v | ||||
| 16 | 340960E | 16.36 | 19.80 | |
| VELD 110 VOLT | ||||
| 16 | 340960C | 15.02 | 18.17 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 17 | 301653 | 1.04 | 1.26 | |
| Handle Cover | ||||
| 18 | 370707 | 6.75 | 8.17 | |
| Housing (1) | ||||
| 19 | 370706 | 9.75 | 11.80 | |
| Carbon Brush (1 Pair) | ||||
| 21 | 999041 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 22 | 955203 | 2.40 | 2.90 | |
| Choke Coil (brown) | ||||
| 23 | 370718 | 2.55 | 3.09 | |
| CHOKE COIL (BROWN) 110 VOLT | ||||
| 23 | 370703 | 2.52 | 3.05 | |
| No information available, not orderable | ||||
| 24 | 370705 | |||
| Choke Coil (blue) | ||||
| 25 | 370717 | 2.55 | 3.09 | |
| CHOKE COIL (BLEU) 110 VOLT | ||||
| 25 | 370702 | 2.52 | 3.05 | |
| No information available, not orderable | ||||
| 26 | 370704 | |||
| Pushing Button | ||||
| 27 | 321628 | 1.65 | 2.00 | |
| Switch (1) | ||||
| 28 | 371194 | 17.46 | 21.13 | |
| SWITCH 110 VOLT | ||||
| 28 | 370701 | 17.44 | 21.10 | |
| Ferrite Core Except For Sin,mal,uae | ||||
| 29 | 334379 | 4.65 | 5.63 | |
| Cord Clip | ||||
| 30 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 31 | 984750 | |||
| Earth Terminal | ||||
| 32 | 992635 | 1.05 | 1.27 | |
| Noise Suppressor | ||||
| 33 | 994273 | 4.29 | 5.19 | |
| Noise Suppressor W/noise Suppressor Band | ||||
| 33 | 370895 | 2.10 | 2.54 | |
| Cord Armor D8.8 | ||||
| 34 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 34 | 938051 | 1.04 | 1.26 | |
| Cord | ||||
| 35 | 930051 | 14.30 | 17.30 | |
| Cord (cord Armor D8.8) For Saf | ||||
| 35 | 500237Z | 11.40 | 13.79 | |
| Threaded cable sleeve | ||||
| 36 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 601 | 321814 | |||
| No information available, not orderable | ||||
| 602 | 982593 | |||
| Hook (a) | ||||
| 603 | 370716 | 1.65 | 2.00 | |
| Side Handle For M10 | ||||
| 604 | 981205 | 5.85 | 7.08 | |
