Here you will find all available parts and drawings of the 'Hikoki D10VC2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

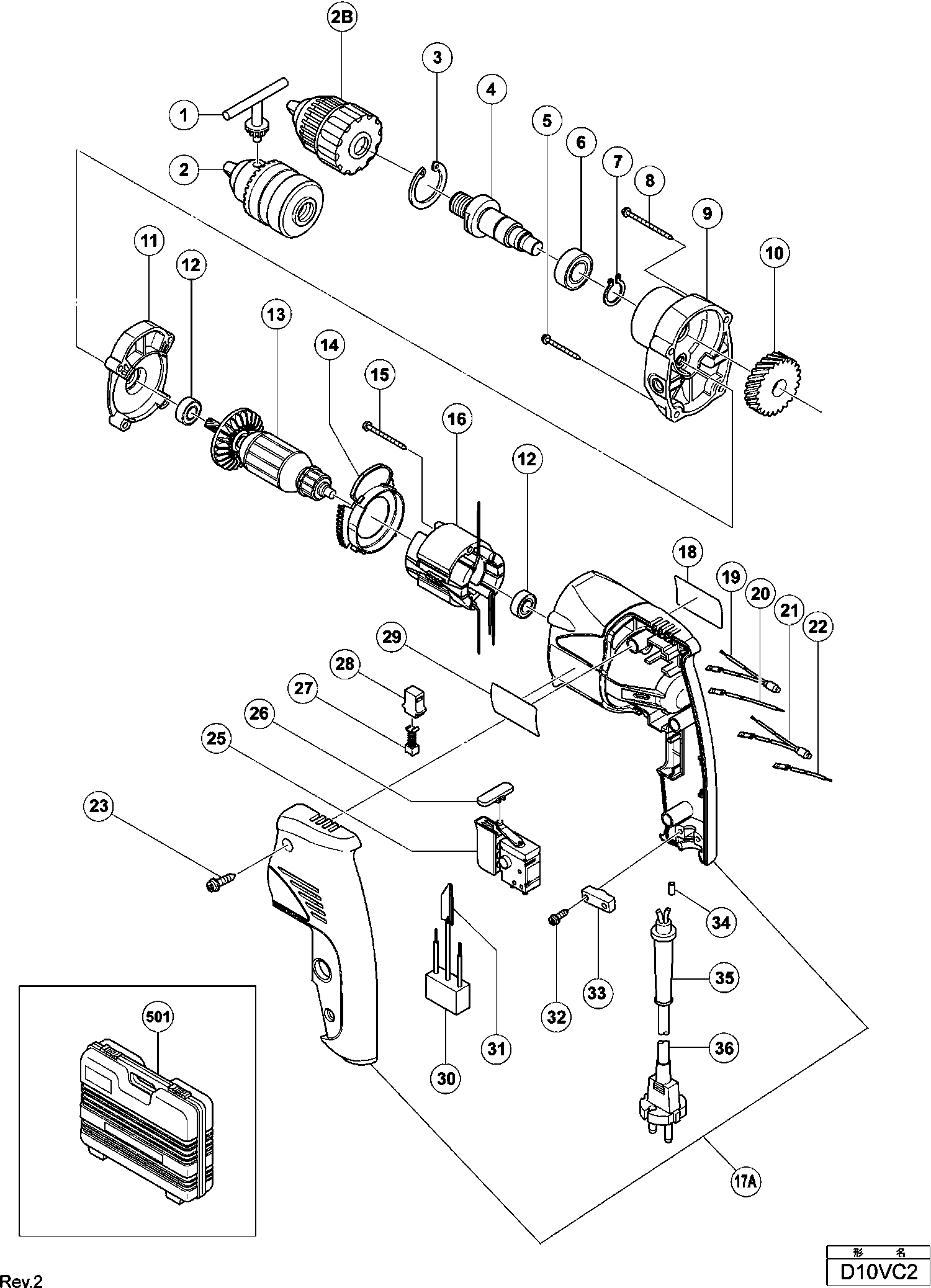

Technical drawing of model Hikoki D10VC2
Spare parts list of model Hikoki D10VC2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 980057 | |||
| No information available, not orderable | ||||
| 2 | 950292 | |||
| No information available, not orderable | ||||
| 2B | 323250 | |||
| Stop Ring D32 | ||||
| 3 | 948001 | 1.20 | 1.45 | |
| Spindle Ass'y | ||||
| 4 | 321626 | 5.46 | 6.61 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 5 | 305490 | 1.04 | 1.26 | |
| Ball Bearing 6002vvcmps2l | ||||
| 6 | 6002VV | 7.35 | 8.89 | |
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 7 | 939544 | 2.13 | 2.57 | |
| Tapping Screw (w/flange) D4x45 (black) | ||||
| 8 | 301815 | 1.05 | 1.27 | |
| Gear Cover | ||||
| 9 | 321625 | 9.98 | 12.07 | |
| Gear | ||||
| 10 | 321627 | 10.43 | 12.61 | |
| Inner Cover | ||||
| 11 | 321624 | 6.15 | 7.44 | |
| Ball Bearing 608vvc2ps2l | ||||
| 12 | 608VVM | 5.70 | 6.90 | |
| Armature 230v-240v | ||||
| 13 | 360596E | 45.55 | 55.12 | |
| Fan Guide | ||||
| 14 | 321623 | 1.50 | 1.82 | |
| Tapping Screw D4x40 | ||||
| 15 | 950514 | 1.20 | 1.45 | |
| Stator 240v | ||||
| 16 | 340547F | 21.45 | 25.95 | |
| Stator 230v | ||||
| 16 | 340547E | 17.76 | 21.49 | |
| Housing.handle Cover Set | ||||
| 17A | 331661 | 32.53 | 39.36 | |
| No information available, not orderable | ||||
| 19 | 321633 | |||
| Internal Wire (brown) 100l For Kuw,ina,sau,sin | ||||
| 20 | 321630 | 3.30 | 3.99 | |
| Interf. suppr. | ||||
| 21 | 321634 | 6.15 | 7.44 | |
| Internal Wire (blue) 55l For Kuw,ina,sau,sin | ||||
| 22 | 321631 | 3.30 | 3.99 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 23 | 301653 | 1.04 | 1.26 | |
| Switch (10 Pillar Type) | ||||
| 25 | 321632 | 29.29 | 35.44 | |
| Pushing Button | ||||
| 26 | 321628 | 1.65 | 2.00 | |
| Carbon Brush (1 Pair) | ||||
| 27 | 999041 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 28 | 955203 | 2.40 | 2.90 | |
| Noise Suppressor | ||||
| 30 | 994273 | 4.29 | 5.19 | |
| Earth Terminal | ||||
| 31 | 992635 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 32 | 984750 | |||
| Cord Clip | ||||
| 33 | 937631 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 34 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 35 | 953327 | |||
| Cord (cord Armor D8.8) For Saf | ||||
| 36 | 500237Z | 11.40 | 13.79 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 36 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 36 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| 501 | 321635 | |||
| No information available, not orderable | ||||
| 601 | 982593 | |||
| No information available, not orderable | ||||
| 602 | 321612 | |||
| Side Handle For M10 | ||||
| 603 | 981205 | 5.85 | 7.08 | |
