Here you will find all available parts and drawings of the 'Hikoki D10SD'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

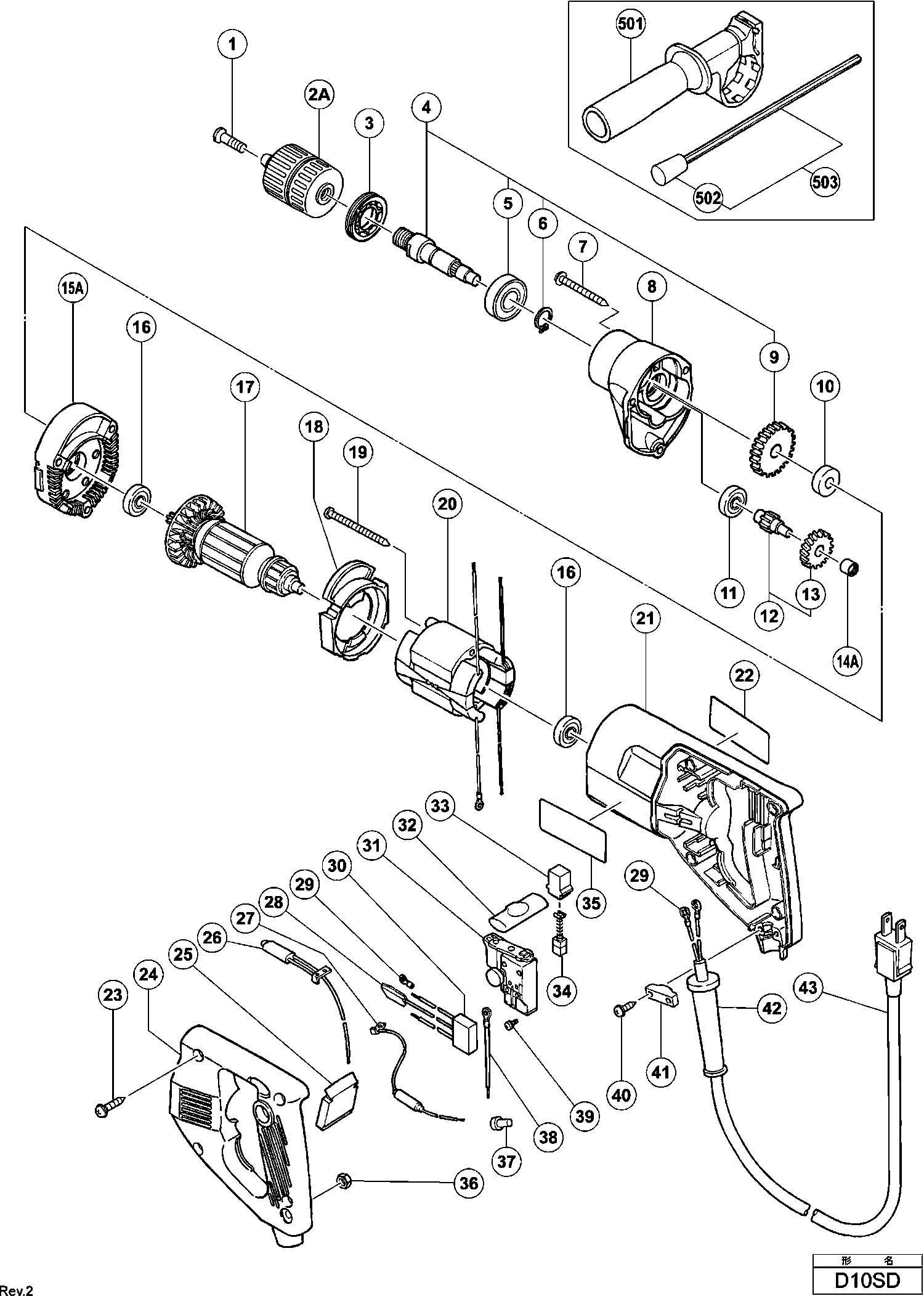

Technical drawing of model Hikoki D10SD
Spare parts list of model Hikoki D10SD
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Special Screw M6x22 | ||||
| 1 | 981122 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 2A | 322370 | |||
| Bearing Cap | ||||
| 3 | 930214 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 4 | 316859 | |||
| Ball Bearing 6201vv | ||||
| 5 | 6201VV | 6.45 | 7.80 | |
| Spring Washer D12 (10 pieces) | ||||
| 6 | 939542 | 1.50 | 1.82 | |
| Tapping Screw (w/flange) D4x40 (black) | ||||
| 7 | 306664 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 8 | 316856 | |||
| No information available, not orderable | ||||
| 9 | 316860 | |||
| No information available, not orderable | ||||
| 10 | 935522 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 11 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 12 | 316857 | |||
| First Gear | ||||
| 13 | 307337 | 14.10 | 17.06 | |
| No information available, not orderable | ||||
| 14A | 329471 | |||
| No information available, not orderable | ||||
| 15A | 316855 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 16 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 17 | 360492C | |||
| Fan Guide | ||||
| 18 | 305398 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 19 | 950515 | |||
| No information available, not orderable | ||||
| 20 | 340553C | |||
| No information available, not orderable | ||||
| 21 | 321745 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 23 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 24 | 321746 | |||
| No information available, not orderable | ||||
| 25 | 316858 | |||
| No information available, not orderable | ||||
| 26 | 313167 | |||
| No information available, not orderable | ||||
| 27 | 313166 | |||
| Earth Terminal | ||||
| 28 | 992635 | 1.05 | 1.27 | |
| connecting terminal | ||||
| 29 | 980063 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 30 | 320669 | |||
| No information available, not orderable | ||||
| 31 | 313164 | |||
| No information available, not orderable | ||||
| 32 | 313163 | |||
| Brush Holder | ||||
| 33 | 955203 | 2.40 | 2.90 | |
| Carbon Brush (1 Pair) | ||||
| 34 | 999041 | 4.50 | 5.44 | |
| Lock Nut M5 (10 Pcs.) | ||||
| 36 | 949566 | 1.04 | 1.26 | |
| Connector 50091 (10 Pcs.) | ||||
| 37 | 959140 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 38 | 309165 | |||
| Machine Screw (w/washer) M3.5x6 | ||||
| 39 | 305499 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 40 | 984750 | |||
| Cord Clip | ||||
| 41 | 937631 | 1.04 | 1.26 | |
| Cable gland D8.2 (old 958049z) | ||||
| 42 | 958049 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 43 | 500470Z | |||
| No information available, not orderable | ||||
| 501 | 303659 | |||
| No information available, not orderable | ||||
| 502 | 317828 | |||
| No information available, not orderable | ||||
| 503 | 317829 | |||
| No information available, not orderable | ||||
| 601 | 305411 | |||
| No information available, not orderable | ||||
| 602 | 310904 | |||
