Here you will find all available parts and drawings of the 'Hikoki CV18DBL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

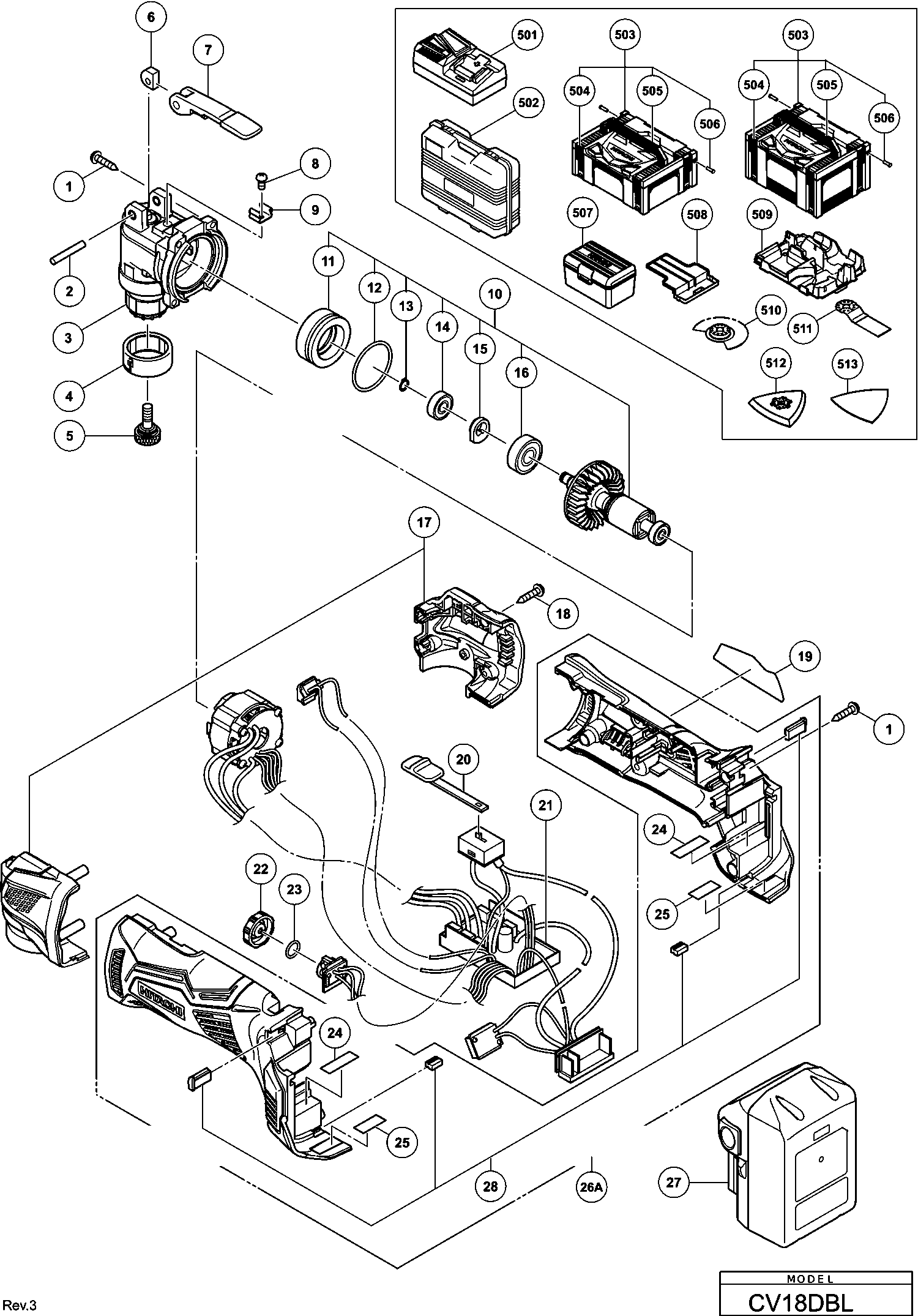

Technical drawing of model Hikoki CV18DBL
Spare parts list of model Hikoki CV18DBL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing (a+b) Set Includ.24, 25, 28 | ||||
| *26D | 339254 | 14.03 | 16.97 | |
| No information available, not orderable | ||||
| *27 | 335790 | |||
| No information available, not orderable | ||||
| *503 | 337108 | |||
| No information available, not orderable | ||||
| *513 | 338258 | |||
| TOOL SHAFT (OLD 337671) | ||||
| *5A | 375113 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| *601 | 335873 | |||
| No information available, not orderable | ||||
| *602 | 335872 | |||
| No information available, not orderable | ||||
| *603 | 335871 | |||
| No information available, not orderable | ||||
| *604 | 335870 | |||
| No information available, not orderable | ||||
| *605 | 335875 | |||
| No information available, not orderable | ||||
| *606 | 335876 | |||
| No information available, not orderable | ||||
| *607 | 335878 | |||
| No information available, not orderable | ||||
| *609 | 335879 | |||
| No information available, not orderable | ||||
| *610 | 335882 | |||
| No information available, not orderable | ||||
| *611 | 335869 | |||
| No information available, not orderable | ||||
| *612 | 335885 | |||
| No information available, not orderable | ||||
| *613 | 335884 | |||
| No information available, not orderable | ||||
| *614 | 335883 | |||
| No information available, not orderable | ||||
| *615 | 335887 | |||
| No information available, not orderable | ||||
| *616 | 335886 | |||
| No information available, not orderable | ||||
| *617 | 335889 | |||
| No information available, not orderable | ||||
| *618 | 335888 | |||
| No information available, not orderable | ||||
| *619 | 335896 | |||
| No information available, not orderable | ||||
| *620 | 335898 | |||
| No information available, not orderable | ||||
| *621 | 335893 | |||
| No information available, not orderable | ||||
| *622 | 335892 | |||
| No information available, not orderable | ||||
| *623 | 335901 | |||
| No information available, not orderable | ||||
| *624 | 335902 | |||
| No information available, not orderable | ||||
| *625 | 335900 | |||
| No information available, not orderable | ||||
| *626 | 335897 | |||
| No information available, not orderable | ||||
| *627 | 335899 | |||
| No information available, not orderable | ||||
| *628 | 335877 | |||
| No information available, not orderable | ||||
| *629 | 335904 | |||
| No information available, not orderable | ||||
| *630 | 335905 | |||
| No information available, not orderable | ||||
| *631 | 335890 | |||
| No information available, not orderable | ||||
| *632 | 335891 | |||
| No information available, not orderable | ||||
| *633 | 335895 | |||
| No information available, not orderable | ||||
| *634 | 335894 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 1 | 301653 | 1.04 | 1.26 | |
| Needle Roller | ||||
| 2 | 337668 | 1.04 | 1.26 | |
| Head Case | ||||
| 3 | 338437 | 105.74 | 127.94 | |
| Sleeve Cap | ||||
| 4 | 337665 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 5 | 337671 | |||
| TOOL SHAFT (OLD 337671) | ||||
| 5A | 375113 | 3.45 | 4.17 | |
| Pushing Piece | ||||
| 6 | 337667 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 7 | 337666 | |||
| Lever Set Includ.45 | ||||
| 7A | 370673 | 3.60 | 4.36 | |
| Seal Lock Screw M4x6 | ||||
| 8 | 337670 | 1.04 | 1.26 | |
| Lever Guide | ||||
| 9 | 337669 | 1.04 | 1.26 | |
| Rotor Ass'y Includ.11-16 | ||||
| 10 | 337398 | 68.61 | 83.02 | |
| Bearing Holder | ||||
| 11 | 337663 | 3.75 | 4.54 | |
| O-ring (s-35) | ||||
| 12 | 337664 | 1.04 | 1.26 | |
| Retaining Ring For D7 Shaft | ||||
| 13 | 994251 | 1.05 | 1.27 | |
| Ball Bearing-r 607dd | ||||
| 14 | 337674 | 2.85 | 3.45 | |
| Balancer | ||||
| 15 | 337402 | 1.04 | 1.26 | |
| Ball Bearing 6000vvcmps2l | ||||
| 16 | 6000VV | 6.15 | 7.44 | |
| Head Cover (a+b) Set | ||||
| 17 | 337395 | 5.10 | 6.17 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 18 | 313687 | 1.04 | 1.26 | |
| Switch Knob | ||||
| 20 | 337396 | 1.05 | 1.27 | |
| Wiring | ||||
| 21 | 337400 | 159.23 | 192.66 | |
| Dial | ||||
| 22 | 337397 | 1.50 | 1.82 | |
| O-ring (s-10) | ||||
| 23 | 987105 | 1.05 | 1.27 | |
| Rubber Cushion | ||||
| 24 | 338435 | 1.04 | 1.26 | |
| Rubber Cushion (b) | ||||
| 25 | 338434 | 1.04 | 1.26 | |
| Rubber Cushion (b) | ||||
| 25A | 376695 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 26 | 338432 | |||
| Housing (a+b) Set Includ.24, 25, 28 | ||||
| 26A | 339254 | 14.03 | 16.97 | |
| Housing (a+b) Set Includ.24, 25, 28 | ||||
| 26C | 339254 | 14.03 | 16.97 | |
| No information available, not orderable | ||||
| 27 | 335790 | |||
| Bumper Set | ||||
| 28 | 339256 | 2.40 | 2.90 | |
| Sleeve | ||||
| 29 | 370674 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 502 | 337684 | |||
| No information available, not orderable | ||||
| 503 | 337108 | |||
| No information available, not orderable | ||||
| 504 | 336472 | |||
| No information available, not orderable | ||||
| 505 | 336473 | |||
| No information available, not orderable | ||||
| 506 | 336474 | |||
| No information available, not orderable | ||||
| 507 | 337685 | |||
| Battery Cover | ||||
| 508 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 509 | 337937 | |||
| No information available, not orderable | ||||
| 510 | 335868 | |||
| No information available, not orderable | ||||
| 511 | 335881 | |||
| No information available, not orderable | ||||
| 512 | 335903 | |||
| No information available, not orderable | ||||
| 513 | 338258 | |||
| No information available, not orderable | ||||
| 601 | 335873 | |||
| No information available, not orderable | ||||
| 602 | 335872 | |||
| No information available, not orderable | ||||
| 603 | 335871 | |||
| No information available, not orderable | ||||
| 604 | 335870 | |||
| No information available, not orderable | ||||
| 605 | 335875 | |||
| No information available, not orderable | ||||
| 606 | 335876 | |||
| No information available, not orderable | ||||
| 607 | 335878 | |||
| No information available, not orderable | ||||
| 608 | 335880 | |||
| No information available, not orderable | ||||
| 609 | 335879 | |||
| No information available, not orderable | ||||
| 610 | 335882 | |||
| No information available, not orderable | ||||
| 611 | 335869 | |||
| No information available, not orderable | ||||
| 612 | 335885 | |||
| No information available, not orderable | ||||
| 613 | 335884 | |||
| No information available, not orderable | ||||
| 614 | 335883 | |||
| No information available, not orderable | ||||
| 615 | 335887 | |||
| No information available, not orderable | ||||
| 616 | 335886 | |||
| No information available, not orderable | ||||
| 617 | 335889 | |||
| No information available, not orderable | ||||
| 618 | 335888 | |||
| No information available, not orderable | ||||
| 619 | 335896 | |||
| No information available, not orderable | ||||
| 620 | 335898 | |||
| No information available, not orderable | ||||
| 621 | 335893 | |||
| No information available, not orderable | ||||
| 622 | 335892 | |||
| No information available, not orderable | ||||
| 623 | 335901 | |||
| No information available, not orderable | ||||
| 624 | 335902 | |||
| No information available, not orderable | ||||
| 625 | 335900 | |||
| No information available, not orderable | ||||
| 626 | 335897 | |||
| No information available, not orderable | ||||
| 627 | 335899 | |||
| No information available, not orderable | ||||
| 628 | 335877 | |||
| No information available, not orderable | ||||
| 629 | 335904 | |||
| No information available, not orderable | ||||
| 630 | 335905 | |||
| No information available, not orderable | ||||
| 631 | 335890 | |||
| No information available, not orderable | ||||
| 632 | 335891 | |||
| No information available, not orderable | ||||
| 633 | 335895 | |||
| No information available, not orderable | ||||
| 634 | 335894 | |||
| No information available, not orderable | ||||
| 638 | 338251 | |||
| No information available, not orderable | ||||
| 639 | 338256 | |||
| No information available, not orderable | ||||
| 640 | 338258 | |||
| No information available, not orderable | ||||
| 641 | 337936 | |||
| Felt Packing (10 Pcs.) | ||||
| 642 | 370534 | 9.30 | 11.25 | |
