Here you will find all available parts and drawings of the 'Hikoki CS40SB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

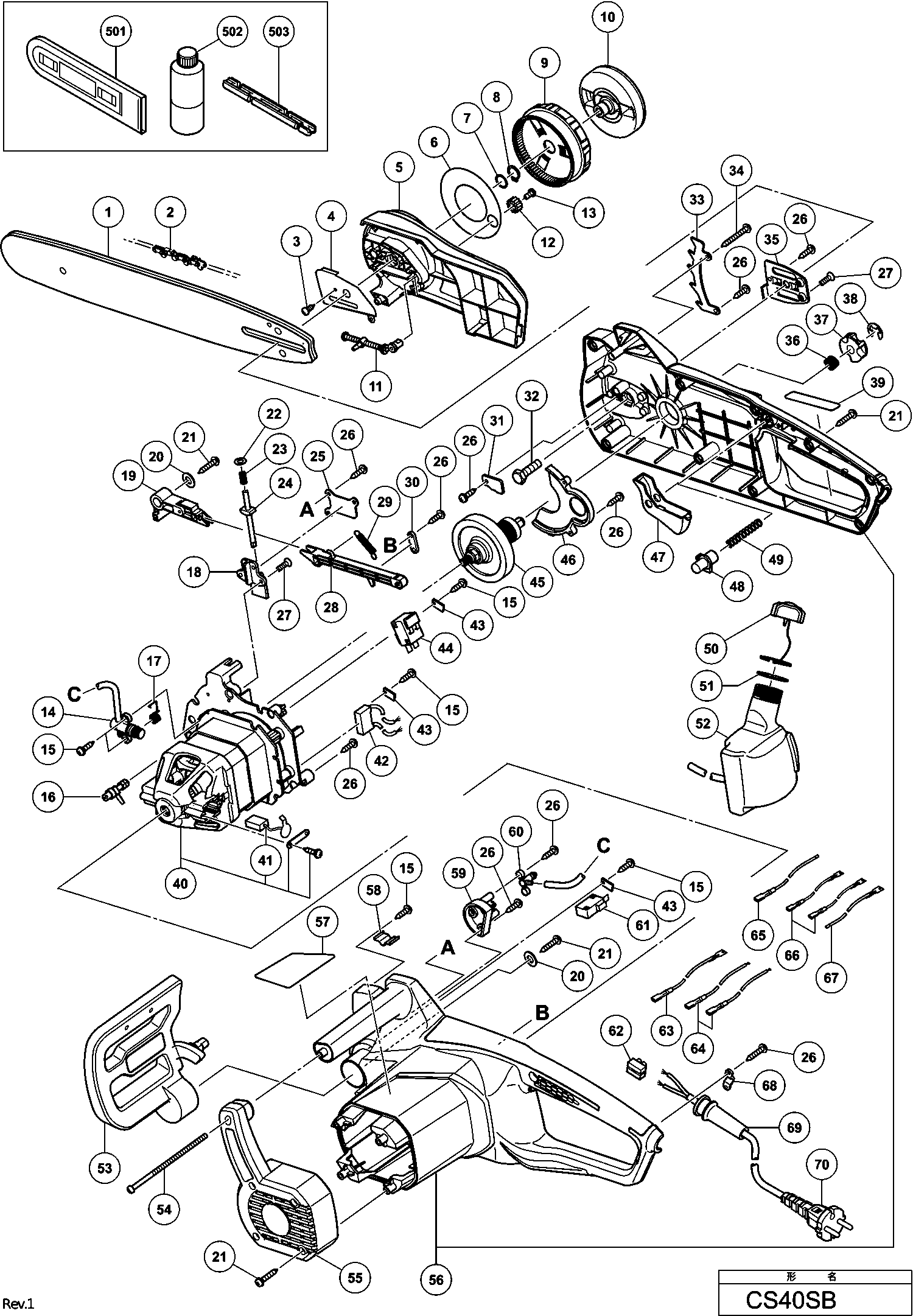

Technical drawing of model Hikoki CS40SB
Spare parts list of model Hikoki CS40SB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw D3x8 | ||||
| *15 | 6685415 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| *43 | 338806 | |||
| Cord (eu) | ||||
| *70 | 339121 | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| 1 | 6696992 | |||
| No information available, not orderable | ||||
| 2 | 6697889 | |||
| Tapping Screw D3x6 | ||||
| 3 | 696352 | 1.13 | 1.36 | |
| Guide Plate | ||||
| 4 | 338943 | 1.05 | 1.27 | |
| End Cap | ||||
| 5 | 338794 | 6.30 | 7.62 | |
| Dust Seal | ||||
| 6 | 335688 | 1.04 | 1.26 | |
| O-ring (1ap-12) | ||||
| 7 | 996407 | 1.05 | 1.27 | |
| Spring Washer D14 (10 Pieces) | ||||
| 8 | 939543 | 2.55 | 3.09 | |
| Tension Dial | ||||
| 9 | 335150 | 2.40 | 2.90 | |
| Knob | ||||
| 10 | 335151 | 6.75 | 8.17 | |
| Chain Puller | ||||
| 11 | 335966 | 6.15 | 7.44 | |
| Gear | ||||
| 12 | 335152 | 1.35 | 1.63 | |
| Machine Screw (w/washer) M4x8 (black) | ||||
| 13 | 315500 | 1.35 | 1.63 | |
| Oil Pump | ||||
| 14 | 338820 | 6.60 | 7.99 | |
| Tapping Screw D3x8 | ||||
| 15 | 6685415 | 1.05 | 1.27 | |
| Adjusting Bolt | ||||
| 16 | 335967 | 3.30 | 3.99 | |
| Extension Spring | ||||
| 17 | 338821 | 1.04 | 1.26 | |
| Frame Plate | ||||
| 18 | 338812 | 2.25 | 2.72 | |
| Front Push Rod | ||||
| 19 | 338825 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 20 | 338824 | |||
| Tapping Screw D5x16 | ||||
| 21 | 339124 | 1.80 | 2.18 | |
| Washer (1) | ||||
| 22 | 338809 | 1.04 | 1.26 | |
| Spring | ||||
| 23 | 338810 | 1.04 | 1.26 | |
| Brake Bar | ||||
| 24 | 338811 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 25 | 338816 | |||
| Screw | ||||
| 26 | 954017 | 1.04 | 1.26 | |
| Flat Hd. Screw M4x12 (10 Pcs.) | ||||
| 27 | 949323 | 1.05 | 1.27 | |
| Push Rod | ||||
| 28 | 338830 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 29 | 338829 | |||
| Press Board | ||||
| 30 | 338831 | 1.04 | 1.26 | |
| Press Board (b) | ||||
| 31 | 338813 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 32 | 338814 | |||
| No information available, not orderable | ||||
| 32A | 378066 | |||
| Spike | ||||
| 33 | 338797 | 1.50 | 1.82 | |
| Tapping Screw D5x30 | ||||
| 34 | 957580 | 1.05 | 1.27 | |
| Insulation Blanket | ||||
| 35 | 338796 | 1.05 | 1.27 | |
| Spring | ||||
| 36 | 338798 | 1.04 | 1.26 | |
| Sprocket | ||||
| 37 | 338799 | 3.00 | 3.63 | |
| Washer Spring | ||||
| 38 | 974577 | 1.05 | 1.27 | |
| Motor Ass'y Includ.41 | ||||
| 40 | 338818 | 116.05 | 140.42 | |
| No information available, not orderable | ||||
| 41 | 338946 | |||
| KOOLBORSTELS (2 STUKS) | ||||
| 41A | 999104 | 15.07 | 18.23 | |
| No information available, not orderable | ||||
| 42 | 338808 | |||
| No information available, not orderable | ||||
| 43 | 338806 | |||
| Switch | ||||
| 44 | 338807 | 6.00 | 7.26 | |
| Output Shaft | ||||
| 45 | 338819 | 20.76 | 25.12 | |
| Dust Cover | ||||
| 46 | 338815 | 1.20 | 1.45 | |
| Switch Button (1) | ||||
| 47 | 338833 | 1.04 | 1.26 | |
| Lock Off Button | ||||
| 48 | 338832 | 1.04 | 1.26 | |
| Lock Off Spring | ||||
| 49 | 338804 | 1.04 | 1.26 | |
| Oil Tank Cap | ||||
| 50 | 338801 | 1.95 | 2.36 | |
| Rubber Ring | ||||
| 51 | 338803 | 1.04 | 1.26 | |
| Oil Tank | ||||
| 52 | 338805 | 5.85 | 7.08 | |
| Protection Board | ||||
| 53 | 338837 | 11.85 | 14.34 | |
| Tapping Screw D5x130 | ||||
| 54 | 339125 | 1.80 | 2.18 | |
| Motor Rear Cover | ||||
| 55 | 338838 | 5.40 | 6.53 | |
| Housing | ||||
| 56 | 338802 | 26.95 | 32.61 | |
| Housing | ||||
| 56A | 338802 | 26.95 | 32.61 | |
| Spring Leaf | ||||
| 58 | 338828 | 1.04 | 1.26 | |
| Connector Base | ||||
| 59 | 338823 | 1.04 | 1.26 | |
| Connector (1) | ||||
| 60 | 338822 | 1.20 | 1.45 | |
| Switch | ||||
| 61 | 338827 | 2.40 | 2.90 | |
| Terminal Set | ||||
| 62 | 338834 | 1.04 | 1.26 | |
| Connecting Wire 320l (blue) | ||||
| 63 | 338842 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 64 | 338841 | |||
| Connecting Wire 300l (red) | ||||
| 65 | 338843 | 1.50 | 1.82 | |
| Connecting Wire 390l (red) | ||||
| 66 | 338840 | 2.10 | 2.54 | |
| Connecting Wire 390l (blue) | ||||
| 67 | 338839 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 68 | 338835 | |||
| Cord Armor | ||||
| 69 | 338836 | 1.04 | 1.26 | |
| Cord (eu) | ||||
| 70 | 339121 | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| 501 | 6699115 | |||
| No information available, not orderable | ||||
| 501A | 6685440 | |||
| Plug Clip Except For Rus | ||||
| 503 | 309686 | 4.05 | 4.90 | |
