Here you will find all available parts and drawings of the 'Hikoki CS40EM'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

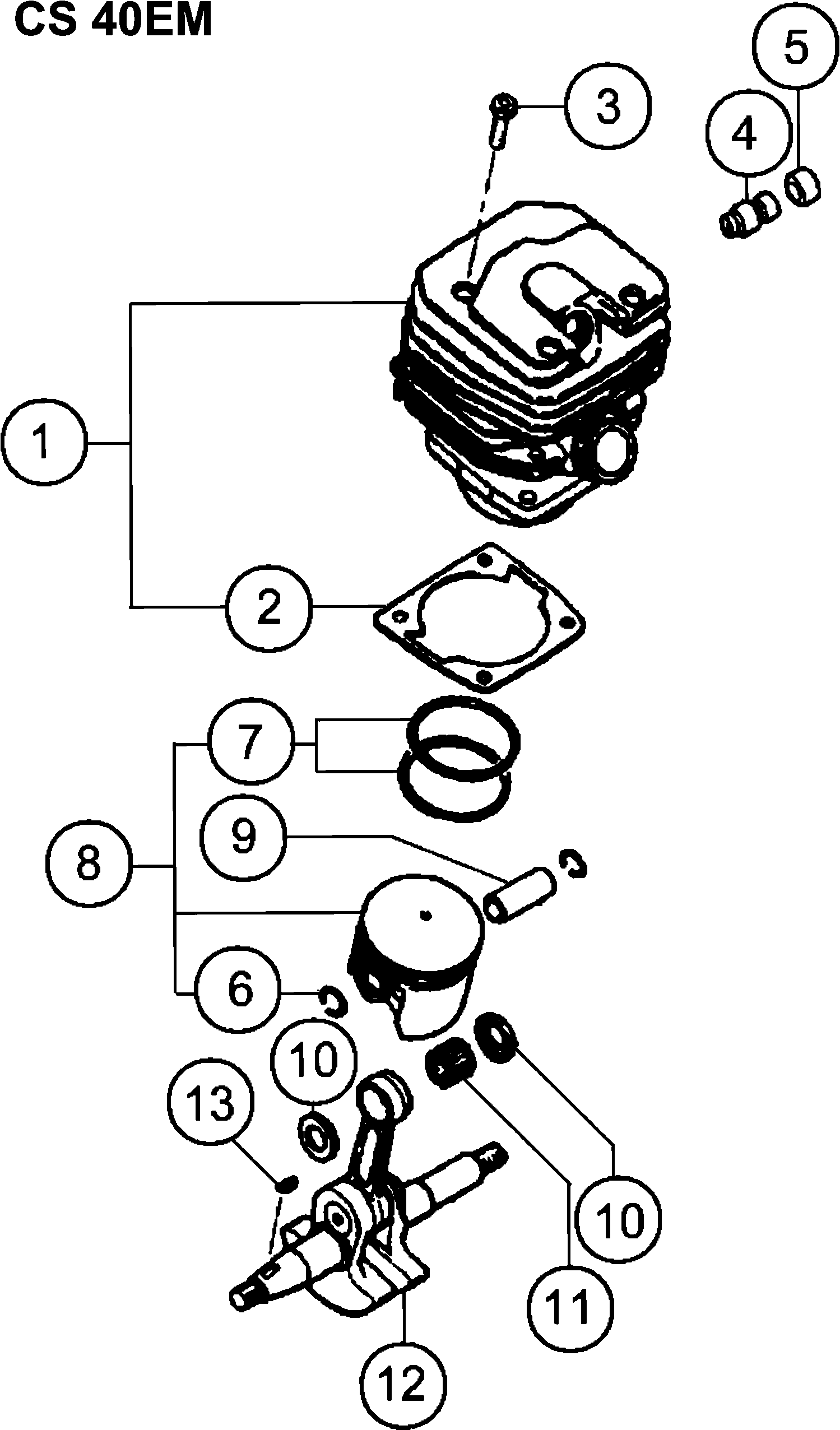

Technical drawing of model Hikoki CS40EM

Spare parts list of model Hikoki CS40EM

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Cylinder Set #
1 6685469 253.04 306.18
Cylinder Gasket #
2 6685735 4.79 5.79
No longer available, no replacement
3 6692328
Decompression Comp. #
4 6685590 136.58 165.26
Decomp Cover
5 6685801 2.31 2.80
Piston Pin Circlip
6 6686031 52.34 63.33
Pistonring #
7 6686127 17.09 20.68
No information available, not orderable
8 6685886
Piston Pin #
9 6686013 6.60 7.99
Piston Pin Collar #
10 6685994 7.26 8.79
Needle Bearing #
11 6695607 13.04 15.78
Crank Shaft Comp. #
12 6686187 182.71 221.08
No longer available, no replacement
13 6686458
Bar Tightening Bolt #
21 6686806 4.45 5.38
No information available, not orderable
22 6695640
Ring
23 6686439 1.15 1.39
Fly Wheel Nut
24 6686444 1.15 1.39
Special Screw M5x25 (old 685-32625-20) New
25 6692329 2.31 2.80
Oil Seal
26 6695642 8.58 10.38
No longer available, no replacement
27 6688547
No longer available, no replacement
28 6688557
Damper Cap A
29 6688183 2.31 2.80
Special Screw M5x16
30 6692334 1.15 1.39
Front Damper Comp. # (old 219-32625-80) New Jun
31 6688114 10.40 12.58
Oil Tank Cap Ass'y #
32 6692156 11.05 13.37
Crank Case Ass'y #
33 6686545 186.80 226.03
No longer available, no replacement
34 6686630
Oil Tank Cap Packing
35 6691244 2.31 2.80
No information available, not orderable
36 6685866
Bearing #
37 6686682 15.28 18.48
H.l Grommet #
38 6687981 4.80 5.81
Crank Case Gasket #
39 6686711 5.94 7.18
Plate (old 466-32625-20) New
40 6690788 5.40 6.53
Magneto Rotor Ass'y #
41 6687356 154.58 187.04
No information available, not orderable
42 6693660
Pawl Spring #
43 6693349 4.45 5.38
Starter Pawl
44 6693306 3.30 3.99
No information available, not orderable
45 6696989
Ignition Coil Ass'y #
61 6687348 220.83 267.20
Cord #
62 6687844 18.29 22.13
Plug Cap Ass'y #
63 6687471 4.05 4.90
Spark Plug Ass'y Rcj6y For Europe,aus
64 6699326 3.30 3.99
No longer available, no replacement
65 6688335
No longer available, no replacement
67 6687930
No information available, not orderable
68 6687742
Stop Button Cover
69 6688406 3.30 3.99
No information available, not orderable
70 6692131
Special Screw M5x10
71 6692337 1.15 1.39
Insulator Tube #
72 6688318 4.45 5.38
Stop Switch Ass'y #
73 6687507 22.24 26.91
Air Deflector
74 6687330 10.40 12.58
Damper Seat #
75 6688258 4.05 4.90
Special Screw M5x20
76 6692336 2.31 2.80
Air Vent Valve B (old 562-04093-20)
91 6691378 3.30 3.99
Air Vent Sponge
92 6691402 1.15 1.39
Clip
93 6692322 1.15 1.39
No longer available, no replacement
94 6690882
Oil Filter Body Comp. # For Europe
95 6690915 8.25 9.98
Oil Pipe A #
96 6691222 6.60 7.99
Special Bolt M4x14
97 6692335 1.05 1.27
No information available, not orderable
98 6687323
Oil Sponge (old 094-32625-20)
99 6686744 1.15 1.39
Clutch Ass'y #
100 6688483 38.26 46.30
Clutch Housing #
101 6689115 76.38 92.41
Needle Bearing # (old 350-32625-20)
102 6689536 16.19 19.59
Oil Pump Cover #
103 6686760 6.93 8.38
Chain Bar Clamp Nut (old 121-32625-20)
104 6687106 2.31 2.80
Rim sprocket # (old 329-32625-20)
105 6689176 32.21 38.98
Guide Plate A #
106 6690732 6.60 7.99
Special Screw M4x10 (old 686-32625-20)
107 6692330 1.15 1.39
Oil Pipe Ass'y # For Europe
108 6690883 18.30 22.14
Clutch Spring (old 342-04093-20)
109 6689427 3.30 3.99
Ring
110 6689644 5.61 6.79
Guide
111 6690797 3.30 3.99
Chain Catcher #
112 6687166 9.08 10.98
Special Screw M5x14 (old 683-32625-20)
113 6692327 1.15 1.39
Special Screw M5x14 (old 683-32625-20)
114 6692327 1.15 1.39
Spike #
115 6690706 16.64 20.13
Damper A #
116 6688248 14.38 17.39
Damper Collar A
117 6688479 3.30 3.99
Special Screw M5x16
118 6692334 1.15 1.39
No longer available, no replacement
131 6687239
No information available, not orderable
132 6689942
Special Screw M5x14 (old 683-32625-20)
133 6692327 1.15 1.39
Elbow Joint #
134 6691006 7.26 8.79
Clip A (old 425-32625-20)
135 6690171 1.05 1.27
Rubber Pipe #
136 6692302 6.60 7.99
Carburetor Gasket
137 6689830 3.30 3.99
Spacer # (old 249-04093-20)
138 6688308 5.94 7.18
Spring #
139 6686451 4.45 5.38
Inlet Manifold #
140 6689798 17.70 21.42
Muffler Special Bolt (old 750-04093-20)
141 6692880 5.28 6.38
Inlet Manifold Ring #
142 6689821 4.45 5.38
Muffler Gasket
143 6692740 3.30 3.99
Muffler Set # For Europe
144 6692461 26.16 31.66
Muffler Cover # For Europe
145 6692720 6.90 8.35
Special Screw M5x10
146 6692337 1.15 1.39
Muffler Nut
147 6692684 3.30 3.99
Recoil Starter Ass'y #
171 6692920 96.35 116.58
Fan Housing
172 6686967 52.34 63.33
No longer available, no replacement
173 6693134
Starter Rope # (old 783-04093-20)
174 6693163 7.59 9.18
Starter Handle
175 6693231 9.40 11.37
Rope Stopper (old 795-04093-20)
176 6693382 1.15 1.39
No information available, not orderable
177 6693097
No longer available, no replacement
178 6687982
No longer available, no replacement
179 6693064
Starter Boss #
180 6693278 28.14 34.05
Ring
181 6693251 1.15 1.39
Special Screw M5x20
182 6692336 2.31 2.80
Special Screw M5x14 (old 683-32625-20)
183 6692327 1.15 1.39
Carburetor Ass'y Wt755a Since C303001 For Europe
201 6690653 289.04 349.74
Inlet Screen
202 6684700 4.29 5.19
No longer available, no replacement
203 6691439
Screw
204 6685210 1.15 1.39
Pump Gasket
205 6685212 2.31 2.80
Pump Diaphragm #
206 6691448 14.19 17.17
Needle Valve
207 6685215 5.28 6.38
No longer available, no replacement
208 6685220
Metering Diaphragm Comp. Till B027700
209 6690827 11.71 14.17
Diaphragm Cover-metering
210 6685222 4.45 5.38
Valve Spring
211 6690872 2.31 2.80
Hinge Pin Set Screw
212 6685218 2.31 2.80
Hinge Pin
213 6685219 1.15 1.39
Choke Spring
214 6691012 1.15 1.39
Steel Ball
215 6691405 1.15 1.39
Control Lever
216 6685217 3.30 3.99
Idle Adjust Spring
217 6685297 2.31 2.80
Idle Adust Screw #
218 6690742 14.85 17.97
Set Screw
219 6685223 1.15 1.39
Cleaner Cover
241 6690405 52.34 63.33
Cleaner Knob #
242 6687797 5.28 6.38
Cleaner Packing
243 6690057 2.31 2.80
No information available, not orderable
244 6690175
Cleaner Element
245 6690326 1.15 1.39
No longer available, no replacement
246 6695245
Rubber Cap
247 6690902 3.30 3.99
Cylinder Cover Ass'y #
248 6685685 42.08 50.91
Special Screw M5x14 (old 683-32625-20)
249 6692327 1.15 1.39
No information available, not orderable
250 6688102
No information available, not orderable
251 6689752
Grommet
252 6687975 4.45 5.38
Cleaner Element
253 6690069 32.21 38.98
No information available, not orderable
271 6686078
Hand Guard Shaft #
272 6693444 4.45 5.38
Side Case Comp. #
273 6686041 68.36 82.72
Stopper C #
274 6688566 6.93 8.38
Chain Tension Bolt #
275 6687070 26.16 31.66
No information available, not orderable
276 6687058
Guide Plate B #
277 6690753 14.98 18.12
Gear #
278 6688657 32.21 38.98
Guide
279 6690797 3.30 3.99
Chain Protector #
280 6689162 12.05 14.58
Front Hand Guard Assy For Europe
281 6693458 37.05 44.83
No information available, not orderable
282 6691022
Stop Ring E
283 6693662 1.15 1.39
Weight Spring
284 6693489 3.30 3.99
No longer available, no replacement
285 6693482
Hand Guard Spring #
286 6693448 4.45 5.38
No longer available, no replacement
287 6691213
No information available, not orderable
288 6693660
No longer available, no replacement
289 6693432
Pin (old 811-32625-20)
290 6693508 5.28 6.38
No longer available, no replacement
291 6689693
Brake Spring #
292 6689703 7.20 8.71
No information available, not orderable
293 6689704
Brake Link Support #
294 6689778 15.73 19.03
No longer available, no replacement
295 6689773
No information available, not orderable
296 6689731
Brake Link Cover #
297 6689710 8.58 10.38
Brake Band
298 6689716 1.15 1.39
Brake Band #
299 6689726 14.98 18.12
No longer available, no replacement
300 6692341
Special Screw M5x19 (old 687-32625-20)
311 6692331 1.15 1.39
Rear Handle Grip #
312 6688216 8.91 10.78
Safty Lever
313 6688356 2.31 2.80
Grommet
314 6690997 3.30 3.99
Throttle Rod #
315 6690970 4.05 4.90
No information available, not orderable
316 6688074
Special Bolt
317 6692339 1.15 1.39
Special Screw M5x19 (old 687-32625-20)
318 6692331 1.15 1.39
Air Cleaner Base Comp. # (old 436-04093-80)
319 6690199 20.11 24.34
No longer available, no replacement
320 6688180
Damper Set Bolt A #
321 6688631 5.78 6.99
No information available, not orderable
322 6688403
Clip,6.3 Dia.
323 6684619 2.15 2.60
Air Vent Pipe
324 6691392 1.15 1.39
No information available, not orderable
325 6692342
Shield Tube 3x5x180
326 6684618 4.29 5.19
Collar #
327 6690878 4.05 4.90
Pump Filter Body Ass'y
328 6692273 7.10 8.59
Cushion Rubber #
329 6691826 4.79 5.79
Special Screw M5x52
330 6692338 3.00 3.63
Tank Cap Packing (old 630-32625-20)
332 6692099 3.30 3.99
Guide
333 6692601 3.30 3.99
No information available, not orderable
334 6692585
Choke Rod Rubber Since C303001 For Europe
335 6692589 2.31 2.80
Air Vent Valve Ass'y #
336 6692173 13.04 15.78
Rear Handle Ass'y Since C303001 For Europe
337 6685661 200.86 243.04
No information available, not orderable
341 6688242
No information available, not orderable
342 6692340
No information available, not orderable
343 6690137
Throttle Lever
344 6686385 3.30 3.99
No longer available, no replacement
345 6686415
Spring Pin
346 6691021 1.15 1.39
No information available, not orderable
347 6686326
No information available, not orderable
501 6686860
No information available, not orderable
502 6687295
No information available, not orderable
503 6694810
Driver #
504 6693802 7.59 9.18
Combi.spanner #
505 6693810 14.35 17.36
Name Plate Cs40em
601 6694406 1.05 1.27
No information available, not orderable
602 6694509
