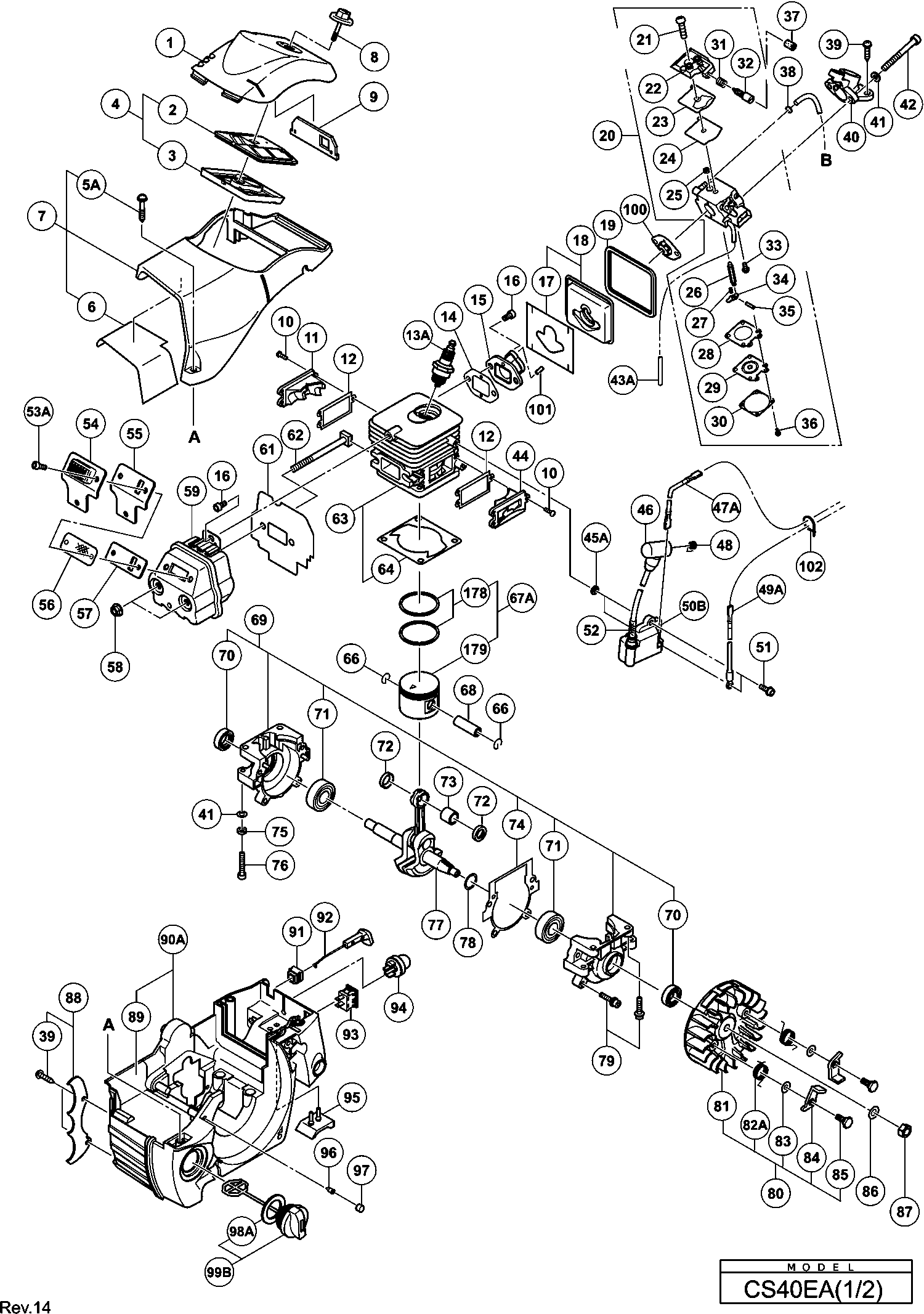

Technical drawing of model Hikoki CS40EA

Spare parts list of model Hikoki CS40EA

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Cleaner Cover
1 6698424 4.20 5.08
Cleaner Element (b)
2 6696908 3.15 3.81
Cleaner Element (a)
3 6696907 2.10 2.54
Cleaner Element
4 6696891 7.95 9.62
No information available, not orderable
5 6696903
Cover Set Bolt (b)
5A 6699946 1.04 1.26
Aluminum Tape (A)
6 6698520 2.10 2.54
Cylinder Cover
7 6698519 12.90 15.61
Cleaner Knob (vermilion)
8 6698425 1.05 1.27
Shutter Plate
9 6696904 1.05 1.27
Seal Lock Screw M4x10
10 6696835 1.20 1.45
Scavenging Cover(b)
11 6698407 3.15 3.81
Cover Packing
12 6696852 1.05 1.27
No information available, not orderable
13 6685782
No information available, not orderable
13A 6699320
Gasket
14 6696895 1.05 1.27
No longer available, no replacement
15 6698419
Intake (OLD 6698419)
15A 6601577 3.00 3.63
Hex. Socket Hd. Bolt M5x12 (precoat)
16 6696836 1.20 1.45
No information available, not orderable
17 6698524
Carburetor Insulator Ass'y Includ.17
18 6698461 4.20 5.08
Carb. Insulator Rubber
19 6696896 1.05 1.27
Carburetor Ass'y Includ.21-36
20 6698433 104.50 126.44
Screw
21 6685210 1.15 1.39
Pump Gasket
23 6685212 2.31 2.80
Pump Diaphragm
24 6685213 4.45 5.38
Inlet Screen
25 6684700 4.29 5.19
Needle Valve
26 6685215 5.28 6.38
Valve Spring
27 6690873 4.45 5.38
No longer available, no replacement
28 6685220
Metering Diaphragm
29 6684690 18.00 21.78
Diaphragm Cover-metering
30 6685222 4.45 5.38
Idle Adjust Spring
31 6690766 2.31 2.80
Idle Adjust Screw
32 6685298 2.31 2.80
Hinge Pin Set Screw
33 6685218 2.31 2.80
Control Lever
34 6685217 3.30 3.99
Hinge Pin
35 6685219 1.15 1.39
Set Screw
36 6685223 1.15 1.39
Idle Sponge
37 6685224 1.15 1.39
Clip D6
38 6685198 1.15 1.39
Tapping Screw (w/flange) D5x20 (black)
39 302089 1.05 1.27
Cleaner Support
40 6698427 1.05 1.27
Ring
41 6685408 1.05 1.27
Hex. Socket Hd. Bolt M5x45
42 6696317 1.20 1.45
Fuel Pipe
43A 6698721 9.75 11.80
Scavenging Cover (a)
44 6698406 3.15 3.81
No longer available, no replacement
45A 6698700
No information available, not orderable
46 6698435
Cord (c)
47A 6696840 2.10 2.54
No information available, not orderable
48 6698436
Cord (b)
49A 6698974 1.20 1.45
No longer available, no replacement
50B 6696841
Hex. Socket Hd. Bolt (w/flange) M4x18
51 6696326 1.20 1.45
Cord Insulation Tube
52 6698457 1.05 1.27
Hex. Socket Hd. Bolt M4x10 (10 Pcs.) Till 12.2017
53A 949812 2.40 2.90
Muffler Protector Till 12.2017
54 6698458 1.05 1.27
Muffler Protector Packing Till 12.2017
55 6698459 1.05 1.27
Muffler Gauze Till 12.2017
56 6696874 1.05 1.27
Exhaust Plate Till 12.2017
57 6698460 1.05 1.27
Flange Nut M6
58 329934 1.73 2.09
Muffler
59 6698410 30.53 36.94
Muffler Packing Till 8.2019 (since 9.2017 Except
61 6698412 4.20 5.08
Square Head Bolt M6 Till 12.2017
62 6698437 1.05 1.27
Cylinder Ass'y Includ.64
63 6698430 39.88 48.25
Cylinder Packing
64 6696864 1.05 1.27
Cir Clip
66 6696854 1.05 1.27
Piston
67A 6698526 30.45 36.84
Piston Pin
68 6696855 2.10 2.54
Crank Case Set Includ.70,71,74
69 6698441 34.18 41.35
Oil Seal
70 6684607 4.29 5.19
Ball Bearing (1)
71 6685328 3.00 3.63
Piston Pin Collar
72 6696856 2.10 2.54
Needle-roller Bearing
73 6698445 5.10 6.17
Crank Case Packing
74 6696863 1.05 1.27
Spring Washer M5 (10 pieces)
75 949454 1.04 1.26
Seal Lock Hex. Socket Hd. Bolt M5
76 6685412 1.05 1.27
Crank Shaft
77 6696853 45.65 55.24
Shim T0.2
78 6696865 1.05 1.27
Shim T0.3
78 6696866 1.05 1.27
Shim T0.4
78 6696867 1.05 1.27
No information available, not orderable
79 305583
Magneto Sub Ass'y Includ.81-85
80 6698414 19.11 23.13
Magneto Rotor
81 6698415 15.68 18.97
Starter Pawl Spring (b)
82A 6699405 1.05 1.27
Washer 0.8
83 6696857 1.05 1.27
Starter Pawl
84 6696877 2.10 2.54
Bolt
85 6696878 1.05 1.27
Bolt Washer D7
86 6696880 1.05 1.27
Nut
87 6696879 1.05 1.27
Spike
88 6696329 10.20 12.34
Aluminum Tape
89 6698523 2.10 2.54
Motor Housing
90A 6699012 22.55 27.29
Choke Rod Rubber
91 6685369 1.05 1.27
Choke Button
92 6698463 1.05 1.27
No information available, not orderable
93 6685364
No longer available, no replacement
93A 6601275
Priming Pump Comp.
94 6685139 5.94 7.18
Rear Damper
95 6696870 1.05 1.27
Air Vent Valve (b)
96 6685370 2.10 2.54
Air Vent Sponge
97 66A6188 1.50 1.82
Tank Cap Packing
98A 6685179 1.15 1.39
Fuel Tank Cap Ass'y (vermilion) Includ.159
99A 6698854 4.20 5.08
Fuel Tank Cap Ass'y (green) Includ.91
99A 6698855 4.20 5.08
Fuel Tank Cap Ass'y (black) Includ.159
99B 6698358 4.20 5.08
Inlet Manifold Spacer Includ.98a Till 8.2012
100 6685202 3.30 3.99
Pulse Guide 2.5x3.5x12
101A 6699673 1.04 1.26
No information available, not orderable
102 6696839
No information available, not orderable
111 6698449
Bolt Washer M6 (10 Pcs.)
112 949432 1.05 1.27
Spring Holder
113 6698409 2.10 2.54
Flanged Tapping Screw D6
114 6696872 1.05 1.27
Antivibration Spring
115 6698408 2.10 2.54
Front Damper
116 6696873 1.05 1.27
Pump Filter Body
117 6685199 4.45 5.38
Pump Filter
117A 6600351 2.70 3.27
Return Grommet Till 7.2014
118A 6697846 1.04 1.26
No information available, not orderable
119 6698401
Fuel Pipe L70
119A 6699014 1.65 2.00
Inner Cap Ass'y
120A 6685351 4.50 5.44
No longer available, no replacement
123A 6698931
Fuel Pipe
124A 6698718 9.75 11.80
Fuel Line L250
124B 6698947 12.90 15.61
Tapping Screw (w/flange) D4x16 (black)
125 305812 1.04 1.26
Rear Handle Grip
126A 6698805 1.05 1.27
Trigger Lockout (vermilion)
127 6685350 1.05 1.27
Switch Lock
127 6685420 1.05 1.27
Throttle Lever Spring
128B 6600341 1.04 1.26
Spring Pin 5x25
129 6685282 1.15 1.39
Rear Handle
130A 6698990 22.83 27.62
Spring Holder
131 6698429 2.10 2.54
Hex. Socket Hd. Bolt (w/flange) M6x20
132 881722 1.80 2.18
Antivibration Spring
133 6698428 2.10 2.54
Tapping Screw (w/flange) D5x25 (black)
134 305558 1.04 1.26
Brake Link Cover
135A 6698527 1.05 1.27
Brake Link
136 6685388 4.05 4.90
Retaining Ring (e-type) For D6 Shaft
137 955479 1.05 1.27
Brake Spring
138 6696900 2.10 2.54
Needle Roller D3
139 6685391 1.05 1.27
Brake Band
140A 6698528 1.05 1.27
No longer available, no replacement
142A 6698989
Oil Pump Cover
143 6696893 2.10 2.54
Oil Pipe
144 6696892 1.05 1.27
Oil Pump
145 6696887 24.68 29.86
Brake Lever Spring
146 6685374 1.05 1.27
Brake Handle
148 6685373 5.85 7.08
Chain Bar Clamp Nut
150 6685416 1.05 1.27
No information available, not orderable
151 6698454
No information available, not orderable
151A 6698422
Side Case Sub Ass'y (vermilion)
151B 6699721 10.20 12.34
No information available, not orderable
152 6687335
No information available, not orderable
153A 6685393
Chain Puller
153B 6698986 13.35 16.15
Guide Plate (b)
154 6696902 2.10 2.54
Tapping Screw D3x8
155 6685415 1.05 1.27
No information available, not orderable
156 6696983
No information available, not orderable
157 6698423
Clutch
158 6696883 14.10 17.06
No longer available, no replacement
159 6696882
Clutch Housing
160 6696881 12.45 15.06
Needle-roller Bearing
161 6696884 5.10 6.17
Worm
162 6696886 7.28 8.80
Ring
163 6696885 1.05 1.27
Machine Screw M4x16 (10 Pcs.)
164 949219 1.20 1.45
Guide Plate (a)
165 6696898 2.10 2.54
Oil Grommet (a)
166 6696868 1.05 1.27
Fuel Pipe
167A 6698719 9.75 11.80
Ring
168 6685407 1.05 1.27
Oil Filter
169 6698455 1.05 1.27
Oil Filter Body
170A 6698536 2.25 2.72
Flanged Tapping Screw D5x15
171 6698456 1.05 1.27
No information available, not orderable
172 6696894
Air Deflector
173 6696906 2.10 2.54
No information available, not orderable
174 6698431
No longer available, no replacement
174A 6699497
Throttle Ass'y Includ.126a
176 6698825 3.15 3.81
No information available, not orderable
177 6698923
Piston Ring
178 6699003 2.25 2.72
Piston
179 6699004 16.64 20.13
Set Screw Since 4.2015
180 6699476 1.04 1.26
No longer available, no replacement
181 6699478
Damper Spring Since 4.2015
182 6699479 1.65 2.00
Reel Since Tl041791
183 6699485 2.40 2.90
No longer available, no replacement
184 6699480
Starter Rope
185 6699469 1.04 1.26
Rope Stopper
186 6699465 1.04 1.26
Starter Knob
187 6699467 1.95 2.36
No longer available, no replacement
188 6699473
Fan Case
189 6699498 9.45 11.43
Fan Case
189A 6699498 9.45 11.43
No information available, not orderable
191 6601575
No information available, not orderable
501 6696910
Combi Box Spanner 10/19mm
502 6685402 3.15 3.81
