Here you will find all available parts and drawings of the 'Hikoki CS36DL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

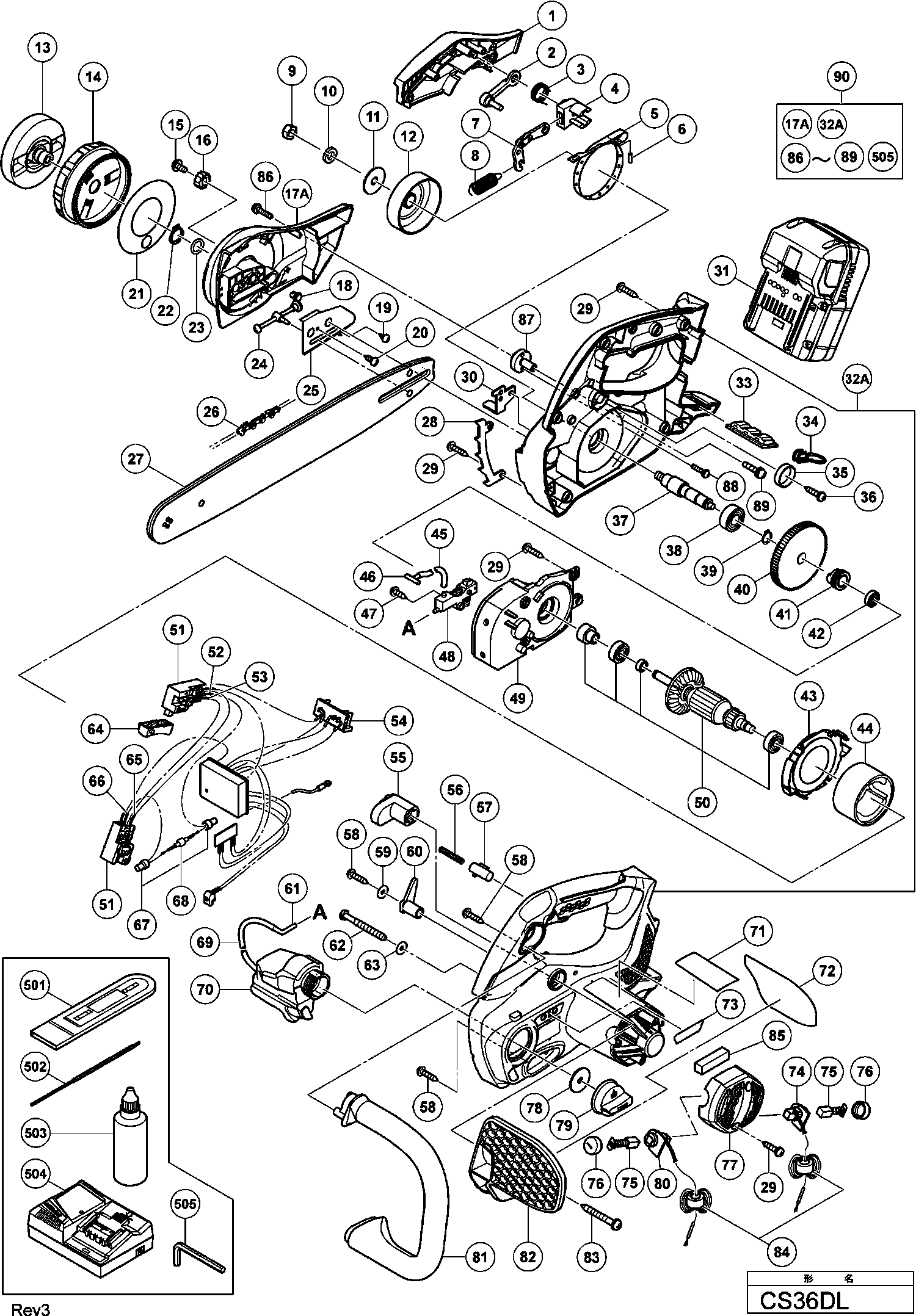

Technical drawing of model Hikoki CS36DL
Spare parts list of model Hikoki CS36DL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Brake Link Cover | ||||
| 1 | 335134 | 3.90 | 4.72 | |
| Brake Support Plate | ||||
| 2 | 6696782 | 4.20 | 5.08 | |
| Brake Lever Spring | ||||
| 3 | 6696783 | 1.20 | 1.45 | |
| Brake Link Holder | ||||
| 4 | 335135 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 5 | 6699013 | |||
| Needle Roller D3 | ||||
| 6 | 6685391 | 1.05 | 1.27 | |
| Brake Link | ||||
| 7 | 6685388 | 4.05 | 4.90 | |
| Brake Spring | ||||
| 8 | 6685389 | 1.05 | 1.27 | |
| Lock Nut (left Hand) M8 | ||||
| 9 | 335192 | 1.04 | 1.26 | |
| Super Lock Washer M8 Three-phase | ||||
| 10 | 957042 | 1.05 | 1.27 | |
| Side Plate | ||||
| 11 | 335139 | 1.04 | 1.26 | |
| Clutch Housing | ||||
| 12 | 6685403 | 10.20 | 12.34 | |
| Knob | ||||
| 13 | 335151 | 6.75 | 8.17 | |
| Tension Dial | ||||
| 14 | 335150 | 2.40 | 2.90 | |
| Machine Screw (w/washer) M4x8 (black) | ||||
| 15 | 315500 | 1.35 | 1.63 | |
| Gear | ||||
| 16 | 335152 | 1.35 | 1.63 | |
| Chain Side Cover | ||||
| 17A | 336347 | 6.15 | 7.44 | |
| Bevel Gear (1) | ||||
| 18 | 335156 | 3.00 | 3.63 | |
| Tapping Screw D3x6 | ||||
| 19 | 696352 | 1.13 | 1.36 | |
| Tapping Screw D3x12 (black) | ||||
| 20 | 334333 | 1.80 | 2.18 | |
| Dust Seal | ||||
| 21 | 335688 | 1.04 | 1.26 | |
| Spring Washer D14 (10 Pieces) | ||||
| 22 | 939543 | 2.55 | 3.09 | |
| O-ring (1ap-12) | ||||
| 23 | 996407 | 1.05 | 1.27 | |
| Chain Puller | ||||
| 24 | 335153 | 8.25 | 9.98 | |
| Guide Plate | ||||
| 25 | 335154 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 26 | 6697852 | |||
| No information available, not orderable | ||||
| 27 | 6696990 | |||
| No information available, not orderable | ||||
| 28 | 335142 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 29 | 301653 | 1.04 | 1.26 | |
| Chain Catcher | ||||
| 30 | 335155 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 31 | 334998 | |||
| No information available, not orderable | ||||
| 32A | 336348 | |||
| Rubber Cushion | ||||
| 33 | 332668 | 2.10 | 2.54 | |
| Hook (1) | ||||
| 34 | 6698696 | 2.10 | 2.54 | |
| Link Sleeve | ||||
| 35 | 335690 | 1.50 | 1.82 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 36 | 301653 | 1.04 | 1.26 | |
| Spindle Ass'y | ||||
| 37 | 335137 | 5.40 | 6.53 | |
| Ball Bearing 6001vv | ||||
| 38 | 6001VV | 6.60 | 7.99 | |
| Spring Washer D12 (10 pieces) | ||||
| 39 | 939542 | 1.50 | 1.82 | |
| Gear | ||||
| 40 | 335138 | 12.90 | 15.61 | |
| Worm | ||||
| 41 | 6696886 | 7.28 | 8.80 | |
| Ball Bearing 606vv | ||||
| 42 | 606ZZM | 15.40 | 18.63 | |
| Fan Guide | ||||
| 43 | 335140 | 3.90 | 4.72 | |
| Magnet | ||||
| 44 | 323156 | 24.68 | 29.86 | |
| Urethane Tube 130l | ||||
| 45 | 335148 | 1.04 | 1.26 | |
| Nozzle | ||||
| 46 | 335147 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 47 | 301653 | 1.04 | 1.26 | |
| Oil Pump | ||||
| 48 | 6696887 | 24.68 | 29.86 | |
| Covering hood | ||||
| 49 | 335136 | 4.65 | 5.63 | |
| Armature And Pinion Set | ||||
| 50 | 360948 | 40.01 | 48.42 | |
| Switch | ||||
| 51 | 335124 | 15.40 | 18.63 | |
| No information available, not orderable | ||||
| 52 | 335687 | |||
| INTERNAL WIRE (RED) L490 | ||||
| 53 | 335694 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 54 | 335128 | |||
| Brake Lever | ||||
| 55 | 335132 | 1.04 | 1.26 | |
| Spring | ||||
| 56 | 314429 | 1.04 | 1.26 | |
| Lock Button | ||||
| 57 | 331682 | 1.80 | 2.18 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 58 | 301653 | 1.04 | 1.26 | |
| Closing Washer (b) (old 976448) | ||||
| 59 | 962569 | 1.05 | 1.27 | |
| SWITCH SLIDER | ||||
| 60 | 335133 | 1.04 | 1.26 | |
| Oil Pipe | ||||
| 61 | 335146 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D4x45 | ||||
| 62 | 981824 | 1.05 | 1.27 | |
| RING (B) | ||||
| 63 | 319956 | 1.26 | 1.52 | |
| Trigger | ||||
| 64 | 335125 | 1.04 | 1.26 | |
| INTERNAL WIRE (BROWN) L165 | ||||
| 65 | 335695 | 1.00 | 1.21 | |
| INTERNAL WIRE (BLACK) L120 | ||||
| 66 | 335696 | 1.00 | 1.21 | |
| Connector 50092 (10 Pcs.) | ||||
| 67 | 959141 | 3.75 | 4.54 | |
| Diode | ||||
| 68 | 335689 | 1.50 | 1.82 | |
| Urethane Tube 95l | ||||
| 69 | 335145 | 1.04 | 1.26 | |
| Oil Tank | ||||
| 70 | 335143 | 3.00 | 3.63 | |
| CAUTION LABEL (EX) | ||||
| 72 | 335692 | 1.62 | 1.96 | |
| PANEL SHEET | ||||
| 73 | 335697 | 1.26 | 1.52 | |
| Brush Holder | ||||
| 74 | 335699 | 2.40 | 2.90 | |
| Carbon Brush (1 Pair) | ||||
| 75 | 999068 | 4.73 | 5.72 | |
| Brush Cap | ||||
| 76 | 319847 | 1.65 | 2.00 | |
| Tail Cover | ||||
| 77 | 335141 | 1.65 | 2.00 | |
| Tank Cap Packing | ||||
| 78 | 335691 | 1.04 | 1.26 | |
| Tank Cap | ||||
| 79 | 335144 | 1.04 | 1.26 | |
| Brush Holder | ||||
| 80 | 335698 | 2.40 | 2.90 | |
| Front Handle | ||||
| 81 | 335130 | 3.75 | 4.54 | |
| Brake Handle | ||||
| 82 | 335131 | 4.95 | 5.99 | |
| Tapping Screw (w/flange) D5x45 | ||||
| 83 | 316321 | 1.65 | 2.00 | |
| Ferrite Core Except For Sin,mal,uae | ||||
| 84 | 334379 | 4.65 | 5.63 | |
| Sponge (a) | ||||
| 85 | 335867 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt (w/flange) M5x20 | ||||
| 86 | 336349 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 87 | 336350 | |||
| Machine Screw (w/washers) M4x10 (black) | ||||
| 88 | 304043 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M5x10 (black) | ||||
| 89 | 336342 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 6699116 | |||
| No information available, not orderable | ||||
| 502 | 6698688 | |||
| No information available, not orderable | ||||
| 503 | 957681 | |||
| No information available, not orderable | ||||
| 505 | 944458 | |||
