Here you will find all available parts and drawings of the 'Hikoki CS3635DB'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

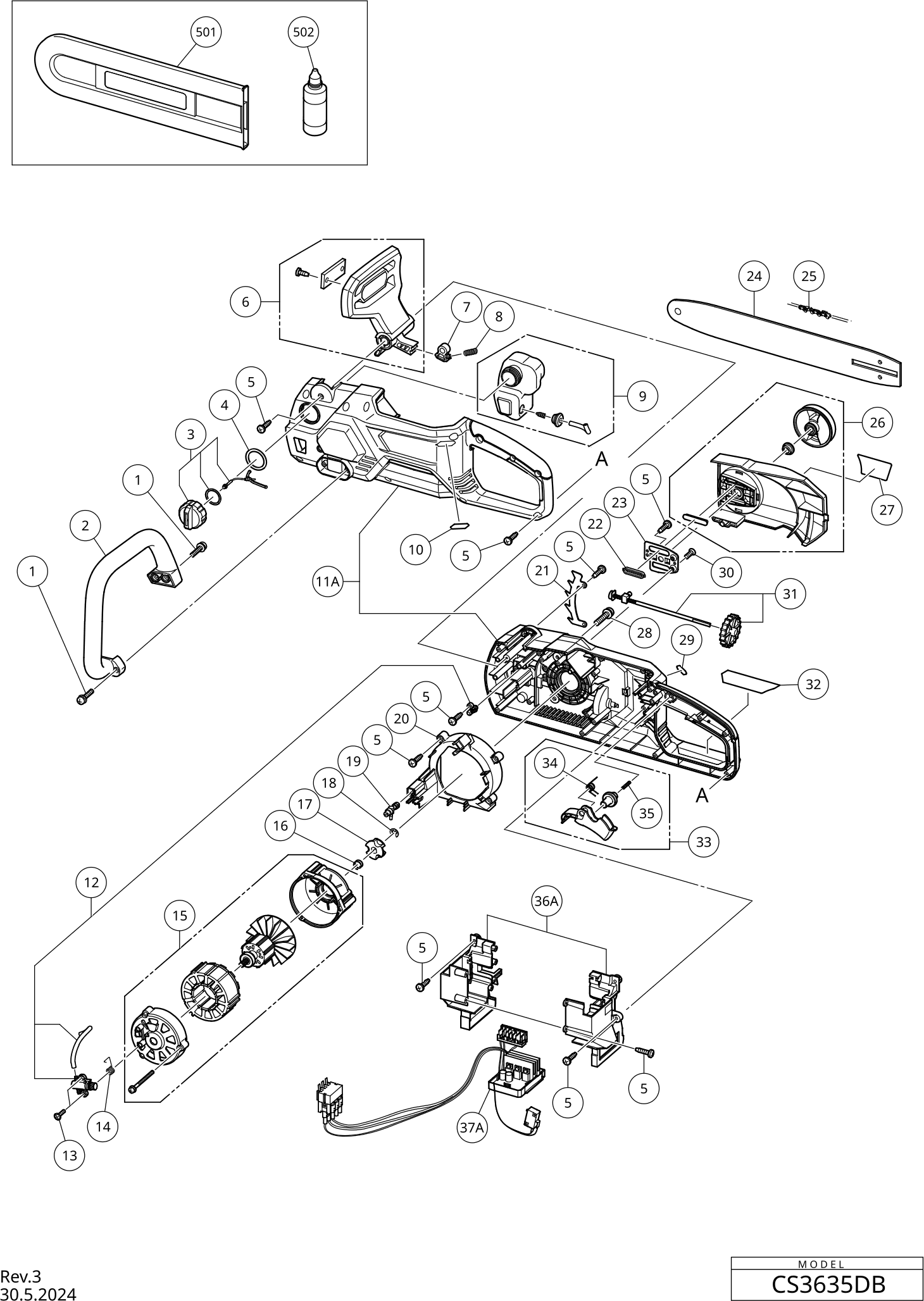

Technical drawing of model Hikoki CS3635DB
Spare parts list of model Hikoki CS3635DB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| TAPSCHROEF D4X18 (MET RING) | ||||
| 1 | 377208 | 1.00 | 1.21 | |
| BEUGELGREEP | ||||
| 2 | 377204 | 2.34 | 2.83 | |
| TANKDOP | ||||
| 3 | 377185 | 6.60 | 7.99 | |
| Rubber Ring | ||||
| 4 | 338803 | 1.04 | 1.26 | |
| TAPSCHROEF D4X16 | ||||
| 5 | 377205 | 1.00 | 1.21 | |
| HANDGREEP VOOR HANDREM | ||||
| 6 | 377190 | 8.82 | 10.67 | |
| HANDREM | ||||
| 7 | 377199 | 1.00 | 1.21 | |
| VEER | ||||
| 8 | 377198 | 1.80 | 2.18 | |
| OLIETANK | ||||
| 9 | 377184 | 4.38 | 5.30 | |
| MV LABEL (A) | ||||
| 10 | 373913 | 1.04 | 1.26 | |
| BEHUIZING (OUD 377183) | ||||
| 11A | 381418 | 55.72 | 67.42 | |
| PUMP CONNECTOR SET | ||||
| 12 | 377186 | 3.12 | 3.78 | |
| TAPSCHROEF D3X12 (MET RING) | ||||
| 13 | 377193 | 1.00 | 1.21 | |
| Extension Spring | ||||
| 14 | 338821 | 1.04 | 1.26 | |
| MOTOR SET | ||||
| 15 | 377187 | 99.99 | 120.99 | |
| Spring | ||||
| 16 | 338798 | 1.04 | 1.26 | |
| Sprocket | ||||
| 17 | 338799 | 3.00 | 3.63 | |
| Washer Spring | ||||
| 18 | 974577 | 1.05 | 1.27 | |
| Adjusting Bolt | ||||
| 19 | 335967 | 3.30 | 3.99 | |
| WAAIERKAP | ||||
| 20 | 377194 | 5.34 | 6.46 | |
| Spike | ||||
| 21 | 338797 | 1.50 | 1.82 | |
| AFDICHTRING | ||||
| 22 | 377201 | 2.34 | 2.83 | |
| ISOLATIEBEUGEL | ||||
| 23 | 377202 | 2.34 | 2.83 | |
| KETTINGZWAARD 14" | ||||
| 24 | 377209 | 33.99 | 41.13 | |
| No information available, not orderable | ||||
| 25 | 377212 | |||
| KETTINGBESCHERMKAP | ||||
| 26 | 377192 | 28.10 | 34.00 | |
| TAPSCHROEF D5X25 (MET RING) | ||||
| 28 | 377200 | 4.38 | 5.30 | |
| MV LABEL (B) | ||||
| 29 | 373914 | 1.04 | 1.26 | |
| SCHROEF M4X12 | ||||
| 30 | 377203 | 1.00 | 1.21 | |
| KETTINGSPANNER | ||||
| 31 | 377191 | 6.60 | 7.99 | |
| SCHAKELKNOP | ||||
| 33 | 377189 | 4.38 | 5.30 | |
| VEER | ||||
| 34 | 377197 | 1.00 | 1.21 | |
| ONTGRENDELVEER | ||||
| 35 | 377196 | 4.38 | 5.30 | |
| BATTERIJ CONTACTPUNT HOUDER SET (OUD 377188) | ||||
| 36A | 381419 | 14.24 | 17.23 | |
| REGELUNIT (OUD 377195) | ||||
| 37A | 381420 | 12.43 | 15.04 | |
| KETTINGBESCHERMER 14" | ||||
| 501 | 377210 | 3.24 | 3.92 | |
| No information available, not orderable | ||||
| 601 | 957681 | |||
