Here you will find all available parts and drawings of the 'Hikoki CS3630DC'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

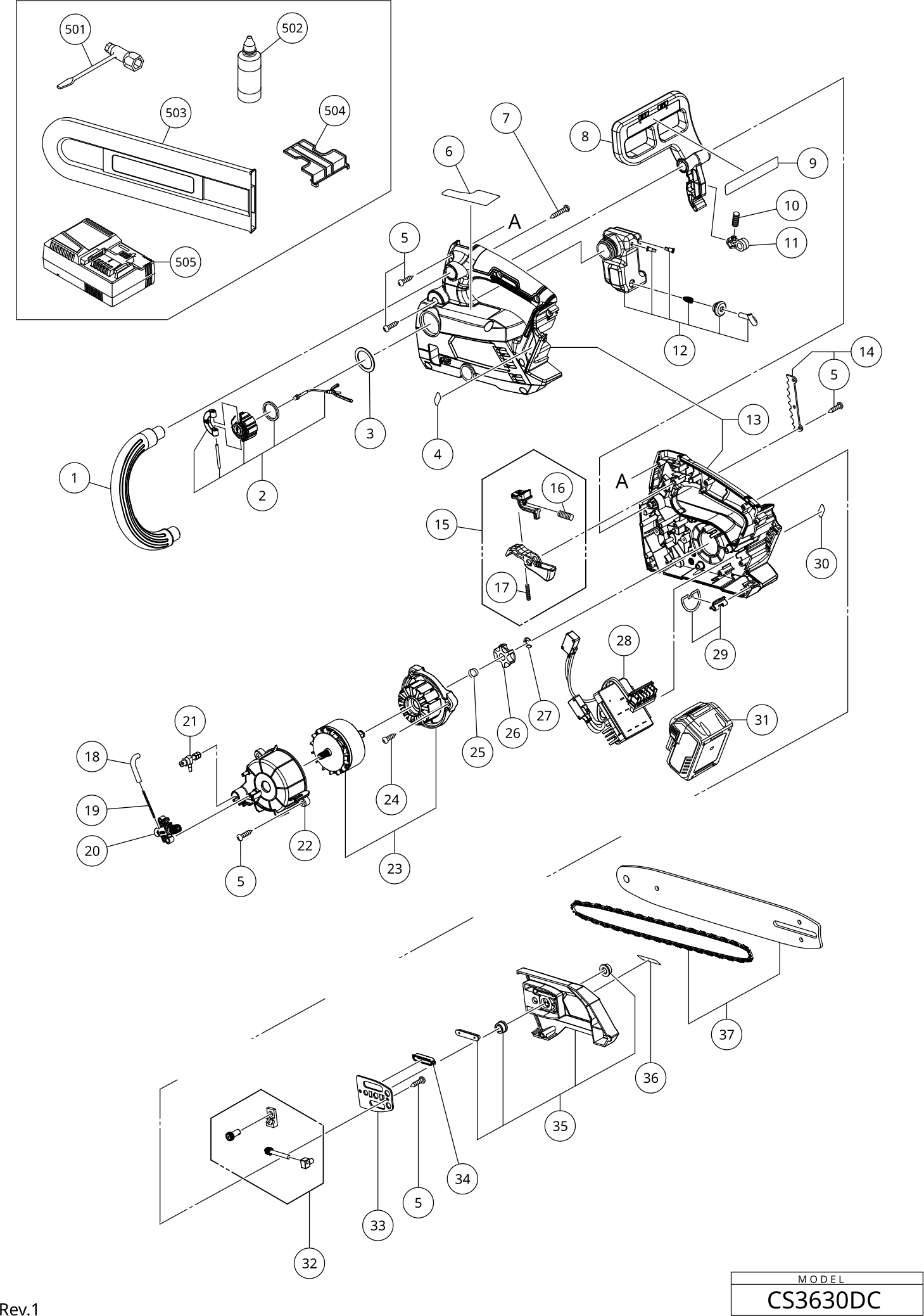

Technical drawing of model Hikoki CS3630DC
Spare parts list of model Hikoki CS3630DC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| FRONT HANDLE NEW | ||||
| 1 | 380009 | 8.94 | 10.82 | |
| TANK CAP SET NEW | ||||
| 2 | 380003 | 6.66 | 8.06 | |
| Rubber Ring | ||||
| 3 | 338803 | 1.04 | 1.26 | |
| MV LABEL (A) (2) NEW | ||||
| 4 | 379349 | 1.00 | 1.21 | |
| TAPSCHROEF D4X16 | ||||
| 5 | 377205 | 1.00 | 1.21 | |
| TAPPING SCREW D4X25 NEW | ||||
| 7 | 380010 | 1.00 | 1.21 | |
| BRAKE HANDLE NEW | ||||
| 8 | 380011 | 8.10 | 9.80 | |
| STOPPER SPRING NEW | ||||
| 10 | 380013 | 1.00 | 1.21 | |
| BRAKE STOPPER NEW | ||||
| 11 | 380012 | 1.00 | 1.21 | |
| OIL TANK SET NEW | ||||
| 12 | 380002 | 4.92 | 5.95 | |
| HOUSING SET NEW | ||||
| 13 | 380001 | 44.50 | 53.84 | |
| SPIKE SET NEW | ||||
| 14 | 379897 | 3.78 | 4.57 | |
| TRIGGER ASS'Y NEW | ||||
| 15 | 380004 | 4.26 | 5.15 | |
| LEVER SPRING NEW | ||||
| 16 | 380014 | 2.28 | 2.76 | |
| TRIGGER SPRING NEW | ||||
| 17 | 380015 | 2.28 | 2.76 | |
| OIL PIPE (B) NEW | ||||
| 18 | 380018 | 3.66 | 4.43 | |
| SPRING NEW | ||||
| 19 | 380022 | 1.00 | 1.21 | |
| OIL PUMP NEW | ||||
| 20 | 380017 | 18.20 | 22.02 | |
| Adjusting Bolt | ||||
| 21 | 335967 | 3.30 | 3.99 | |
| FAN COVER NEW | ||||
| 22 | 380019 | 4.92 | 5.95 | |
| MOTOR SET (36V) NEW | ||||
| 23 | 380068 | 103.07 | 124.71 | |
| TAPPING SCREW D5X14 NEW | ||||
| 24 | 380020 | 1.00 | 1.21 | |
| Spring | ||||
| 25 | 338798 | 1.04 | 1.26 | |
| Sprocket | ||||
| 26 | 338799 | 3.00 | 3.63 | |
| Washer Spring | ||||
| 27 | 974577 | 1.05 | 1.27 | |
| CONTROLLER (36V) NEW | ||||
| 28 | 380069 | 103.07 | 124.71 | |
| HOOK SET NEW | ||||
| 29 | 380005 | 5.40 | 6.53 | |
| MV LABEL (B) (2) NEW | ||||
| 30 | 379350 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 31 | 371750 | |||
| CHAIN PULLER SET NEW | ||||
| 32 | 380006 | 155.65 | 188.34 | |
| INSULATION BRACKET NEW | ||||
| 33 | 380021 | 2.28 | 2.76 | |
| AFDICHTRING | ||||
| 34 | 377201 | 2.34 | 2.83 | |
| SIDE COVER SET NEW | ||||
| 35 | 380007 | 14.19 | 17.17 | |
| No information available, not orderable | ||||
| 37 | 380067 | |||
| No information available, not orderable | ||||
| 501 | 6698582 | |||
| KETTINGBESCHERMER 12" | ||||
| 503 | 377207 | 3.24 | 3.92 | |
| Battery Cover | ||||
| 504 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 601 | 957681 | |||
| DEPTH GAGE | ||||
| 602 | 6697724 | 2.82 | 3.41 | |
