Here you will find all available parts and drawings of the 'Hikoki CS3630DA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

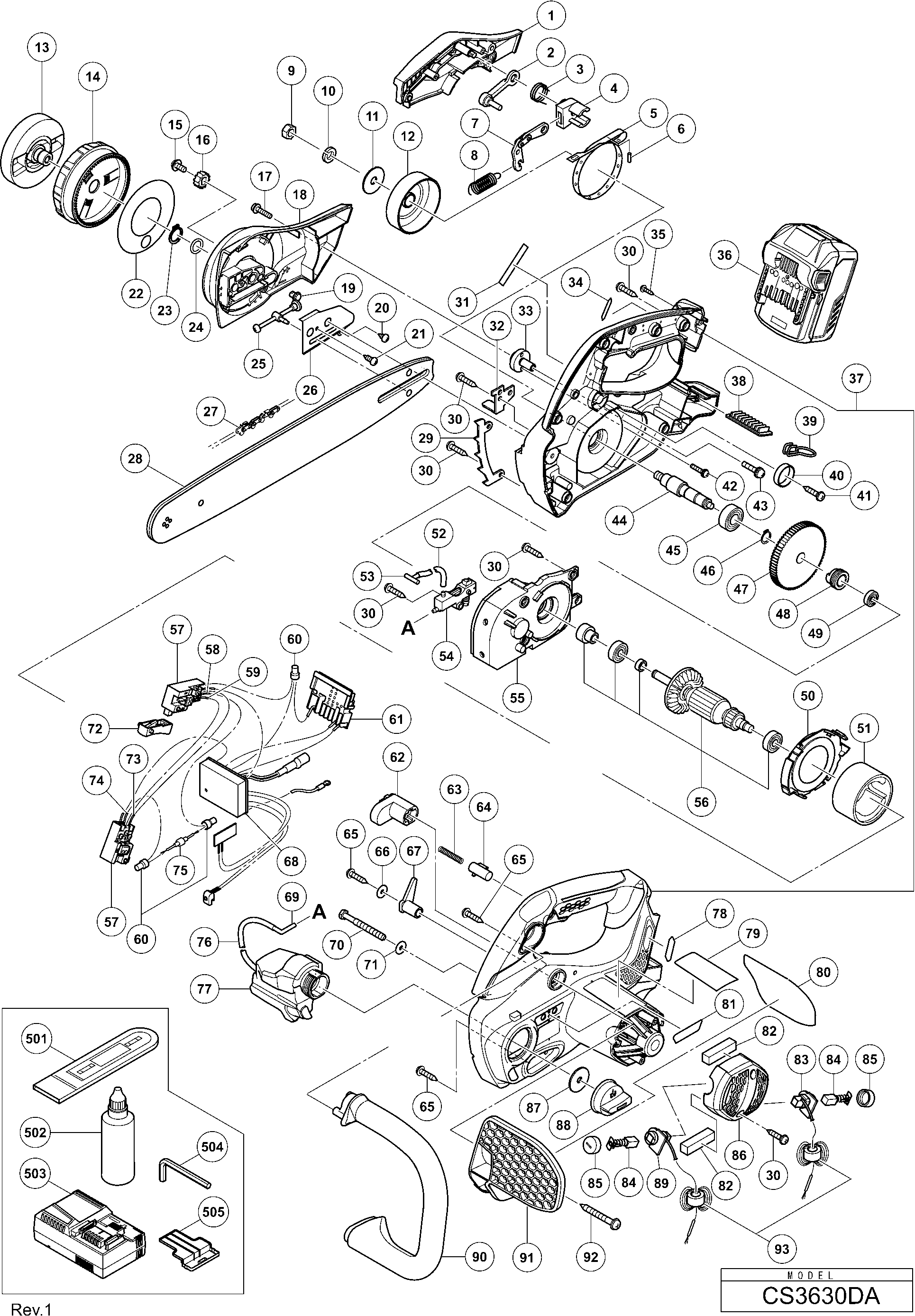

Technical drawing of model Hikoki CS3630DA
Spare parts list of model Hikoki CS3630DA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Brush Holder | ||||
| *83 | 335698 | 2.40 | 2.90 | |
| Brush Holder | ||||
| *89 | 335699 | 2.40 | 2.90 | |
| Brake Link Cover | ||||
| 1 | 335134 | 3.90 | 4.72 | |
| Brake Support Plate | ||||
| 2 | 6696782 | 4.20 | 5.08 | |
| Brake Lever Spring | ||||
| 3 | 6696783 | 1.20 | 1.45 | |
| Brake Link Holder | ||||
| 4 | 335135 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 5 | 6699013 | |||
| Needle Roller D3 | ||||
| 6 | 6685391 | 1.05 | 1.27 | |
| Brake Link | ||||
| 7 | 6685388 | 4.05 | 4.90 | |
| Brake Spring | ||||
| 8 | 6685389 | 1.05 | 1.27 | |
| Lock Nut (left Hand) M8 | ||||
| 9 | 335192 | 1.04 | 1.26 | |
| Super Lock Washer M8 Three-phase | ||||
| 10 | 957042 | 1.05 | 1.27 | |
| Side Plate | ||||
| 11 | 335139 | 1.04 | 1.26 | |
| Clutch Housing | ||||
| 12 | 6685403 | 10.20 | 12.34 | |
| Knob | ||||
| 13 | 335151 | 6.75 | 8.17 | |
| Tension Dial | ||||
| 14 | 335150 | 2.40 | 2.90 | |
| Machine Screw (w/washer) M4x8 (black) | ||||
| 15 | 315500 | 1.35 | 1.63 | |
| Gear | ||||
| 16 | 335152 | 1.35 | 1.63 | |
| Hex. Socket Hd. Bolt (w/flange) M5x20 | ||||
| 17 | 336349 | 1.04 | 1.26 | |
| Chain Side Cover | ||||
| 18 | 336347 | 6.15 | 7.44 | |
| Bevel Gear (1) | ||||
| 19 | 335156 | 3.00 | 3.63 | |
| Tapping Screw D3x6 | ||||
| 20 | 696352 | 1.13 | 1.36 | |
| TAPSCHROEF D3X12 | ||||
| 21 | 370905 | 82.50 | 99.82 | |
| Dust Seal | ||||
| 22 | 335688 | 1.04 | 1.26 | |
| Spring Washer D14 (10 Pieces) | ||||
| 23 | 939543 | 2.55 | 3.09 | |
| O-ring (1ap-12) | ||||
| 24 | 996407 | 1.05 | 1.27 | |
| Chain Puller | ||||
| 25 | 335153 | 8.25 | 9.98 | |
| Guide Plate | ||||
| 26 | 335154 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 27 | 6697852 | |||
| No information available, not orderable | ||||
| 28 | 6696990 | |||
| No information available, not orderable | ||||
| 29 | 335142 | |||
| Tapping Screw (w/flange) D4x20 | ||||
| 30 | 339250 | 1.04 | 1.26 | |
| Chain Catcher | ||||
| 32 | 335155 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 33 | 336350 | |||
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 35 | 313687 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 36 | 371750 | |||
| HOUSING HANDLE COVER SET NEW | ||||
| 37 | 373112 | 40.70 | 49.25 | |
| HOUSING HANDLE COVER SET NEW | ||||
| 37A | 373112 | 40.70 | 49.25 | |
| Battery Rubber (b) | ||||
| 38 | 370328 | 1.95 | 2.36 | |
| Hook (1) | ||||
| 39 | 6698696 | 2.10 | 2.54 | |
| Link Sleeve | ||||
| 40 | 335690 | 1.50 | 1.82 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 41 | 301653 | 1.04 | 1.26 | |
| Machine Screw (w/washers) M4x10 (black) | ||||
| 42 | 304043 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M5x10 (black) | ||||
| 43 | 336342 | 1.04 | 1.26 | |
| Spindle Ass'y | ||||
| 44 | 335137 | 5.40 | 6.53 | |
| Ball Bearing 6001vv | ||||
| 45 | 6001VV | 6.60 | 7.99 | |
| Spring Washer D12 (10 pieces) | ||||
| 46 | 939542 | 1.50 | 1.82 | |
| Gear | ||||
| 47 | 335138 | 12.90 | 15.61 | |
| Worm | ||||
| 48 | 6696886 | 7.28 | 8.80 | |
| Ball Bearing 606vv | ||||
| 49 | 606ZZM | 15.40 | 18.63 | |
| Fan Guide | ||||
| 50 | 335140 | 3.90 | 4.72 | |
| Magnet | ||||
| 51 | 323156 | 24.68 | 29.86 | |
| Urethane Tube 130l | ||||
| 52 | 335148 | 1.04 | 1.26 | |
| Nozzle | ||||
| 53 | 335147 | 1.04 | 1.26 | |
| Oil Pump | ||||
| 54 | 6696887 | 24.68 | 29.86 | |
| Covering hood | ||||
| 55 | 335136 | 4.65 | 5.63 | |
| Armature And Pinion Set | ||||
| 56 | 360948 | 40.01 | 48.42 | |
| Switch | ||||
| 57 | 335124 | 15.40 | 18.63 | |
| No information available, not orderable | ||||
| 58 | 335687 | |||
| INTERNAL WIRE (RED) L490 | ||||
| 59 | 335694 | 1.00 | 1.21 | |
| Connector 50092 (10 Pcs.) | ||||
| 60 | 959141 | 3.75 | 4.54 | |
| BATTERY TERMINAL | ||||
| 61 | 372228 | 8.25 | 9.98 | |
| Brake Lever | ||||
| 62 | 335132 | 1.04 | 1.26 | |
| Spring | ||||
| 63 | 314429 | 1.04 | 1.26 | |
| Lock Button | ||||
| 64 | 331682 | 1.80 | 2.18 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 65 | 301653 | 1.04 | 1.26 | |
| RING (B) | ||||
| 66 | 319956 | 1.26 | 1.52 | |
| SWITCH SLIDER | ||||
| 67 | 335133 | 1.04 | 1.26 | |
| CONTROLLER TERMINAL SET NEW | ||||
| 68 | 373111 | 57.75 | 69.88 | |
| Oil Pipe | ||||
| 69 | 335146 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D4x45 | ||||
| 70 | 981824 | 1.05 | 1.27 | |
| RING (B) | ||||
| 71 | 319956 | 1.26 | 1.52 | |
| Trigger | ||||
| 72 | 335125 | 1.04 | 1.26 | |
| INTERNAL WIRE (BROWN) L165 | ||||
| 73 | 335695 | 1.00 | 1.21 | |
| INTERNAL WIRE (BLACK) L120 | ||||
| 74 | 335696 | 1.00 | 1.21 | |
| Diode | ||||
| 75 | 335689 | 1.50 | 1.82 | |
| Urethane Tube 95l | ||||
| 76 | 335145 | 1.04 | 1.26 | |
| Oil Tank | ||||
| 77 | 335143 | 3.00 | 3.63 | |
| CAUTION LABEL (EX) | ||||
| 80 | 335692 | 1.62 | 1.96 | |
| Sponge (a) | ||||
| 82 | 335867 | 1.04 | 1.26 | |
| Brush Holder | ||||
| 83 | 335698 | 2.40 | 2.90 | |
| Carbon Brush (1 Pair) | ||||
| 84 | 999068 | 4.73 | 5.72 | |
| Brush Cap | ||||
| 85 | 319847 | 1.65 | 2.00 | |
| Tail Cover | ||||
| 86 | 335141 | 1.65 | 2.00 | |
| Tank Cap Packing | ||||
| 87 | 335691 | 1.04 | 1.26 | |
| Tank Cap | ||||
| 88 | 335144 | 1.04 | 1.26 | |
| Brush Holder | ||||
| 89 | 335699 | 2.40 | 2.90 | |
| Front Handle | ||||
| 90 | 335130 | 3.75 | 4.54 | |
| Brake Handle | ||||
| 91 | 335131 | 4.95 | 5.99 | |
| Tapping Screw (w/flange) D5x45 | ||||
| 92 | 316321 | 1.65 | 2.00 | |
| Ferrite Core Except For Sin,mal,uae | ||||
| 93 | 334379 | 4.65 | 5.63 | |
| No information available, not orderable | ||||
| 501 | 6699116 | |||
| No information available, not orderable | ||||
| 501A | 6685439 | |||
| No information available, not orderable | ||||
| 504 | 944458 | |||
| Battery Cover | ||||
| 505 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 601 | 957681 | |||
