Here you will find all available parts and drawings of the 'Hikoki CS35Y'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

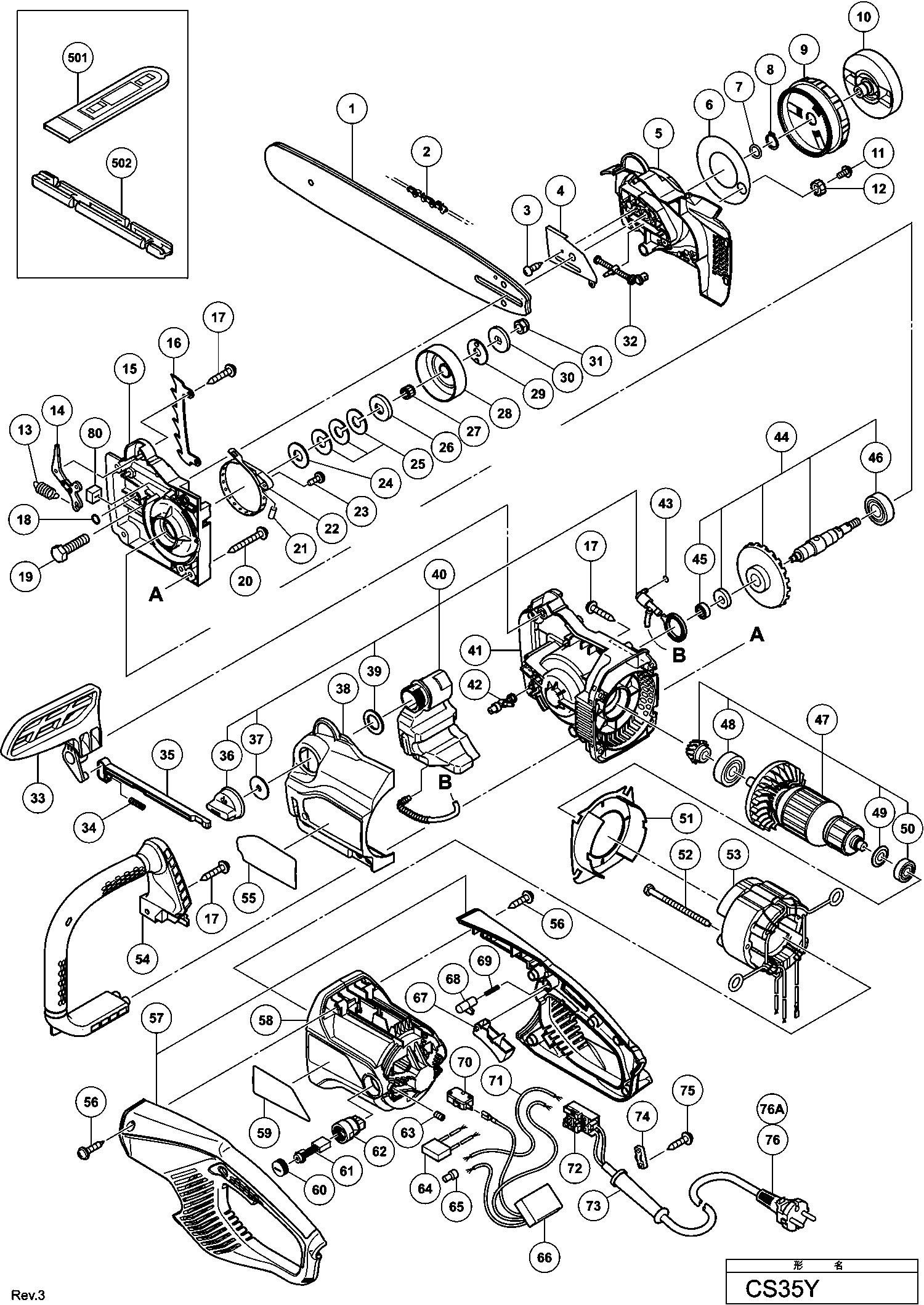

Technical drawing of model Hikoki CS35Y
Spare parts list of model Hikoki CS35Y
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature And Pinion Set 220-230v | ||||
| *47 | 360957E | 55.69 | 67.38 | |
| Stator 220v-230v | ||||
| *53 | 340864E | 37.81 | 45.75 | |
| VELD 110 VOLT | ||||
| *53 | 340864C | 19.36 | 23.43 | |
| Carbon Brush (1 Pair) | ||||
| *61 | 999065 | 7.95 | 9.62 | |
| Controller 100v-127v | ||||
| *66 | 335454 | 31.63 | 38.27 | |
| Controller 200v-240v | ||||
| *66 | 335455 | 25.44 | 30.78 | |
| Cord Armor D10.1 | ||||
| *73 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *76 | 335495 | |||
| Cord (hol) L5030 For Rus | ||||
| *76A | 337723 | 13.80 | 16.70 | |
| Cord (hol) | ||||
| *76A | 337722 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 1 | 6696991 | |||
| No information available, not orderable | ||||
| 2 | 6697854 | |||
| Tapping Screw D3x6 | ||||
| 3 | 696352 | 1.13 | 1.36 | |
| Guide Plate | ||||
| 4 | 335471 | 1.04 | 1.26 | |
| Side Cover (r) | ||||
| 5 | 335470 | 1.04 | 1.26 | |
| Dust Seal | ||||
| 6 | 335688 | 1.04 | 1.26 | |
| O-ring (1ap-12) | ||||
| 7 | 996407 | 1.05 | 1.27 | |
| Spring Washer D14 (10 Pieces) | ||||
| 8 | 939543 | 2.55 | 3.09 | |
| Tension Dial | ||||
| 9 | 335150 | 2.40 | 2.90 | |
| Knob | ||||
| 10 | 335151 | 6.75 | 8.17 | |
| Machine Screw (w/washer) M4x8 (black) | ||||
| 11 | 315500 | 1.35 | 1.63 | |
| Gear | ||||
| 12 | 335152 | 1.35 | 1.63 | |
| Brake Spring | ||||
| 13 | 6685389 | 1.05 | 1.27 | |
| Brake Link | ||||
| 14 | 6698587 | 4.65 | 5.63 | |
| Inner Cover | ||||
| 15 | 335472 | 12.90 | 15.61 | |
| Spike Bar | ||||
| 16 | 335482 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 17 | 305558 | 1.04 | 1.26 | |
| O-ring (s-6) | ||||
| 18 | 997218 | 1.05 | 1.27 | |
| Bolt M8x35 (10 Pcs.) | ||||
| 19 | 949678 | 2.55 | 3.09 | |
| No longer available, no replacement | ||||
| 20 | 325336 | |||
| Needle Roller D3 | ||||
| 21 | 6685391 | 1.05 | 1.27 | |
| Brake Band | ||||
| 22 | 6685390 | 4.05 | 4.90 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 23 | 935196 | 1.04 | 1.26 | |
| Washer (e) | ||||
| 24 | 335484 | 1.04 | 1.26 | |
| Washer Spring | ||||
| 25 | 335485 | 1.04 | 1.26 | |
| Washer (b) | ||||
| 26 | 335486 | 3.15 | 3.81 | |
| Needle-roller Bearing | ||||
| 27 | 6685361 | 4.05 | 4.90 | |
| Clutch Housing | ||||
| 28 | 6685403 | 10.20 | 12.34 | |
| Washer (c) | ||||
| 29 | 335487 | 1.04 | 1.26 | |
| Washer (d) | ||||
| 30 | 335488 | 1.60 | 1.94 | |
| No information available, not orderable | ||||
| 31 | 975348 | |||
| Chain Puller | ||||
| 32 | 335966 | 6.15 | 7.44 | |
| Brake Handle | ||||
| 33 | 335479 | 2.70 | 3.27 | |
| Spring (c) | ||||
| 34 | 335483 | 1.04 | 1.26 | |
| Slide Bar | ||||
| 35 | 335480 | 1.04 | 1.26 | |
| Tank Cap | ||||
| 36 | 335144 | 1.04 | 1.26 | |
| Tank Cap Packing | ||||
| 37 | 335691 | 1.04 | 1.26 | |
| Side Cover (l) | ||||
| 38 | 335477 | 4.05 | 4.90 | |
| Gasket | ||||
| 39 | 335490 | 1.04 | 1.26 | |
| Oil Pump Ass'y Includ.36,37,39 | ||||
| 40 | 335474 | 10.35 | 12.52 | |
| Gear Cover | ||||
| 41 | 335476 | 10.65 | 12.89 | |
| Adjusting Bolt | ||||
| 42 | 335967 | 3.30 | 3.99 | |
| O-RING (S-4) | ||||
| 43 | 981317 | 1.05 | 1.27 | |
| Spindle Gear Ass'y Includ.45,46 | ||||
| 44 | 335473 | 18.43 | 22.29 | |
| Ball Bearing 606vv | ||||
| 45 | 606ZZM | 15.40 | 18.63 | |
| Ball Bearing 6202vvcmps2l | ||||
| 46 | 6202VV | 7.05 | 8.53 | |
| Armature And Pinion Set 220-230v | ||||
| 47 | 360957E | 55.69 | 67.38 | |
| Ball Bearing 6301vvcmps2l | ||||
| 48 | 6301VV | 8.55 | 10.35 | |
| Ring | ||||
| 49 | 302428 | 1.04 | 1.26 | |
| Ball Bearing 6000vvcmps2l | ||||
| 50 | 6000VV | 6.15 | 7.44 | |
| Fan Guide | ||||
| 51 | 335481 | 1.04 | 1.26 | |
| Hex. Hd. Tapping Screw D5x50 | ||||
| 52 | 953121 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 53 | 340864E | 37.81 | 45.75 | |
| VELD 110 VOLT | ||||
| 53 | 340864C | 19.36 | 23.43 | |
| Front Handle | ||||
| 54 | 335478 | 11.55 | 13.98 | |
| Caution Label | ||||
| 55 | 335466 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 56 | 307811 | |||
| Handle Cover | ||||
| 57 | 335475 | 15.40 | 18.63 | |
| Handle Cover | ||||
| 57A | 335475 | 15.40 | 18.63 | |
| Housing | ||||
| 58 | 335469 | 14.55 | 17.61 | |
| Brush Cap | ||||
| 60 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 61 | 999038 | 9.30 | 11.25 | |
| Carbon Brush (1 Pair) | ||||
| 61 | 999065 | 7.95 | 9.62 | |
| Brush Holder | ||||
| 62 | 938241 | 6.45 | 7.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 63 | 938477 | 1.05 | 1.27 | |
| Noise Suppressor | ||||
| 64 | 335462 | 1.04 | 1.26 | |
| Connector 50092 (10 Pcs.) | ||||
| 65 | 959141 | 3.75 | 4.54 | |
| Controller 100v-127v | ||||
| 66 | 335454 | 31.63 | 38.27 | |
| Controller 200v-240v | ||||
| 66 | 335455 | 25.44 | 30.78 | |
| Trigger | ||||
| 67 | 335463 | 1.04 | 1.26 | |
| Off Lock Button | ||||
| 68 | 335464 | 1.04 | 1.26 | |
| Spring (a) | ||||
| 69 | 335465 | 1.04 | 1.26 | |
| Micro Switch | ||||
| 70 | 335460 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 71 | 335461 | |||
| Switch | ||||
| 72 | 335453 | 13.20 | 15.97 | |
| Cord Armor D10.1 | ||||
| 73 | 938051 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 74 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 75 | 984750 | |||
| CORD (UK) 230V | ||||
| 76 | 335492 | 11.40 | 13.79 | |
| Cord (hol) L5030 For Rus | ||||
| 76A | 337723 | 13.80 | 16.70 | |
| Cord (hol) | ||||
| 76A | 337722 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 501 | 6699116 | |||
| No information available, not orderable | ||||
| 501A | 6685439 | |||
| Plug Clip Except For Rus | ||||
| 502 | 309686 | 4.05 | 4.90 | |
