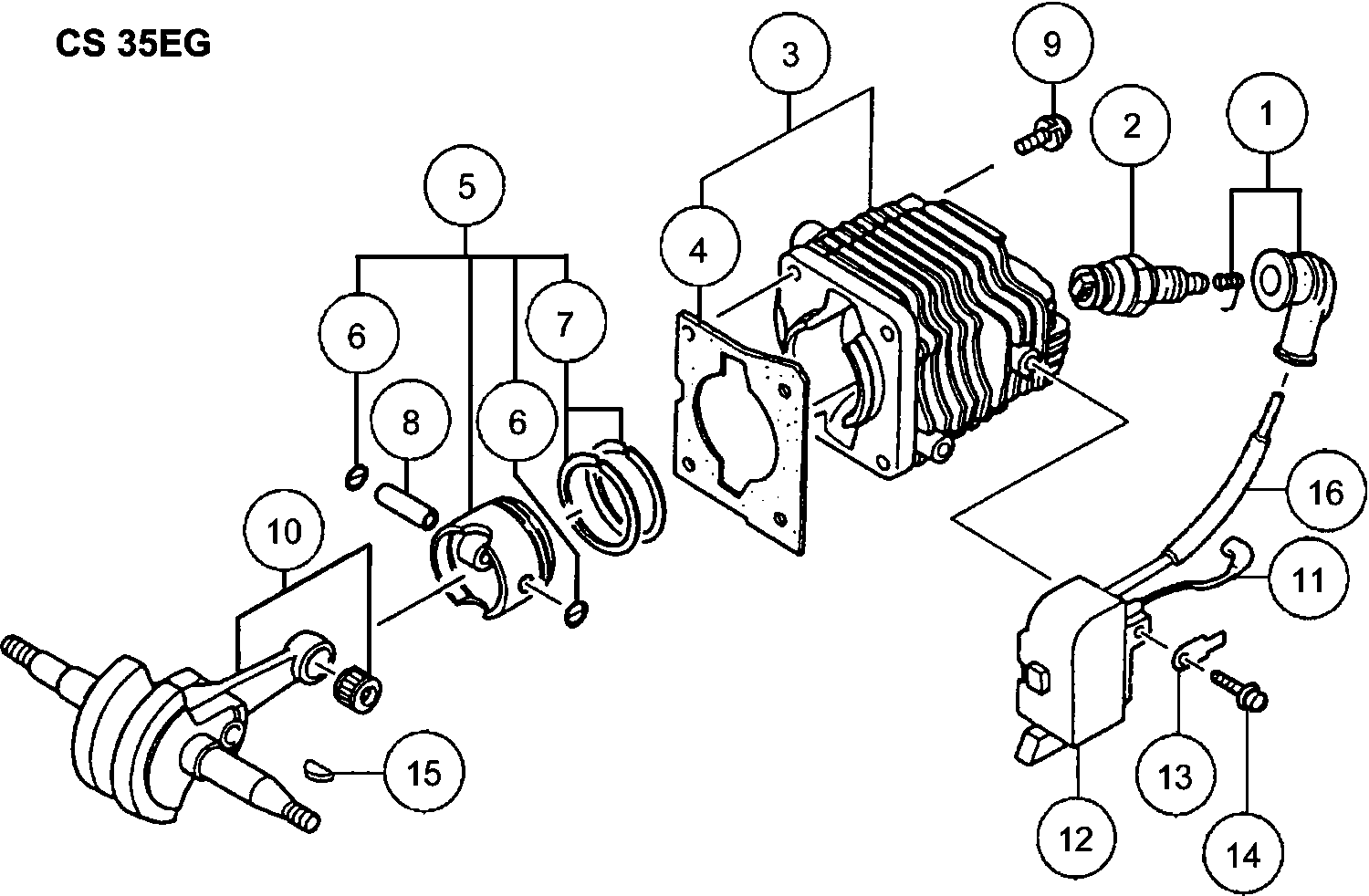

Technical drawing of model Hikoki CS35EG

Spare parts list of model Hikoki CS35EG

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Spark Plug Cap Ass'y Till G165840
1 6687468 2.31 2.80
Spark Plug BMR6A
2 6699315 13.35 16.15
Spark Plug Ass'y Rcj8 For Bra
2 6699327 3.30 3.99
Cylinder Set
3 6685457 44.31 53.62
Cylinder Gasket
4 6685724 1.15 1.39
Piston Set (old 030-01741-90)
5 6685879 22.24 26.91
Circlip
6 6685078 1.15 1.39
Piston Ring (xr1-1856)
7 6685331 4.05 4.90
Piston Pin
8 6686008 2.31 2.80
Hex. Hole Bolt M5x16/s
9 6684903 2.15 2.60
No information available, not orderable
10 6697636
Cord, B 70m
11 6687837 2.31 2.80
Ignition Coil Comp.
12 6687700 44.31 53.62
Tab
13 6688060 1.15 1.39
High Tension Screw 4x18ws Since H124041
14 6695407 1.15 1.39
Woodruff Key 3x13x4.5 Till B023800
15 6684899 2.15 2.60
Cord Insulator Tube Till G086250
16 6692900 1.15 1.39
Crank Case Ass'y
20 6686523 36.15 43.74
Oil Seal
21 6684607 4.29 5.19
No information available, not orderable
22 6685095
Ball Bearing 6201 A2c3
23 6685096 5.28 6.38
Crank Case Gasket (old 090-0174g-20)
24 6686701 1.15 1.39
No information available, not orderable
25 6684668
D4e Retaining Ring (old 993-55040-001)
27 6685101 1.15 1.39
Starter Pawl Spring
28 6685105 1.15 1.39
Starter Pawl
29A 6685334 1.05 1.27
Ring
30 6685103 1.15 1.39
Flywheel Nut
31 6685104 1.15 1.39
Shim S T0.2 (old 071-04063-23)
32 6685098 1.15 1.39
Shim S T0.3 (old 071-04063-24)
32 6685099 1.15 1.39
Shim 0.4
32 6686475 1.15 1.39
Ring
33 6695222 1.15 1.39
Engine Case Ass'y, Vermilion
40 6691365 40.24 48.69
Air Vent Valve (b)
41 6685173 2.31 2.80
Air Vent Valve Set
42 6697231 5.45 6.59
Hex.hole Bolt 5x20/ps
43 6684634 2.15 2.60
Earth Cord 90m
44 6697602 1.98 2.39
Stop Switch Ass'y
45A 6601374 11.71 14.17
Switch Name Plate
46 6687949 1.15 1.39
Cleaner Cover
50 6686302 4.45 5.38
Cleaner Cover
50A 6686299 3.30 3.99
Cleaner Cover
51 6689735 1.15 1.39
Cleaner Element
52 6690064 3.30 3.99
Insulator Set
53 6689935 12.05 14.58
Insulator Gasket
54 6689871 1.15 1.39
Carburetor Insulator Rubber (old 409-01700-20)
55 6690001 1.15 1.39
Valve Holder
56 6689806 1.15 1.39
Reed Valve
57 6689803 3.30 3.99
No longer available, no replacement
58 6694964
Carburetor Gasket
59 6698108 1.80 2.18
Carburetor Set,wt-760 Since B027901
60 6690667 84.40 102.12
Screw 5x45s
61 6695350 1.15 1.39
Choke Shim 1.0
62 6692597 1.05 1.27
Small Washer 5
63 6684864 2.15 2.60
Choke Valve
64 6692410 2.31 2.80
Tapping Screw D4.5x14
65 6685152 1.15 1.39
Cleaner Cover
66 6687344 4.45 5.38
No information available, not orderable
67 6684668
Small Washer 5
68 6684864 2.15 2.60
Idle Sponge
69 6685224 1.15 1.39
Aircleaner Sponge Till G086250
71 6690355 1.15 1.39
Seal Cover Till G086250
72 6687182 1.15 1.39
Muffler Set (old 704-0174c-90)
81 6692447 17.40 21.05
Muffler Gasket
82 6692734 1.15 1.39
No information available, not orderable
83 6692627
No longer available, no replacement
84 6692677
Muffler Coupling Gasket For Aus
85 6692833 1.15 1.39
No information available, not orderable
86 6692607
Hex. Hole Bolt 5x40
87 6695054 1.15 1.39
Ring
88 6684661 2.15 2.60
Oil Pipe B (old 505-32710-20)
101 6691121 4.45 5.38
Clip 7
102 6692312 1.15 1.39
Ring
103 6684661 2.15 2.60
Oil Filter
104 6690919 1.15 1.39
Oil Filter Body Ass'y
105 6685249 2.31 2.80
Throttle Rod
106 6690974 4.45 5.38
Throttle Guide
107 6690982 1.15 1.39
Priming Pump Comp.
108 6685139 5.94 7.18
Fuel Pipe 2.5x4x42
109 6685138 1.15 1.39
Rubber Pipe
110 6692292 4.45 5.38
Pump Filter Body
111 6685199 4.45 5.38
Fuel Pipe 2.5x4x150
112 6692351 1.15 1.39
Return Grommet Till 7.2014
113 6697846 1.04 1.26
No information available, not orderable
114 6697780
Adjuster Cap Since B027901
115 6687957 3.30 3.99
Grommet
116 6692590 1.15 1.39
Choke Button Comp.
117 6692513 2.31 2.80
Grommet
118 6687976 1.15 1.39
O-ring
119 6697898 1.04 1.26
O-ring P21 Since H106411
119A 6699285 1.04 1.26
Oil Tank Cap Ass'y
120 6692159 5.11 6.19
Tank Cap Ass'y
121A 6692121 9.58 11.59
Recoil Starter Assembly, Gold (old 756-0174g-90)
131 6692909 52.34 63.33
No information available, not orderable
131A 6697606
Fan Housing
132 6686950 18.30 22.14
Starter Handle
133 6693240 14.35 17.36
Rope Till 7.2014
134 6693168 2.31 2.80
Recoil Spring Till C026900
135 6693138 9.90 11.98
Spring Case Ass'y Till H081350
136 6693094 32.21 38.98
Starter Pulley Till H081350
137 6693061 9.90 11.98
Ring
138 6687947 2.31 2.80
Tapping Screw D5x14 Since C026901 Till F024130
139 6685275 1.15 1.39
Tapping Screw D4.5x20 Till C026900
140 6685191 1.15 1.39
Air Deflector
141 6687326 4.45 5.38
No information available, not orderable
142 6697608
Starter Handle
143 6693230 4.45 5.38
Rope Since H081351
144 6685186 2.31 2.80
Damper Spring Since H081351
145 6685183 4.45 5.38
Spring Case Assembly (Old 778-01761-90)
146 6685185 9.24 11.18
Starter Pulley (Old 774-01761-20)
147 6685184 4.95 5.99
Set Screw (old 839-03045-20)
148 6684679 2.15 2.60
Cam Plate (Old 759-0174M-20)
149 6685182 3.30 3.99
Plate
150 6685189 1.15 1.39
Inlet Screen
161 6684700 4.29 5.19
Pump Body Since B027901
162 6691416 8.91 10.78
Screw
163 6685210 1.15 1.39
Pump Gasket
164 6685212 2.31 2.80
Pump Diaphragm
165 6685213 4.45 5.38
Control Lever
168 6685217 3.30 3.99
Hinge Pin Set Screw
169 6685218 2.31 2.80
Valve Spring
170 6690873 4.45 5.38
Hinge Pin
171 6685219 1.15 1.39
Diaphragm Cover-metering
172 6685222 4.45 5.38
Metering Diaphragm Comp. Till B027700
173 6690827 11.71 14.17
No longer available, no replacement
174 6685220
Needle Valve
175 6685215 5.28 6.38
Idle Adjust Spring
176 6685297 2.31 2.80
Idle Adjust Screw
177 6685298 2.31 2.80
Set Screw
180 6685223 1.15 1.39
Screw 5x14/ws
191 6695416 1.15 1.39
Oil Pump Cover
192 6686763 2.31 2.80
Oil Pipe A
193 6691223 3.30 3.99
Screw Gear
194 6686645 10.40 12.58
Air Vent Sponge
195 6691400 1.15 1.39
Oil Pump Ass'y (old 144-32902-90/6686678/6686652/6
196 6687324 10.56 12.78
Oil Adjust Grommet
197 6690956 1.15 1.39
Oil Pump Adjuster
198 6691070 1.15 1.39
O Ring
199 6697917 1.04 1.26
Oil Pump Case Set, Spare
200 6686681 9.74 11.78
O Ring
201 6697917 1.04 1.26
Tapping Screw D5x14 Since C026901 Till F024130
202 6685275 1.15 1.39
Fuel Pipe Till G086250
203 6685154 1.15 1.39
Chain Catcher
204 6685155 1.15 1.39
Tapping Screw D4.5x14
205 6685152 1.15 1.39
Nut Till Z063200
221 6685166 2.31 2.80
Chain Bar Clamp Nut (old 121-32600-20)
221A 6687105 1.15 1.39
Clutch Comp.
222 6685142 14.38 17.39
Needle Bearing
223 6685143 4.45 5.38
Clutch Housing Comp.
224 6685144 14.53 17.58
Ring
225 6685145 2.31 2.80
Tapping Screw D4x10
226 6685161 1.15 1.39
Guide Plate A
227 6697599 2.80 3.39
Crank Shaft Collar
228 6685146 2.31 2.80
Tapping Screw D4x10
229 6685161 1.15 1.39
Guide Plate B
231 6690756 2.31 2.80
Screw 2.6x5 (old 993-30026-050)
232 6695269 1.15 1.39
Chain Puller
233B 6698986 13.35 16.15
Gear (a)
234 6685168 2.31 2.80
Brake Handle Comp.
235 6697958 8.58 10.38
Brake Link Cover, Black
236 6689712 2.31 2.80
BRAKE SPRING
237 6697694 2.10 2.54
Brake Support Plate Comp.
238 6685119 4.45 5.38
Needle Roller 3x9.8
239 6685141 1.15 1.39
Brake Link
240 6685388 4.05 4.90
Brake Band
241 6689728 8.41 10.18
Cleaner Fixing Collar
242 6690805 1.15 1.39
Collar
243 6685120 1.15 1.39
Side Cover Comp
244 6697614 10.89 13.17
Brake Lever Spring
245 6685122 2.31 2.80
Tapping Screw D4x15
246 6685148 1.15 1.39
Nylon Lock Nut 4
261 6695163 1.15 1.39
Tapping Screw 5x40
262 6695108 1.15 1.39
Damper Collar A
263 6688480 1.15 1.39
Damper A (old 219-32750-20)
264 6688117 1.15 1.39
Screw 4x30ps
265 6695378 1.15 1.39
Rear Handle B Comp.
266 6685645 5.61 6.79
Push Pin Cap
267 6692680 1.15 1.39
Stopper Spring
268 6686447 1.15 1.39
Push Pin
269 6686430 1.15 1.39
Trigger Lockout Vermilion
270 6688363 1.15 1.39
Throttle Lever
271 6686392 1.15 1.39
Throttle Lever Spring
272 6686416 2.31 2.80
Rear Handle
273 6685620 7.59 9.18
Tapping Screw 5x35
274 6695107 1.15 1.39
Tapping Screw D4x15
275 6685148 1.15 1.39
Front Handle
276 6688083 6.28 7.59
Damper B
277 6688412 1.15 1.39
Damper Collar B
278 6688485 1.15 1.39
Tapping Screw 5x35
279 6695107 1.15 1.39
No information available, not orderable
501 6685295
No information available, not orderable
502 6697854
Chain Cover 14"
503 6685256 6.44 7.79
Minus Driver
504 6686632 3.06 3.71
Combi Box Spanner 10/19mm
505 6685257 3.30 3.99
Combi. Box Spanner 13x19 Minus
505A 6693809 4.45 5.38
Name Plate Cs35eg(s)
601 6694409 1.05 1.27
