Here you will find all available parts and drawings of the 'Hikoki CS33ET'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

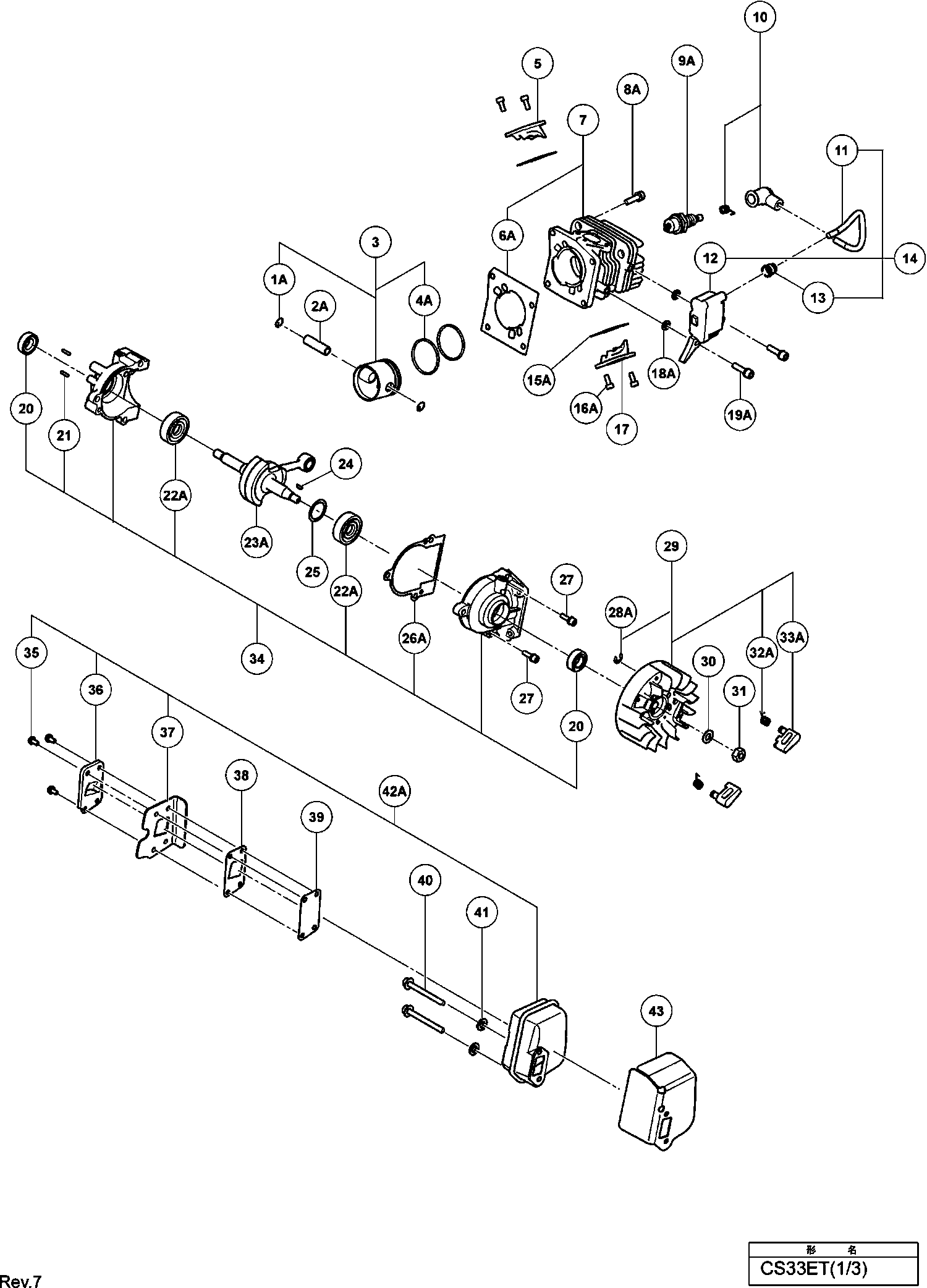

Technical drawing of model Hikoki CS33ET
Spare parts list of model Hikoki CS33ET
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Circlip | ||||
| 1A | 6685326 | 1.05 | 1.27 | |
| Piston Pin | ||||
| 2A | 6696764 | 1.20 | 1.45 | |
| Piston Set Includ.1,4 | ||||
| 3 | 6685080 | 22.24 | 26.91 | |
| No longer available, no replacement | ||||
| 4A | 6685331 | |||
| No longer available, no replacement | ||||
| 5 | 6685082 | |||
| No information available, not orderable | ||||
| 6A | 6698697 | |||
| Cylinder Set Includ.6 | ||||
| 7 | 6685084 | 38.26 | 46.30 | |
| No information available, not orderable | ||||
| 8A | 305583 | |||
| Spark Plug Ass'y Bpmr6a | ||||
| 9A | 6699319 | 8.91 | 10.78 | |
| Spark Plug Ass'y Bpm6a | ||||
| 9A | 6699317 | 6.76 | 8.18 | |
| Spark Plug Cap Ass'y | ||||
| 10 | 6685087 | 2.31 | 2.80 | |
| High Voltage Cord | ||||
| 11 | 6685088 | 2.31 | 2.80 | |
| Ignition Coil Comp. | ||||
| 12 | 6685089 | 36.15 | 43.74 | |
| Rubber Cap | ||||
| 13 | 6684602 | 2.15 | 2.60 | |
| Ignition Coil Ass'y Includ.11-13 | ||||
| 14 | 6685091 | 36.15 | 43.74 | |
| No information available, not orderable | ||||
| 15A | 6698698 | |||
| Hex. Socket Hd. Bolt M4x10 (10 Pcs.) Till 12.2017 | ||||
| 16A | 949812 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 17 | 6685094 | |||
| No longer available, no replacement | ||||
| 18A | 6698700 | |||
| Hex. Socket Hd. Bolt (w/washers) M4x18 | ||||
| 19A | 6698388 | 1.05 | 1.27 | |
| Oil Seal | ||||
| 20 | 6684607 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 21 | 6685095 | |||
| Ball Bearing (1) | ||||
| 22A | 6685328 | 3.00 | 3.63 | |
| Crank Shaft | ||||
| 23A | 6698693 | 55.14 | 66.72 | |
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 24 | 6684899 | 2.15 | 2.60 | |
| Shim S T0.2 (old 071-04063-23) | ||||
| 25 | 6685098 | 1.15 | 1.39 | |
| Shim S T0.3 (old 071-04063-24) | ||||
| 25 | 6685099 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 26A | 6698694 | |||
| No information available, not orderable | ||||
| 27 | 6684668 | |||
| Retaining Ring D4 | ||||
| 28A | 6685336 | 1.05 | 1.27 | |
| Magneto Rotor Ass'y | ||||
| 29 | 6685102 | 17.40 | 21.05 | |
| Ring | ||||
| 30 | 6685103 | 1.15 | 1.39 | |
| Flywheel Nut | ||||
| 31 | 6685104 | 1.15 | 1.39 | |
| Spring | ||||
| 32A | 6685335 | 1.05 | 1.27 | |
| Starter Pawl | ||||
| 33A | 6685334 | 1.05 | 1.27 | |
| Crank Case Ass'y Includ.20-22,26 | ||||
| 34 | 6685107 | 28.14 | 34.05 | |
| Ring | ||||
| 35 | 6685109 | 1.15 | 1.39 | |
| Machine Screw (w/washers) M4x10 For Three-phase | ||||
| 35 | 986662 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 36 | 6685110 | |||
| No information available, not orderable | ||||
| 37 | 6685111 | |||
| Gauze Fixing Plate Except For Aus,rus | ||||
| 38 | 6685112 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 39 | 6685113 | |||
| Hex. Socket Hd. Bolt M5x50 | ||||
| 40 | 6685114 | 1.15 | 1.39 | |
| Ring | ||||
| 41 | 6684661 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 42 | 6685115 | |||
| No information available, not orderable | ||||
| 42A | 6697102 | |||
| Muffler Packing | ||||
| 43 | 6685117 | 3.30 | 3.99 | |
| Brake Support Plate Comp. | ||||
| 71 | 6685119 | 4.45 | 5.38 | |
| Collar | ||||
| 72 | 6685120 | 1.15 | 1.39 | |
| Brake Link | ||||
| 73A | 6685388 | 4.05 | 4.90 | |
| Brake Lever Spring | ||||
| 74A | 6696783 | 1.20 | 1.45 | |
| Brake Handle | ||||
| 75 | 6685123 | 6.30 | 7.62 | |
| Brake Link Cover | ||||
| 77 | 6685126 | 1.15 | 1.39 | |
| Oil Adjust Grommet | ||||
| 78 | 6685127 | 1.15 | 1.39 | |
| Oil Pump Adjuster | ||||
| 79 | 6685128 | 1.15 | 1.39 | |
| Adjuster Spring | ||||
| 80 | 6685129 | 1.15 | 1.39 | |
| Ring | ||||
| 81 | 6685070 | 1.15 | 1.39 | |
| Oil Pump Adjust Cap | ||||
| 82A | 6685130 | 1.15 | 1.39 | |
| Pump Gear Spring | ||||
| 83 | 6685131 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 84 | 6685132 | |||
| Machine Screw M3x8 | ||||
| 85 | 6685133 | 1.15 | 1.39 | |
| Oil Pump Case Comp. | ||||
| 86 | 6685134 | 13.20 | 15.97 | |
| Oil Pump Case Ass'y | ||||
| 87A | 6685135 | 19.06 | 23.07 | |
| Seal Lock Bolt M5x15 | ||||
| 88 | 6685136 | 1.15 | 1.39 | |
| Protective Coil | ||||
| 89A | 6698699 | 1.20 | 1.45 | |
| Fuel Pipe 2.5x4x42 | ||||
| 90 | 6685138 | 1.15 | 1.39 | |
| Priming Pump Comp. | ||||
| 91 | 6685139 | 5.94 | 7.18 | |
| No information available, not orderable | ||||
| 92 | 6685140 | |||
| Needle Roller D3 | ||||
| 93A | 6685391 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 94A | 6685362 | |||
| Needle-roller Bearing | ||||
| 95A | 6685361 | 4.05 | 4.90 | |
| Clutch Housing | ||||
| 96A | 6685403 | 10.20 | 12.34 | |
| Ring | ||||
| 97A | 6685414 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 98A | 6685360 | |||
| Oil Pump Cover | ||||
| 99 | 6685147 | 1.15 | 1.39 | |
| Tapping Screw D4x15 | ||||
| 100 | 6685148 | 1.15 | 1.39 | |
| Ring | ||||
| 101 | 6685149 | 1.15 | 1.39 | |
| Oil Pipe (a) | ||||
| 102 | 6685150 | 2.31 | 2.80 | |
| Screw Gear | ||||
| 103 | 6685151 | 9.24 | 11.18 | |
| Tapping Screw D4.5x14 | ||||
| 104 | 6685152 | 1.15 | 1.39 | |
| Tapping Screw D4.5x14 Till C026900 | ||||
| 105 | 6685153 | 1.15 | 1.39 | |
| Fuel Pipe Till G086250 | ||||
| 106 | 6685154 | 1.15 | 1.39 | |
| Chain Catcher | ||||
| 107 | 6685155 | 1.15 | 1.39 | |
| Air Vent Sponge | ||||
| 108 | 6685156 | 1.15 | 1.39 | |
| Guide Plate (b) | ||||
| 109A | 6696784 | 2.10 | 2.54 | |
| Tapping Screw D3x8 | ||||
| 110 | 6685158 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 111 | 6685295 | |||
| Tapping Screw D4x10 | ||||
| 112 | 6685161 | 1.15 | 1.39 | |
| Guide Plate (a) | ||||
| 113A | 6698692 | 4.20 | 5.08 | |
| Side Cover Comp. | ||||
| 115 | 6685165 | 10.89 | 13.17 | |
| Chain Bar Clamp Nut | ||||
| 116A | 6685416 | 1.05 | 1.27 | |
| Brake Spring | ||||
| 117A | 6685389 | 1.05 | 1.27 | |
| Gear (a) | ||||
| 118 | 6685168 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 119 | 6685169 | |||
| No longer available, no replacement | ||||
| 119B | 6698986 | |||
| No information available, not orderable | ||||
| 120A | 6697854 | |||
| Tapping Screw D4x10 | ||||
| 121 | 6685161 | 1.15 | 1.39 | |
| Air Vent Valve (b) | ||||
| 123 | 6685173 | 2.31 | 2.80 | |
| Engine Case Ass'y Includ.123,125 | ||||
| 124 | 6685174 | 44.16 | 53.44 | |
| Inner Cap | ||||
| 125A | 6685175 | 6.93 | 8.38 | |
| No longer available, no replacement | ||||
| 126 | 6685176 | |||
| Tank Cap Packing | ||||
| 129 | 6685179 | 1.15 | 1.39 | |
| Tank Cap Ass'y | ||||
| 130 | 6685180 | 3.30 | 3.99 | |
| Set Screw (old 839-03045-20) | ||||
| 131 | 6684679 | 2.15 | 2.60 | |
| Cam Plate (Old 759-0174M-20) | ||||
| 132 | 6685182 | 3.30 | 3.99 | |
| Damper Spring Since H081351 | ||||
| 133 | 6685183 | 4.45 | 5.38 | |
| Starter Pulley (Old 774-01761-20) | ||||
| 134 | 6685184 | 4.95 | 5.99 | |
| Spring Case Assembly (Old 778-01761-90) | ||||
| 135 | 6685185 | 9.24 | 11.18 | |
| Rope Since H081351 | ||||
| 136 | 6685186 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 137 | 6685187 | |||
| Starter Handle | ||||
| 138 | 6685188 | 2.31 | 2.80 | |
| Plate | ||||
| 139 | 6685189 | 1.15 | 1.39 | |
| Recoil Starter Ass'y Includ.131-139 | ||||
| 140 | 6685190 | 25.58 | 30.95 | |
| Tapping Screw D4.5x20 Till C026900 | ||||
| 141 | 6685191 | 1.15 | 1.39 | |
| Engine Case Cover | ||||
| 161 | 6685194 | 4.45 | 5.38 | |
| Tapping Screw D4.5x14 | ||||
| 162 | 6685152 | 1.15 | 1.39 | |
| Pipe Joint | ||||
| 164 | 6685196 | 1.15 | 1.39 | |
| Shield Tube Ass'y | ||||
| 165 | 6685197 | 7.26 | 8.79 | |
| No information available, not orderable | ||||
| 166A | 6685311 | |||
| Pump Filter Body | ||||
| 167 | 6685199 | 4.45 | 5.38 | |
| Fuel Pipe 2.5x4x260 | ||||
| 168 | 6685200 | 1.15 | 1.39 | |
| Tapping Screw D4.5x14 Till C026900 | ||||
| 169 | 6685153 | 1.15 | 1.39 | |
| Cleaner Body Comp. | ||||
| 170 | 6685201 | 7.26 | 8.79 | |
| Inlet Manifold Spacer Includ.98a Till 8.2012 | ||||
| 171 | 6685202 | 3.30 | 3.99 | |
| Hex. Socket Bolt M4 | ||||
| 172A | 6698792 | 1.20 | 1.45 | |
| Pulse Guide | ||||
| 173 | 6685203 | 1.15 | 1.39 | |
| Intake Comp. | ||||
| 174 | 6685204 | 9.24 | 11.18 | |
| Intake Packing | ||||
| 175 | 6685205 | 1.15 | 1.39 | |
| Choke Lever (green) | ||||
| 176 | 6698349 | 1.20 | 1.45 | |
| Choke Lever | ||||
| 176 | 6685206 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 177 | 6685207 | |||
| Carburetor Ass'y Wt-940 (old 455-25344-90) | ||||
| 178 | 6685208 | 102.40 | 123.90 | |
| Carburetor Ass'y Wt-949 For Aus & Rus (old 455-253 | ||||
| 178 | 6685209 | 102.40 | 123.90 | |
| Screw | ||||
| 179 | 6685210 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 180 | 6685211 | |||
| Pump Gasket | ||||
| 181 | 6685212 | 2.31 | 2.80 | |
| Pump Diaphragm | ||||
| 182 | 6685213 | 4.45 | 5.38 | |
| Inlet Screen | ||||
| 183 | 6684700 | 4.29 | 5.19 | |
| Needle Valve | ||||
| 184 | 6685215 | 5.28 | 6.38 | |
| Valve Spring | ||||
| 185 | 6685216 | 2.31 | 2.80 | |
| Control Lever | ||||
| 186 | 6685217 | 3.30 | 3.99 | |
| Hinge Pin Set Screw | ||||
| 187 | 6685218 | 2.31 | 2.80 | |
| Hinge Pin | ||||
| 188 | 6685219 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 189 | 6685220 | |||
| No longer available, no replacement | ||||
| 190 | 6684690 | |||
| Diaphragm Cover-metering | ||||
| 191 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 192 | 6685223 | 1.15 | 1.39 | |
| Idle Sponge | ||||
| 193 | 6685224 | 1.15 | 1.39 | |
| Air Cleaner Base | ||||
| 194 | 6685225 | 1.15 | 1.39 | |
| Ring | ||||
| 195 | 6685226 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x50 | ||||
| 196 | 6685114 | 1.15 | 1.39 | |
| Cleaner Cover | ||||
| 197 | 6685227 | 4.05 | 4.90 | |
| Cleaner Knob | ||||
| 198 | 6685228 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 199 | 6685229 | |||
| Cleaner Element | ||||
| 200 | 6685230 | 3.30 | 3.99 | |
| Cleaner Element | ||||
| 201 | 6685231 | 3.30 | 3.99 | |
| Cleaner Sponge (a) | ||||
| 202 | 6685232 | 2.31 | 2.80 | |
| Tapping Screw D5x45 | ||||
| 203 | 6685233 | 1.15 | 1.39 | |
| Washer 1.0 | ||||
| 204A | 6696799 | 1.20 | 1.45 | |
| Collar 28.2 | ||||
| 205A | 6696800 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 206 | 6685236 | |||
| Tapping Screw D4.5x14 Till C026900 | ||||
| 207 | 6685153 | 1.15 | 1.39 | |
| Hook Holder Plate | ||||
| 208A | 6698695 | 2.10 | 2.54 | |
| Hook (1) | ||||
| 209A | 6698696 | 2.10 | 2.54 | |
| STOP SWITCH (OLD 170-04063-80) | ||||
| 210 | 6685239 | 3.30 | 3.99 | |
| Rear Handle (b) Comp. | ||||
| 211 | 6685240 | 10.89 | 13.17 | |
| Throttle Wire Comp. | ||||
| 212 | 6685241 | 7.26 | 8.79 | |
| Throttle Lever (green) | ||||
| 213 | 6698346 | 1.20 | 1.45 | |
| Throttle Lever | ||||
| 213 | 6685242 | 1.15 | 1.39 | |
| Throttle Lever Spring | ||||
| 214A | 6698691 | 1.20 | 1.45 | |
| Trigger Lock Out (green) | ||||
| 215 | 6698347 | 1.20 | 1.45 | |
| Switch Lock | ||||
| 215 | 6685244 | 1.15 | 1.39 | |
| Tapping Screw D4.5x14 | ||||
| 216 | 6685152 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 217 | 6685245 | |||
| No information available, not orderable | ||||
| 218A | 6696806 | |||
| Shield Tube Ass'y (old 223-06500-90) | ||||
| 219 | 6685247 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 220A | 6685311 | |||
| Ring | ||||
| 221 | 6684661 | 2.15 | 2.60 | |
| Oil Filter Body | ||||
| 222A | 6685310 | 1.05 | 1.27 | |
| Oil Filter Body Ass'y | ||||
| 223 | 6685249 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 224 | 6685250 | |||
| No information available, not orderable | ||||
| 225 | 6685251 | |||
| Cord 180mm | ||||
| 226 | 6685252 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 227 | 6685253 | |||
| Tapping Screw D5x16 | ||||
| 228 | 6685074 | 1.15 | 1.39 | |
| Front Handle | ||||
| 229 | 6685254 | 8.41 | 10.18 | |
| Idle Adjust Spring | ||||
| 230 | 6685297 | 2.31 | 2.80 | |
| Idle Adjust Screw | ||||
| 231 | 6685298 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 501A | 6685439 | |||
| No information available, not orderable | ||||
| 502A | 6685402 | |||
