Here you will find all available parts and drawings of the 'Hikoki CS33EDTP'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

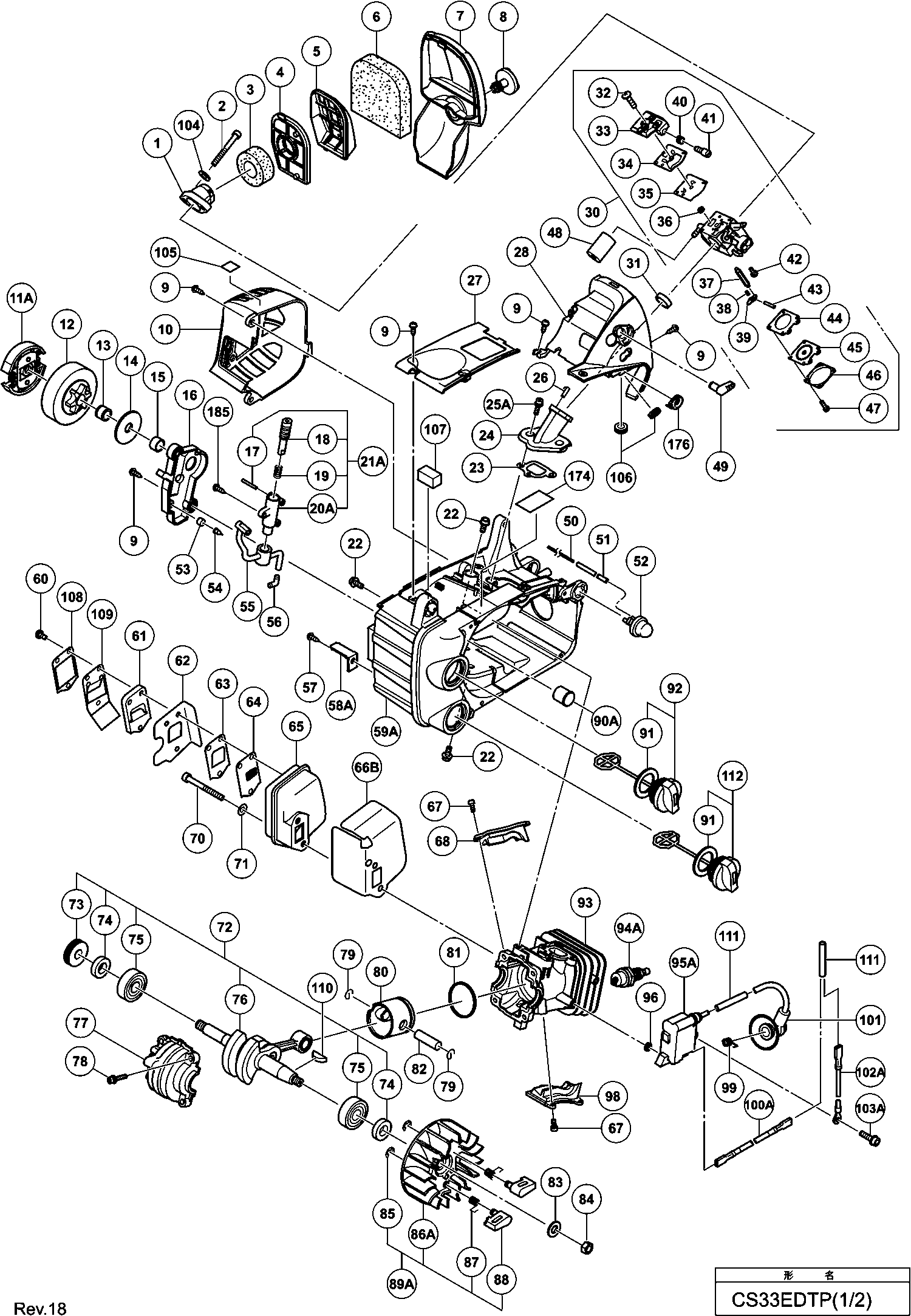

Technical drawing of model Hikoki CS33EDTP
Spare parts list of model Hikoki CS33EDTP
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Air Cleaner Base | ||||
| 1 | 6685225 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x45 (10 Pcs.) | ||||
| 2 | 949824 | 3.90 | 4.72 | |
| No information available, not orderable | ||||
| 3 | 6685229 | |||
| Cleaner Element | ||||
| 4 | 6685230 | 3.30 | 3.99 | |
| Cleaner Element | ||||
| 5 | 6685231 | 3.30 | 3.99 | |
| Cleaner Sponge (a) | ||||
| 6 | 6696825 | 1.20 | 1.45 | |
| Cleaner Cover | ||||
| 7 | 6696785 | 4.20 | 5.08 | |
| Cleaner Knob | ||||
| 8 | 6696786 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 9 | 305812 | 1.04 | 1.26 | |
| Muffler Cover Till 8.2017 (since 9.2017 Except Fo | ||||
| 10 | 6696821 | 7.95 | 9.62 | |
| No information available, not orderable | ||||
| 11A | 6600316 | |||
| Clutch Housing | ||||
| 12 | 6698856 | 14.25 | 17.24 | |
| Needle-roller Bearing | ||||
| 13 | 6685361 | 4.05 | 4.90 | |
| Ring | ||||
| 14 | 6685414 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 15 | 6685360 | |||
| No information available, not orderable | ||||
| 16 | 6696789 | |||
| Oil Pump Cover | ||||
| 16A | 6699610 | 2.80 | 3.39 | |
| Needle Roller | ||||
| 17 | 6685356 | 1.05 | 1.27 | |
| Pump Gear | ||||
| 18 | 6685354 | 2.10 | 2.54 | |
| Pump Gear Spring | ||||
| 19 | 6685355 | 1.05 | 1.27 | |
| Pump Case | ||||
| 20A | 6699119 | 7.50 | 9.08 | |
| Pump Ass'y Includ.17-20 | ||||
| 21A | 6699120 | 9.30 | 11.25 | |
| Seal Lock Bolt M5x15 | ||||
| 22 | 6685136 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 23 | 6698849 | |||
| Intake | ||||
| 24 | 6696794 | 4.20 | 5.08 | |
| Hex. Socket Bolt M4 | ||||
| 25A | 6698792 | 1.20 | 1.45 | |
| Pulse Guide | ||||
| 26 | 6685203 | 1.15 | 1.39 | |
| Engine Case Cover | ||||
| 27 | 6696812 | 3.15 | 3.81 | |
| Cleaner Body | ||||
| 28 | 6696792 | 4.65 | 5.63 | |
| Carburetor Ass'y Includ.32-47 | ||||
| 30 | 6696795 | 83.60 | 101.16 | |
| Inlet Spacer | ||||
| 31 | 6698857 | 1.20 | 1.45 | |
| Screw | ||||
| 32 | 6685210 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 33 | 6685211 | |||
| Pump Gasket | ||||
| 34 | 6685212 | 2.31 | 2.80 | |
| Pump Diaphragm | ||||
| 35 | 6685213 | 4.45 | 5.38 | |
| Inlet Screen | ||||
| 36 | 6684700 | 4.29 | 5.19 | |
| Needle Valve | ||||
| 37 | 6685215 | 5.28 | 6.38 | |
| Valve Spring | ||||
| 38 | 6685216 | 2.31 | 2.80 | |
| Control Lever | ||||
| 39 | 6685217 | 3.30 | 3.99 | |
| Idle Adjust Spring | ||||
| 40 | 6685297 | 2.31 | 2.80 | |
| Idle Adjust Screw | ||||
| 41 | 6685298 | 2.31 | 2.80 | |
| Hinge Pin Set Screw | ||||
| 42 | 6685218 | 2.31 | 2.80 | |
| Hinge Pin | ||||
| 43 | 6685219 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 44 | 6685220 | |||
| No longer available, no replacement | ||||
| 45 | 6684690 | |||
| Diaphragm Cover-metering | ||||
| 46 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 47 | 6685223 | 1.15 | 1.39 | |
| Idol Sponge | ||||
| 48 | 6696793 | 1.20 | 1.45 | |
| Choke Lever (green) | ||||
| 49 | 6698349 | 1.20 | 1.45 | |
| Choke Lever | ||||
| 49 | 6685206 | 1.15 | 1.39 | |
| Protective Coil | ||||
| 50 | 6698699 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 51 | 6698850 | |||
| Priming Pump Comp. | ||||
| 52 | 6685139 | 5.94 | 7.18 | |
| No information available, not orderable | ||||
| 53 | 6685371 | |||
| Air Vent Valve (b) | ||||
| 54 | 6685370 | 2.10 | 2.54 | |
| Oil Pipe | ||||
| 55 | 6696811 | 2.10 | 2.54 | |
| Pipe Joint | ||||
| 56 | 6685358 | 1.05 | 1.27 | |
| Flanged Tapping Screw D5x15 | ||||
| 57 | 6698456 | 1.05 | 1.27 | |
| Chain Catcher | ||||
| 58 | 6685363 | 1.05 | 1.27 | |
| Chain Catcher | ||||
| 58A | 6699950 | 1.04 | 1.26 | |
| Motor Housing | ||||
| 59A | 6696807 | 34.24 | 41.43 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 60 | 935196 | 1.04 | 1.26 | |
| Exhaust Pipe Till 8.2019 (since 9.2017 Except For | ||||
| 61 | 6696816 | 1.20 | 1.45 | |
| Muffler Special Packing Till 8.2019 (since 9.2017 | ||||
| 62 | 6696818 | 1.20 | 1.45 | |
| Gauze Fixing Plate Till 8.2019 (since 9.2017 Exce | ||||
| 63 | 6696817 | 1.20 | 1.45 | |
| Muffler Gauze Till 8.2019 (since 9.2017 Except Fo | ||||
| 64 | 6696815 | 1.20 | 1.45 | |
| Muffler (w/catalyzer) Till 8.2019 (since 9.2017 E | ||||
| 65 | 6696813 | 32.31 | 39.10 | |
| No longer available, no replacement | ||||
| 66A | 6600414 | |||
| No information available, not orderable | ||||
| 66B | 6600445 | |||
| Hex. Socket Hd. Bolt M4x10 (10 Pcs.) Till 12.2017 | ||||
| 67 | 949812 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 68 | 6696766 | |||
| No information available, not orderable | ||||
| 70 | 6696819 | |||
| Bolt Washer M6 (10 Pcs.) | ||||
| 71 | 949432 | 1.05 | 1.27 | |
| Crank Worm Ass'y Includ.73-76 | ||||
| 72 | 6698853 | 66.55 | 80.53 | |
| Worm | ||||
| 73 | 6685330 | 4.50 | 5.44 | |
| Oil Seal | ||||
| 74 | 6685329 | 2.10 | 2.54 | |
| Ball Bearing (1) | ||||
| 75 | 6685328 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 76 | 6696762 | |||
| Crank Case | ||||
| 77 | 6696767 | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 78 | 6698386 | |||
| Circlip | ||||
| 79 | 6685326 | 1.05 | 1.27 | |
| Piston | ||||
| 80 | 6698806 | 13.36 | 16.17 | |
| No longer available, no replacement | ||||
| 81 | 6685331 | |||
| Piston Pin | ||||
| 82 | 6696764 | 1.20 | 1.45 | |
| Ring | ||||
| 83 | 6685103 | 1.15 | 1.39 | |
| Flywheel Nut | ||||
| 84 | 6685104 | 1.15 | 1.39 | |
| Retaining Ring D4 | ||||
| 85 | 6685336 | 1.05 | 1.27 | |
| Magneto Rotor Comp. | ||||
| 86A | 6600053 | 8.85 | 10.71 | |
| Spring | ||||
| 87 | 6685335 | 1.05 | 1.27 | |
| Starter Pawl | ||||
| 88 | 6685334 | 1.05 | 1.27 | |
| Magneto Sub Ass'y Includ.85-88 | ||||
| 89A | 6600090 | 36.71 | 44.42 | |
| Inner Cap Ass'y | ||||
| 90A | 6685351 | 4.50 | 5.44 | |
| Tank Cap Packing | ||||
| 91 | 6685179 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 92 | 6698855 | |||
| No longer available, no replacement | ||||
| 93 | 6696761 | |||
| Cylinder | ||||
| 93A | 6601440 | 44.55 | 53.91 | |
| No information available, not orderable | ||||
| 94 | 6685782 | |||
| No information available, not orderable | ||||
| 94A | 6699320 | |||
| Ignition Coil Comp. | ||||
| 95A | 6699999 | 38.64 | 46.75 | |
| No longer available, no replacement | ||||
| 96 | 6698700 | |||
| No information available, not orderable | ||||
| 98 | 6696765 | |||
| Metal Fitting Of Plug Cap (a) | ||||
| 99 | 6696772 | 1.20 | 1.45 | |
| Cord (a) | ||||
| 100A | 6696787 | 1.20 | 1.45 | |
| SPARK PLUG CAP | ||||
| 101 | 6696771 | 1.98 | 2.40 | |
| Cord (b) | ||||
| 102A | 6696791 | 1.20 | 1.45 | |
| Hex. Socket Hd. Bolt (w/flange) M4x18 | ||||
| 103A | 6696326 | 1.20 | 1.45 | |
| Ring | ||||
| 104 | 6685226 | 1.15 | 1.39 | |
| Caution Label (hot) | ||||
| 105 | 6698864 | 1.20 | 1.45 | |
| Grommet | ||||
| 106 | 6698787 | 1.80 | 2.18 | |
| Protection Sheet | ||||
| 107 | 6698860 | 1.20 | 1.45 | |
| Packing Plate Till 8.2019 (since 9.2017 Except Fo | ||||
| 108 | 6698861 | 1.20 | 1.45 | |
| Muffler Special Packing (s) Till 8.2019 (since 9. | ||||
| 109 | 6698862 | 1.20 | 1.45 | |
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 110 | 6684899 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 111 | 6698863 | |||
| Fuel Tank Cap Ass'y (black) Includ.159 | ||||
| 112 | 6698358 | 4.20 | 5.08 | |
| Ignition Coil Ass'y Includ.95a,99,101,111 | ||||
| 113 | 6601441 | 32.59 | 39.43 | |
| No information available, not orderable | ||||
| 115 | 6601514 | |||
| No information available, not orderable | ||||
| 116 | 6601520 | |||
| Tapping Screw (w/flange) D5x40 | ||||
| 121A | 6699403 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 122 | 6698858 | |||
| Collar 28.2 | ||||
| 123 | 6696800 | 2.10 | 2.54 | |
| Damper | ||||
| 124 | 6696775 | 1.20 | 1.45 | |
| Rear Handle | ||||
| 125 | 6696774 | 4.65 | 5.63 | |
| Trigger Lock Out (green) | ||||
| 126 | 6698347 | 1.20 | 1.45 | |
| Switch Lock | ||||
| 126 | 6685244 | 1.15 | 1.39 | |
| Throttle Wire Comp. | ||||
| 127 | 6696797 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 128 | 6696940 | |||
| No longer available, no replacement | ||||
| 128A | 6601275 | |||
| NUT M6 | ||||
| 129 | 6698449 | 1.00 | 1.21 | |
| Throttle Lever Spring | ||||
| 130 | 6698691 | 1.20 | 1.45 | |
| Throttle Lever (green) | ||||
| 131 | 6698346 | 1.20 | 1.45 | |
| Throttle Lever | ||||
| 131 | 6685242 | 1.15 | 1.39 | |
| Spring Holder | ||||
| 132 | 6698409 | 2.10 | 2.54 | |
| Damper Set Bolt | ||||
| 133 | 6698859 | 1.20 | 1.45 | |
| Antivibration Spring | ||||
| 134 | 6698428 | 2.10 | 2.54 | |
| Flange Nut M8 | ||||
| 136 | 6698581 | 1.20 | 1.45 | |
| Side Case (vermilion) | ||||
| 137 | 6696776 | 10.65 | 12.89 | |
| Side Case (green) | ||||
| 137A | 6696777 | 10.65 | 12.89 | |
| Brake Support Plate | ||||
| 138 | 6696782 | 4.20 | 5.08 | |
| Brake Lever Spring | ||||
| 139 | 6696783 | 1.20 | 1.45 | |
| Brake Link | ||||
| 140 | 6685388 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 141 | 6685140 | |||
| Needle Roller D3 | ||||
| 142 | 6685391 | 1.05 | 1.27 | |
| Brake Spring | ||||
| 143 | 6685389 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 144A | 6698986 | |||
| Guide Plate (b) | ||||
| 145 | 6696784 | 2.10 | 2.54 | |
| Tapping Screw D3x6 | ||||
| 146 | 696352 | 1.13 | 1.36 | |
| Screw | ||||
| 147 | 958715 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 148A | 6697854 | |||
| No information available, not orderable | ||||
| 149 | 6696991 | |||
| Fuel Pipe | ||||
| 150 | 6698715 | 9.75 | 11.80 | |
| Fuel Pipe (fkm) L240 | ||||
| 151 | 6698851 | 11.55 | 13.98 | |
| Fuel Pipe (fkm) L260 | ||||
| 153 | 6698852 | 12.05 | 14.58 | |
| Fuel Grommet (old 701-72930-20) | ||||
| 154 | 6696167 | 1.15 | 1.39 | |
| Rear Handle (a) | ||||
| 155 | 6696773 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 156A | 6600026 | |||
| No longer available, no replacement | ||||
| 157A | 6696798 | |||
| Brake Handle | ||||
| 158 | 6698866 | 6.60 | 7.99 | |
| Brake Link Cover | ||||
| 160 | 6696779 | 1.20 | 1.45 | |
| Pump Filter Body | ||||
| 161 | 6685199 | 4.45 | 5.38 | |
| Pump Filter | ||||
| 161A | 6600351 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 162 | 6685311 | |||
| Oil Filter Body | ||||
| 163 | 6685310 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 164 | 6696804 | |||
| Ring | ||||
| 165 | 6685407 | 1.05 | 1.27 | |
| Air Deflector | ||||
| 166 | 6696790 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 167 | 6699416 | |||
| Recoil Starter (s) (vermilion) Includ.179,183,184 | ||||
| 167A | 6699417 | 17.46 | 21.13 | |
| No information available, not orderable | ||||
| 167B | 6699418 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 168 | 302086 | 1.05 | 1.27 | |
| Cord Insulation Tube | ||||
| 171 | 6698457 | 1.05 | 1.27 | |
| SPRING COVER | ||||
| 172 | 6698865 | 1.08 | 1.31 | |
| Fuel Grommet (a) | ||||
| 173 | 6685308 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 174 | 6698923 | |||
| No information available, not orderable | ||||
| 176 | 6699404 | |||
| Set Screw Till 3.2015 | ||||
| 177 | 6699475 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 178 | 6699483 | |||
| No longer available, no replacement | ||||
| 179 | 6699480 | |||
| Starter Rope | ||||
| 180 | 6699469 | 1.04 | 1.26 | |
| Rope Stopper | ||||
| 181 | 6699465 | 1.04 | 1.26 | |
| Starter Knob | ||||
| 182 | 6699467 | 1.95 | 2.36 | |
| No longer available, no replacement | ||||
| 183 | 6699473 | |||
| Fan Housing | ||||
| 184 | 6699490 | 10.35 | 12.52 | |
| Fan Case | ||||
| 184 | 6699491 | 10.35 | 12.52 | |
| Tapping Screw (w/flange) D4 | ||||
| 185 | 6699947 | 1.04 | 1.26 | |
| Set Screw Since 4.2015 | ||||
| 186 | 6699476 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4 | ||||
| 187 | 6699947 | 1.04 | 1.26 | |
| Damper Spring Since 4.2015 | ||||
| 188 | 6699479 | 1.65 | 2.00 | |
| Reel Since 4.2015 | ||||
| 189 | 6699484 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 501 | 6685439 | |||
| No information available, not orderable | ||||
| 502 | 6698582 | |||
| Spike Set | ||||
| 601 | 6696827 | 2.10 | 2.54 | |
