Here you will find all available parts and drawings of the 'Hikoki CS33ED'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

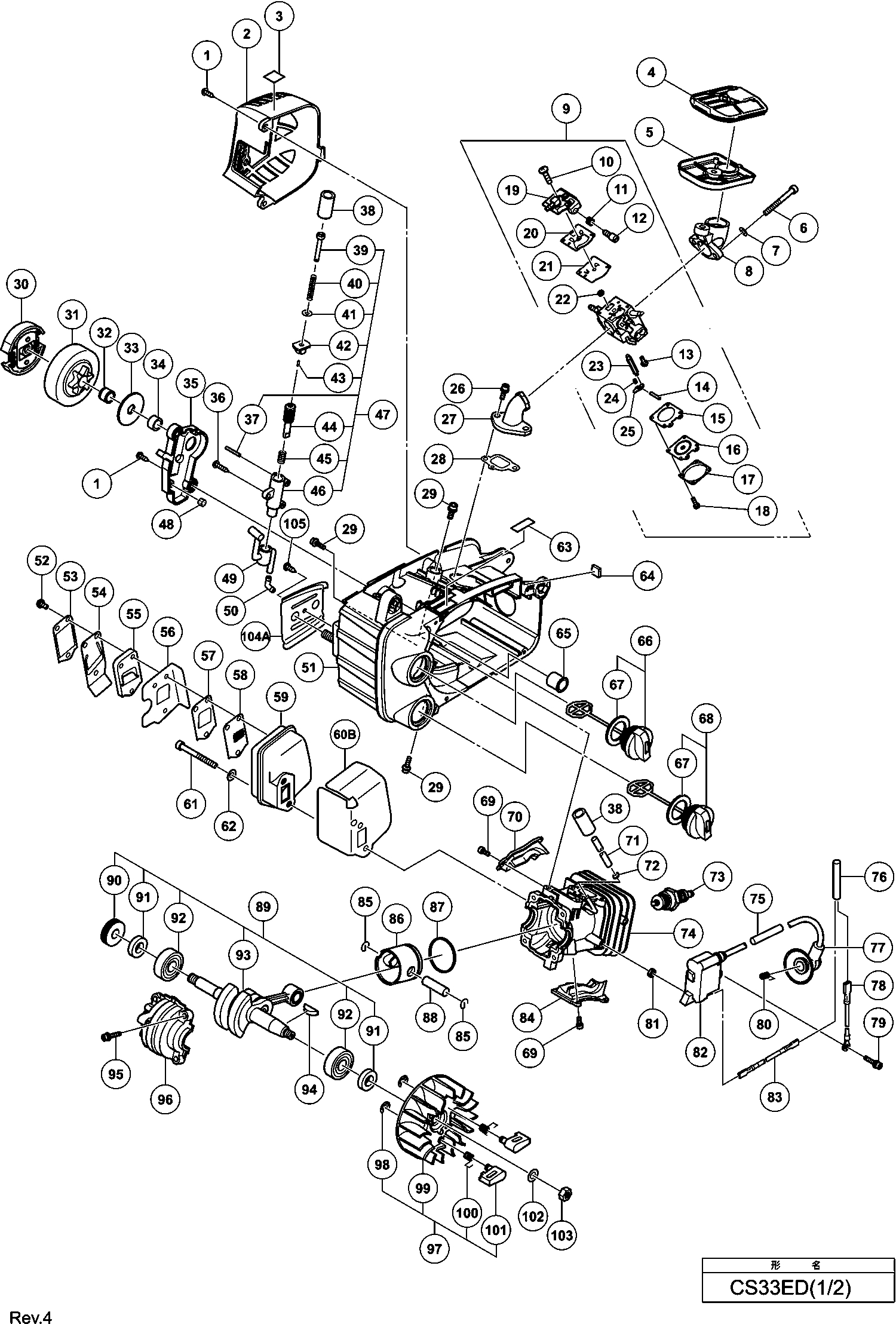

Technical drawing of model Hikoki CS33ED
Spare parts list of model Hikoki CS33ED
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 1 | 305812 | 1.04 | 1.26 | |
| Muffler Cover Till 8.2017 (since 9.2017 Except Fo | ||||
| 2 | 6696821 | 7.95 | 9.62 | |
| Caution Label (hot) | ||||
| 3 | 6698864 | 1.20 | 1.45 | |
| Cleaner Element (b) | ||||
| 4 | 6699969 | 3.45 | 4.17 | |
| Cleaner Element (a) | ||||
| 5 | 6699968 | 3.30 | 3.99 | |
| Hex. Socket Hd. Bolt M5x45 (10 Pcs.) | ||||
| 6 | 949824 | 3.90 | 4.72 | |
| Ring | ||||
| 7 | 6685408 | 1.05 | 1.27 | |
| Cleaner Support | ||||
| 8 | 6699966 | 1.04 | 1.26 | |
| Carburetor Ass'y Includ.10-25 | ||||
| 9 | 6699976 | 49.23 | 59.56 | |
| Screw | ||||
| 10 | 6685210 | 1.15 | 1.39 | |
| Idle Adjust Spring | ||||
| 11 | 6685297 | 2.31 | 2.80 | |
| Idle Adjust Screw | ||||
| 12 | 6685298 | 2.31 | 2.80 | |
| Hinge Pin Set Screw | ||||
| 13 | 6685218 | 2.31 | 2.80 | |
| Hinge Pin | ||||
| 14 | 6685219 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 15 | 6685220 | |||
| Metering Diaphragm | ||||
| 16 | 6684690 | 18.00 | 21.78 | |
| Diaphragm Cover-metering | ||||
| 17 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 18 | 6685223 | 1.15 | 1.39 | |
| Pump Cover | ||||
| 19 | 6600091 | 11.05 | 13.37 | |
| Pump Gasket | ||||
| 20 | 6685212 | 2.31 | 2.80 | |
| Pump Diaphragm | ||||
| 21 | 6685213 | 4.45 | 5.38 | |
| Inlet Screen | ||||
| 22 | 6684700 | 4.29 | 5.19 | |
| Needle Valve | ||||
| 23 | 6685215 | 5.28 | 6.38 | |
| Valve Spring | ||||
| 24 | 6685216 | 2.31 | 2.80 | |
| Control Lever | ||||
| 25 | 6685217 | 3.30 | 3.99 | |
| Hex. Socket Bolt M4 | ||||
| 26 | 6698792 | 1.20 | 1.45 | |
| Intake | ||||
| 27 | 6699951 | 4.65 | 5.63 | |
| Gasket | ||||
| 28 | 6699952 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Bolt M (w/washers) | ||||
| 29 | 6699044 | 1.04 | 1.26 | |
| Clutch | ||||
| 30 | 6600316 | 10.95 | 13.25 | |
| Clutch Housing Comp. | ||||
| 31 | 6685144 | 14.53 | 17.58 | |
| Needle-roller Bearing | ||||
| 32 | 6685361 | 4.05 | 4.90 | |
| Ring | ||||
| 33 | 6685414 | 1.05 | 1.27 | |
| Crank Shaft Collar | ||||
| 34 | 6685360 | 2.10 | 2.54 | |
| Oil Pump Cover | ||||
| 35 | 6699610 | 2.80 | 3.39 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 36 | 302086 | 1.05 | 1.27 | |
| Needle Roller | ||||
| 37 | 6685356 | 1.05 | 1.27 | |
| Idol Sponge | ||||
| 38 | 6696793 | 1.20 | 1.45 | |
| Oil Pump Adjuster (ed) | ||||
| 39 | 6699960 | 1.65 | 2.00 | |
| Adjuster Spring | ||||
| 40 | 6699961 | 1.04 | 1.26 | |
| Bolt Washer M4 (black) For 220v-240v | ||||
| 41 | 323210 | 1.05 | 1.27 | |
| Adjuster Cap | ||||
| 42 | 6699959 | 1.04 | 1.26 | |
| Needle Roller | ||||
| 43 | 6600046 | 1.04 | 1.26 | |
| Pump Gear (ed) | ||||
| 44 | 6699957 | 1.95 | 2.36 | |
| Pump Gear Spring (ed) | ||||
| 45 | 6699958 | 1.04 | 1.26 | |
| Pump Case | ||||
| 46 | 6699119 | 7.50 | 9.08 | |
| Pump Ass'y Includ.37,39-46 | ||||
| 47 | 6600085 | 15.54 | 18.80 | |
| Air Vent Sponge | ||||
| 48 | 66A6188 | 1.50 | 1.82 | |
| Oil Pipe | ||||
| 49 | 6696811 | 2.10 | 2.54 | |
| Pipe Joint | ||||
| 50 | 6685358 | 1.05 | 1.27 | |
| Motor Housing | ||||
| 51 | 6600084 | 35.61 | 43.09 | |
| Screw (w/washers) M4 (black) | ||||
| 52 | 6600048 | 1.04 | 1.26 | |
| Packing Plate Till 8.2019 (since 9.2017 Except Fo | ||||
| 53 | 6698861 | 1.20 | 1.45 | |
| Muffler Special Packing (s) Till 8.2019 (since 9. | ||||
| 54 | 6698862 | 1.20 | 1.45 | |
| Exhaust Pipe Till 8.2019 (since 9.2017 Except For | ||||
| 55 | 6696816 | 1.20 | 1.45 | |
| Muffler Special Packing Till 8.2019 (since 9.2017 | ||||
| 56 | 6696818 | 1.20 | 1.45 | |
| Gauze Fixing Plate Till 8.2019 (since 9.2017 Exce | ||||
| 57 | 6696817 | 1.20 | 1.45 | |
| Muffler Gauze Till 8.2019 (since 9.2017 Except Fo | ||||
| 58 | 6696815 | 1.20 | 1.45 | |
| Muffler | ||||
| 59 | 6600050 | 4.65 | 5.63 | |
| Muffler Packing Till 8.2019 (since 9.2017 Except | ||||
| 60B | 6600445 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 61 | 6696819 | |||
| Bolt Washer M6 (10 Pcs.) | ||||
| 62 | 949432 | 1.05 | 1.27 | |
| Tank Mark Label (50:1) | ||||
| 63 | 6698921 | 1.20 | 1.45 | |
| Tank Mark Label (25:1) For Asia,tpe,kor | ||||
| 63 | 6698922 | 1.20 | 1.45 | |
| Protection Sheet | ||||
| 64 | 6600047 | 1.04 | 1.26 | |
| Inner Cap Ass'y | ||||
| 65 | 6685351 | 4.50 | 5.44 | |
| Fuel Tank Cap Ass'y (vermilion) Includ.159 | ||||
| 66 | 6698854 | 4.20 | 5.08 | |
| Tank Cap Packing | ||||
| 67 | 6685179 | 1.15 | 1.39 | |
| Fuel Tank Cap Ass'y (black) Includ.159 | ||||
| 68 | 6698358 | 4.20 | 5.08 | |
| Hex. Socket Hd. Bolt M4x10 (10 Pcs.) Till 12.2017 | ||||
| 69 | 949812 | 2.40 | 2.90 | |
| Scavenging Cover (b) | ||||
| 70 | 6696766 | 2.10 | 2.54 | |
| Fuel Pipe (fkm) 3x6x80 | ||||
| 71 | 6698907 | 7.95 | 9.62 | |
| Clip D6 | ||||
| 72 | 6685198 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 73 | 6699320 | |||
| Cylinder | ||||
| 74 | 6600083 | 54.59 | 66.05 | |
| Cord Insulation Tube L100 | ||||
| 75 | 6600051 | 1.04 | 1.26 | |
| Cord Insulation Tube L60 | ||||
| 76 | 6699175 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 77 | 6696771 | |||
| Cord | ||||
| 78 | 6600052 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt (w/flange) M4x18 | ||||
| 79 | 6696326 | 1.20 | 1.45 | |
| Metal Fitting Of Plug Cap (a) | ||||
| 80 | 6696772 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 81 | 6698700 | |||
| Ignition Coil Comp. | ||||
| 82 | 6699977 | 26.26 | 31.78 | |
| Cord (a) | ||||
| 83 | 6699948 | 1.04 | 1.26 | |
| Scavenging Cover (a) | ||||
| 84 | 6696765 | 2.10 | 2.54 | |
| Circlip | ||||
| 85 | 6685326 | 1.05 | 1.27 | |
| Piston | ||||
| 86 | 6698806 | 13.36 | 16.17 | |
| Piston Ring (xr1-1856) | ||||
| 87 | 6685331 | 4.05 | 4.90 | |
| Piston Pin | ||||
| 88 | 6696764 | 1.20 | 1.45 | |
| Crank Worm Ass'y Includ.73-76 | ||||
| 89 | 6698853 | 66.55 | 80.53 | |
| Worm | ||||
| 90 | 6685330 | 4.50 | 5.44 | |
| Oil Seal | ||||
| 91 | 6685329 | 2.10 | 2.54 | |
| Ball Bearing (1) | ||||
| 92 | 6685328 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 93 | 6696762 | |||
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 94 | 6684899 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 95 | 6698386 | |||
| Crank Case | ||||
| 96 | 6696767 | 5.70 | 6.90 | |
| Magneto Sub Ass'y Includ.85-88 | ||||
| 97 | 6600090 | 36.71 | 44.42 | |
| Retaining Ring D4 | ||||
| 98 | 6685336 | 1.05 | 1.27 | |
| Magneto Rotor Comp. | ||||
| 99 | 6600053 | 8.85 | 10.71 | |
| Spring | ||||
| 100 | 6685335 | 1.05 | 1.27 | |
| Starter Pawl | ||||
| 101 | 6685334 | 1.05 | 1.27 | |
| Bolt Washer D7 | ||||
| 102 | 6696880 | 1.05 | 1.27 | |
| Nut | ||||
| 103 | 6696879 | 1.05 | 1.27 | |
| Guide Plate (c) | ||||
| 104A | 6600346 | 1.65 | 2.00 | |
| Screw | ||||
| 105 | 958715 | 1.04 | 1.26 | |
| Side Case | ||||
| 121 | 6600086 | 13.95 | 16.88 | |
| Brake Support Plate | ||||
| 122 | 6696782 | 4.20 | 5.08 | |
| Brake Lever Spring | ||||
| 123 | 6696783 | 1.20 | 1.45 | |
| Brake Handle | ||||
| 124 | 6699972 | 5.10 | 6.17 | |
| No information available, not orderable | ||||
| 125 | 6600080 | |||
| Brake Link Cover | ||||
| 126 | 6696779 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 127 | 6600072 | |||
| Chain Bar Clamp Nut | ||||
| 128 | 6685416 | 1.05 | 1.27 | |
| Chain Puller | ||||
| 129 | 6698986 | 13.35 | 16.15 | |
| Guide Plate (b) | ||||
| 130 | 6696784 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 131 | 6697889 | |||
| No information available, not orderable | ||||
| 132 | 6696992 | |||
| Screw | ||||
| 133 | 958715 | 1.04 | 1.26 | |
| Tapping Screw D3x6 | ||||
| 134 | 696352 | 1.13 | 1.36 | |
| Brake Spring | ||||
| 135 | 6600054 | 1.04 | 1.26 | |
| Brake Link | ||||
| 136 | 6685388 | 4.05 | 4.90 | |
| Brake Band | ||||
| 137 | 6685140 | 14.53 | 17.58 | |
| Needle Roller D3 | ||||
| 138 | 6685391 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 139 | 305812 | 1.04 | 1.26 | |
| Cleaner Cover | ||||
| 140 | 6699970 | 2.70 | 3.27 | |
| Cleaner Knob | ||||
| 141 | 6699971 | 1.04 | 1.26 | |
| Rear Handle Grip | ||||
| 142 | 6699965 | 1.65 | 2.00 | |
| Trigger Lockout (vermilion) | ||||
| 143 | 6685350 | 1.05 | 1.27 | |
| Throttle Lever Spring | ||||
| 144A | 6600341 | 1.04 | 1.26 | |
| Spring Pin 5x25 | ||||
| 145 | 6685282 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 146A | 6601275 | |||
| Start Label (cs33ed) Ex | ||||
| 147 | 6600082 | 1.05 | 1.27 | |
| Damper (a) | ||||
| 148 | 6696327 | 4.20 | 5.08 | |
| Spacer bushing | ||||
| 149 | 696314 | 3.45 | 4.17 | |
| Damper Set Bolt | ||||
| 150 | 6685413 | 1.05 | 1.27 | |
| Choke Lever | ||||
| 151 | 6685206 | 1.15 | 1.39 | |
| Slide Bar | ||||
| 152 | 6699964 | 1.05 | 1.27 | |
| Grommet | ||||
| 153 | 6698787 | 1.80 | 2.18 | |
| Throttle Lever (vermilion) | ||||
| 154 | 6698916 | 1.20 | 1.45 | |
| Engine Case Cover | ||||
| 155 | 6699974 | 1.20 | 1.45 | |
| Grommet | ||||
| 156 | 6698787 | 1.80 | 2.18 | |
| Spring Holder | ||||
| 157 | 6698409 | 2.10 | 2.54 | |
| Damper Set Bolt (a) | ||||
| 158 | 6699962 | 1.05 | 1.27 | |
| Antivibration Spring | ||||
| 159 | 6698428 | 2.10 | 2.54 | |
| Fuel Grommet (old 701-72930-20) | ||||
| 160 | 6696167 | 1.15 | 1.39 | |
| Fuel Pipe | ||||
| 161 | 6699975 | 1.95 | 2.36 | |
| Fuel Pipe L220 | ||||
| 162 | 6600055 | 1.05 | 1.27 | |
| Flange Nut M6 | ||||
| 163 | 329934 | 1.73 | 2.09 | |
| Rear Handle | ||||
| 164 | 6699963 | 9.90 | 11.98 | |
| Idle Sponge | ||||
| 165 | 6600056 | 1.05 | 1.27 | |
| Fuel Pipe 2.5x4x90 | ||||
| 166 | 6685267 | 1.15 | 1.39 | |
| Priming Pump Comp. | ||||
| 167 | 6685139 | 5.94 | 7.18 | |
| Protection Sheet | ||||
| 168 | 6600047 | 1.04 | 1.26 | |
| Fuel Grommet (a) | ||||
| 169 | 6685308 | 1.05 | 1.27 | |
| Air Vent Valve (b) | ||||
| 170 | 6685370 | 2.10 | 2.54 | |
| Flanged Tapping Screw D5x15 | ||||
| 171 | 6698456 | 1.05 | 1.27 | |
| Spike | ||||
| 172 | 6699973 | 1.80 | 2.18 | |
| Flanged Tapping Screw D5x15 | ||||
| 173 | 6698456 | 1.05 | 1.27 | |
| Chain Catcher | ||||
| 174 | 6699950 | 1.04 | 1.26 | |
| Pump Filter | ||||
| 175A | 6600351 | 2.70 | 3.27 | |
| Clip D6 | ||||
| 176 | 6685198 | 1.15 | 1.39 | |
| Oil Filter Body | ||||
| 177 | 6685310 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 178 | 6696804 | |||
| Ring | ||||
| 179 | 6685407 | 1.05 | 1.27 | |
| Fuel Pipe | ||||
| 180 | 6698715 | 9.75 | 11.80 | |
| Starter Handle Ass'y Includ.184-186 | ||||
| 181 | 6600061 | 2.55 | 3.09 | |
| Rope Stopper | ||||
| 182 | 6699465 | 1.04 | 1.26 | |
| Starter Knob | ||||
| 183 | 6699467 | 1.95 | 2.36 | |
| Starter Rope (ns) | ||||
| 184 | 6600060 | 1.04 | 1.26 | |
| Fan Housing | ||||
| 185 | 6600066 | 17.33 | 20.96 | |
| Air Deflector Ass'y Includ.170 | ||||
| 186 | 6600089 | 2.55 | 3.09 | |
| Set Screw (ns) | ||||
| 187 | 6600062 | 1.04 | 1.26 | |
| Cam Plate (ns) | ||||
| 188 | 6600064 | 1.95 | 2.36 | |
| Reel (ns) | ||||
| 189 | 6600065 | 12.15 | 14.70 | |
| Spiral Spring (ns) | ||||
| 190 | 6600063 | 5.85 | 7.08 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 191 | 305558 | 1.04 | 1.26 | |
| Ring | ||||
| 192 | 6685408 | 1.05 | 1.27 | |
| Front Handle | ||||
| 193 | 6699967 | 6.30 | 7.62 | |
| No information available, not orderable | ||||
| 194 | 6698865 | |||
| Damper Set Bolt | ||||
| 195 | 6698859 | 1.20 | 1.45 | |
| Recoil Starter Ass'y (ns) Includ.183,187,189-192 | ||||
| 196 | 6699953 | 21.45 | 25.95 | |
| No information available, not orderable | ||||
| 501 | 6685440 | |||
| Combi Box Spanner 10/19mm | ||||
| 502 | 6685402 | 3.15 | 3.81 | |
