Here you will find all available parts and drawings of the 'Hikoki CS33EC'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

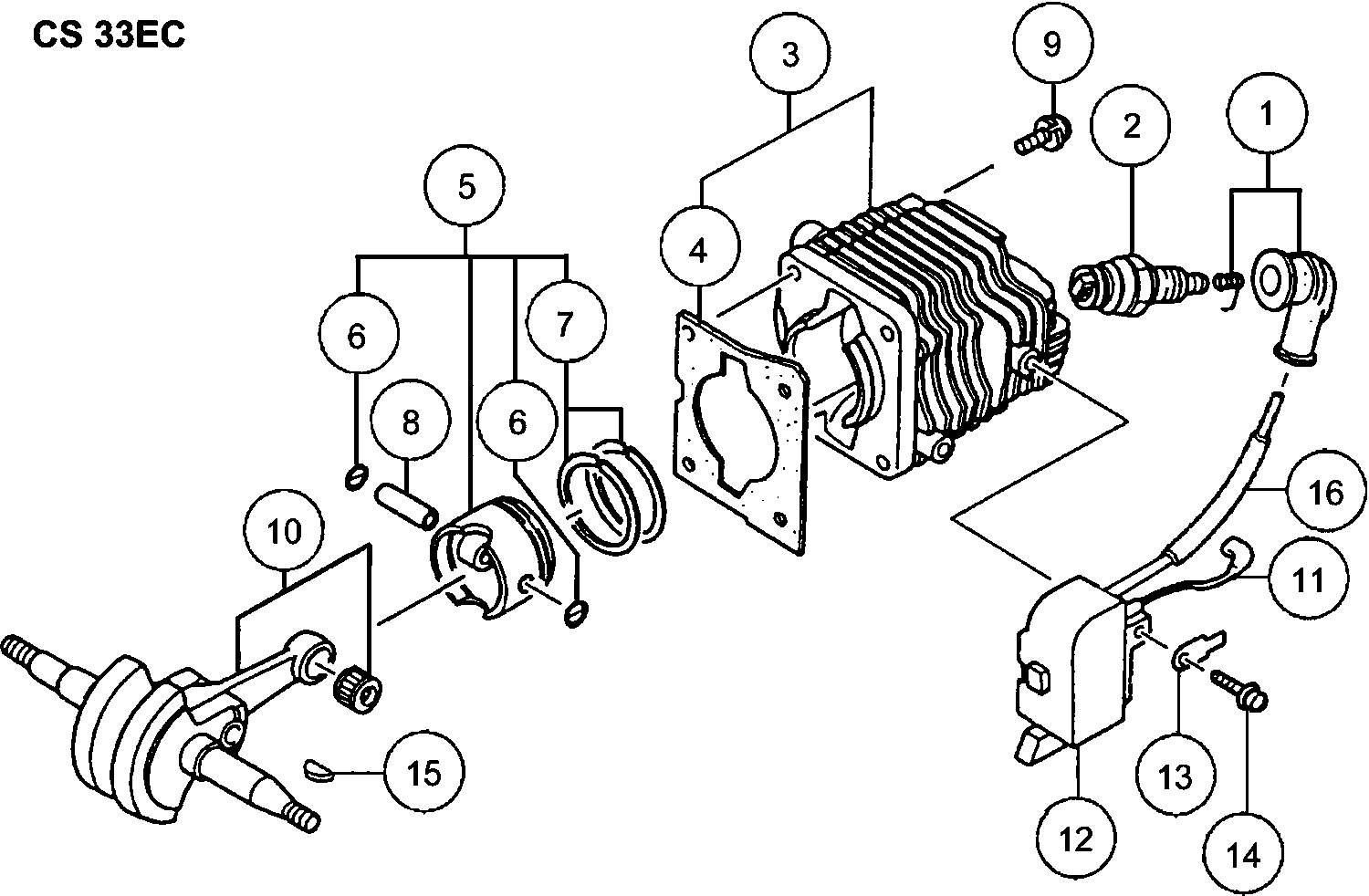

Technical drawing of model Hikoki CS33EC
Spare parts list of model Hikoki CS33EC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Cap Ass'y Till G165840 | ||||
| 1 | 6687468 | 2.31 | 2.80 | |
| Spark Plug Ass'y Cj8 | ||||
| 2 | 6699324 | 3.30 | 3.99 | |
| Cylinder Set | ||||
| 3 | 6685457 | 44.31 | 53.62 | |
| Cylinder Gasket | ||||
| 4 | 6685724 | 1.15 | 1.39 | |
| Piston Set (old 030-01741-90) | ||||
| 5 | 6685879 | 22.24 | 26.91 | |
| Circlip | ||||
| 6 | 6685078 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 7 | 6685331 | |||
| Piston Pin | ||||
| 8 | 6686008 | 2.31 | 2.80 | |
| Hex. Hole Bolt M5x16/s | ||||
| 9 | 6684903 | 2.15 | 2.60 | |
| CRANK SHAFT COMP (OLD 6686171) | ||||
| 10 | 6697636 | 61.54 | 74.46 | |
| Cord, B 70m | ||||
| 11 | 6687837 | 2.31 | 2.80 | |
| Ignition Coil Comp. | ||||
| 12 | 6687700 | 44.31 | 53.62 | |
| Tab | ||||
| 13 | 6688060 | 1.15 | 1.39 | |
| High Tension Screw 4x18ws Since H124041 | ||||
| 14 | 6695407 | 1.15 | 1.39 | |
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 15 | 6684899 | 2.15 | 2.60 | |
| Cord Insulator Tube Till G086250 | ||||
| 16 | 6692900 | 1.15 | 1.39 | |
| Oil Seal | ||||
| 21 | 6684607 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 22 | 6685095 | |||
| Ball Bearing 6201 A2c3 | ||||
| 23 | 6685096 | 5.28 | 6.38 | |
| Crank Case Gasket (old 090-0174g-20) | ||||
| 24 | 6686701 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 25 | 6684668 | |||
| D4e Retaining Ring (old 993-55040-001) | ||||
| 27 | 6685101 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 28 | 6685105 | 1.15 | 1.39 | |
| Ring | ||||
| 30 | 6685103 | 1.15 | 1.39 | |
| Flywheel Nut | ||||
| 31 | 6685104 | 1.15 | 1.39 | |
| Shim S T0.2 (old 071-04063-23) | ||||
| 32 | 6685098 | 1.15 | 1.39 | |
| Shim S T0.3 (old 071-04063-24) | ||||
| 32 | 6685099 | 1.15 | 1.39 | |
| Shim 0.4 | ||||
| 32 | 6686475 | 1.15 | 1.39 | |
| Crank Case Ass'y | ||||
| 34 | 6686523 | 36.15 | 43.74 | |
| Air Vent Valve (b) | ||||
| 41 | 6685173 | 2.31 | 2.80 | |
| Air Vent Valve Set | ||||
| 42 | 6697231 | 5.45 | 6.59 | |
| Hex.hole Bolt 5x20/ps | ||||
| 43 | 6684634 | 2.15 | 2.60 | |
| Earth wire | ||||
| 44 | 6688446 | 2.31 | 2.80 | |
| Stop Switch Ass'y | ||||
| 45A | 6601374 | 11.71 | 14.17 | |
| Switch Name Plate | ||||
| 46 | 6687949 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 47 | 6697230 | |||
| No longer available, no replacement | ||||
| 51 | 6689735 | |||
| Cleaner Element | ||||
| 52 | 6690064 | 3.30 | 3.99 | |
| Insulator Set | ||||
| 53 | 6689935 | 12.05 | 14.58 | |
| Insulator Gasket | ||||
| 54 | 6689871 | 1.15 | 1.39 | |
| Carburetor Insulator Rubber (old 409-01700-20) | ||||
| 55 | 6690001 | 1.15 | 1.39 | |
| Valve Holder | ||||
| 56 | 6689806 | 1.15 | 1.39 | |
| Reed Valve | ||||
| 57 | 6689803 | 3.30 | 3.99 | |
| No longer available, no replacement | ||||
| 58 | 6694964 | |||
| Carburetor Gasket | ||||
| 59 | 6698108 | 1.80 | 2.18 | |
| Carburetor Set, Wt-517a | ||||
| 60 | 6690666 | 64.28 | 77.77 | |
| Screw 5x45s | ||||
| 61 | 6695350 | 1.15 | 1.39 | |
| Choke Shim 1.0 | ||||
| 62 | 6692597 | 1.05 | 1.27 | |
| Small Washer 5 | ||||
| 63 | 6684864 | 2.15 | 2.60 | |
| Choke Valve | ||||
| 64 | 6692410 | 2.31 | 2.80 | |
| Tapping Screw D4.5x14 | ||||
| 65 | 6685152 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 66 | 6697232 | |||
| No information available, not orderable | ||||
| 67 | 6684668 | |||
| Small Washer 5 | ||||
| 68 | 6684864 | 2.15 | 2.60 | |
| Idle Sponge | ||||
| 69 | 6685224 | 1.15 | 1.39 | |
| Sponge H/l 10l | ||||
| 70 | 6687978 | 1.15 | 1.39 | |
| Cleaner Cover | ||||
| 73 | 6686302 | 4.45 | 5.38 | |
| Cleaner Cover | ||||
| 73A | 6686299 | 3.30 | 3.99 | |
| Cleaner Cover | ||||
| 74 | 6686299 | 3.30 | 3.99 | |
| Hex.hole Bolt M5x35 | ||||
| 81 | 6684934 | 2.15 | 2.60 | |
| Ring | ||||
| 82 | 6684661 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 83 | 6692443 | |||
| No longer available, no replacement | ||||
| 84 | 6692625 | |||
| Muffler Fitting Metal | ||||
| 85 | 6692676 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 86 | 6692606 | |||
| Muffler Gasket | ||||
| 87 | 6692734 | 1.15 | 1.39 | |
| Oil Pipe B (old 505-32710-20) | ||||
| 101 | 6691121 | 4.45 | 5.38 | |
| Clip 7 | ||||
| 102 | 6692312 | 1.15 | 1.39 | |
| Ring | ||||
| 103 | 6684661 | 2.15 | 2.60 | |
| Oil Filter | ||||
| 104 | 6690919 | 1.15 | 1.39 | |
| Oil Filter Body Ass'y | ||||
| 105 | 6685249 | 2.31 | 2.80 | |
| Throttle Wire Comp. | ||||
| 106 | 6693873 | 5.78 | 6.99 | |
| No information available, not orderable | ||||
| 107 | 6694836 | |||
| Priming Pump Comp. | ||||
| 108 | 6685139 | 5.94 | 7.18 | |
| Fuel Pipe 2.5x4x42 | ||||
| 109 | 6685138 | 1.15 | 1.39 | |
| Rubber Pipe | ||||
| 110 | 6692292 | 4.45 | 5.38 | |
| Pump Filter Body | ||||
| 111 | 6685199 | 4.45 | 5.38 | |
| Fuel Pipe 2.5x4x150 | ||||
| 112 | 6692351 | 1.15 | 1.39 | |
| Return Grommet Till 7.2014 | ||||
| 113 | 6697846 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 114 | 6697780 | |||
| Adjuster Cap | ||||
| 115 | 6687956 | 1.15 | 1.39 | |
| Grommet | ||||
| 116 | 6692590 | 1.15 | 1.39 | |
| Choke Button Comp. | ||||
| 117 | 6692513 | 2.31 | 2.80 | |
| Grommet | ||||
| 118 | 6687976 | 1.15 | 1.39 | |
| O-ring | ||||
| 119 | 6697898 | 1.04 | 1.26 | |
| O-ring P21 Since H106411 | ||||
| 119A | 6699285 | 1.04 | 1.26 | |
| Oil Tank Cap Ass'y | ||||
| 120 | 6692159 | 5.11 | 6.19 | |
| Tank Cap Ass'y | ||||
| 121A | 6692121 | 9.58 | 11.59 | |
| Lock Nut M6 | ||||
| 122 | 6684872 | 2.15 | 2.60 | |
| Recoil Starter Ass'y | ||||
| 131 | 6692906 | 44.31 | 53.62 | |
| Tapping Screw D5x14 Since C026901 Till F024130 | ||||
| 132 | 6685275 | 1.15 | 1.39 | |
| Ring | ||||
| 133 | 6689681 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 134 | 6693060 | |||
| No information available, not orderable | ||||
| 135 | 6693159 | |||
| Recoil Spring Case Assembly (old 778-01740-90) | ||||
| 136 | 6693093 | 7.75 | 9.38 | |
| Starter Handle | ||||
| 137 | 6693228 | 2.31 | 2.80 | |
| Fan Housing | ||||
| 138 | 6686947 | 8.58 | 10.38 | |
| Tapping Screw D4.5x20 Till C026900 | ||||
| 139 | 6685191 | 1.15 | 1.39 | |
| Ring | ||||
| 140 | 6684632 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 151 | 6697233 | |||
| No information available, not orderable | ||||
| 151A | 6699698 | |||
| No information available, not orderable | ||||
| 152 | 6697234 | |||
| Starter Handle | ||||
| 153 | 6693240 | 14.35 | 17.36 | |
| Rope Till 7.2014 | ||||
| 154 | 6693168 | 2.31 | 2.80 | |
| Recoil Spring Till C026900 | ||||
| 155 | 6693138 | 9.90 | 11.98 | |
| Recoil Spring Case Assembly (old 778-01740-90) | ||||
| 156 | 6693093 | 7.75 | 9.38 | |
| Starter Pulley Till H081350 | ||||
| 157 | 6693061 | 9.90 | 11.98 | |
| Ring | ||||
| 158 | 6687947 | 2.31 | 2.80 | |
| Tapping Screw D5x14 Since C026901 Till F024130 | ||||
| 159 | 6685275 | 1.15 | 1.39 | |
| Tapping Screw D4.5x20 Till C026900 | ||||
| 160 | 6685191 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 161 | 6687326 | |||
| No information available, not orderable | ||||
| 162 | 6699697 | |||
| Starter Handle | ||||
| 163 | 6693230 | 4.45 | 5.38 | |
| Rope Since H081351 | ||||
| 164 | 6685186 | 2.31 | 2.80 | |
| Damper Spring Since H081351 | ||||
| 165 | 6685183 | 4.45 | 5.38 | |
| Spring Case Assembly (Old 778-01761-90) | ||||
| 166 | 6685185 | 9.24 | 11.18 | |
| Starter Pulley (Old 774-01761-20) | ||||
| 167 | 6685184 | 4.95 | 5.99 | |
| Set Screw (old 839-03045-20) | ||||
| 168 | 6684679 | 2.15 | 2.60 | |
| Cam Plate (Old 759-0174M-20) | ||||
| 169 | 6685182 | 3.30 | 3.99 | |
| Plate | ||||
| 170 | 6685189 | 1.15 | 1.39 | |
| Inlet Screen | ||||
| 181 | 6684700 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 182 | 6685211 | |||
| Screw | ||||
| 183 | 6685210 | 1.15 | 1.39 | |
| Pump Gasket | ||||
| 184 | 6685212 | 2.31 | 2.80 | |
| Pump Diaphragm | ||||
| 185 | 6685213 | 4.45 | 5.38 | |
| Low Adjust Screw | ||||
| 186 | 6690714 | 5.28 | 6.38 | |
| High/low Adjust Spring (old 623-25032-20) | ||||
| 187 | 6692048 | 2.31 | 2.80 | |
| Control Lever | ||||
| 188 | 6685217 | 3.30 | 3.99 | |
| Hinge Pin Set Screw | ||||
| 189 | 6685218 | 2.31 | 2.80 | |
| Valve Spring | ||||
| 190 | 6690873 | 4.45 | 5.38 | |
| Hinge Pin | ||||
| 191 | 6685219 | 1.15 | 1.39 | |
| Diaphragm Cover-metering | ||||
| 192 | 6685222 | 4.45 | 5.38 | |
| No longer available, no replacement | ||||
| 193 | 6690827 | |||
| No longer available, no replacement | ||||
| 194 | 6685220 | |||
| Needle Valve | ||||
| 195 | 6685215 | 5.28 | 6.38 | |
| Idle Adjust Spring | ||||
| 196 | 6685297 | 2.31 | 2.80 | |
| Idle Adjust Screw | ||||
| 197 | 6685298 | 2.31 | 2.80 | |
| High Adjust Screw | ||||
| 198 | 6690691 | 4.79 | 5.79 | |
| High Adjustment Spring | ||||
| 199 | 6690897 | 3.30 | 3.99 | |
| Set Screw | ||||
| 200 | 6685223 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 211 | 6695416 | |||
| Oil Pump Cover | ||||
| 222 | 6686763 | 2.31 | 2.80 | |
| Oil Pipe A | ||||
| 223 | 6691223 | 3.30 | 3.99 | |
| Screw Gear | ||||
| 224 | 6686645 | 10.40 | 12.58 | |
| Air Vent Sponge | ||||
| 225 | 6691400 | 1.15 | 1.39 | |
| Oil Pump Ass'y (old 144-32902-90/6686678/6686652/6 | ||||
| 226 | 6687324 | 10.56 | 12.78 | |
| Oil Adjust Grommet | ||||
| 227 | 6690956 | 1.15 | 1.39 | |
| Oil Pump Adjuster | ||||
| 228 | 6691070 | 1.15 | 1.39 | |
| O Ring | ||||
| 229 | 6697917 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 230 | 6686681 | |||
| O Ring | ||||
| 231 | 6697917 | 1.04 | 1.26 | |
| Tapping Screw D5x14 Since C026901 Till F024130 | ||||
| 232 | 6685275 | 1.15 | 1.39 | |
| Chain Catcher | ||||
| 234 | 6685155 | 1.15 | 1.39 | |
| Tapping Screw D4.5x14 | ||||
| 235 | 6685152 | 1.15 | 1.39 | |
| Chain Bar Clamp Nut (old 121-32600-20) | ||||
| 241 | 6687105 | 1.15 | 1.39 | |
| Clutch Comp. | ||||
| 242 | 6685142 | 14.38 | 17.39 | |
| No longer available, no replacement | ||||
| 243 | 6685143 | |||
| Clutch Housing Comp. 3/8 (old 310-32900-20) | ||||
| 244 | 6689013 | 14.19 | 17.17 | |
| Ring | ||||
| 245 | 6685145 | 2.31 | 2.80 | |
| Tapping Screw D4x10 | ||||
| 246 | 6685161 | 1.15 | 1.39 | |
| Guide Plate A | ||||
| 247 | 6697599 | 2.80 | 3.39 | |
| Crank Shaft Collar | ||||
| 248 | 6685146 | 2.31 | 2.80 | |
| Tapping Screw D4x10 | ||||
| 249 | 6685161 | 1.15 | 1.39 | |
| Guide Plate B | ||||
| 250 | 6690756 | 2.31 | 2.80 | |
| Screw 2.6x5 (old 993-30026-050) | ||||
| 251 | 6695269 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 252B | 6698986 | |||
| Gear (a) | ||||
| 253 | 6685168 | 2.31 | 2.80 | |
| Side Case Comp. | ||||
| 254 | 6698015 | 9.24 | 11.18 | |
| Screw 5x25 Ps | ||||
| 261 | 6695394 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 262 | 6695157 | |||
| Screw 5x40/s | ||||
| 263 | 6695348 | 1.15 | 1.39 | |
| Small Washer 5 | ||||
| 264 | 6684864 | 2.15 | 2.60 | |
| Damper Collar A | ||||
| 265 | 6688480 | 1.15 | 1.39 | |
| Damper A (old 219-32750-20) | ||||
| 266 | 6688117 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 267 | 6695157 | |||
| Rear Handle B Comp. | ||||
| 268 | 6685646 | 5.28 | 6.38 | |
| Push Pin Cap | ||||
| 269 | 6692680 | 1.15 | 1.39 | |
| Stopper Spring | ||||
| 270 | 6686447 | 1.15 | 1.39 | |
| Push Pin Till U100576 | ||||
| 271 | 6686433 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 272 | 6688361 | |||
| No longer available, no replacement | ||||
| 273 | 6686390 | |||
| No information available, not orderable | ||||
| 274 | 6697845 | |||
| Nut M4 | ||||
| 275 | 6685069 | 1.15 | 1.39 | |
| Rear Handle A Comp. | ||||
| 276 | 6685616 | 11.88 | 14.37 | |
| No information available, not orderable | ||||
| 277 | 6695410 | |||
| Front Handle Comp. | ||||
| 278 | 6688077 | 7.93 | 9.59 | |
| Damper B | ||||
| 279 | 6688412 | 1.15 | 1.39 | |
| Damper Collar B | ||||
| 280 | 6688485 | 1.15 | 1.39 | |
| Tapping Screw 5x35 | ||||
| 281 | 6695107 | 1.15 | 1.39 | |
| Tapping Screw 5x35 | ||||
| 282 | 6695107 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 283 | 6693462 | |||
| No information available, not orderable | ||||
| 501 | 6694810 | |||
| No information available, not orderable | ||||
| 502 | 6697239 | |||
| No information available, not orderable | ||||
| 503 | 6697889 | |||
| Combi. Box Spanner 13x19 Minus | ||||
| 504 | 6693809 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 601 | 6699723 | |||
| No information available, not orderable | ||||
| 602 | 6699724 | |||
| No information available, not orderable | ||||
| 603 | 6699696 | |||
