Here you will find all available parts and drawings of the 'Hikoki CS33EB'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

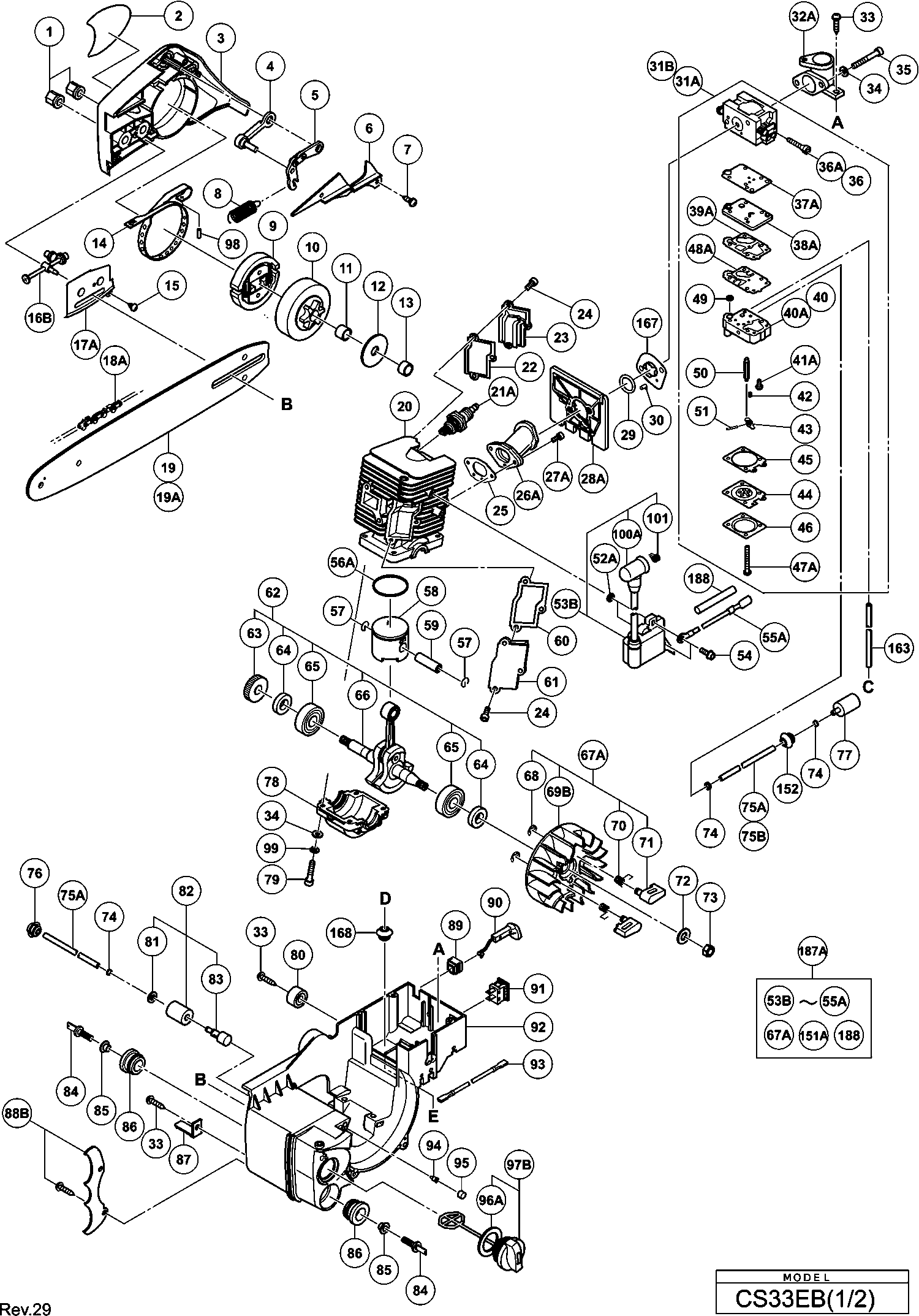

Technical drawing of model Hikoki CS33EB
Spare parts list of model Hikoki CS33EB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Chain Bar Clamp Nut | ||||
| 1 | 6685416 | 1.05 | 1.27 | |
| Side Cover Sub | ||||
| 3 | 6685406 | 8.85 | 10.71 | |
| Side Cover Sub Assembly (green) | ||||
| 3 | 6685422 | 8.85 | 10.71 | |
| BRAKE SUPPORT ASSEMBLY | ||||
| 4 | 6685387 | 4.05 | 4.90 | |
| Brake Link | ||||
| 5 | 6685388 | 4.05 | 4.90 | |
| Brake Link Cover | ||||
| 6 | 6685392 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 7 | 305812 | 1.04 | 1.26 | |
| Brake Spring | ||||
| 8 | 6685389 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 9 | 6685362 | |||
| Clutch Housing | ||||
| 10 | 6685403 | 10.20 | 12.34 | |
| Needle-roller Bearing | ||||
| 11 | 6685361 | 4.05 | 4.90 | |
| Ring | ||||
| 12 | 6685414 | 1.05 | 1.27 | |
| Crank Shaft Collar | ||||
| 13 | 6685360 | 2.10 | 2.54 | |
| Brake Band | ||||
| 14 | 6685390 | 4.05 | 4.90 | |
| Tapping Screw D3x8 | ||||
| 15 | 6685415 | 1.05 | 1.27 | |
| Chain Puller | ||||
| 16B | 6698986 | 13.35 | 16.15 | |
| Guide plate | ||||
| 17A | 6685394 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 18A | 6697889 | |||
| No information available, not orderable | ||||
| 19 | 6685262 | |||
| No information available, not orderable | ||||
| 19A | 6696992 | |||
| Cylinder (a) | ||||
| 20 | 6685404 | 56.65 | 68.55 | |
| Cylinder | ||||
| 20 | 6685405 | 56.65 | 68.55 | |
| Spark Plug Ass'y Bpmr6a | ||||
| 21A | 6699319 | 8.91 | 10.78 | |
| Spark Plug Ass'y Bpm6a | ||||
| 21A | 6699317 | 6.76 | 8.18 | |
| Cover Packing (b) | ||||
| 22 | 6685317 | 1.05 | 1.27 | |
| Exhaust Valve Cover (b) | ||||
| 23 | 6685315 | 2.10 | 2.54 | |
| Seal Lock Hex. Sockethead Bolt M4x8 | ||||
| 24 | 6696315 | 1.20 | 1.45 | |
| Gasket | ||||
| 25 | 6685318 | 1.05 | 1.27 | |
| Intake (a) | ||||
| 26A | 6698897 | 6.90 | 8.35 | |
| Seal Lock Hex. Socket Hd. Bolt M4x10 | ||||
| 27A | 6696860 | 1.05 | 1.27 | |
| Carburetor Insulator (a) | ||||
| 28A | 6698898 | 2.10 | 2.54 | |
| O-ring | ||||
| 29 | 6696316 | 1.20 | 1.45 | |
| Pulse Guide | ||||
| 30 | 6685321 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 31 | 6685435 | |||
| Carburetor (c) Wlb-3 Includ.36a-39a,40a-51 (till | ||||
| 31A | 6685437 | 96.94 | 117.29 | |
| Carburetor Ass'y (e) Wlb-5a Includ.36-51 Since 5. | ||||
| 31B | 6698683 | 96.94 | 117.29 | |
| Cleaner Support | ||||
| 32A | 6696843 | 4.20 | 5.08 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 33 | 302089 | 1.05 | 1.27 | |
| Ring | ||||
| 34 | 6685408 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M5x45 | ||||
| 35 | 6696317 | 1.20 | 1.45 | |
| Idle Adjusting Screw For Wlb-5a | ||||
| 36 | 6699731 | 3.80 | 4.60 | |
| Idle Adjusting Screw Foer Wlb-1a And Wlb-3 | ||||
| 36A | 6696318 | 14.85 | 17.97 | |
| Passage Gasket | ||||
| 37A | 6696319 | 5.11 | 6.19 | |
| Passage Plate | ||||
| 38A | 6696320 | 22.99 | 27.81 | |
| Pump Gasket | ||||
| 39A | 6684692 | 29.19 | 35.32 | |
| Pump Body For Wlb-5a | ||||
| 40 | 6699645 | 13.76 | 16.65 | |
| Pump Body For Wlb-1a And Wlb-3 | ||||
| 40A | 6696322 | 27.23 | 32.94 | |
| No longer available, no replacement | ||||
| 41A | 6691305 | |||
| Metering Lever Spring | ||||
| 42 | 6696323 | 4.63 | 5.60 | |
| Control Lever | ||||
| 43 | 6685217 | 3.30 | 3.99 | |
| Metering Diaphragm | ||||
| 44 | 6684690 | 18.00 | 21.78 | |
| No longer available, no replacement | ||||
| 45 | 6685220 | |||
| Diaphragm Cover-metering | ||||
| 46 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 47A | 6684699 | 2.15 | 2.60 | |
| Pump Diaphragm | ||||
| 48A | 6684693 | 8.58 | 10.38 | |
| Inlet Screen | ||||
| 49 | 6684700 | 4.29 | 5.19 | |
| Needle Valve | ||||
| 50 | 6685215 | 5.28 | 6.38 | |
| Hinge Pin | ||||
| 51 | 6685219 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 52A | 6698700 | |||
| No longer available, no replacement | ||||
| 53B | 6699989 | |||
| Hex. Socket Hd. Bolt (w/flange) M4x18 | ||||
| 54 | 6696326 | 1.20 | 1.45 | |
| Cord Since 11.2013 | ||||
| 55A | 6699991 | 1.05 | 1.27 | |
| Piston Ring (xr1-1856) | ||||
| 56A | 6685331 | 4.05 | 4.90 | |
| Circlip | ||||
| 57 | 6685326 | 1.05 | 1.27 | |
| Piston | ||||
| 58 | 6696313 | 22.83 | 27.62 | |
| Piston | ||||
| 58 | 6685325 | 7.65 | 9.26 | |
| Piston Pin | ||||
| 59 | 6685327 | 1.05 | 1.27 | |
| Cover Packing (a) | ||||
| 60 | 6685316 | 1.05 | 1.27 | |
| Exhaust Valve Cover (a) | ||||
| 61 | 6685314 | 2.10 | 2.54 | |
| Crank Worm Ass'y Includ.63-66 | ||||
| 62 | 6685396 | 76.73 | 92.84 | |
| Worm | ||||
| 63 | 6685330 | 4.50 | 5.44 | |
| Oil Seal | ||||
| 64 | 6685329 | 2.10 | 2.54 | |
| Ball Bearing (1) | ||||
| 65 | 6685328 | 3.00 | 3.63 | |
| Crank Shaft | ||||
| 66 | 6685324 | 43.86 | 53.07 | |
| No longer available, no replacement | ||||
| 67A | 6699993 | |||
| Retaining Ring D4 | ||||
| 68 | 6685336 | 1.05 | 1.27 | |
| Magneto Rotor Since 11.2013 | ||||
| 69A | 6699990 | 5.85 | 7.08 | |
| Magneto Rotor Since 11.2013 | ||||
| 69B | 6699990 | 5.85 | 7.08 | |
| Spring | ||||
| 70 | 6685335 | 1.05 | 1.27 | |
| Starter Pawl | ||||
| 71 | 6685334 | 1.05 | 1.27 | |
| Ring | ||||
| 72 | 6685410 | 1.05 | 1.27 | |
| Nut | ||||
| 73 | 6685337 | 1.05 | 1.27 | |
| Clip D6 | ||||
| 74 | 6685198 | 1.15 | 1.39 | |
| Fuel Pipe | ||||
| 75A | 6698715 | 9.75 | 11.80 | |
| No information available, not orderable | ||||
| 75B | 6698998 | |||
| Fuel Grommet (a) | ||||
| 76 | 6685308 | 1.05 | 1.27 | |
| Pump Filter Body | ||||
| 77 | 6685199 | 4.45 | 5.38 | |
| Pump Filter | ||||
| 77A | 6600351 | 2.70 | 3.27 | |
| Crank Case | ||||
| 78 | 6685339 | 4.50 | 5.44 | |
| Seal Lock Hex. Socket Hd. Bolt M5 | ||||
| 79 | 6685412 | 1.05 | 1.27 | |
| Damper (b) | ||||
| 80 | 6685313 | 2.10 | 2.54 | |
| Ring | ||||
| 81 | 6685407 | 1.05 | 1.27 | |
| Oil Filter Body Ass'y | ||||
| 82 | 6685249 | 2.31 | 2.80 | |
| Oil Filter Body | ||||
| 83 | 6685310 | 1.05 | 1.27 | |
| Damper Set Bolt | ||||
| 84 | 6685413 | 1.05 | 1.27 | |
| Spacer bushing | ||||
| 85 | 696314 | 3.45 | 4.17 | |
| Damper (a) | ||||
| 86 | 6696327 | 4.20 | 5.08 | |
| Chain Catcher | ||||
| 87 | 6685363 | 1.05 | 1.27 | |
| Spike | ||||
| 88B | 6696329 | 10.20 | 12.34 | |
| Choke Rod Rubber | ||||
| 89 | 6685369 | 1.05 | 1.27 | |
| Choke Button | ||||
| 90 | 6685368 | 1.05 | 1.27 | |
| Choke Button | ||||
| 90 | 6685421 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 91 | 6685364 | |||
| No longer available, no replacement | ||||
| 91A | 6601275 | |||
| Motor Housing | ||||
| 92 | 6685307 | 27.50 | 33.28 | |
| Cord (a) | ||||
| 93 | 6685365 | 1.05 | 1.27 | |
| Air Vent Valve (b) | ||||
| 94 | 6685370 | 2.10 | 2.54 | |
| Air Vent Sponge | ||||
| 95 | 66A6188 | 1.50 | 1.82 | |
| Tank Cap Packing | ||||
| 96A | 6685179 | 1.15 | 1.39 | |
| Fuel Tank Cap Ass'y (vermilion) Includ.159 | ||||
| 97A | 6698854 | 4.20 | 5.08 | |
| Fuel Tank Cap Ass'y (green) Includ.91 | ||||
| 97A | 6698855 | 4.20 | 5.08 | |
| Fuel Tank Cap Ass'y (black) Includ.159 | ||||
| 97B | 6698358 | 4.20 | 5.08 | |
| Needle Roller D3 | ||||
| 98 | 6685391 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 99 | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 100B | 6601421 | |||
| No information available, not orderable | ||||
| 101 | 6699186 | |||
| Seal Lock Hex. Socket Hd. Bolt M5x16 Since 8.2013 | ||||
| 121A | 6699415 | 1.80 | 2.18 | |
| Exhaust Pipe (b) Since 7.2013 Till 4.2017 For Eur | ||||
| 122B | 6699412 | 1.04 | 1.26 | |
| Gauze Fixing Plate (b) Since 7.2013 Till 4.2017 F | ||||
| 123B | 6699414 | 1.04 | 1.26 | |
| Muffler Gauze (b) Since 7.2013 Till 4.2017 For Eu | ||||
| 124A | 6699413 | 1.04 | 1.26 | |
| Muffler (b) | ||||
| 125A | 6699409 | 27.23 | 32.94 | |
| Muffler (b) Since 8.2013 (since 9.2013 For Rus,br | ||||
| 125A | 6699410 | 5.70 | 6.90 | |
| Muffler Packing | ||||
| 126 | 6685346 | 2.10 | 2.54 | |
| Cleaner Cover | ||||
| 127 | 6685382 | 2.10 | 2.54 | |
| Cleaner Knob | ||||
| 128A | 6696849 | 1.20 | 1.45 | |
| Throttle Rod | ||||
| 129A | 6696846 | 2.10 | 2.54 | |
| Rear Handle Grip | ||||
| 130A | 6698805 | 1.05 | 1.27 | |
| Switch Lock | ||||
| 131 | 6685420 | 1.05 | 1.27 | |
| Trigger Lockout (vermilion) | ||||
| 131 | 6685350 | 1.05 | 1.27 | |
| Throttle Lever Spring | ||||
| 132A | 6600341 | 1.04 | 1.26 | |
| Spring Pin 5x25 | ||||
| 133 | 6685282 | 1.15 | 1.39 | |
| Regulator | ||||
| 134 | 6685348 | 1.05 | 1.27 | |
| Regulator | ||||
| 134 | 6685419 | 1.05 | 1.27 | |
| Inner Cap Ass'y | ||||
| 135A | 6685351 | 4.50 | 5.44 | |
| Rear Handle Ass'y Till 04/2011 | ||||
| 136 | 6685347 | 17.46 | 21.13 | |
| Rear Handle | ||||
| 136A | 6698685 | 20.90 | 25.29 | |
| Front Handle | ||||
| 137A | 6698997 | 9.15 | 11.07 | |
| Cleaner Element | ||||
| 138 | 6685378 | 8.10 | 9.80 | |
| Shutter Plate | ||||
| 139 | 6685381 | 1.05 | 1.27 | |
| Cylinder Cover | ||||
| 140 | 6685376 | 3.00 | 3.63 | |
| Cylinder Cover | ||||
| 140A | 6698687 | 10.20 | 12.34 | |
| Brake Handle | ||||
| 142 | 6685373 | 5.85 | 7.08 | |
| Brake Lever Spring | ||||
| 143 | 6685374 | 1.05 | 1.27 | |
| Needle Roller | ||||
| 144 | 6685356 | 1.05 | 1.27 | |
| Pump Case | ||||
| 145A | 6699118 | 7.50 | 9.08 | |
| Pump Gear Spring | ||||
| 146 | 6685355 | 1.05 | 1.27 | |
| Pump Gear | ||||
| 147 | 6685354 | 2.10 | 2.54 | |
| No longer available, no replacement | ||||
| 148 | 6685357 | |||
| Pump Cover | ||||
| 149 | 6685359 | 1.05 | 1.27 | |
| Pipe Joint | ||||
| 150 | 6685358 | 1.05 | 1.27 | |
| Air Deflector Since 11.2013 | ||||
| 151A | 6600345 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 152 | 6698931 | |||
| Recoil Starter Includ.173-175,180-182,184 | ||||
| 160B | 6696847 | 20.90 | 25.29 | |
| No information available, not orderable | ||||
| 160C | 6698684 | |||
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 162 | 305558 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 163 | 6698845 | |||
| Return Grommet Till 7.2014 | ||||
| 164A | 6697846 | 1.04 | 1.26 | |
| Fuel Pipe | ||||
| 165 | 6692413 | 2.95 | 3.57 | |
| Priming Pump Comp. | ||||
| 166 | 6685139 | 5.94 | 7.18 | |
| No information available, not orderable | ||||
| 167 | 6698847 | |||
| Fuel Grommet (a) | ||||
| 168 | 6685308 | 1.05 | 1.27 | |
| Primer Label Since 11.2013 For Europe | ||||
| 169 | 6699000 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 170 | 6698923 | |||
| Tank Mark Label (50:1) | ||||
| 171 | 6698921 | 1.20 | 1.45 | |
| Tank Mark Label (25:1) For Asia,tpe,kor | ||||
| 171 | 6698922 | 1.20 | 1.45 | |
| Start Label Since 5.2011 For Europe | ||||
| 172 | 6698999 | 1.04 | 1.26 | |
| Set Screw Till 3.2015 | ||||
| 173 | 6699475 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 174 | 6699481 | |||
| No longer available, no replacement | ||||
| 175 | 6699480 | |||
| Set Screw Since 4.2015 | ||||
| 176 | 6699476 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 177 | 6699478 | |||
| Damper Spring Since 4.2015 | ||||
| 178 | 6699479 | 1.65 | 2.00 | |
| Reel Since Tl041791 | ||||
| 179 | 6699485 | 2.40 | 2.90 | |
| Starter Rope | ||||
| 180 | 6699468 | 1.04 | 1.26 | |
| Starter Rope | ||||
| 180 | 6699469 | 1.04 | 1.26 | |
| Rope Stopper | ||||
| 181 | 6699465 | 1.04 | 1.26 | |
| Starter Knob | ||||
| 182 | 6699467 | 1.95 | 2.36 | |
| Starter Handle Ass'y Includ.180-182 | ||||
| 183 | 6699471 | 3.15 | 3.81 | |
| Fan Case | ||||
| 184 | 6699486 | 7.80 | 9.44 | |
| Fan Case | ||||
| 184A | 6699494 | 11.10 | 13.43 | |
| Hex. Socket Hd. Bolt (w/flange) M4x10 Since 7.201 | ||||
| 185 | 329983 | 1.65 | 2.00 | |
| Muffler Set (repair) Includ.121a,122b,123b,124a,1 | ||||
| 186 | 6699408 | 11.40 | 13.79 | |
| Muffler Set (repair) Includ.125a,121a Till 7.2013 | ||||
| 186 | 6699407 | 9.30 | 11.25 | |
| Exhaust (c) Ass'y Includ.121a,122c,123c,124b,125b | ||||
| 186A | 6601475 | 33.41 | 40.43 | |
| Magneto Set Includ.53b-55a,67a,151a,188 Till 10.2 | ||||
| 187A | 6600344 | 34.93 | 42.26 | |
| Cord Insulation Tube Since 11.2013 | ||||
| 188 | 6600343 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 6685440 | |||
| Combi Box Spanner 10/19mm | ||||
| 502 | 6685402 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 601A | 6696992 | |||
| Spike | ||||
| 602 | 6696329 | 10.20 | 12.34 | |
