Here you will find all available parts and drawings of the 'Hikoki CS25EPB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

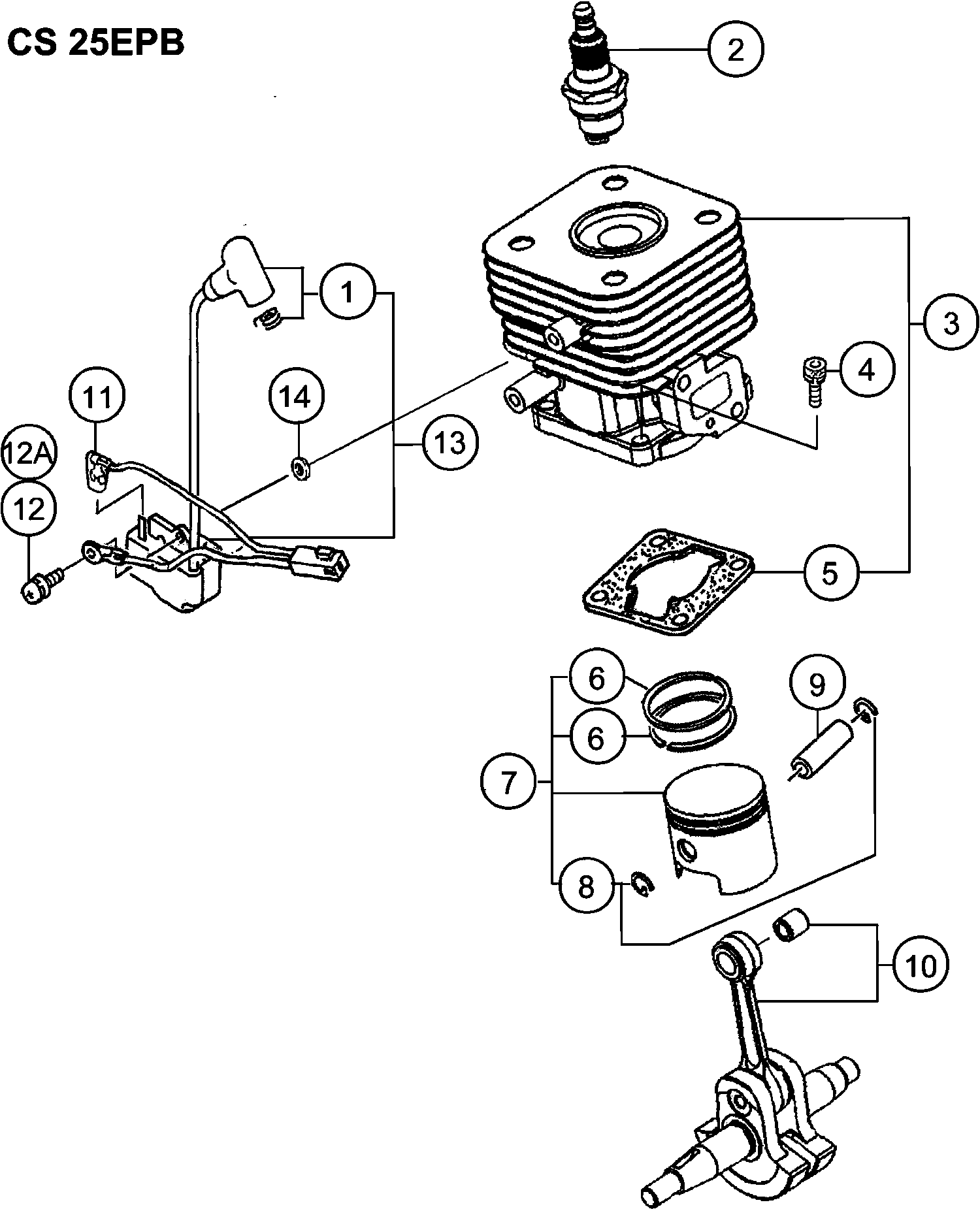

Technical drawing of model Hikoki CS25EPB
Spare parts list of model Hikoki CS25EPB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Plug Cap | ||||
| 1 | 6684894 | 8.58 | 10.38 | |
| Spark Plug BMR6A | ||||
| 2 | 6699315 | 13.35 | 16.15 | |
| Spark Plug Ass'y Bpmr6a | ||||
| 2 | 6699319 | 8.91 | 10.78 | |
| No information available, not orderable | ||||
| 3 | 6685495 | |||
| Hex.hole Bolt M5x18/s | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket T=1.0 | ||||
| 5 | 6685750 | 2.31 | 2.80 | |
| Cylinder Gasket | ||||
| 5 | 6684896 | 2.15 | 2.60 | |
| Piston Ring | ||||
| 6 | 6686121 | 4.45 | 5.38 | |
| Piston Set | ||||
| 7 | 6685902 | 20.11 | 24.34 | |
| Cir Clip | ||||
| 8 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 9 | 6684591 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 10 | 6686219 | |||
| Lead Wire Assembly (old 191-01680-90) | ||||
| 11 | 6687965 | 3.30 | 3.99 | |
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 12 | 6684599 | 2.15 | 2.60 | |
| High Tension Screw 4x18ws Since H124041 | ||||
| 12A | 6695407 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 13 | 6687688 | |||
| Washer T1.6 | ||||
| 14 | 6684600 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.20 | ||||
| 21 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 21 | 6684605 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 22 | 6687385 | 22.24 | 26.91 | |
| Magneto Rotor Comp. | ||||
| 22 | 6687384 | 16.19 | 19.59 | |
| Hex. Nut M8 | ||||
| 23 | 6684612 | 2.15 | 2.60 | |
| Bolt Washer M8 | ||||
| 24 | 6684611 | 2.15 | 2.60 | |
| Crank Case Ass'y Since D038601 | ||||
| 25 | 6684905 | 54.45 | 65.88 | |
| Oil Seal | ||||
| 26 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 27 | 6684608 | 3.80 | 4.60 | |
| Crank Case Gasket | ||||
| 28 | 6684904 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x16/s | ||||
| 29 | 6684903 | 2.15 | 2.60 | |
| Inlet Manifold Gasket | ||||
| 41 | 6689895 | 1.15 | 1.39 | |
| Insulator Set | ||||
| 42 | 6689972 | 6.28 | 7.59 | |
| Hex. Hole Bolt 5x25/ws | ||||
| 43 | 6684617 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x25ws | ||||
| 43 | 6695515 | 1.15 | 1.39 | |
| Carburetor Packing | ||||
| 44 | 6684616 | 2.15 | 2.60 | |
| Choke Plate 2.0 | ||||
| 45 | 6691276 | 1.15 | 1.39 | |
| Choke Lever 1.5 | ||||
| 45 | 6691281 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 46 | 6690120 | |||
| Cleaner Sponge | ||||
| 47 | 6690365 | 1.15 | 1.39 | |
| Cleaner Cover | ||||
| 48 | 6690421 | 13.86 | 16.77 | |
| Cover Fixing Bolt Comp. | ||||
| 49 | 6698730 | 3.15 | 3.81 | |
| Screw 5x57/s | ||||
| 50 | 6695353 | 1.15 | 1.39 | |
| Screw M5x55 | ||||
| 50 | 6694914 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 51 | 6684662 | 2.15 | 2.60 | |
| Small Washer 5 | ||||
| 52 | 6684864 | 2.15 | 2.60 | |
| Carburetor Set Wyj-463 (old 455-0740a-90) | ||||
| 53 | 6690522 | 80.31 | 97.18 | |
| Choke Control Lever | ||||
| 54 | 6691239 | 1.15 | 1.39 | |
| Tank Wht | ||||
| 55 | 6691602 | 15.13 | 18.30 | |
| Collar C | ||||
| 56 | 6684623 | 2.15 | 2.60 | |
| Return Grommet Till 7.2014 | ||||
| 57 | 6697846 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 58 | 6684626 | |||
| No information available, not orderable | ||||
| 59 | 6684620 | |||
| Clip D6 | ||||
| 60 | 6685198 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 61 | 6684618 | |||
| Hex.hole Bolt 5x20/ps | ||||
| 62 | 6684634 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 63 | 6685049 | |||
| Tap Screw 4x14 P | ||||
| 64 | 6695280 | 1.15 | 1.39 | |
| Ring | ||||
| 65 | 6685070 | 1.15 | 1.39 | |
| Stand | ||||
| 66 | 6694787 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 67 | 6684625 | |||
| Carburetor Gasket (old 402-0602K-21/6689836) | ||||
| 68 | 6684615 | 2.15 | 2.60 | |
| Carburetor Set Wyj-431 Walbro (old 455-07355-90) | ||||
| 69 | 6690519 | 86.36 | 104.50 | |
| Cylinder Cover | ||||
| 81 | 6685690 | 5.28 | 6.38 | |
| Cylinder Cover (blk) | ||||
| 81 | 6685693 | 4.79 | 5.79 | |
| Hex. Hole Bolt 5x16/ps | ||||
| 82 | 6695504 | 1.15 | 1.39 | |
| Hex. Hole Bolt M6x55 | ||||
| 83 | 6684638 | 2.15 | 2.60 | |
| Hex.hole Bolt 6x65 (old 990-51060-653) | ||||
| 83 | 6695067 | 1.15 | 1.39 | |
| Ring | ||||
| 84 | 6684639 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 85 | 6699282 | |||
| No longer available, no replacement | ||||
| 86 | 6692888 | |||
| Tail Pipe Set | ||||
| 87 | 6692715 | 3.30 | 3.99 | |
| Screw M4x8/ws | ||||
| 88 | 6684651 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 89 | 6692701 | |||
| Muffler Protector | ||||
| 90 | 6692813 | 5.11 | 6.19 | |
| Hex. Hole Bolt 4x18ws Till H124040 | ||||
| 91 | 6695508 | 1.15 | 1.39 | |
| Screw 4x18/ps Since H124041 | ||||
| 91A | 6695375 | 1.15 | 1.39 | |
| Plug Cover | ||||
| 92 | 6688344 | 3.30 | 3.99 | |
| Plug Cap | ||||
| 92 | 6688345 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 93 | 6684642 | |||
| Clutch Shoe Comp. | ||||
| 94 | 6684643 | 11.55 | 13.98 | |
| Clutch Spring | ||||
| 95 | 6684644 | 2.15 | 2.60 | |
| Clutch Plate A 0.5 | ||||
| 96 | 6684645 | 2.15 | 2.60 | |
| Step Bolt | ||||
| 97 | 6684646 | 2.15 | 2.60 | |
| Hex.hole Bolt 5x20/ps | ||||
| 98 | 6684634 | 2.15 | 2.60 | |
| Clutch Set Ass'y | ||||
| 99 | 6699640 | 12.88 | 15.58 | |
| Ring | ||||
| 100 | 6684648 | 2.15 | 2.60 | |
| Tapping Screw D4.5x16 | ||||
| 101 | 6684636 | 2.15 | 2.60 | |
| Heat Shield | ||||
| 102 | 6687265 | 4.45 | 5.38 | |
| Muffler Set | ||||
| 103 | 6692498 | 13.86 | 16.77 | |
| Muffler Gasket | ||||
| 104 | 6692732 | 1.15 | 1.39 | |
| Heat Shield | ||||
| 105 | 6687264 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 106 | 6692500 | |||
| Tail Pipe Set Includ.5,6 Since D106801 | ||||
| 107 | 6692670 | 3.30 | 3.99 | |
| Muffler Special Gasket For Aus | ||||
| 108 | 6692887 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 109 | 6692699 | |||
| Ring | ||||
| 110 | 6685109 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 121A | 6699995 | |||
| No information available, not orderable | ||||
| 122 | 6684673 | |||
| Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo | ||||
| 123 | 6684674 | 4.29 | 5.19 | |
| Recoil Spring Till 7.2014 | ||||
| 124 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel For (s) Type Since 9.2013 For A | ||||
| 125A | 6699997 | 8.41 | 10.18 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 126 | 6684677 | 8.58 | 10.38 | |
| Cam Plate For (s) Type Since 9.2013 For Aus | ||||
| 127A | 6699996 | 2.55 | 3.09 | |
| Set Screw (old 839-03045-20) | ||||
| 128 | 6684679 | 2.15 | 2.60 | |
| Starter Handle | ||||
| 129 | 6684680 | 2.15 | 2.60 | |
| Hex. Hole Bolt 4x18ws Till H124040 | ||||
| 130 | 6695508 | 1.15 | 1.39 | |
| Screw 4x18/ps Since H124041 | ||||
| 130A | 6695375 | 1.15 | 1.39 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 131 | 6684681 | 13.20 | 15.97 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 132 | 6685101 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 133 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl | ||||
| 134 | 6684685 | 4.29 | 5.19 | |
| Till 8.2013 For Aus | ||||
| 135 | 6699691 | 6.10 | 7.38 | |
| Pump Body Comp. | ||||
| 151 | 6684879 | 62.16 | 75.22 | |
| Priming Pump Comp. | ||||
| 152 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover | ||||
| 153 | 6684688 | 8.58 | 10.38 | |
| Priming Body | ||||
| 154 | 6684689 | 6.44 | 7.79 | |
| Metering Diaphragm Comp. | ||||
| 155 | 6690830 | 11.88 | 14.37 | |
| Diaphragm Gasket | ||||
| 156 | 6684691 | 8.58 | 10.38 | |
| Pump Diaphragm | ||||
| 157 | 6684693 | 8.58 | 10.38 | |
| Pump Gasket | ||||
| 158 | 6684692 | 29.19 | 35.32 | |
| Main Jet #38.5 (old 599-200bw-38/6691874) | ||||
| 159 | 6696130 | 5.78 | 6.99 | |
| Main Jet #43 | ||||
| 159 | 6691848 | 4.45 | 5.38 | |
| O-RING (old 550-25100-20) | ||||
| 160 | 6684695 | 4.29 | 5.19 | |
| Stop Ring | ||||
| 161 | 6684696 | 2.15 | 2.60 | |
| Swivel | ||||
| 162 | 6684697 | 6.44 | 7.79 | |
| Throttle Set Screw | ||||
| 163 | 6684870 | 2.15 | 2.60 | |
| Cable Adjuster Stay | ||||
| 164 | 6684873 | 6.44 | 7.79 | |
| Cleaner Packing | ||||
| 165 | 6684875 | 4.29 | 5.19 | |
| Set Screw | ||||
| 166 | 6684699 | 2.15 | 2.60 | |
| Thrust Washer | ||||
| 167 | 6684874 | 2.15 | 2.60 | |
| Inlet Screen | ||||
| 168 | 6684700 | 4.29 | 5.19 | |
| Lock Nut M6 | ||||
| 169 | 6684872 | 2.15 | 2.60 | |
| Cable Adjuster | ||||
| 170 | 6684871 | 4.29 | 5.19 | |
| Clutch Drum Comp. | ||||
| 171 | 6688580 | 10.89 | 13.17 | |
| Stop Ring C-12 Outer | ||||
| 172 | 6684664 | 2.15 | 2.60 | |
| Cushion Rubber | ||||
| 173 | 6691823 | 3.30 | 3.99 | |
| Hex. Hole Bolt 5x16 | ||||
| 174 | 6695046 | 1.15 | 1.39 | |
| Hex. Hole Bolt M5x25/s | ||||
| 175 | 6684709 | 2.15 | 2.60 | |
| Fan Housing | ||||
| 176 | 6686959 | 15.13 | 18.30 | |
| Pipe Holder, TPE | ||||
| 177 | 6689651 | 5.94 | 7.18 | |
| Washer M5 (black) | ||||
| 178 | 6684918 | 2.15 | 2.60 | |
| Ring | ||||
| 179 | 6689159 | 1.15 | 1.39 | |
| Metal Fitting | ||||
| 180 | 6689664 | 3.30 | 3.99 | |
| Drive Shaft 1829l | ||||
| 181 | 6689443 | 17.55 | 21.24 | |
| Main Pipe Comp | ||||
| 182 | 6699653 | 32.06 | 38.80 | |
| Bush Ass'y | ||||
| 183 | 6697839 | 4.29 | 5.19 | |
| Hex.nut 6 | ||||
| 184 | 6684835 | 2.15 | 2.60 | |
| Loop Handle, 24 Dia.,black | ||||
| 185 | 6691046 | 5.78 | 6.99 | |
| Handle Bracket A | ||||
| 186 | 6691134 | 2.31 | 2.80 | |
| Handle Grip (old 503-3738e-20) | ||||
| 187 | 6691098 | 6.44 | 7.79 | |
| Bolt 6x43/p (black) | ||||
| 188 | 6684838 | 2.15 | 2.60 | |
| Tapping Screw 5x20 | ||||
| 189 | 6695255 | 1.15 | 1.39 | |
| Ring | ||||
| 190 | 6689681 | 1.15 | 1.39 | |
| Hanger D24 | ||||
| 191 | 6689277 | 3.30 | 3.99 | |
| Throttle Lever Ass'y 24 | ||||
| 192 | 6693773 | 44.31 | 53.62 | |
| Throttle Wire Comp. | ||||
| 193 | 6693984 | 40.24 | 48.69 | |
| Throttle Wire 4t | ||||
| 194 | 6694026 | 14.68 | 17.76 | |
| Stop Switch Comp | ||||
| 195 | 6687463 | 9.74 | 11.78 | |
| No information available, not orderable | ||||
| 196 | 6687526 | |||
| No longer available, no replacement | ||||
| 197 | 6684721 | |||
| Return Spring | ||||
| 198 | 6684722 | 2.15 | 2.60 | |
| Screw M5x20 | ||||
| 199 | 6684803 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 200 | 6684727 | |||
| Screw M4x20 (black) | ||||
| 201 | 6684725 | 2.15 | 2.60 | |
| Throttle Lever | ||||
| 202 | 6684804 | 8.58 | 10.38 | |
| Throttle Lever Ass'y 24 Dia. (old 870-38402-90) | ||||
| 203 | 6693767 | 36.15 | 43.74 | |
| Throttle Wire Comp. | ||||
| 204 | 6693978 | 19.51 | 23.61 | |
| Throttle Wire | ||||
| 205 | 6694022 | 8.25 | 9.98 | |
| Stop Switch Comp. | ||||
| 206 | 6687459 | 13.91 | 16.83 | |
| No information available, not orderable | ||||
| 207 | 6687526 | |||
| No longer available, no replacement | ||||
| 208 | 6684721 | |||
| Return Spring | ||||
| 209 | 6684722 | 2.15 | 2.60 | |
| Blind Plug | ||||
| 210 | 6684724 | 2.15 | 2.60 | |
| Screw M5x20 | ||||
| 211 | 6684803 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 212 | 6684727 | |||
| Screw M4x20 (black) | ||||
| 213 | 6684725 | 2.15 | 2.60 | |
| Throttle Lever | ||||
| 214 | 6684804 | 8.58 | 10.38 | |
| Oil Tank Cover | ||||
| 221 | 6686138 | 2.31 | 2.80 | |
| Collar 3 (old 031-32304-20) | ||||
| 222 | 6685961 | 1.15 | 1.39 | |
| Collar 3 Since J093880 | ||||
| 222A | 6699273 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 223 | 6699567 | |||
| O-ring P-5 | ||||
| 224 | 6695661 | 1.15 | 1.39 | |
| Step Bolt A | ||||
| 225 | 6689757 | 4.45 | 5.38 | |
| Oil Pump Comp. | ||||
| 226 | 6686487 | 17.09 | 20.68 | |
| O-ring P-5 | ||||
| 227 | 6695661 | 1.15 | 1.39 | |
| Oil Pump Spring | ||||
| 228 | 6690381 | 1.15 | 1.39 | |
| Oil Pump Piston Comp. (old 073-32304-81/6686607) | ||||
| 229 | 6686608 | 2.31 | 2.80 | |
| Tank Packing Ass'y Since J093880 | ||||
| 230 | 6699566 | 2.31 | 2.80 | |
| Fuel Pipe 3x5x60 | ||||
| 231 | 6692414 | 1.15 | 1.39 | |
| Small Screw 4x12ws (old 994-16040-126) | ||||
| 232 | 6695403 | 1.15 | 1.39 | |
| Ring | ||||
| 233 | 6684661 | 2.15 | 2.60 | |
| Oil Filter | ||||
| 234 | 6690917 | 1.15 | 1.39 | |
| Filter Assembly (old 486-32345-90) | ||||
| 235 | 6690913 | 2.31 | 2.80 | |
| Fuel Pipe 3x5x75 | ||||
| 236 | 6692415 | 1.15 | 1.39 | |
| Oil Pump Adjuster (old 501-32304-21) | ||||
| 237 | 6691066 | 4.45 | 5.38 | |
| O-ring P-5 | ||||
| 238 | 6695661 | 1.15 | 1.39 | |
| Stop Ring E-6 | ||||
| 239 | 6695311 | 1.15 | 1.39 | |
| Oil Tank Cap Assembly (old 624-32304-92) | ||||
| 240 | 6692050 | 12.05 | 14.58 | |
| Banjo, Oil Pump | ||||
| 241 | 6686637 | 1.15 | 1.39 | |
| O-ring P-15 | ||||
| 242 | 6698966 | 1.04 | 1.26 | |
| Push Nut | ||||
| 243 | 6695239 | 1.15 | 1.39 | |
| Ring | ||||
| 244 | 6695187 | 1.15 | 1.39 | |
| O-ring 1.4 (old 999-67001-413) | ||||
| 245 | 6695656 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x22/s | ||||
| 261 | 6695492 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x10 | ||||
| 262 | 6695042 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 263 | 6695458 | |||
| Case | ||||
| 264 | 6685793 | 14.35 | 17.36 | |
| Gear Pinion Set Spare | ||||
| 265 | 6688836 | 36.15 | 43.74 | |
| Ball Bearing 609 | ||||
| 266 | 6684734 | 8.58 | 10.38 | |
| Ball Bearing 609z St | ||||
| 267 | 6684735 | 8.58 | 10.38 | |
| Stop Ring C-9, Outer | ||||
| 268 | 6695281 | 1.15 | 1.39 | |
| Stop Ring C-24,inner | ||||
| 269 | 6684732 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 270 | 6693248 | |||
| Ball Bearing 627 C3 | ||||
| 271 | 6695568 | 5.61 | 6.79 | |
| Ball Bearing 638z | ||||
| 272 | 6697603 | 4.63 | 5.60 | |
| Stop Ring C-28,inner | ||||
| 273 | 6684741 | 2.15 | 2.60 | |
| Sprocket Comp.,3/8 | ||||
| 274 | 6689117 | 36.15 | 43.74 | |
| Flange nut | ||||
| 275 | 6695170 | 1.15 | 1.39 | |
| Side Cover Comp. | ||||
| 276 | 6686038 | 5.11 | 6.19 | |
| Chain Bar Clamp Nut (old 121-32600-20) | ||||
| 277 | 6687105 | 1.15 | 1.39 | |
| Chain Bar Knock Pin (old 122-32344-21) | ||||
| 278 | 6687130 | 4.45 | 5.38 | |
| Guide Plate | ||||
| 279 | 6697596 | 3.30 | 3.99 | |
| Chain Bar Tightening Bolt | ||||
| 280 | 6686803 | 4.45 | 5.38 | |
| Chain Tensioner | ||||
| 281 | 6687063 | 4.45 | 5.38 | |
| Cam | ||||
| 282 | 6690428 | 1.15 | 1.39 | |
| Collar | ||||
| 283 | 6685962 | 3.30 | 3.99 | |
| Combi. Box Spanner 13x19 Minus | ||||
| 501 | 6693809 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 502 | 6684766 | |||
| Guide Bar Cover, 10 | ||||
| 503 | 6694796 | 6.28 | 7.59 | |
| No information available, not orderable | ||||
| 504 | 6684813 | |||
| No information available, not orderable | ||||
| 505 | 6692867 | |||
| No information available, not orderable | ||||
| 506 | 6699679 | |||
| No information available, not orderable | ||||
| 507 | 6686882 | |||
| Symbol Mark Cs25epb(s) | ||||
| 601 | 6694667 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 602 | 6699681 | |||
