Here you will find all available parts and drawings of the 'Hikoki CS25EC'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

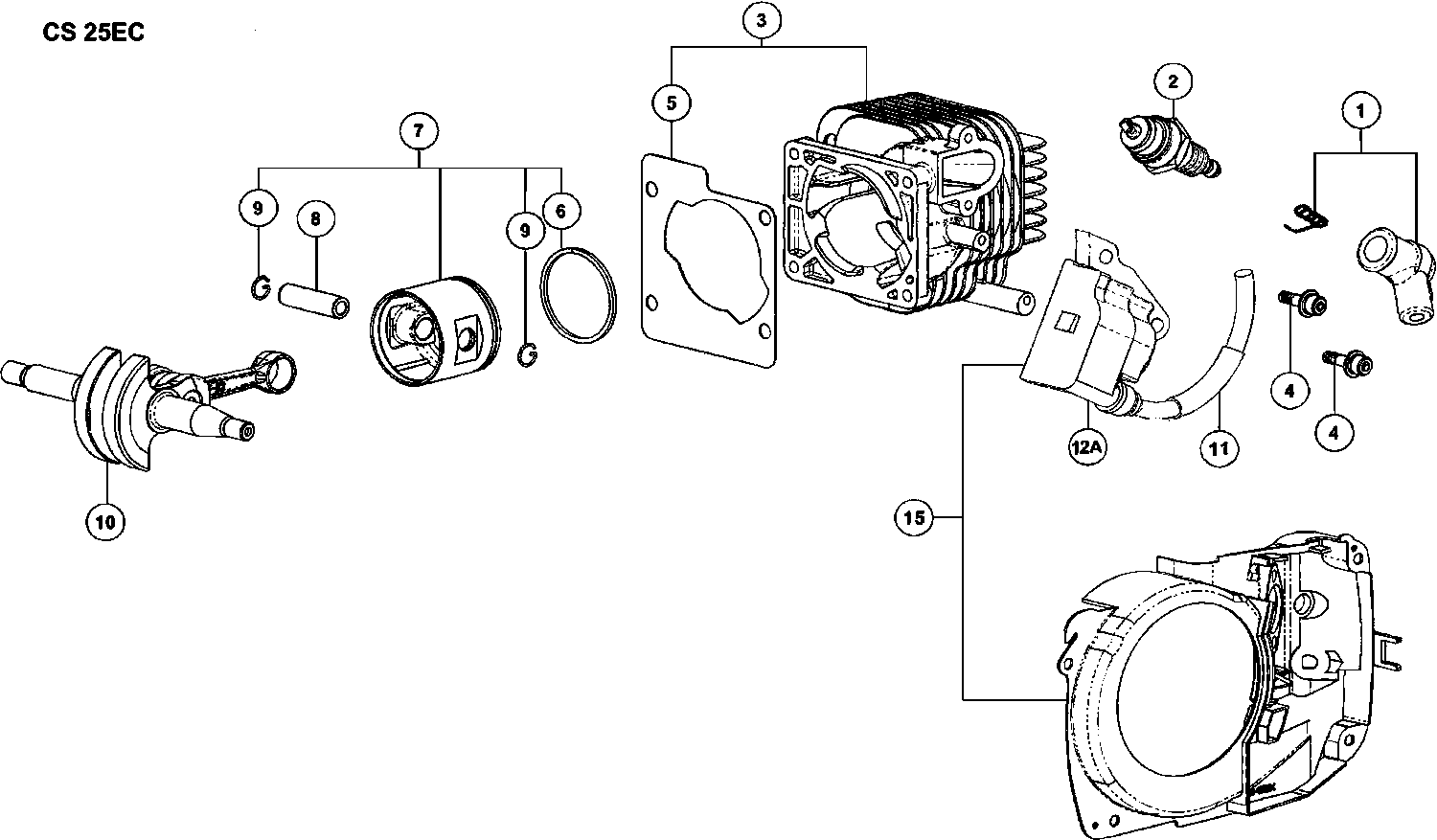

Technical drawing of model Hikoki CS25EC
Spare parts list of model Hikoki CS25EC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Cap Ass'y Till G165840 | ||||
| 1 | 6687468 | 2.31 | 2.80 | |
| Spark Plug Ass'y Bpmr6a | ||||
| 2 | 6699319 | 8.91 | 10.78 | |
| Cylinder Set | ||||
| 3 | 6685461 | 50.21 | 60.76 | |
| Hex. Hole Bolt 4x15/ps | ||||
| 4 | 6684682 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 5 | 6685726 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 6 | 6686119 | 4.45 | 5.38 | |
| Piston Set | ||||
| 7 | 6685881 | 20.11 | 24.34 | |
| Piston Pin | ||||
| 8 | 6684591 | 4.29 | 5.19 | |
| Cir Clip | ||||
| 9 | 6684590 | 2.15 | 2.60 | |
| Crank Shaft Comp. | ||||
| 10 | 6686173 | 54.30 | 65.70 | |
| Cord Insulator Tube Till G086250 | ||||
| 11 | 6692900 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 12A | 6601174 | |||
| Ignition Coil Set Pn Till Tl076510 | ||||
| 15 | 6601179 | 46.29 | 56.01 | |
| Shim S T0.2 (old 071-04063-23) | ||||
| 20 | 6685098 | 1.15 | 1.39 | |
| Shim S T0.3 (old 071-04063-24) | ||||
| 20 | 6685099 | 1.15 | 1.39 | |
| Shim 0.4 | ||||
| 20 | 6686475 | 1.15 | 1.39 | |
| Flywheel Nut | ||||
| 21 | 6685104 | 1.15 | 1.39 | |
| Ring | ||||
| 22 | 6685103 | 1.15 | 1.39 | |
| Magneto Rotor Set | ||||
| 23 | 6687378 | 24.20 | 29.28 | |
| Starter Pawl | ||||
| 24 | 6693305 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 25 | 6685105 | 1.15 | 1.39 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 26 | 6685101 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 27 | 6692304 | |||
| Fuel Pipe 2.5x4.5x175 | ||||
| 28 | 6692412 | 2.31 | 2.80 | |
| Insulator Tube 50l | ||||
| 29 | 6684597 | 2.15 | 2.60 | |
| Hex. Hole Bolt 5x16 | ||||
| 30 | 6695046 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x16 | ||||
| 30A | 6695046 | 1.15 | 1.39 | |
| Ring | ||||
| 31 | 6685226 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x30 Since E092691 | ||||
| 32 | 6695052 | 1.15 | 1.39 | |
| Flunge Nut 5 Since C026901 Till F024130 | ||||
| 33 | 6695169 | 1.15 | 1.39 | |
| Crank Case Assy | ||||
| 34 | 6686526 | 60.35 | 73.02 | |
| Oil Seal | ||||
| 35 | 6684607 | 4.29 | 5.19 | |
| Crank Case Gasket | ||||
| 36 | 6686703 | 1.15 | 1.39 | |
| Ball Bearing 6001 C3 | ||||
| 37 | 6684608 | 3.80 | 4.60 | |
| No information available, not orderable | ||||
| 38 | 6685095 | |||
| Hex.hole Bolt 5x22/ws | ||||
| 39 | 6695514 | 1.15 | 1.39 | |
| Air Deflector | ||||
| 50 | 6687328 | 7.26 | 8.79 | |
| Pipe Holding Grommet (old 581-72000-20) | ||||
| 51 | 6691466 | 1.15 | 1.39 | |
| Inlet Manifold Gasket | ||||
| 52 | 6689872 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 53 | 6689819 | |||
| No longer available, no replacement | ||||
| 54 | 6689788 | |||
| No information available, not orderable | ||||
| 55 | 6689997 | |||
| No information available, not orderable | ||||
| 56 | 6690811 | |||
| Choke Rod Holding Rubber | ||||
| 57 | 6692587 | 1.15 | 1.39 | |
| Choke Buttom Comp. | ||||
| 58 | 6692515 | 3.30 | 3.99 | |
| Carub. Support Plate | ||||
| 59 | 6690679 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 60 | 6687960 | |||
| Idle Grommet | ||||
| 61 | 6687980 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 62 | 6695157 | |||
| Hex. Hole Bolt 4x10s | ||||
| 63 | 6695484 | 1.15 | 1.39 | |
| Small Washer 5 | ||||
| 64 | 6684864 | 2.15 | 2.60 | |
| Screw 5x45 | ||||
| 65 | 6694908 | 1.15 | 1.39 | |
| Shield Tube Ass'y (old 223-06500-90) | ||||
| 70 | 6685247 | 2.31 | 2.80 | |
| Clip D6 | ||||
| 71 | 6685198 | 1.15 | 1.39 | |
| Ring | ||||
| 72 | 6684661 | 2.15 | 2.60 | |
| Oil Filter | ||||
| 73 | 6690919 | 1.15 | 1.39 | |
| Oil Filter Body Ass'y | ||||
| 74 | 6685249 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 75 | 6685246 | |||
| No longer available, no replacement | ||||
| 76 | 6692126 | |||
| Priming Pump Comp. | ||||
| 77 | 6685139 | 5.94 | 7.18 | |
| Fuel Pipe | ||||
| 78 | 6692413 | 2.95 | 3.57 | |
| Fuil Pipe 2.5x4.5x140 | ||||
| 79 | 6692350 | 1.15 | 1.39 | |
| Fuel Grommet | ||||
| 80 | 6692422 | 1.15 | 1.39 | |
| Pump Filter Body | ||||
| 81 | 6685199 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 82 | 6691286 | |||
| Stop Switch Comp. | ||||
| 83 | 6687504 | 7.59 | 9.18 | |
| Tank Cap Ass'y | ||||
| 84 | 6685180 | 3.30 | 3.99 | |
| Tank Cap Packing | ||||
| 85 | 6685179 | 1.15 | 1.39 | |
| Seal Lock Bolt M5x15 | ||||
| 86 | 6685136 | 1.15 | 1.39 | |
| Engine Case Ass'y | ||||
| 87 | 6691368 | 26.16 | 31.66 | |
| Air Vent Valve (b) | ||||
| 88 | 6685173 | 2.31 | 2.80 | |
| Air Vent Ass'y | ||||
| 89 | 6692086 | 8.58 | 10.38 | |
| Engine Case Cover (old 563-72000-20) New Oct | ||||
| 90 | 6691380 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 91 | 6697756 | |||
| No longer available, no replacement | ||||
| 92 | 6697888 | |||
| Recoil Starter Assembly (old 756-01761-90) | ||||
| 100 | 6692912 | 26.16 | 31.66 | |
| Set Screw (old 839-03045-20) | ||||
| 101 | 6684679 | 2.15 | 2.60 | |
| Damper Spring Since H081351 | ||||
| 102 | 6685183 | 4.45 | 5.38 | |
| Starter Pulley (Old 774-01761-20) | ||||
| 103 | 6685184 | 4.95 | 5.99 | |
| Rope Since H081351 | ||||
| 104 | 6685186 | 2.31 | 2.80 | |
| Spring Case Assembly (Old 778-01761-90) | ||||
| 105 | 6685185 | 9.24 | 11.18 | |
| Starter Handle | ||||
| 106 | 6685188 | 2.31 | 2.80 | |
| Fan Housing | ||||
| 107 | 6686953 | 22.24 | 26.91 | |
| Tapping Screw D4.5x20 Till C026900 | ||||
| 108 | 6685191 | 1.15 | 1.39 | |
| Cam Plate (old 759-01761-20) | ||||
| 109 | 6692936 | 3.30 | 3.99 | |
| Plate | ||||
| 110 | 6685189 | 1.15 | 1.39 | |
| Cleaner Element | ||||
| 111 | 6690065 | 2.31 | 2.80 | |
| Cleaner Cover | ||||
| 112 | 6686315 | 3.30 | 3.99 | |
| Cleaner Knob | ||||
| 113 | 6685228 | 2.31 | 2.80 | |
| Carburetor Ass'y Wt-797a | ||||
| 120 | 6690651 | 94.38 | 114.19 | |
| Inlet Screen | ||||
| 121 | 6684700 | 4.29 | 5.19 | |
| Pump Cover | ||||
| 122 | 6691438 | 13.20 | 15.97 | |
| Screw | ||||
| 123 | 6685210 | 1.15 | 1.39 | |
| Pump Gasket | ||||
| 124 | 6685212 | 2.31 | 2.80 | |
| Pump Diaphragm | ||||
| 125 | 6685213 | 4.45 | 5.38 | |
| Control Lever | ||||
| 126 | 6685217 | 3.30 | 3.99 | |
| Hinge Pin Set Screw | ||||
| 127 | 6685218 | 2.31 | 2.80 | |
| Valve Spring | ||||
| 128 | 6690873 | 4.45 | 5.38 | |
| Hinge Pin | ||||
| 129 | 6685219 | 1.15 | 1.39 | |
| Diaphragm Cover-metering | ||||
| 130 | 6685222 | 4.45 | 5.38 | |
| No longer available, no replacement | ||||
| 131 | 6690827 | |||
| No longer available, no replacement | ||||
| 132 | 6685220 | |||
| Needle Valve | ||||
| 133 | 6685215 | 5.28 | 6.38 | |
| Idle Adjust Spring | ||||
| 134 | 6690766 | 2.31 | 2.80 | |
| Idle Adjust Screw | ||||
| 135 | 6690736 | 3.30 | 3.99 | |
| Set Screw | ||||
| 136 | 6685223 | 1.15 | 1.39 | |
| Tapping Screw D4.5x14 | ||||
| 150 | 6685152 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 151 | 6686765 | |||
| Oil Pipe (a) | ||||
| 152 | 6685150 | 2.31 | 2.80 | |
| Screw Gear | ||||
| 153 | 6685151 | 9.24 | 11.18 | |
| Air Vent Sponge | ||||
| 154 | 6691401 | 1.15 | 1.39 | |
| Oil Pump Case Ass'y | ||||
| 155 | 6685135 | 19.06 | 23.07 | |
| No information available, not orderable | ||||
| 156 | 6685132 | |||
| Pump Gear Spring | ||||
| 157 | 6685131 | 1.15 | 1.39 | |
| Oil Pump Adjust Cap | ||||
| 158 | 6685130 | 1.15 | 1.39 | |
| Oil Pump Case Comp. | ||||
| 159 | 6685134 | 13.20 | 15.97 | |
| Adjuster Spring | ||||
| 160 | 6685129 | 1.15 | 1.39 | |
| Ring | ||||
| 161 | 6685070 | 1.15 | 1.39 | |
| Oil Pump Adjuster | ||||
| 162 | 6685128 | 1.15 | 1.39 | |
| Machine Screw M3x8 | ||||
| 163 | 6685133 | 1.15 | 1.39 | |
| Muffler Set | ||||
| 164 | 6692450 | 18.60 | 22.51 | |
| Oil Adjust Grommet | ||||
| 165 | 6690959 | 1.15 | 1.39 | |
| Ring | ||||
| 166 | 6685149 | 1.15 | 1.39 | |
| Muffler Gasket | ||||
| 167 | 6692734 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x40 | ||||
| 168 | 6695054 | 1.15 | 1.39 | |
| Ring | ||||
| 169 | 6684661 | 2.15 | 2.60 | |
| Fuel Pipe Till G086250 | ||||
| 170 | 6685154 | 1.15 | 1.39 | |
| Chain Catcher | ||||
| 171 | 6685155 | 1.15 | 1.39 | |
| Muffler Cover | ||||
| 172 | 6692753 | 4.95 | 5.99 | |
| Tapping Screw D4.5x14 | ||||
| 173 | 6685152 | 1.15 | 1.39 | |
| Tapping Screw D5x14 Since C026901 Till F024130 | ||||
| 174 | 6685275 | 1.15 | 1.39 | |
| Guide Plate A | ||||
| 175 | 6696077 | 3.30 | 3.99 | |
| Tapping Screw D4x10 | ||||
| 176 | 6685161 | 1.15 | 1.39 | |
| Nut Till Z063200 | ||||
| 200 | 6685166 | 2.31 | 2.80 | |
| Clutch Comp. | ||||
| 201 | 6688560 | 14.38 | 17.39 | |
| No longer available, no replacement | ||||
| 202 | 6685143 | |||
| Clutch Housing Comp. | ||||
| 203 | 6689037 | 15.88 | 19.21 | |
| Clutch Housing Comp. | ||||
| 203 | 6689036 | 15.73 | 19.03 | |
| Ring | ||||
| 204 | 6689635 | 3.30 | 3.99 | |
| No longer available, no replacement | ||||
| 205 | 6689641 | |||
| Tapping Screw D4x10 | ||||
| 207 | 6685161 | 1.15 | 1.39 | |
| Guide Plate B | ||||
| 208 | 6690765 | 2.31 | 2.80 | |
| Tention Adjust Bolt Comp. | ||||
| 209 | 6687074 | 7.10 | 8.59 | |
| Gear (a) | ||||
| 210 | 6685168 | 2.31 | 2.80 | |
| Hand Guard Weight | ||||
| 211 | 6693485 | 2.31 | 2.80 | |
| Crank Shaft Collar 6 (old 511-72000-20) | ||||
| 212 | 6691198 | 2.31 | 2.80 | |
| Nut M4 | ||||
| 213 | 6685069 | 1.15 | 1.39 | |
| Ring | ||||
| 214 | 6685068 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 215 | 6686112 | |||
| Brake Handle | ||||
| 216 | 6689677 | 5.78 | 6.99 | |
| Brake Link Cover | ||||
| 217 | 6689713 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 218 | 6689707 | |||
| Brake Support Plate Comp. | ||||
| 219 | 6685119 | 4.45 | 5.38 | |
| Needle Roller 3x9.8 | ||||
| 220 | 6685141 | 1.15 | 1.39 | |
| Brake Link | ||||
| 221 | 6685388 | 4.05 | 4.90 | |
| Brake Band | ||||
| 222 | 6689729 | 7.10 | 8.59 | |
| Cleaner Fixing Collar | ||||
| 223 | 6690805 | 1.15 | 1.39 | |
| Collar | ||||
| 224 | 6685120 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 225 | 6686049 | |||
| Brake Lever Spring | ||||
| 226 | 6685122 | 2.31 | 2.80 | |
| Tapping Screw D4x15 | ||||
| 227 | 6685148 | 1.15 | 1.39 | |
| Tapping Screw 5x35 | ||||
| 250 | 6695107 | 1.15 | 1.39 | |
| Cleaner Fixing Collar | ||||
| 251 | 6690805 | 1.15 | 1.39 | |
| Tapping Screw 5x40 | ||||
| 252 | 6695108 | 1.15 | 1.39 | |
| Damper Collar A | ||||
| 253 | 6688480 | 1.15 | 1.39 | |
| Damper A (old 219-32750-20) | ||||
| 254 | 6688117 | 1.15 | 1.39 | |
| Tapping Screw D5x14 Since C026901 Till F024130 | ||||
| 255 | 6685275 | 1.15 | 1.39 | |
| Tapping Screw D5x16 | ||||
| 256 | 6685074 | 1.15 | 1.39 | |
| Rear Handle B | ||||
| 257 | 6685653 | 4.45 | 5.38 | |
| Trigger Lockout Vermilion | ||||
| 258 | 6688363 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 259 | 6686395 | |||
| No information available, not orderable | ||||
| 260 | 6686416 | |||
| Rear Handle A (old 010-72000-20) | ||||
| 261 | 6685628 | 4.45 | 5.38 | |
| Tapping Screw D4x15 | ||||
| 262 | 6685148 | 1.15 | 1.39 | |
| Front Handle | ||||
| 263 | 6688088 | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 264 | 6693875 | |||
| No information available, not orderable | ||||
| 265 | 6688262 | |||
| Combi Box Spanner 10/19mm | ||||
| 501 | 6685257 | 3.30 | 3.99 | |
| Guide Bar Cover, 10 | ||||
| 502 | 6694796 | 6.28 | 7.59 | |
| Minus Driver | ||||
| 503 | 6686632 | 3.06 | 3.71 | |
| No information available, not orderable | ||||
| 504 | 6687102 | |||
| No information available, not orderable | ||||
| 505 | 6686880 | |||
| No information available, not orderable | ||||
| 506 | 6697853 | |||
| No information available, not orderable | ||||
| 507 | 6686879 | |||
| Name Plate Cs25ec(sc) For (sc) | ||||
| 601 | 6694394 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 602 | 6694393 | |||
| Starter Mark | ||||
| 603 | 6694471 | 1.15 | 1.39 | |
