Here you will find all available parts and drawings of the 'Hikoki CR24DV'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

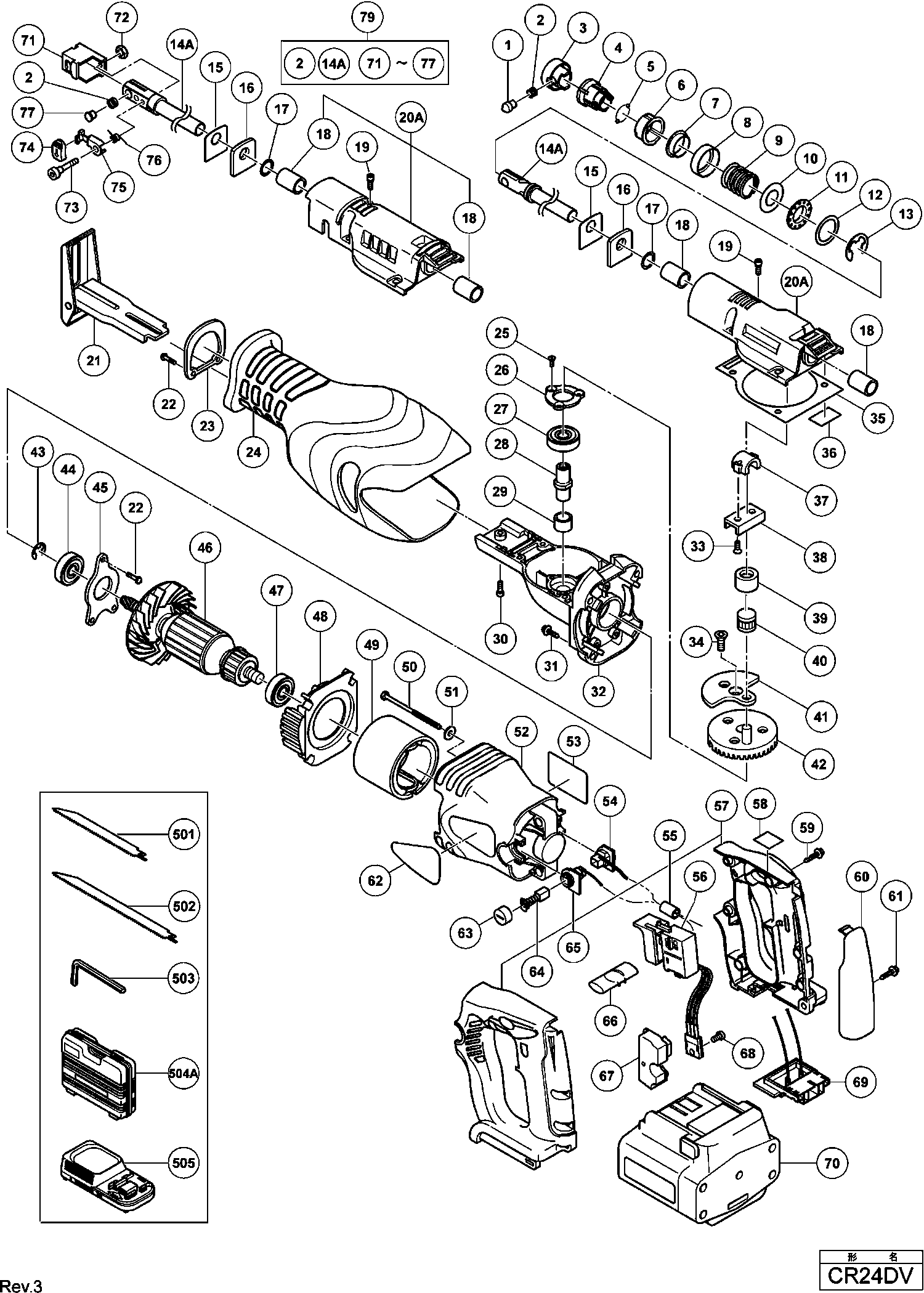

Technical drawing of model Hikoki CR24DV
Spare parts list of model Hikoki CR24DV
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Borgpin | ||||
| 1 | 318481 | 4.80 | 5.81 | |
| Spring (b) | ||||
| 2 | 318483 | 1.20 | 1.45 | |
| Holder | ||||
| 3 | 318478 | 19.94 | 24.12 | |
| Support (b) For Noise Suppressor | ||||
| 4 | 318479 | 11.85 | 14.34 | |
| Steel Ball D4.76 (10 pieces) | ||||
| 5 | 959149 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 6 | 318480 | |||
| Guide Ring | ||||
| 7 | 318477 | 1.05 | 1.27 | |
| Dust Ring | ||||
| 8 | 318487 | 1.05 | 1.27 | |
| Spring (a) | ||||
| 9 | 318482 | 1.20 | 1.45 | |
| Washer (e) | ||||
| 10 | 318484 | 1.65 | 2.00 | |
| Bearing Ring | ||||
| 11 | 318485 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 12 | 318486 | |||
| LOCKRING D14 | ||||
| 13 | 318453 | 1.65 | 2.00 | |
| Plunger | ||||
| 14A | 324472 | 18.56 | 22.46 | |
| Gasket | ||||
| 15 | 996401 | 1.05 | 1.27 | |
| Felt Packing | ||||
| 16 | 996400 | 1.05 | 1.27 | |
| O-ring (1ap-12) | ||||
| 17 | 996407 | 1.05 | 1.27 | |
| Metal | ||||
| 18 | 956589 | 2.55 | 3.09 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M5x16 | ||||
| 19 | 305574 | 1.05 | 1.27 | |
| Inner Cover | ||||
| 20A | 324471 | 18.56 | 22.46 | |
| Base | ||||
| 21 | 319866 | 35.06 | 42.43 | |
| Machine Screw (w/sp. Washer) M4x12 | ||||
| 22 | 951039 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 23 | 319868 | |||
| No information available, not orderable | ||||
| 24 | 319867 | |||
| SEAL LOCK PLATE SCREW M4X12 | ||||
| 25 | 993244 | 1.05 | 1.27 | |
| BEARING PACKING (B) | ||||
| 26 | 319849 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 27 | 6901ZZ | |||
| TOMMY BAR | ||||
| 28 | 319848 | 8.85 | 10.71 | |
| Metal (b) | ||||
| 29 | 954789 | 1.05 | 1.27 | |
| Bolt | ||||
| 30 | 996399 | 1.04 | 1.26 | |
| SCREW D5X30 | ||||
| 31 | 986011 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 32 | 319844 | 35.00 | 42.35 | |
| Bolt | ||||
| 33 | 319875 | 3.00 | 3.63 | |
| BOLT M6X16 | ||||
| 34 | 319851 | 1.35 | 1.63 | |
| Gasket | ||||
| 35 | 319856 | 3.00 | 3.63 | |
| Gasket | ||||
| 36 | 319874 | 1.35 | 1.63 | |
| Holder | ||||
| 37 | 983567 | 5.11 | 6.19 | |
| Connector | ||||
| 38 | 996405 | 19.94 | 24.12 | |
| Connector | ||||
| 39 | 983541 | 22.00 | 26.62 | |
| Needle Roller | ||||
| 40 | 324470 | 3.30 | 3.99 | |
| Balance Weight | ||||
| 41 | 319852 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 42 | 319850 | |||
| Ring | ||||
| 43 | 670514 | 1.05 | 1.27 | |
| Ball Bearing 6001vv | ||||
| 44 | 6001VV | 6.60 | 7.99 | |
| Bearing Cover (a) | ||||
| 45 | 319843 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 46 | 360555 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 47 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 48 | 319788 | |||
| Magnet | ||||
| 49 | 319846 | 32.59 | 39.43 | |
| Hex. Hd. Tapping Screw D4x60 | ||||
| 50 | 960108 | 1.04 | 1.26 | |
| RING (B) | ||||
| 51 | 319956 | 1.26 | 1.52 | |
| No information available, not orderable | ||||
| 52 | 319808 | |||
| No information available, not orderable | ||||
| 54 | 319814 | |||
| Ferrite Core For Europe,rus,aut,isr | ||||
| 55 | 318247 | 1.05 | 1.27 | |
| Switch | ||||
| 56 | 319861 | 43.86 | 53.07 | |
| Handle | ||||
| 57 | 319855 | 22.96 | 27.78 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 59 | 305490 | 1.04 | 1.26 | |
| Grip Cover | ||||
| 60 | 319790 | 5.70 | 6.90 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 61 | 304035 | 1.04 | 1.26 | |
| Brush Cap | ||||
| 63 | 319847 | 1.65 | 2.00 | |
| Carbon Brush (1 Pair) | ||||
| 64 | 999068 | 4.73 | 5.72 | |
| Brush Holder (a) | ||||
| 65 | 319813 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 66 | 319865 | |||
| Heat Sink | ||||
| 67 | 319812 | 2.85 | 3.45 | |
| Machine Screw (w/washers) M3x12 | ||||
| 68 | 993963 | 1.05 | 1.27 | |
| Terminal Support | ||||
| 69 | 319894 | 14.99 | 18.13 | |
| No information available, not orderable | ||||
| 70 | 319807 | |||
| Blade Holder (a) | ||||
| 71 | 321132 | 15.95 | 19.30 | |
| Nut M4 (black) | ||||
| 72 | 322709 | 1.65 | 2.00 | |
| Special Bolt M4 | ||||
| 73 | 322134 | 1.65 | 2.00 | |
| Cap for Cr13vc | ||||
| 74 | 321130 | 1.35 | 1.63 | |
| Lever (a) | ||||
| 75 | 321131 | 9.69 | 11.72 | |
| Spring | ||||
| 76 | 321135 | 2.55 | 3.09 | |
| Holder Pin (b) | ||||
| 77 | 321134 | 12.45 | 15.06 | |
| Saw Blade + Holder | ||||
| 79 | 329726 | 58.99 | 71.37 | |
| No information available, not orderable | ||||
| 501 | 318613 | |||
| No information available, not orderable | ||||
| 502 | 318621 | |||
| No information available, not orderable | ||||
| 503 | 944458 | |||
| No information available, not orderable | ||||
| 504A | 324313 | |||
| No information available, not orderable | ||||
| 602 | 958182 | |||
| No information available, not orderable | ||||
| 603 | 958183 | |||
| No information available, not orderable | ||||
| 604 | 959611 | |||
| No information available, not orderable | ||||
| 605 | 958185 | |||
| No information available, not orderable | ||||
| 606 | 958188 | |||
| No information available, not orderable | ||||
| 607 | 996427 | |||
| No information available, not orderable | ||||
| 608 | 318611 | |||
| No information available, not orderable | ||||
| 609 | 318612 | |||
| No information available, not orderable | ||||
| 610 | 318614 | |||
| No information available, not orderable | ||||
| 611 | 324818 | |||
| No information available, not orderable | ||||
| 612 | 324819 | |||
| No information available, not orderable | ||||
| 613 | 318617 | |||
| No information available, not orderable | ||||
| 614 | 318618 | |||
| No information available, not orderable | ||||
| 615 | 318619 | |||
| No information available, not orderable | ||||
| 616 | 318620 | |||
| No information available, not orderable | ||||
| 617 | 318621 | |||
