Here you will find all available parts and drawings of the 'Hikoki CR18DBL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

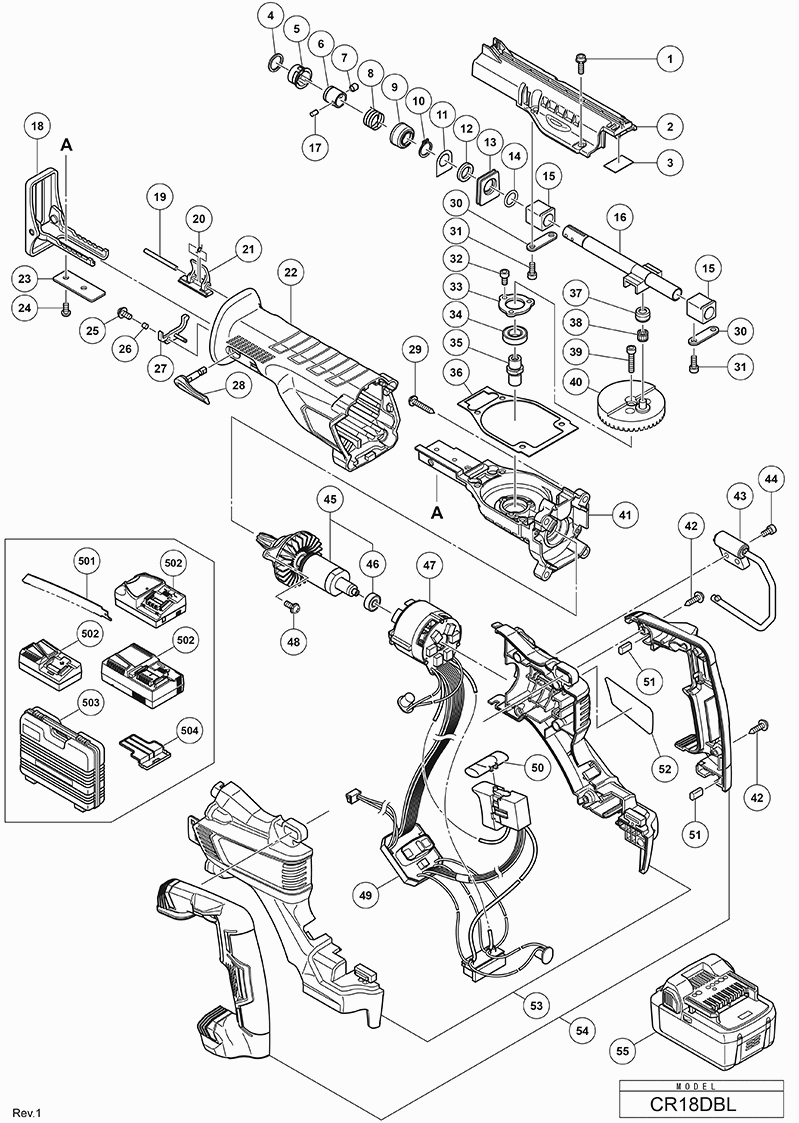

Technical drawing of model Hikoki CR18DBL
Spare parts list of model Hikoki CR18DBL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Set | ||||
| *53B | 371994 | 15.54 | 18.80 | |
| No information available, not orderable | ||||
| *55 | 336265 | |||
| No information available, not orderable | ||||
| *55A | 371751M | |||
| Hex. Socket Hd. Bolt (w/sp.washer) M5x16 | ||||
| 1 | 305574 | 1.05 | 1.27 | |
| Inner Cover | ||||
| 2 | 371365 | 8.85 | 10.71 | |
| Gasket | ||||
| 3 | 319874 | 1.35 | 1.63 | |
| Spiral Retaining Ring D16 | ||||
| 4 | 371368 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 5 | 371376 | |||
| BLADE HOLDER SET (OLD 371376 + 371378) | ||||
| 5A | 376619 | 6.75 | 8.17 | |
| Sleeve | ||||
| 6 | 371381 | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 7 | 371378 | |||
| Blade Spring | ||||
| 8 | 371379 | 1.04 | 1.26 | |
| Blade Holder Cover | ||||
| 9 | 371377 | 1.04 | 1.26 | |
| Retaining Ring For D13 Shaft | ||||
| 10 | 371367 | 1.04 | 1.26 | |
| Packing Washer | ||||
| 11 | 371371 | 1.04 | 1.26 | |
| Felt Packing | ||||
| 12 | 371370 | 1.04 | 1.26 | |
| Seal Sleeve | ||||
| 13 | 371363 | 1.04 | 1.26 | |
| O-ring | ||||
| 14 | 371369 | 1.04 | 1.26 | |
| Metal (b) | ||||
| 15 | 371362 | 1.04 | 1.26 | |
| Plunger (a) | ||||
| 16 | 371366 | 33.69 | 40.76 | |
| Pin | ||||
| 17 | 371380 | 1.04 | 1.26 | |
| Base | ||||
| 18 | 371382 | 4.05 | 4.90 | |
| Blade Lever Shaft | ||||
| 19 | 371374 | 1.04 | 1.26 | |
| Blade Lever Spring | ||||
| 20 | 371375 | 1.04 | 1.26 | |
| Blade Lever | ||||
| 21 | 371373 | 1.65 | 2.00 | |
| Front Cover | ||||
| 22 | 371386 | 14.70 | 17.79 | |
| Base Plate (1) | ||||
| 23 | 371383 | 1.04 | 1.26 | |
| Hex Socket Bolt M5x12 | ||||
| 24 | 332662 | 3.45 | 4.17 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 25 | 949216 | 1.05 | 1.27 | |
| Spacer bushing | ||||
| 26 | 371929 | 1.04 | 1.26 | |
| Front Plate (a) | ||||
| 27 | 371385 | 1.04 | 1.26 | |
| Base Lever | ||||
| 28 | 371384 | 2.85 | 3.45 | |
| SCREW D5X30 | ||||
| 29 | 986011 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D5x30 (black) | ||||
| 29A | 328707 | 1.05 | 1.27 | |
| Holder Cover (b) | ||||
| 30 | 371364 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M5x14 | ||||
| 31 | 371989 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 | ||||
| 32 | 371990 | 1.04 | 1.26 | |
| Bearing Cover (b) | ||||
| 33 | 371360 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 34 | 6901VV | |||
| Spindle (1) | ||||
| 35 | 371359 | 4.05 | 4.90 | |
| Seal Packing (a) | ||||
| 36 | 371372 | 1.04 | 1.26 | |
| Connector | ||||
| 37 | 983541 | 22.00 | 26.62 | |
| Needle Roller | ||||
| 38 | 324470 | 3.30 | 3.99 | |
| Seal Lock Hex. Socket Hd. Bolt M6x20 | ||||
| 39 | 371991 | 1.04 | 1.26 | |
| Gear (1) | ||||
| 40 | 371361 | 13.50 | 16.34 | |
| Gear Cover | ||||
| 41 | 371358 | 14.44 | 17.47 | |
| Tapping Screw (w/flange) D4x20 | ||||
| 42 | 339250 | 1.04 | 1.26 | |
| Hook (1) | ||||
| 43 | 371387 | 12.15 | 14.70 | |
| Seal Lock Hex. Socket Hd. Bolt M5x10 | ||||
| 44 | 371992 | 1.04 | 1.26 | |
| Rotor Ass'y Includ.46 | ||||
| 45 | 361062 | 37.54 | 45.42 | |
| Ball Bearing 606vv | ||||
| 46 | 606ZZM | 15.40 | 18.63 | |
| Field | ||||
| 47 | 340968 | 112.75 | 136.43 | |
| Machine Screw (w/sp. Washer) M4x12 | ||||
| 48 | 951039 | 1.05 | 1.27 | |
| Controller Terminal Set | ||||
| 49 | 371357 | 109.18 | 132.10 | |
| Pushing Button | ||||
| 50 | 319760 | 1.05 | 1.27 | |
| Handle Damper | ||||
| 51 | 371356 | 1.04 | 1.26 | |
| Housing Set | ||||
| 53 | 371994 | 15.54 | 18.80 | |
| Handle Set (1) | ||||
| 54 | 371995 | 8.25 | 9.98 | |
| No information available, not orderable | ||||
| 55 | 338891 | |||
| BLADE HOLDER ASS'Y NEW | ||||
| 56 | 381627 | 10.26 | 12.41 | |
| PACKING WASHER ASS'Y NEW | ||||
| 57 | 381628 | 3.18 | 3.85 | |
| PLUNGER (A) ASS'Y NEW | ||||
| 58 | 381642 | 31.08 | 37.61 | |
| No information available, not orderable | ||||
| 501 | 371902 | |||
| No information available, not orderable | ||||
| 503 | 371355 | |||
| Battery Cover | ||||
| 504 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 601 | 959611 | |||
| No information available, not orderable | ||||
| 602 | 958185 | |||
| No information available, not orderable | ||||
| 603 | 959799 | |||
| No information available, not orderable | ||||
| 604 | 959800 | |||
| No information available, not orderable | ||||
| 605 | 318611 | |||
| No information available, not orderable | ||||
| 606 | 318612 | |||
| No information available, not orderable | ||||
| 607 | 318613 | |||
| No information available, not orderable | ||||
| 608 | 318614 | |||
| No information available, not orderable | ||||
| 609 | 318617 | |||
| No information available, not orderable | ||||
| 610 | 318618 | |||
| No information available, not orderable | ||||
| 611 | 324818 | |||
| No information available, not orderable | ||||
| 612 | 324819 | |||
| No information available, not orderable | ||||
| 613 | 318619 | |||
| No information available, not orderable | ||||
| 614 | 318620 | |||
| No information available, not orderable | ||||
| 615 | 318621 | |||
| No information available, not orderable | ||||
| 616 | 370684 | |||
| No information available, not orderable | ||||
| 617 | 370685 | |||
| No information available, not orderable | ||||
| 618 | 372971 | |||
| SERVICE KIT (CR18DBL) (OLD 372971) | ||||
| 618A | 376618 | 11.70 | 14.16 | |
