Here you will find all available parts and drawings of the 'Hikoki CR14DSL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

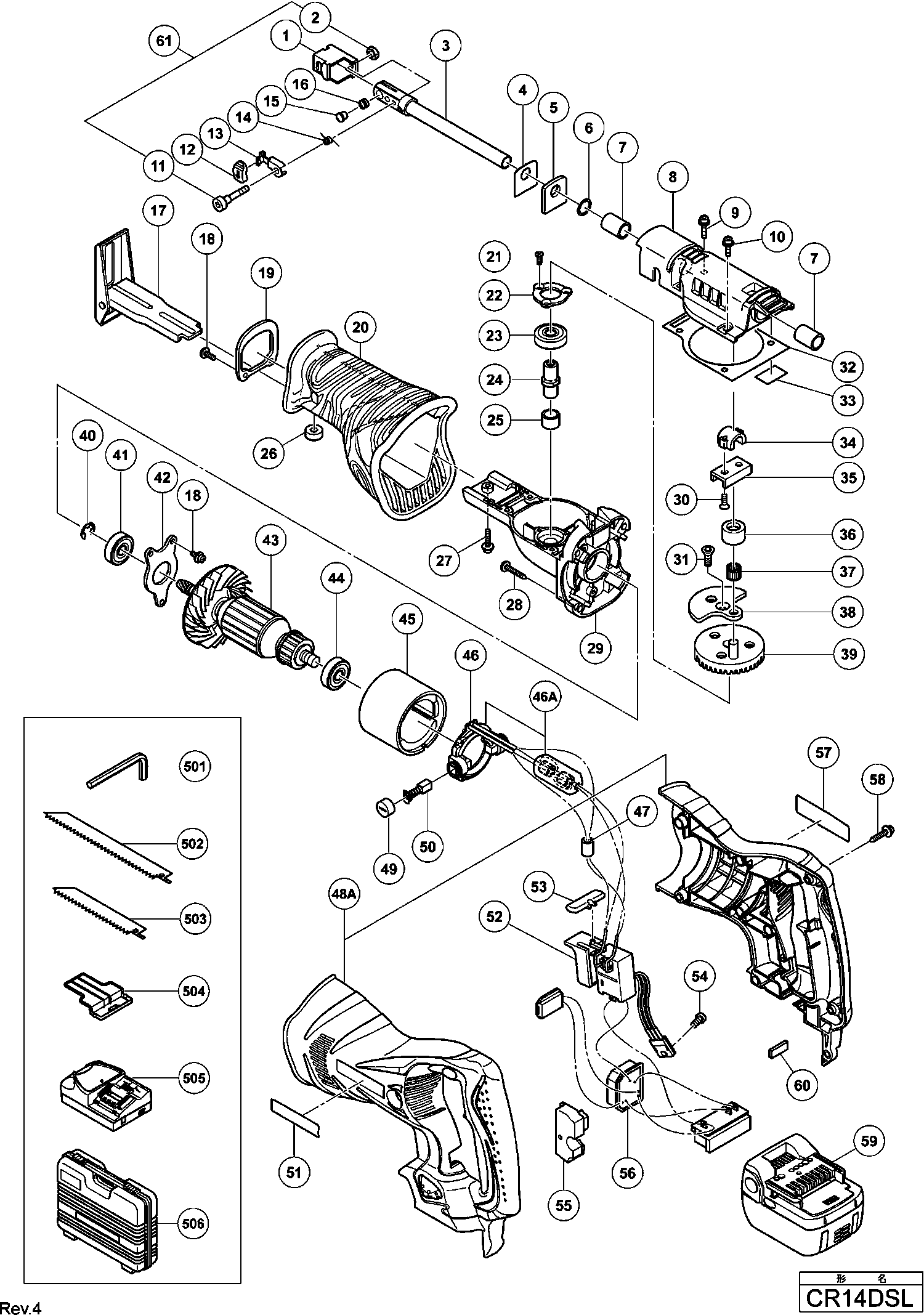

Technical drawing of model Hikoki CR14DSL
Spare parts list of model Hikoki CR14DSL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Ferrite Core For Europe,rus,aut,isr | ||||
| *47 | 318247 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| *58 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *59 | 336689 | |||
| Blade Holder (a) | ||||
| 1 | 321132 | 15.95 | 19.30 | |
| Nut M4 (black) | ||||
| 2 | 322709 | 1.65 | 2.00 | |
| Plunger | ||||
| 3 | 324472 | 18.56 | 22.46 | |
| Gasket | ||||
| 4 | 996401 | 1.05 | 1.27 | |
| Felt Packing | ||||
| 5 | 996400 | 1.05 | 1.27 | |
| O-ring (1ap-12) | ||||
| 6 | 996407 | 1.05 | 1.27 | |
| Metal | ||||
| 7 | 956589 | 2.55 | 3.09 | |
| Inner Cover | ||||
| 8 | 324471 | 18.56 | 22.46 | |
| No information available, not orderable | ||||
| 9 | 305583 | |||
| Hex. Socket Hd. Bolt (w/sp.washer) M5x16 | ||||
| 10 | 305574 | 1.05 | 1.27 | |
| Special Bolt M4 | ||||
| 11 | 322134 | 1.65 | 2.00 | |
| Cap for Cr13vc | ||||
| 12 | 321130 | 1.35 | 1.63 | |
| Lever (a) | ||||
| 13 | 321131 | 9.69 | 11.72 | |
| Spring | ||||
| 14 | 321135 | 2.55 | 3.09 | |
| Holder Pin (b) | ||||
| 15 | 321134 | 12.45 | 15.06 | |
| Spring (b) | ||||
| 16 | 318483 | 1.20 | 1.45 | |
| Base | ||||
| 17 | 319866 | 35.06 | 42.43 | |
| Machine Screw (w/sp. Washer) M4x12 | ||||
| 18 | 951039 | 1.05 | 1.27 | |
| Cover Plate | ||||
| 19 | 324474 | 1.05 | 1.27 | |
| Front Case | ||||
| 20 | 324473 | 18.56 | 22.46 | |
| SEAL LOCK PLATE SCREW M4X12 | ||||
| 21 | 993244 | 1.05 | 1.27 | |
| BEARING PACKING (B) | ||||
| 22 | 319849 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 23 | 6901VV | |||
| TOMMY BAR | ||||
| 24 | 319848 | 8.85 | 10.71 | |
| Metal (b) | ||||
| 25 | 954789 | 1.05 | 1.27 | |
| Cover | ||||
| 26 | 326353 | 1.05 | 1.27 | |
| Bolt | ||||
| 27 | 996399 | 1.04 | 1.26 | |
| SCREW D5X30 | ||||
| 28 | 986011 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D5x30 (black) | ||||
| 28A | 328707 | 1.05 | 1.27 | |
| Gear Cover | ||||
| 29 | 319844 | 35.00 | 42.35 | |
| Bolt | ||||
| 30 | 319875 | 3.00 | 3.63 | |
| Gasket | ||||
| 31 | 319856 | 3.00 | 3.63 | |
| BOLT M6X16 | ||||
| 31 | 319851 | 1.35 | 1.63 | |
| Gasket | ||||
| 32 | 319856 | 3.00 | 3.63 | |
| Gasket | ||||
| 33 | 319874 | 1.35 | 1.63 | |
| Holder | ||||
| 34 | 983567 | 5.11 | 6.19 | |
| Connector | ||||
| 35 | 996405 | 19.94 | 24.12 | |
| Connector | ||||
| 36 | 983541 | 22.00 | 26.62 | |
| Needle Roller | ||||
| 37 | 324470 | 3.30 | 3.99 | |
| Balance Weight | ||||
| 38 | 319852 | 1.50 | 1.82 | |
| Gear | ||||
| 39 | 324469 | 13.65 | 16.52 | |
| Ring | ||||
| 40 | 670514 | 1.05 | 1.27 | |
| Ball Bearing 6001vv | ||||
| 41 | 6001VV | 6.60 | 7.99 | |
| Bearing Cover (a) | ||||
| 42 | 319843 | 1.35 | 1.63 | |
| Armature 14.4v | ||||
| 43 | 360855 | 93.09 | 112.64 | |
| Ball Bearing 608vvc2ps2l | ||||
| 44 | 608VVM | 5.70 | 6.90 | |
| Magnet | ||||
| 45 | 324468 | 26.54 | 32.11 | |
| Brush Block | ||||
| 46 | 324478 | 4.20 | 5.08 | |
| Brush Block | ||||
| 46A | 334888 | 8.55 | 10.35 | |
| Ferrite Core For Europe,rus,aut,isr | ||||
| 47 | 318247 | 1.05 | 1.27 | |
| Housing (a).(b) Set | ||||
| 48A | 330155 | 30.45 | 36.84 | |
| Brush Cap | ||||
| 49 | 319847 | 1.65 | 2.00 | |
| Carbon Brush (1 Pair) | ||||
| 50 | 999068 | 4.73 | 5.72 | |
| Brand Plate | ||||
| 51 | 886342 | 1.80 | 2.18 | |
| Switch | ||||
| 52 | 319861 | 43.86 | 53.07 | |
| Pushing Button | ||||
| 53 | 319760 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M3x12 | ||||
| 54 | 993963 | 1.05 | 1.27 | |
| Heat Sink | ||||
| 55 | 319812 | 2.85 | 3.45 | |
| Controller Terminal Set | ||||
| 56 | 330156 | 32.31 | 39.10 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 58 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 59 | 336689 | |||
| No information available, not orderable | ||||
| 59A | 338887 | |||
| Gasket | ||||
| 60 | 328709 | 1.80 | 2.18 | |
| Special Bolt M4 Set Includ.2,11 | ||||
| 61 | 322708 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 501 | 944458 | |||
| No information available, not orderable | ||||
| 502 | 318621 | |||
| No information available, not orderable | ||||
| 503 | 318613 | |||
| Battery Cover | ||||
| 504 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 506 | 330157 | |||
| No information available, not orderable | ||||
| 602 | 958182 | |||
| No information available, not orderable | ||||
| 603 | 958183 | |||
| No information available, not orderable | ||||
| 604 | 959611 | |||
| No information available, not orderable | ||||
| 605 | 958185 | |||
| No information available, not orderable | ||||
| 606 | 958188 | |||
| No information available, not orderable | ||||
| 607 | 996427 | |||
| No information available, not orderable | ||||
| 608 | 318611 | |||
| No information available, not orderable | ||||
| 609 | 318612 | |||
| No information available, not orderable | ||||
| 610 | 318614 | |||
| No information available, not orderable | ||||
| 611 | 318617 | |||
| No information available, not orderable | ||||
| 612 | 318618 | |||
| No information available, not orderable | ||||
| 613 | 324818 | |||
| No information available, not orderable | ||||
| 614 | 324819 | |||
| No information available, not orderable | ||||
| 615 | 318619 | |||
| No information available, not orderable | ||||
| 616 | 318620 | |||
