Here you will find all available parts and drawings of the 'Hikoki CR13VB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

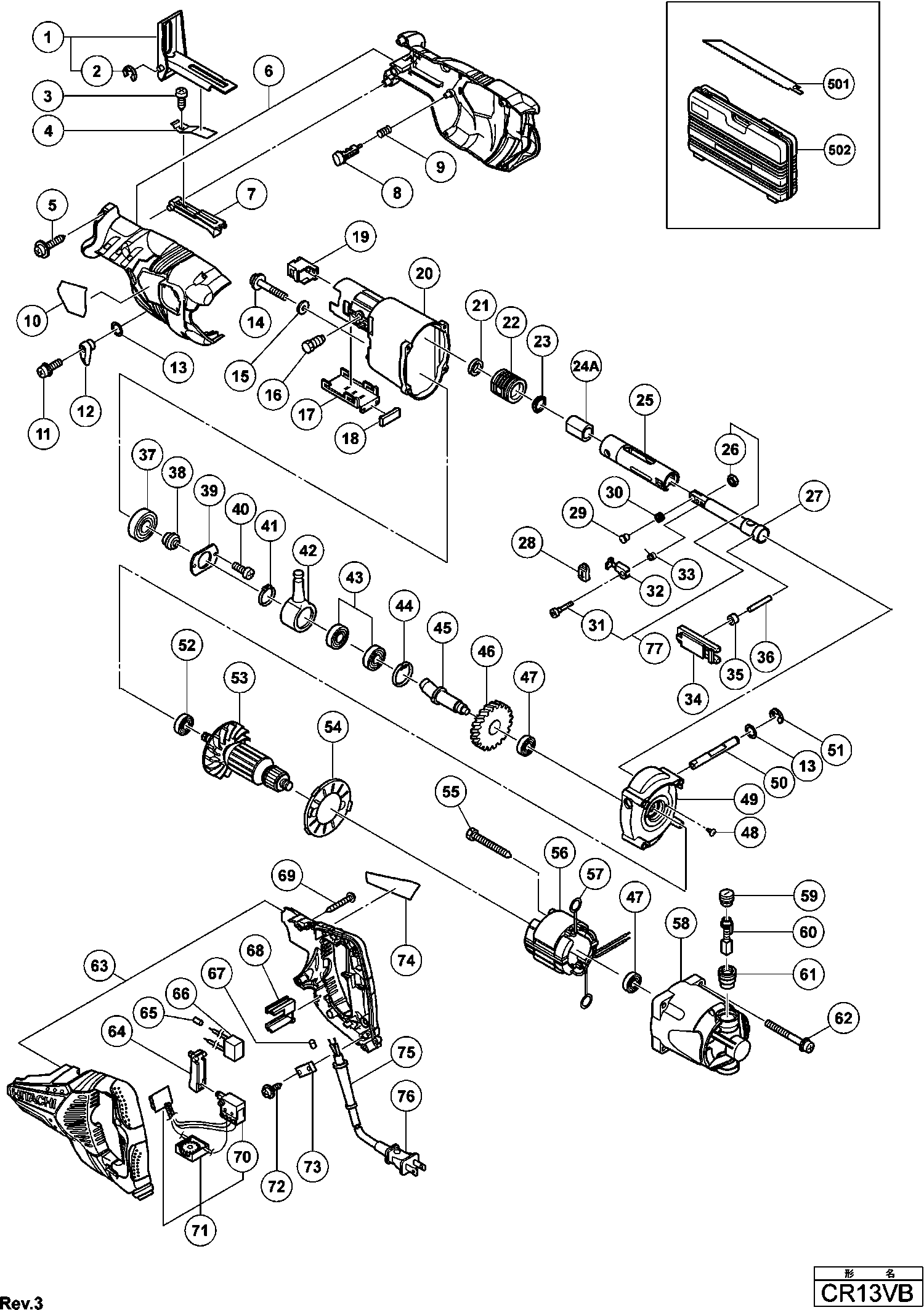

Technical drawing of model Hikoki CR13VB
Spare parts list of model Hikoki CR13VB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Change Shaft (c1) | ||||
| *50 | 326602 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| *53 | 360783U | |||
| Stator 220v-230v | ||||
| *56 | 340563J | 31.55 | 38.18 | |
| Set Of Handles | ||||
| *63A | 326600 | 28.60 | 34.61 | |
| No information available, not orderable | ||||
| *70 | 321962 | |||
| No information available, not orderable | ||||
| *71 | 320142 | |||
| No information available, not orderable | ||||
| *76 | 500439Z | |||
| Base | ||||
| 1 | 326575 | 6.75 | 8.17 | |
| Retaining Ring (e-type) For D3 Shaft Till 6.1998 | ||||
| 2 | 872971 | 1.05 | 1.27 | |
| Tapping Screw D4x8 | ||||
| 3 | 310222 | 1.05 | 1.27 | |
| Hold Spring (c) | ||||
| 4 | 326595 | 4.50 | 5.44 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 5 | 307028 | 1.05 | 1.27 | |
| Front Cover | ||||
| 6 | 326584 | 24.75 | 29.95 | |
| Front Cover | ||||
| 6A | 326584 | 24.75 | 29.95 | |
| Adjustment lever | ||||
| 7 | 326597 | 4.20 | 5.08 | |
| Pushing Button | ||||
| 8 | 326596 | 4.20 | 5.08 | |
| Pushing Spring | ||||
| 9 | 326594 | 1.05 | 1.27 | |
| Seal Lock Screw (w/washers) M4x10 (black) | ||||
| 11 | 303851 | 1.05 | 1.27 | |
| Change Knob (c) | ||||
| 12 | 326593 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 13 | 872654 | |||
| Nylock Bolt (w/flange) M6x35 | ||||
| 14 | 318451 | 1.65 | 2.00 | |
| Washer (g) | ||||
| 15 | 318452 | 1.20 | 1.45 | |
| Bolt M10 | ||||
| 16 | 318493 | 6.45 | 7.80 | |
| Base Adapter (c) | ||||
| 17 | 326574 | 2.10 | 2.54 | |
| Cushion Rubber (c) | ||||
| 18 | 326779 | 1.05 | 1.27 | |
| Blade Holder (c) | ||||
| 19 | 326589 | 7.95 | 9.62 | |
| No information available, not orderable | ||||
| 20 | 326582 | |||
| Felt Washer | ||||
| 21 | 318458 | 1.65 | 2.00 | |
| Ring, Retaining | ||||
| 22 | 326576 | 2.10 | 2.54 | |
| V-ring | ||||
| 23 | 318459 | 1.65 | 2.00 | |
| METAL (C) (OLD 326579) | ||||
| 24A | 334994 | 1.05 | 1.27 | |
| GUIDE BUSH | ||||
| 25 | 326578 | 20.90 | 25.29 | |
| Lock Nut M5 (10 Pcs.) | ||||
| 26 | 949566 | 1.04 | 1.26 | |
| Plunger | ||||
| 27 | 326580 | 34.24 | 41.43 | |
| Cap for Cr13vc | ||||
| 28 | 321130 | 1.35 | 1.63 | |
| Holder Pin (b) | ||||
| 29 | 321134 | 12.45 | 15.06 | |
| Spring (b) | ||||
| 30 | 318483 | 1.20 | 1.45 | |
| Special Bolt M5 | ||||
| 31 | 326590 | 1.05 | 1.27 | |
| Lever (c) | ||||
| 32 | 326588 | 7.50 | 9.08 | |
| Leaf Spring | ||||
| 33 | 326591 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 34 | 326592 | |||
| Swing Roller | ||||
| 35 | 321136 | 1.65 | 2.00 | |
| PIN D6 (OLD 318491) | ||||
| 36 | 326585 | 3.15 | 3.81 | |
| Ball Bearing 6003dd | ||||
| 37 | 6003DD | 7.50 | 9.08 | |
| No information available, not orderable | ||||
| 38 | 326587 | |||
| Bearing Cover (b) | ||||
| 39 | 318476 | 4.65 | 5.63 | |
| Seal Lock Screw M4x10 | ||||
| 40 | 326573 | 1.65 | 2.00 | |
| Ring | ||||
| 41 | 967261 | 1.05 | 1.27 | |
| Recipro Plate (c) | ||||
| 42 | 326581 | 14.55 | 17.61 | |
| Ball Bearing 6003vvcmps2l | ||||
| 43 | 6003VV | 7.65 | 9.26 | |
| Retaining Ring For D35 Hole (10 Pcs.) | ||||
| 44 | 939556 | 10.20 | 12.34 | |
| No information available, not orderable | ||||
| 45 | 326586 | |||
| Gear | ||||
| 46 | 318473 | 14.03 | 16.97 | |
| Ball Bearing 608vvc2ps2l | ||||
| 47 | 608VVM | 5.70 | 6.90 | |
| Slotted Hd. Screw (Seal Lock) M4x10 | ||||
| 48 | 314430 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 49 | 326583 | |||
| Change Shaft (c1) | ||||
| 50 | 326602 | 4.20 | 5.08 | |
| Washer Spring | ||||
| 51 | 974577 | 1.05 | 1.27 | |
| Ball Bearing 6001vv | ||||
| 52 | 6001VV | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 53 | 360783U | |||
| Fan Guide | ||||
| 54 | 318467 | 2.10 | 2.54 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 55 | 953174 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 56 | 340563J | 31.55 | 38.18 | |
| Brush Terminal | ||||
| 57 | 930703 | 2.40 | 2.90 | |
| Housing | ||||
| 58 | 322120 | 9.60 | 11.62 | |
| Brush Cap | ||||
| 59 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 60 | 999043 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 61 | 958900 | 6.45 | 7.80 | |
| Machine Screw with Washers M5x60 (Black) | ||||
| 62 | 307224 | 1.05 | 1.27 | |
| Set Of Handles | ||||
| 63 | 326600 | 28.60 | 34.61 | |
| Switch Trigger | ||||
| 64 | 322133 | 1.05 | 1.27 | |
| Threaded cable sleeve | ||||
| 65 | 981373 | 1.05 | 1.27 | |
| Noise Suppressor | ||||
| 66 | 930039 | 1.95 | 2.36 | |
| Threaded cable sleeve | ||||
| 67 | 981373 | 1.05 | 1.27 | |
| Triac Holder | ||||
| 68 | 326598 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 69 | 305490 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 70 | 321962 | |||
| No information available, not orderable | ||||
| 71 | 320142 | |||
| No information available, not orderable | ||||
| 72 | 984750 | |||
| Cord Clip | ||||
| 73 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 75 | 953327 | |||
| No information available, not orderable | ||||
| 76 | 500439Z | |||
| Special Bolt M5 Set Includ.26,34 | ||||
| 77 | 334921 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 501 | 318621 | |||
| No information available, not orderable | ||||
| 502 | 327054 | |||
| No information available, not orderable | ||||
| 602 | 958182 | |||
| No information available, not orderable | ||||
| 603 | 958183 | |||
| No information available, not orderable | ||||
| 604 | 959611 | |||
| No information available, not orderable | ||||
| 605 | 958185 | |||
| No information available, not orderable | ||||
| 606 | 958188 | |||
| No information available, not orderable | ||||
| 607 | 996427 | |||
| No information available, not orderable | ||||
| 608 | 318611 | |||
| No information available, not orderable | ||||
| 609 | 318612 | |||
| No information available, not orderable | ||||
| 610 | 318614 | |||
| No information available, not orderable | ||||
| 611 | 318617 | |||
| No information available, not orderable | ||||
| 612 | 318618 | |||
| No information available, not orderable | ||||
| 613 | 324818 | |||
| No information available, not orderable | ||||
| 614 | 324819 | |||
| No information available, not orderable | ||||
| 615 | 318619 | |||
| No information available, not orderable | ||||
| 616 | 318620 | |||
