Here you will find all available parts and drawings of the 'Hikoki CR13VA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

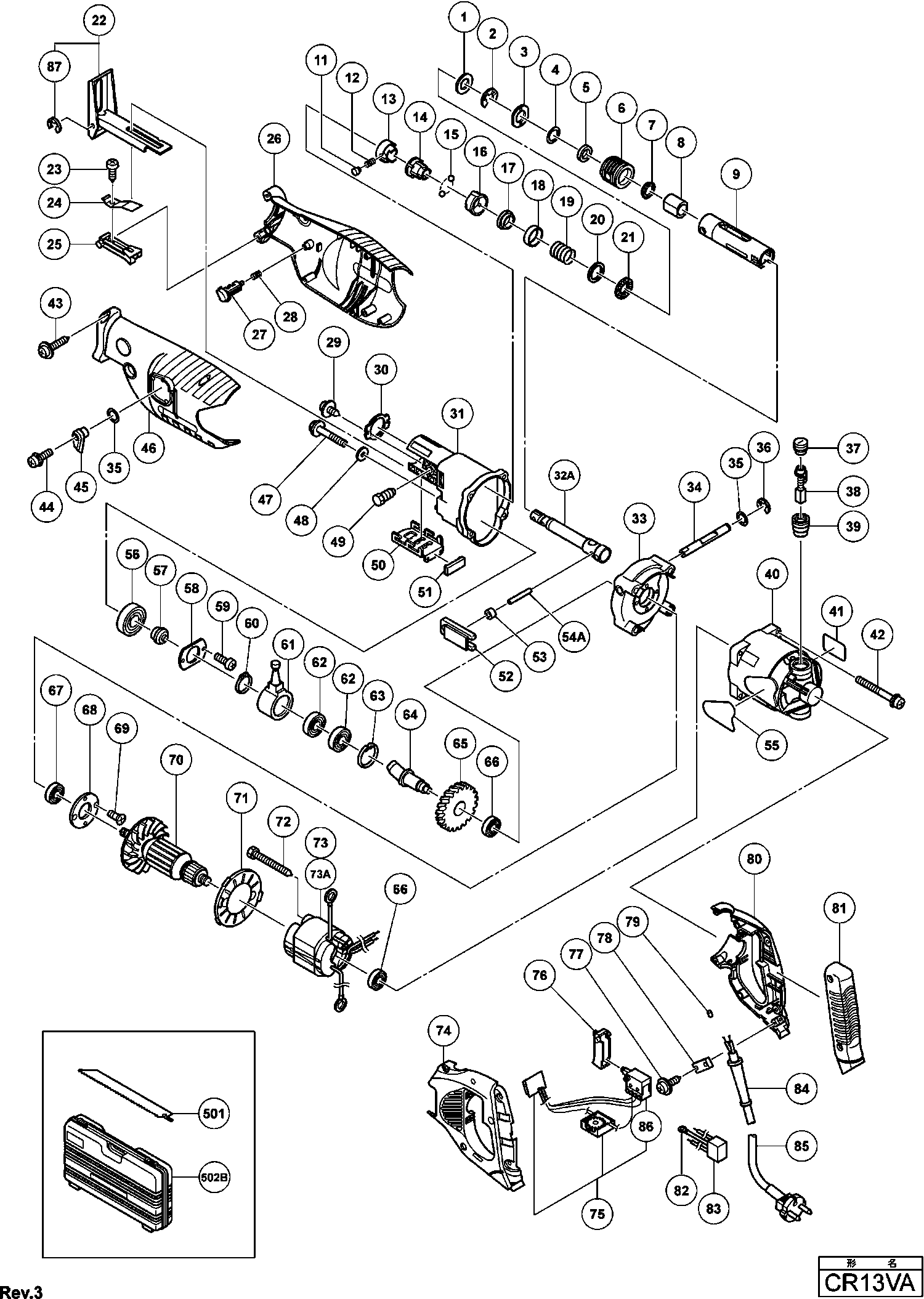

Technical drawing of model Hikoki CR13VA
Spare parts list of model Hikoki CR13VA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 318486 | |||
| LOCKRING D14 | ||||
| 2 | 318453 | 1.65 | 2.00 | |
| Washer (f) | ||||
| 3 | 318457 | 1.65 | 2.00 | |
| O-ring (s-24) | ||||
| 4 | 878609 | 1.05 | 1.27 | |
| Felt Washer | ||||
| 5 | 318458 | 1.65 | 2.00 | |
| Lock Ring | ||||
| 6 | 318460 | 3.30 | 3.99 | |
| V-ring | ||||
| 7 | 318459 | 1.65 | 2.00 | |
| Metal (a) | ||||
| 8 | 318463 | 4.80 | 5.81 | |
| Guide Bush | ||||
| 9 | 318462 | 24.34 | 29.45 | |
| Borgpin | ||||
| 11 | 318481 | 4.80 | 5.81 | |
| Spring (b) | ||||
| 12 | 318483 | 1.20 | 1.45 | |
| Holder | ||||
| 13 | 318478 | 19.94 | 24.12 | |
| Support (b) For Noise Suppressor | ||||
| 14 | 318479 | 11.85 | 14.34 | |
| Steel Ball D4.76 (10 pieces) | ||||
| 15 | 959149 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 16 | 318480 | |||
| Guide Ring | ||||
| 17 | 318477 | 1.05 | 1.27 | |
| Dust Ring | ||||
| 18 | 318487 | 1.05 | 1.27 | |
| Spring (a) | ||||
| 19 | 318482 | 1.20 | 1.45 | |
| Washer (e) | ||||
| 20 | 318484 | 1.65 | 2.00 | |
| Bearing Ring | ||||
| 21 | 318485 | 6.45 | 7.80 | |
| Base | ||||
| 22 | 318455 | 18.43 | 22.29 | |
| Tapping Screw D4x8 | ||||
| 23 | 310222 | 1.05 | 1.27 | |
| Spring | ||||
| 24 | 318495 | 1.65 | 2.00 | |
| Adjustment lever | ||||
| 25 | 318497 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 26 | 318471 | |||
| Pushing Button | ||||
| 27 | 318496 | 1.05 | 1.27 | |
| Spring (c) | ||||
| 28 | 318494 | 1.65 | 2.00 | |
| Ft Machine Screw M4x6 | ||||
| 29 | 677495 | 1.05 | 1.27 | |
| Gasket | ||||
| 30 | 318456 | 1.05 | 1.27 | |
| Gear Cover | ||||
| 31 | 318468 | 18.29 | 22.13 | |
| Spindle Ass'y | ||||
| 32A | 319771 | 61.33 | 74.20 | |
| Intermediate Cover | ||||
| 33 | 318469 | 14.55 | 17.61 | |
| Exchange shaft | ||||
| 34 | 318489 | 6.45 | 7.80 | |
| No longer available, no replacement | ||||
| 35 | 872654 | |||
| Washer Spring | ||||
| 36 | 974577 | 1.05 | 1.27 | |
| Brush Cap | ||||
| 37 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 38 | 999043 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 39 | 958900 | 6.45 | 7.80 | |
| Housing (green) | ||||
| 40 | 318506 | 21.31 | 25.79 | |
| Machine Screw with Washers M5x60 (Black) | ||||
| 42 | 307224 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 43 | 307028 | 1.05 | 1.27 | |
| Seal Lock Screw (w/washers) M4x10 (black) | ||||
| 44 | 303851 | 1.05 | 1.27 | |
| Adjustment Button | ||||
| 45 | 318490 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 46 | 318470 | |||
| Nylock Bolt (w/flange) M6x35 | ||||
| 47 | 318451 | 1.65 | 2.00 | |
| Washer (g) | ||||
| 48 | 318452 | 1.20 | 1.45 | |
| Bolt M10 | ||||
| 49 | 318493 | 6.45 | 7.80 | |
| Footplate Adapter | ||||
| 50 | 318454 | 4.80 | 5.81 | |
| Protective Rubber | ||||
| 51 | 318461 | 1.65 | 2.00 | |
| Pendulum Rail | ||||
| 52 | 318488 | 22.28 | 26.95 | |
| Swing Roller | ||||
| 53 | 321136 | 1.65 | 2.00 | |
| PIN D6 (OLD 318491) | ||||
| 54A | 326585 | 3.15 | 3.81 | |
| Ball Bearing 6003dd | ||||
| 56 | 6003DD | 7.50 | 9.08 | |
| Plunger | ||||
| 57 | 318475 | 3.30 | 3.99 | |
| Bearing Cover (b) | ||||
| 58 | 318476 | 4.65 | 5.63 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 59 | 949216 | 1.05 | 1.27 | |
| Ring | ||||
| 60 | 967261 | 1.05 | 1.27 | |
| Spare Part Plate | ||||
| 61 | 321121 | 27.78 | 33.61 | |
| Ball Bearing 6003vvcmps2l | ||||
| 62 | 6003VV | 7.65 | 9.26 | |
| Retaining Ring For D35 Hole (10 Pcs.) | ||||
| 63 | 939556 | 10.20 | 12.34 | |
| Second Shaft (a) | ||||
| 64 | 318474 | 26.68 | 32.28 | |
| Gear | ||||
| 65 | 318473 | 14.03 | 16.97 | |
| Ball Bearing 608vvc2ps2l | ||||
| 66 | 608VVM | 5.70 | 6.90 | |
| Ball Bearing 6001vv | ||||
| 67 | 6001VV | 6.60 | 7.99 | |
| Bearing Cover | ||||
| 68 | 302435 | 1.35 | 1.63 | |
| Flat Hd. Screw M4x8 (10 Pcs.) | ||||
| 69 | 949321 | 1.05 | 1.27 | |
| Armature 230v | ||||
| 70 | 360514E | 107.94 | 130.60 | |
| Fan Guide | ||||
| 71 | 318467 | 2.10 | 2.54 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 72 | 953174 | 1.04 | 1.26 | |
| Hex. Hd. Tapping Screw D5x60 | ||||
| 72 | 961501 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 73A | 340479J | 75.90 | 91.84 | |
| Handle (b) Green | ||||
| 74 | 318509 | 7.20 | 8.71 | |
| Switch | ||||
| 75 | 318505 | 61.33 | 74.20 | |
| 110 V switch | ||||
| 75 | 318817 | 57.26 | 69.28 | |
| SWITCH SLIDER | ||||
| 76 | 318499 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 77 | 984750 | |||
| Cord Clip | ||||
| 78 | 937631 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 79 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 80 | 318508 | |||
| No information available, not orderable | ||||
| 81 | 318472 | |||
| Terminal For Noise Suppressor | ||||
| 82 | 938108 | 1.20 | 1.45 | |
| Noise Suppressor | ||||
| 83 | 994273 | 4.29 | 5.19 | |
| Cord Armor D10.1 | ||||
| 84 | 938051 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 85 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 85 | 500447Z | 6.60 | 7.99 | |
| Switch | ||||
| 86 | 321960 | 32.18 | 38.93 | |
| Retaining Ring (e-type) For D3 Shaft Till 6.1998 | ||||
| 87 | 872971 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 318613 | |||
| No information available, not orderable | ||||
| 502B | 327054 | |||
| No information available, not orderable | ||||
| 602 | 958182 | |||
| No information available, not orderable | ||||
| 603 | 958183 | |||
| No information available, not orderable | ||||
| 604 | 959611 | |||
| No information available, not orderable | ||||
| 605 | 958185 | |||
| No information available, not orderable | ||||
| 606 | 958188 | |||
| No information available, not orderable | ||||
| 607 | 996427 | |||
| No information available, not orderable | ||||
| 608 | 959799 | |||
| No information available, not orderable | ||||
| 609 | 959800 | |||
| No information available, not orderable | ||||
| 610 | 318611 | |||
| No information available, not orderable | ||||
| 611 | 318612 | |||
| No information available, not orderable | ||||
| 612 | 318614 | |||
| No information available, not orderable | ||||
| 613 | 324818 | |||
| No information available, not orderable | ||||
| 614 | 324819 | |||
| No information available, not orderable | ||||
| 615 | 318617 | |||
| No information available, not orderable | ||||
| 616 | 318618 | |||
| No information available, not orderable | ||||
| 617 | 318619 | |||
| No information available, not orderable | ||||
| 618 | 318620 | |||
| No information available, not orderable | ||||
| 619 | 318621 | |||
