Here you will find all available parts and drawings of the 'Hikoki CR13V2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

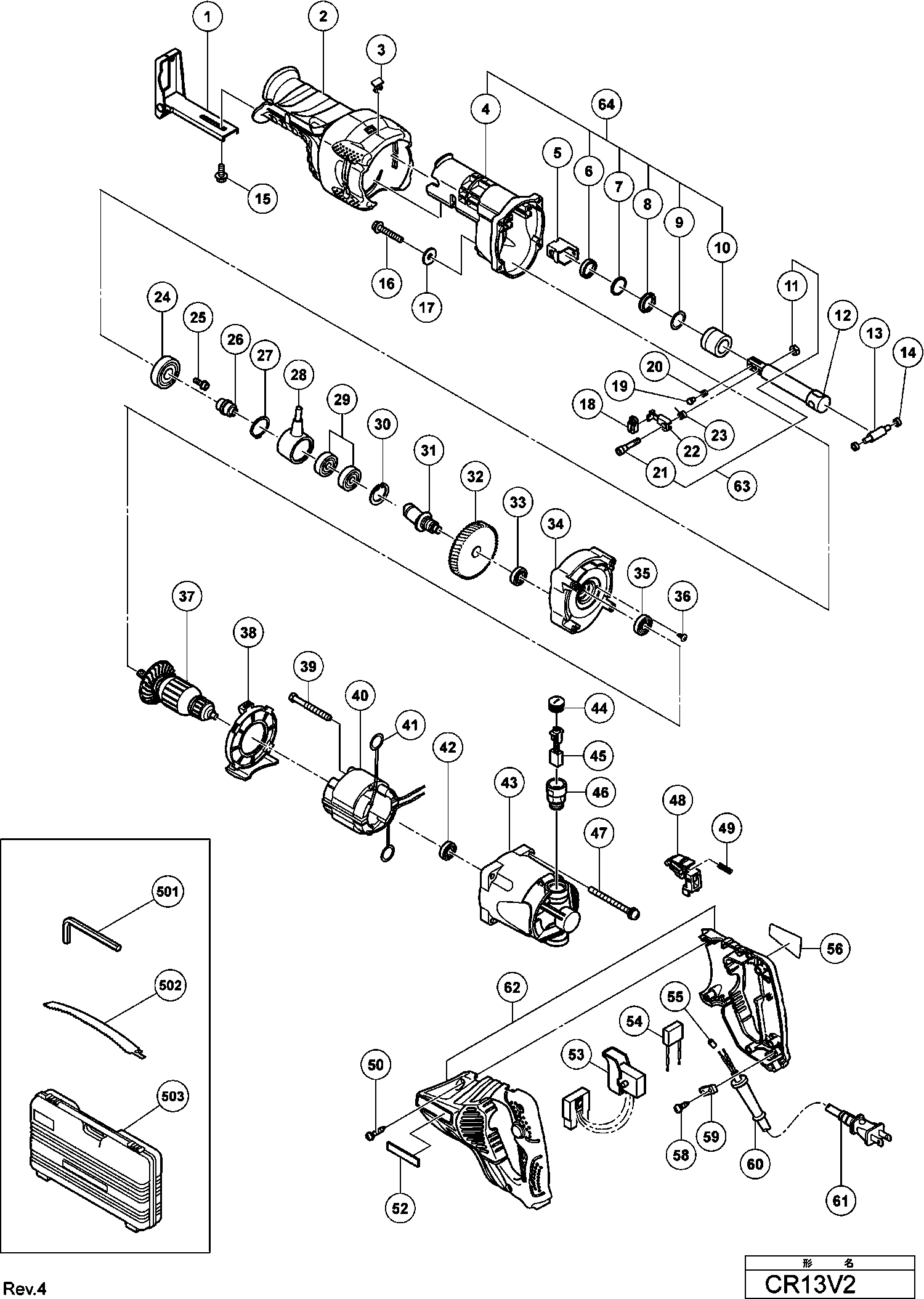

Technical drawing of model Hikoki CR13V2
Spare parts list of model Hikoki CR13V2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Base | ||||
| *1 | 330833 | 8.78 | 10.62 | |
| Armature 230v | ||||
| *37 | 360872E | 41.80 | 50.58 | |
| Stator 220v-230v | ||||
| *40 | 340751E | 32.31 | 39.10 | |
| Carbon Brush (1 Pair) | ||||
| *45 | 999043 | 4.50 | 5.44 | |
| Cord Armor D10.1 | ||||
| *60 | 938051 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Pan | ||||
| *61 | 500447Z | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| *62 | 334842 | |||
| Base | ||||
| 1 | 330833 | 8.78 | 10.62 | |
| Front Cover (f) | ||||
| 2 | 330821 | 13.89 | 16.80 | |
| Cover | ||||
| 3 | 330834 | 1.13 | 1.36 | |
| Gear Cover (f) | ||||
| 4 | 330818 | 14.30 | 17.30 | |
| Blade Holder (c) | ||||
| 5 | 326589 | 7.95 | 9.62 | |
| Felt Washer | ||||
| 6 | 318458 | 1.65 | 2.00 | |
| Ring | ||||
| 7 | 321117 | 1.35 | 1.63 | |
| V-ring | ||||
| 8 | 318459 | 1.65 | 2.00 | |
| O-ring Cr13vc | ||||
| 9 | 321118 | 1.65 | 2.00 | |
| Metal | ||||
| 10 | 321214 | 4.80 | 5.81 | |
| Lock Nut M5 (10 Pcs.) | ||||
| 11 | 949566 | 1.04 | 1.26 | |
| Plunger | ||||
| 12 | 330828 | 30.45 | 36.84 | |
| Connector Pin (f) | ||||
| 13 | 330829 | 6.08 | 7.35 | |
| Swing Roller | ||||
| 14 | 321136 | 1.65 | 2.00 | |
| Nylock Bolt (w/flange) M5x12 | ||||
| 15 | 322142 | 1.65 | 2.00 | |
| Nylock Bolt (w/flange) M6x35 | ||||
| 16 | 318451 | 1.65 | 2.00 | |
| Washer (g) | ||||
| 17 | 318452 | 1.20 | 1.45 | |
| Cap for Cr13vc | ||||
| 18 | 321130 | 1.35 | 1.63 | |
| Holder Pin (b) | ||||
| 19 | 321134 | 12.45 | 15.06 | |
| Spring (b) | ||||
| 20 | 318483 | 1.20 | 1.45 | |
| Special Bolt M5 | ||||
| 21 | 326590 | 1.05 | 1.27 | |
| Lever (c) | ||||
| 22 | 326588 | 7.50 | 9.08 | |
| Leaf Spring | ||||
| 23 | 326591 | 1.05 | 1.27 | |
| Ball Bearing 6002ddcmps2l | ||||
| 24 | 6002DD | 7.05 | 8.53 | |
| NYLOCK Bolt M4X12 | ||||
| 25 | 317196 | 1.65 | 2.00 | |
| Plunger | ||||
| 26 | 322119 | 2.10 | 2.54 | |
| Ring | ||||
| 27 | 967261 | 1.05 | 1.27 | |
| Recipro Plate (f) | ||||
| 28 | 330830 | 16.03 | 19.39 | |
| BALL BEARING 6003VVCM (NYLON RETAINER) | ||||
| 29 | 327694 | 5.25 | 6.35 | |
| Retaining Ring For D35 Hole (10 Pcs.) | ||||
| 30 | 939556 | 10.20 | 12.34 | |
| Second Shaft (f) | ||||
| 31 | 330831 | 14.18 | 17.15 | |
| Gear | ||||
| 32 | 330832 | 10.65 | 12.89 | |
| Ball Bearing 608vvc2ps2l | ||||
| 33 | 608VVM | 5.70 | 6.90 | |
| Inner Cover | ||||
| 34 | 330819 | 8.40 | 10.16 | |
| Ball Bearing 6001vv | ||||
| 35 | 6001VV | 6.60 | 7.99 | |
| Slotted Hd. Screw (Seal Lock) M4x10 | ||||
| 36 | 314430 | 1.05 | 1.27 | |
| Armature 230v | ||||
| 37 | 360872E | 41.80 | 50.58 | |
| ANKER 110 VOLT | ||||
| 37 | 360872C | 39.05 | 47.25 | |
| Fan Guide | ||||
| 38 | 330820 | 4.20 | 5.08 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 39 | 953174 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 40 | 340751E | 32.31 | 39.10 | |
| VELD 110 VOLT | ||||
| 40 | 340751C | 30.20 | 36.54 | |
| Brush Terminal | ||||
| 41 | 930703 | 2.40 | 2.90 | |
| Ball Bearing 608vvc2ps2l | ||||
| 42 | 608VVM | 5.70 | 6.90 | |
| Housing | ||||
| 43 | 330817 | 11.48 | 13.88 | |
| Brush Cap | ||||
| 44 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 45 | 999056 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 45 | 999043 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 46 | 958900 | 6.45 | 7.80 | |
| Machine Screw with Washers M5x60 (Black) | ||||
| 47 | 307224 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 48 | 330835 | |||
| No information available, not orderable | ||||
| 49 | 330839 | |||
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 50 | 307028 | 1.05 | 1.27 | |
| Switch 220v-240v | ||||
| 53 | 330838 | 18.15 | 21.96 | |
| SCHAKELAAR 110-120 VOLT | ||||
| 53 | 330837 | 16.94 | 20.50 | |
| Noise Suppressor | ||||
| 54 | 930039 | 1.95 | 2.36 | |
| Threaded cable sleeve | ||||
| 55 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 58 | 984750 | |||
| Cord Clip | ||||
| 59 | 937631 | 1.04 | 1.26 | |
| Cord Armor D8.8 | ||||
| 60 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 60 | 938051 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 61 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 61 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 61 | 500247Z | 6.18 | 7.48 | |
| CORD (CORD ARMOR D10.7) | ||||
| 61A | 500492Z | 6.45 | 7.80 | |
| Handle (g)+(h) Set | ||||
| 62 | 334841 | 16.78 | 20.30 | |
| Special Bolt M5 Set Includ.26,34 | ||||
| 63 | 334921 | 4.05 | 4.90 | |
| Gear Cover Ass'y Includ.4,6-10 | ||||
| 64 | 336374 | 12.45 | 15.06 | |
| No information available, not orderable | ||||
| 501 | 944458 | |||
| No information available, not orderable | ||||
| 502 | 327129 | |||
| No information available, not orderable | ||||
| 503 | 327054 | |||
| No information available, not orderable | ||||
| 602 | 958182 | |||
| No information available, not orderable | ||||
| 603 | 958183 | |||
| No information available, not orderable | ||||
| 604 | 959611 | |||
| No information available, not orderable | ||||
| 605 | 958185 | |||
| No information available, not orderable | ||||
| 606 | 958188 | |||
| No information available, not orderable | ||||
| 607 | 996427 | |||
| No information available, not orderable | ||||
| 608 | 318611 | |||
| No information available, not orderable | ||||
| 609 | 318612 | |||
| No information available, not orderable | ||||
| 610 | 318613 | |||
| No information available, not orderable | ||||
| 611 | 318614 | |||
| No information available, not orderable | ||||
| 612 | 318617 | |||
| No information available, not orderable | ||||
| 613 | 318618 | |||
| No information available, not orderable | ||||
| 614 | 324818 | |||
| No information available, not orderable | ||||
| 615 | 324819 | |||
| No information available, not orderable | ||||
| 616 | 318619 | |||
| No information available, not orderable | ||||
| 617 | 318620 | |||
| No information available, not orderable | ||||
| 618 | 318621 | |||
| No information available, not orderable | ||||
| 619 | 330852 | |||
| LEVER | ||||
| 620 | 996423 | 3.72 | 4.50 | |
| BOUT | ||||
| 621 | 996422 | 15.51 | 18.77 | |
| GELEIDBAR | ||||
| 622 | 996421 | 6.66 | 8.06 | |
| GLIJPLAAT | ||||
| 623 | 996424 | 20.90 | 25.29 | |
| Hex. Socket Hd. Bolt M6x16 (10 Pcs.) | ||||
| 624 | 949755 | 3.00 | 3.63 | |
| Plate (b) | ||||
| 625 | 321427 | 21.04 | 25.46 | |
| Sleeve | ||||
| 626 | 321428 | 7.95 | 9.62 | |
| Hex. Socket Hd. Bolt M5x14 (10 Pcs.) | ||||
| 627 | 949665 | 2.10 | 2.54 | |
| Hex. Socket Hd. Bolt M6x16 (10 Pcs.) | ||||
| 628 | 949755 | 3.00 | 3.63 | |
| Washer M6 (10 Pcs.) | ||||
| 629 | 949425 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 630 | 944458 | |||
| No information available, not orderable | ||||
| 631 | 944459 | |||
| Base | ||||
| 632 | 330833 | 8.78 | 10.62 | |
