Here you will find all available parts and drawings of the 'Hikoki CR13V'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

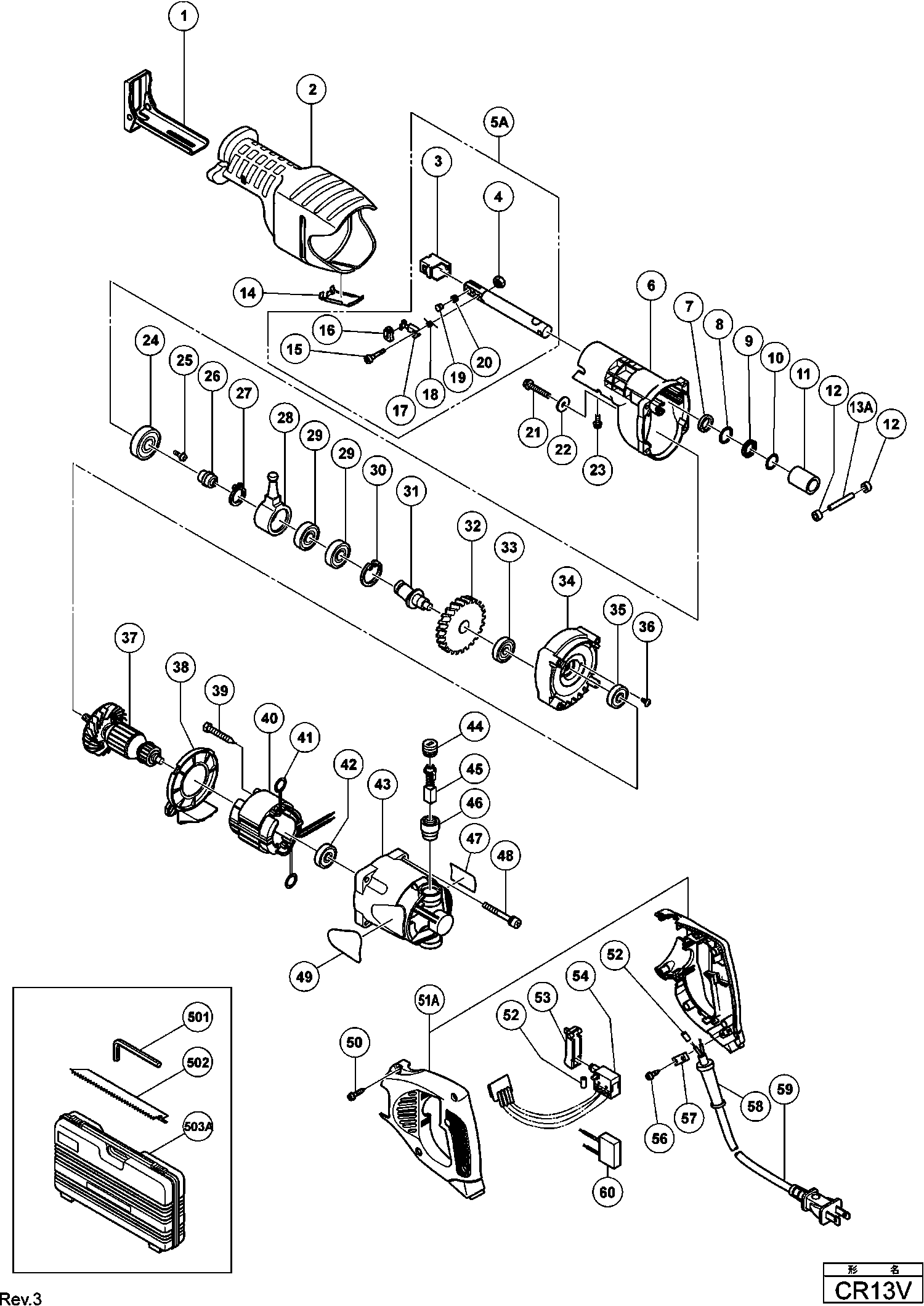

Technical drawing of model Hikoki CR13V
Spare parts list of model Hikoki CR13V
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE ASS'Y 120 VOLT | ||||
| *37 | 360616U | 78.79 | 95.33 | |
| Armature 230v | ||||
| *37 | 360616E | 45.30 | 54.81 | |
| ARMATURE 110-115 VOLT | ||||
| *37 | 360616C | 42.35 | 51.24 | |
| FIELD 110-115 VOLT | ||||
| *40 | 340563H | 32.40 | 39.20 | |
| Stator 220v-230v | ||||
| *40 | 340563J | 31.55 | 38.18 | |
| No information available, not orderable | ||||
| *54 | 327130 | |||
| No information available, not orderable | ||||
| *59 | 500455Z | |||
| Base (b) | ||||
| 1 | 321116 | 9.69 | 11.72 | |
| Front Case | ||||
| 2 | 321125 | 24.61 | 29.78 | |
| Blade Holder (a) | ||||
| 3 | 321132 | 15.95 | 19.30 | |
| Nut M4 (10 Pieces) | ||||
| 4 | 949554 | 1.05 | 1.27 | |
| Plunger (b) Ass'y Includ.3,14a,15-19,62 | ||||
| 5A | 333738 | 91.30 | 110.47 | |
| Gear Cover | ||||
| 6 | 321123 | 37.95 | 45.92 | |
| Felt Washer | ||||
| 7 | 318458 | 1.65 | 2.00 | |
| Ring | ||||
| 8 | 321117 | 1.35 | 1.63 | |
| V-ring | ||||
| 9 | 318459 | 1.65 | 2.00 | |
| O-ring Cr13vc | ||||
| 10 | 321118 | 1.65 | 2.00 | |
| Metal | ||||
| 11 | 321214 | 4.80 | 5.81 | |
| Swing Roller | ||||
| 12 | 321136 | 1.65 | 2.00 | |
| PIN D6 (OLD 318491) | ||||
| 13A | 326585 | 3.15 | 3.81 | |
| Clip | ||||
| 14 | 321126 | 5.71 | 6.91 | |
| Special Bolt M4 | ||||
| 15 | 322134 | 1.65 | 2.00 | |
| Cap for Cr13vc | ||||
| 16 | 321130 | 1.35 | 1.63 | |
| Lever (a) | ||||
| 17 | 321131 | 9.69 | 11.72 | |
| Spring | ||||
| 18 | 321135 | 2.55 | 3.09 | |
| Holder Pin (b) | ||||
| 19 | 321134 | 12.45 | 15.06 | |
| Spring (b) | ||||
| 20 | 318483 | 1.20 | 1.45 | |
| Nylock Bolt (w/flange) M6x35 | ||||
| 21 | 318451 | 1.65 | 2.00 | |
| Washer (g) | ||||
| 22 | 318452 | 1.20 | 1.45 | |
| Nylock Bolt (w/flange) M5x12 | ||||
| 23 | 322142 | 1.65 | 2.00 | |
| Ball Bearing 6002ddcmps2l | ||||
| 24 | 6002DD | 7.05 | 8.53 | |
| NYLOCK Bolt M4X12 | ||||
| 25 | 317196 | 1.65 | 2.00 | |
| Plunger | ||||
| 26 | 322119 | 2.10 | 2.54 | |
| Ring | ||||
| 27 | 967261 | 1.05 | 1.27 | |
| Reciprocal Plate | ||||
| 28 | 322118 | 13.35 | 16.15 | |
| Ball Bearing 6003vvcmps2l | ||||
| 29 | 6003VV | 7.65 | 9.26 | |
| Retaining Ring For D35 Hole (10 Pcs.) | ||||
| 30 | 939556 | 10.20 | 12.34 | |
| Second Shaft (b) | ||||
| 31 | 321128 | 22.31 | 27.00 | |
| Gear | ||||
| 32 | 318473 | 14.03 | 16.97 | |
| Ball Bearing 608vvc2ps2l | ||||
| 33 | 608VVM | 5.70 | 6.90 | |
| Inner Cover | ||||
| 34 | 321124 | 18.98 | 22.96 | |
| Ball Bearing 6001vv | ||||
| 35 | 6001VV | 6.60 | 7.99 | |
| Slotted Hd. Screw (Seal Lock) M4x10 | ||||
| 36 | 314430 | 1.05 | 1.27 | |
| ARMATURE ASS'Y 120 VOLT | ||||
| 37 | 360616U | 78.79 | 95.33 | |
| Armature 230v | ||||
| 37 | 360616E | 45.30 | 54.81 | |
| ARMATURE 110-115 VOLT | ||||
| 37 | 360616C | 42.35 | 51.24 | |
| Fan Guide | ||||
| 38 | 321122 | 2.55 | 3.09 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 39 | 953174 | 1.04 | 1.26 | |
| FIELD 110-115 VOLT | ||||
| 40 | 340563H | 32.40 | 39.20 | |
| Stator 220v-230v | ||||
| 40 | 340563J | 31.55 | 38.18 | |
| Brush Terminal | ||||
| 41 | 930703 | 2.40 | 2.90 | |
| Ball Bearing 608vvc2ps2l | ||||
| 42 | 608VVM | 5.70 | 6.90 | |
| Housing | ||||
| 43 | 322120 | 9.60 | 11.62 | |
| Brush Cap | ||||
| 44 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 45 | 999043 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 46 | 958900 | 6.45 | 7.80 | |
| Machine Screw with Washers M5x60 (Black) | ||||
| 48 | 307224 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 50 | 307028 | 1.05 | 1.27 | |
| Handle (c).(d) Set | ||||
| 51A | 324823 | 11.85 | 14.34 | |
| Threaded cable sleeve | ||||
| 52 | 981373 | 1.05 | 1.27 | |
| Switch Trigger | ||||
| 53 | 322133 | 1.05 | 1.27 | |
| Switch | ||||
| 54 | 322135 | 46.75 | 56.57 | |
| No information available, not orderable | ||||
| 56 | 984750 | |||
| Cord Clip | ||||
| 57 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 58 | 953327 | |||
| No information available, not orderable | ||||
| 59 | 500434Z | |||
| Noise suppressor | ||||
| 60 | 334380 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 501 | 944458 | |||
| No information available, not orderable | ||||
| 502 | 318621 | |||
| No information available, not orderable | ||||
| 503A | 327054 | |||
| No information available, not orderable | ||||
| 602 | 958182 | |||
| No information available, not orderable | ||||
| 603 | 958183 | |||
| No information available, not orderable | ||||
| 604 | 959611 | |||
| No information available, not orderable | ||||
| 605 | 958185 | |||
| No information available, not orderable | ||||
| 606 | 958188 | |||
| No information available, not orderable | ||||
| 607 | 996427 | |||
| No information available, not orderable | ||||
| 608 | 318611 | |||
| No information available, not orderable | ||||
| 609 | 318612 | |||
| No information available, not orderable | ||||
| 610 | 318613 | |||
| No information available, not orderable | ||||
| 611 | 318614 | |||
| No information available, not orderable | ||||
| 612 | 324818 | |||
| No information available, not orderable | ||||
| 613 | 324819 | |||
| No information available, not orderable | ||||
| 614 | 318617 | |||
| No information available, not orderable | ||||
| 615 | 318618 | |||
| No information available, not orderable | ||||
| 616 | 318619 | |||
| No information available, not orderable | ||||
| 617 | 318620 | |||
| No information available, not orderable | ||||
| 618 | 321113 | |||
| Lever | ||||
| 619 | 996423 | 3.72 | 4.50 | |
| Bolt | ||||
| 620 | 996422 | 15.51 | 18.77 | |
| Guide bar | ||||
| 621 | 996421 | 6.66 | 8.06 | |
| Slide plate | ||||
| 622 | 996424 | 20.90 | 25.29 | |
| Hex. Socket Hd. Bolt M6x16 (10 Pcs.) | ||||
| 623 | 949755 | 3.00 | 3.63 | |
| Base (b) | ||||
| 624 | 321116 | 9.69 | 11.72 | |
| Plate (b) | ||||
| 625 | 321427 | 21.04 | 25.46 | |
| No information available, not orderable | ||||
| 626 | 321428 | |||
| Hex. Socket Hd. Bolt M5x14 (10 Pcs.) | ||||
| 627 | 949665 | 2.10 | 2.54 | |
| Hex. Socket Hd. Bolt M6x16 (10 Pcs.) | ||||
| 628 | 949755 | 3.00 | 3.63 | |
| Washer M6 (10 Pcs.) | ||||
| 629 | 949425 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 630 | 944458 | |||
| No information available, not orderable | ||||
| 631 | 944459 | |||
