Here you will find all available parts and drawings of the 'Hikoki CR12DA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

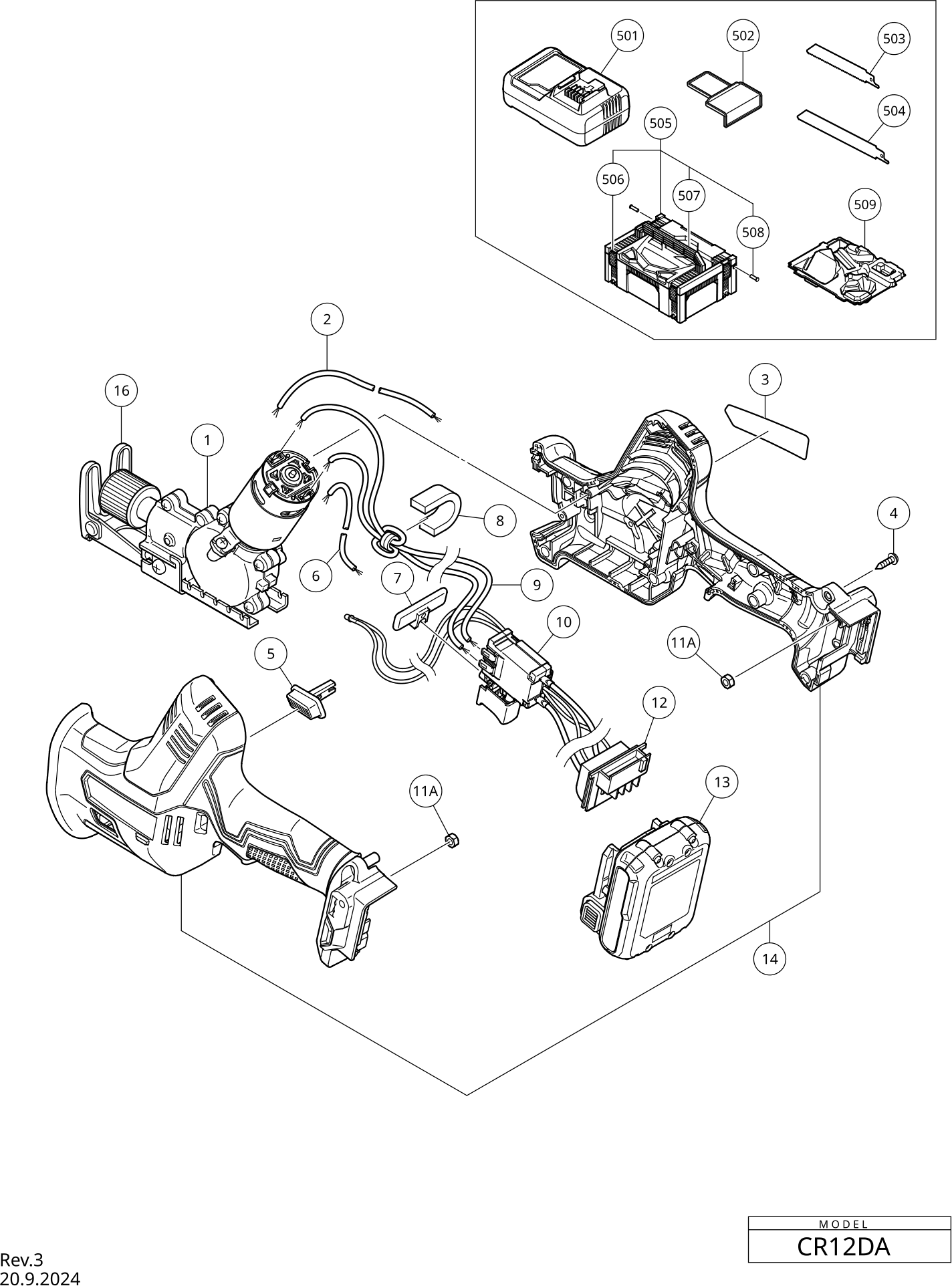

Technical drawing of model Hikoki CR12DA
Spare parts list of model Hikoki CR12DA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *13 | 374954 | |||
| Housing (a).(b) Set | ||||
| *14 | 376374 | 9.90 | 11.98 | |
| No information available, not orderable | ||||
| *2 | 376553 | |||
| No information available, not orderable | ||||
| *505 | 336471 | |||
| No information available, not orderable | ||||
| *6 | 376552 | |||
| No information available, not orderable | ||||
| *601 | 959611 | |||
| No information available, not orderable | ||||
| *610 | 318620 | |||
| Gearbox housing set | ||||
| 1 | 376375 | 82.78 | 100.16 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 4 | 313687 | 1.04 | 1.26 | |
| Locking Knob | ||||
| 5 | 376377 | 1.04 | 1.26 | |
| Pushing Button (a) | ||||
| 7 | 329548 | 1.65 | 2.00 | |
| Variable switch | ||||
| 10 | 376376 | 13.95 | 16.88 | |
| Nut M4 (black) | ||||
| 11A | 322709 | 1.65 | 2.00 | |
| BATTERY TERMINAL | ||||
| 12 | 374387 | 1.80 | 2.18 | |
| BASE NEW | ||||
| 16 | 376751 | 8.82 | 10.67 | |
| Battery Cover | ||||
| 502 | 374778 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 506 | 336472 | |||
| No information available, not orderable | ||||
| 507 | 336473 | |||
| No information available, not orderable | ||||
| 508 | 336474 | |||
| No information available, not orderable | ||||
| 509 | 376550 | |||
