Here you will find all available parts and drawings of the 'Hikoki CM9UBY'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

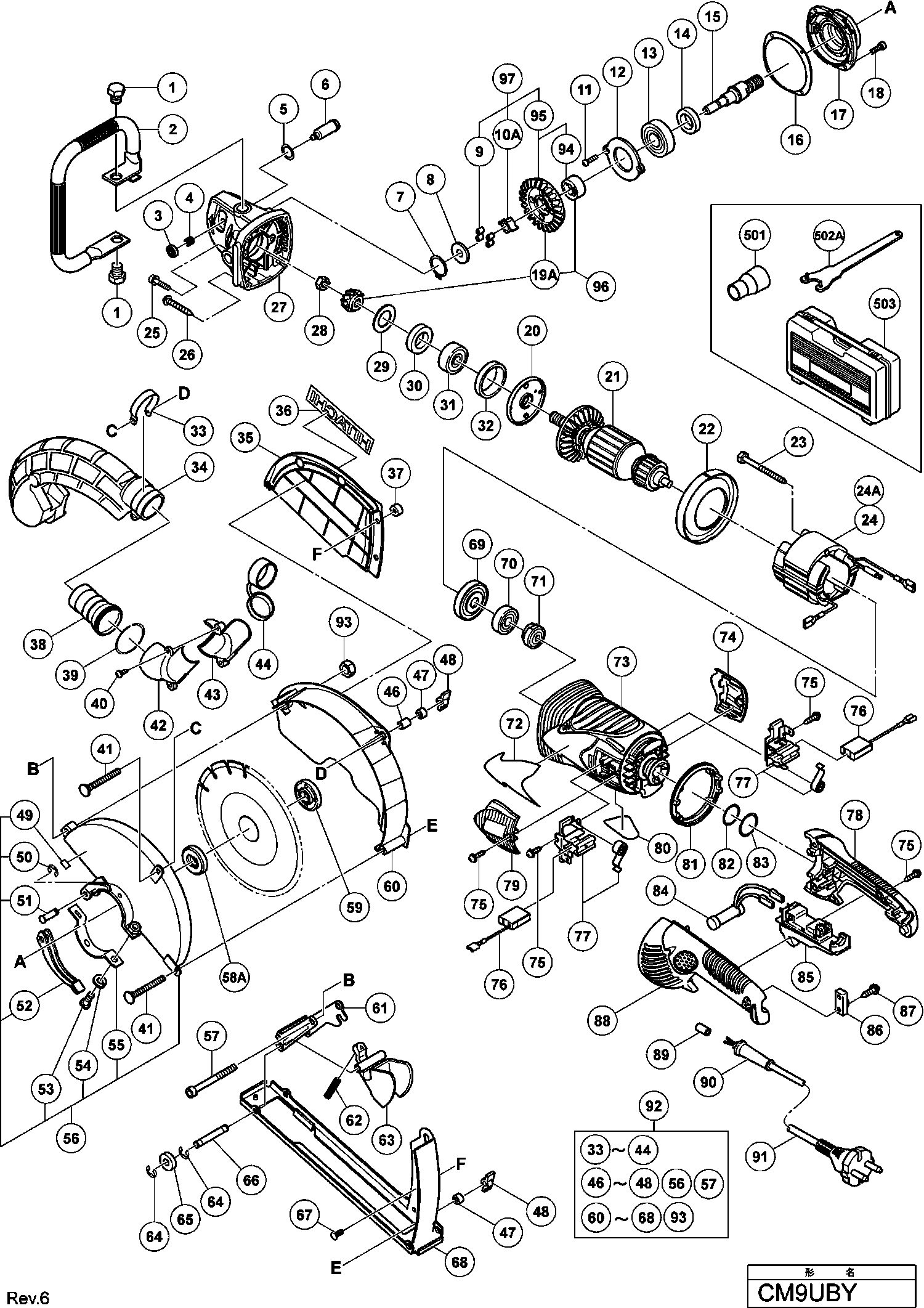

Technical drawing of model Hikoki CM9UBY
Spare parts list of model Hikoki CM9UBY
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE 220 -230 VOLT | ||||
| *21 | 360777E | 82.64 | 99.99 | |
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| *76 | 999089 | 9.30 | 11.25 | |
| Carbon Brush (1 Pair) | ||||
| *76 | 999061 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| *91 | 321537 | |||
| Bolt | ||||
| 1 | 985597 | 2.85 | 3.45 | |
| Pipe Handle Set Includ.602 | ||||
| 2 | 323993 | 63.66 | 77.03 | |
| Pushing Button | ||||
| 3 | 306888 | 1.04 | 1.26 | |
| Spring | ||||
| 4 | 320219 | 1.35 | 1.63 | |
| O-ring | ||||
| 5 | 320218 | 1.20 | 1.45 | |
| Lock Pin | ||||
| 6 | 306890 | 1.80 | 2.18 | |
| Spring Washer D10 (10 pieces) | ||||
| 7 | 939540 | 1.95 | 2.36 | |
| Coupling Cover | ||||
| 8 | 326722 | 1.20 | 1.45 | |
| Damper | ||||
| 9 | 326721 | 7.43 | 8.98 | |
| Connector | ||||
| 10A | 333147 | 4.35 | 5.26 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 11 | 949236 | 1.05 | 1.27 | |
| Seal Lock Screw (w/sp. Washer) M5x10 | ||||
| 11A | 992038 | 1.04 | 1.26 | |
| Bearing Cover (b) | ||||
| 12 | 326723 | 1.20 | 1.45 | |
| Ball Bearing 6302vvcmps2l | ||||
| 13 | 6302VV | 9.30 | 11.25 | |
| Felt Packing | ||||
| 14 | 990852 | 1.04 | 1.26 | |
| Spindle Ass'y | ||||
| 15 | 326727 | 9.90 | 11.98 | |
| Seal Plate | ||||
| 16 | 320228 | 1.35 | 1.63 | |
| Gear-box cover | ||||
| 17 | 320227 | 4.96 | 6.00 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 18 | 994192 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 19A | 326718 | |||
| Bearing Cover (a) | ||||
| 20 | 320220 | 2.55 | 3.09 | |
| ARMATURE 220 -230 VOLT | ||||
| 21 | 360777E | 82.64 | 99.99 | |
| Fan Guide | ||||
| 22 | 320215 | 1.35 | 1.63 | |
| Screw D5x75 (old 963454z) | ||||
| 23 | 984271 | 1.04 | 1.26 | |
| VELD 110-120 VOLT | ||||
| 24 | 340682C | 42.62 | 51.57 | |
| Stator 220v-230v | ||||
| 24A | 340682F | 54.45 | 65.88 | |
| Seal Lock Hex. Socket Hd. Bolt M5x14 | ||||
| 25 | 984509 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D5x35 (black) | ||||
| 26 | 323209 | 1.35 | 1.63 | |
| Gear Cover | ||||
| 27 | 326717 | 25.58 | 30.95 | |
| Special Nut M10 | ||||
| 28 | 320226 | 1.35 | 1.63 | |
| Seal Washer | ||||
| 29 | 320221 | 1.35 | 1.63 | |
| Felt Packing | ||||
| 30 | 320222 | 1.35 | 1.63 | |
| Ball Bearing 6301vvcmps2l | ||||
| 31 | 6301VV | 8.55 | 10.35 | |
| Rubber Ring (b) | ||||
| 32 | 994208 | 1.04 | 1.26 | |
| Hose Band | ||||
| 33 | 328754 | 1.95 | 2.36 | |
| Dust Duct | ||||
| 34 | 328748 | 15.13 | 18.30 | |
| Cover | ||||
| 35 | 328752 | 6.30 | 7.62 | |
| Nut Wing | ||||
| 37 | 997467 | 4.20 | 5.08 | |
| Adaptor | ||||
| 38 | 328758 | 2.10 | 2.54 | |
| Ring | ||||
| 39 | 328761 | 1.95 | 2.36 | |
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 40 | 305720 | 1.05 | 1.27 | |
| Bolt (square) M6x57 | ||||
| 41 | 324877 | 1.65 | 2.00 | |
| Adapter (a) | ||||
| 42 | 328759 | 2.10 | 2.54 | |
| Adapter (b) | ||||
| 43 | 328760 | 2.10 | 2.54 | |
| Dust Cap | ||||
| 44 | 324865 | 6.45 | 7.80 | |
| Holder Sleeve (b) | ||||
| 46 | 885414 | 1.65 | 2.00 | |
| Sleeve | ||||
| 47 | 328841 | 1.05 | 1.27 | |
| Wing Nut M6 | ||||
| 48 | 314622 | 3.30 | 3.99 | |
| Label | ||||
| 49 | 311492 | 1.20 | 1.45 | |
| Ring | ||||
| 50 | 673489 | 1.04 | 1.26 | |
| Set Pin | ||||
| 51 | 321546 | 3.00 | 3.63 | |
| Lever | ||||
| 52 | 321545 | 3.00 | 3.63 | |
| Bolt M8x22 | ||||
| 53 | 306887 | 1.05 | 1.27 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 54 | 949457 | 1.05 | 1.27 | |
| Set Piece | ||||
| 55 | 321544 | 1.50 | 1.82 | |
| Wheel Guard Ass'y Includ.49-55 | ||||
| 56 | 328745 | 21.04 | 25.46 | |
| No longer available, no replacement | ||||
| 57 | 328843 | |||
| No information available, not orderable | ||||
| 58A | 376202 | |||
| No information available, not orderable | ||||
| 58B | 376202 | |||
| No information available, not orderable | ||||
| 59 | 937909Z | |||
| No information available, not orderable | ||||
| 59A | 373779 | |||
| Cover | ||||
| 60 | 328749 | 5.25 | 6.35 | |
| Holder | ||||
| 61 | 328750 | 6.30 | 7.62 | |
| Spring | ||||
| 62 | 314429 | 1.04 | 1.26 | |
| Guide Piece | ||||
| 63 | 328751 | 3.00 | 3.63 | |
| Washer Spring | ||||
| 64 | 974577 | 1.05 | 1.27 | |
| Roller | ||||
| 65 | 328755 | 2.10 | 2.54 | |
| Spindle Ass'y | ||||
| 66 | 328756 | 3.00 | 3.63 | |
| Bolt (square) M5 | ||||
| 67 | 328757 | 3.00 | 3.63 | |
| Base | ||||
| 68 | 328747 | 22.83 | 27.62 | |
| Dust Seal | ||||
| 69 | 320216 | 1.35 | 1.63 | |
| Ball Bearing 6000vvcmps2l | ||||
| 70 | 6000VV | 6.15 | 7.44 | |
| Bearing Bushing | ||||
| 71 | 321536 | 11.55 | 13.98 | |
| Housing | ||||
| 73 | 326712 | 41.39 | 50.08 | |
| Housing | ||||
| 73A | 326712 | 41.39 | 50.08 | |
| Brush Cover | ||||
| 74 | 326715 | 2.25 | 2.72 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 75 | 305812 | 1.04 | 1.26 | |
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| 76 | 999089 | 9.30 | 11.25 | |
| Carbon Brush (1 Pair) | ||||
| 76 | 999061 | 4.20 | 5.08 | |
| Brush Holder Set | ||||
| 77 | 322323 | 4.96 | 6.00 | |
| Handle (a) | ||||
| 78 | 326713 | 12.08 | 14.61 | |
| Brush Cover | ||||
| 79 | 326716 | 3.30 | 3.99 | |
| Handle Damper | ||||
| 81 | 326726 | 4.35 | 5.26 | |
| O-ring | ||||
| 82 | 326724 | 1.20 | 1.45 | |
| O-ring | ||||
| 83 | 326725 | 1.20 | 1.45 | |
| Resistor | ||||
| 84 | 320236 | 10.44 | 12.63 | |
| Switch (2p Pillar Type) W/safety Lock | ||||
| 85 | 320371 | 36.44 | 44.09 | |
| Cord Clip | ||||
| 86 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 87 | 984750 | |||
| Handle (b) | ||||
| 88 | 326714 | 12.08 | 14.61 | |
| Threaded cable sleeve | ||||
| 89 | 981373 | 1.05 | 1.27 | |
| Cord Armor D10.7 | ||||
| 90 | 940778 | 2.10 | 2.54 | |
| Cord 5m 2 X 1,5 H07rn-f (w/o plug) | ||||
| 91 | 500460Z | 37.26 | 45.09 | |
| CORD FOR GBR 110 VOLT | ||||
| 91 | 321539 | 29.98 | 36.28 | |
| No information available, not orderable | ||||
| 92 | 328744 | |||
| U-nut (b) M8 Till 9.2001 | ||||
| 93 | 944950 | 1.35 | 1.63 | |
| Inner | ||||
| 94 | 328700 | 8.70 | 10.53 | |
| Inner Set (w/gear) Includ.70 | ||||
| 95 | 328694 | 32.04 | 38.77 | |
| GEAR SET G23 UVP (OLD 326718) | ||||
| 96 | 328697 | 37.54 | 45.42 | |
| No information available, not orderable | ||||
| 97 | 328698 | |||
| No information available, not orderable | ||||
| 501 | 320994 | |||
| No information available, not orderable | ||||
| 502A | 325491 | |||
| No information available, not orderable | ||||
| 502B | 376127 | |||
| No information available, not orderable | ||||
| 503 | 328844 | |||
| No information available, not orderable | ||||
| 601 | 310338 | |||
