Here you will find all available parts and drawings of the 'Hikoki CM9SR'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

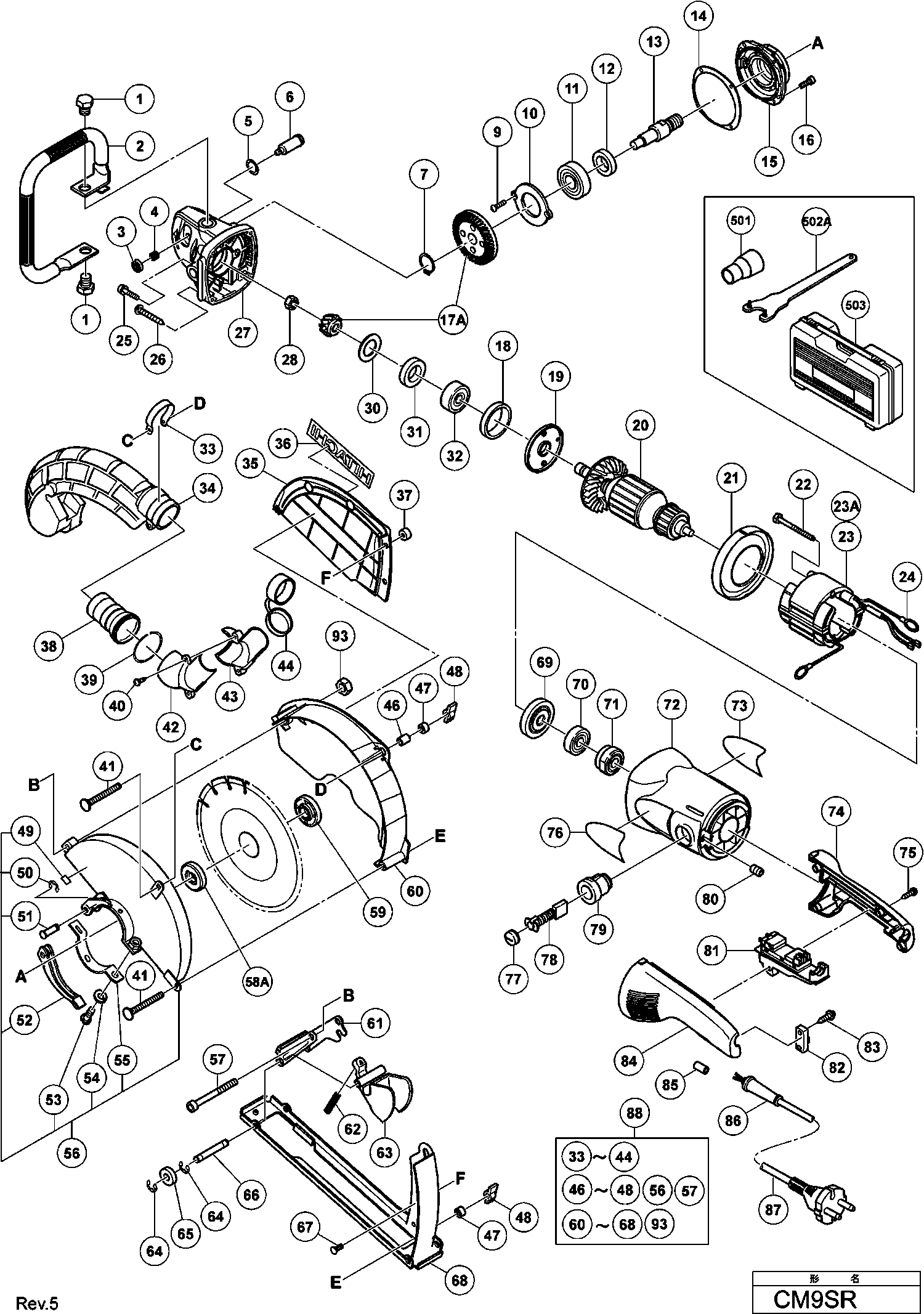

Technical drawing of model Hikoki CM9SR
Spare parts list of model Hikoki CM9SR
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gear And Pinion Set | ||||
| *17 | 330032 | 20.90 | 25.29 | |
| Armature 230v | ||||
| *20 | 360762E | 67.65 | 81.86 | |
| No longer available, no replacement | ||||
| *23 | 340664C | |||
| Carbon Brush (auto Stop Type) (1 Pair) For Sin,ma | ||||
| *78 | 999074 | 14.40 | 17.42 | |
| Carbon Brush (1 Pair) | ||||
| *78 | 999044 | 4.50 | 5.44 | |
| Threaded cable sleeve | ||||
| *85 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| *87 | 500497Z | |||
| Bolt | ||||
| 1 | 985597 | 2.85 | 3.45 | |
| Pipe Handle Set Includ.602 | ||||
| 2 | 323993 | 63.66 | 77.03 | |
| Pushing Button | ||||
| 3 | 306888 | 1.04 | 1.26 | |
| Spring | ||||
| 4 | 320219 | 1.35 | 1.63 | |
| O-ring | ||||
| 5 | 320218 | 1.20 | 1.45 | |
| Lock Pin | ||||
| 6 | 306890 | 1.80 | 2.18 | |
| Spring Washer D12 (10 pieces) | ||||
| 7 | 939542 | 1.50 | 1.82 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 9 | 949236 | 1.05 | 1.27 | |
| Seal Lock Screw (w/sp. Washer) M5x10 | ||||
| 9A | 992038 | 1.04 | 1.26 | |
| Bearing Cover (b) | ||||
| 10 | 320229 | 1.35 | 1.63 | |
| Ball Bearing 6302vvcmps2l | ||||
| 11 | 6302VV | 9.30 | 11.25 | |
| Felt Packing | ||||
| 12 | 990852 | 1.04 | 1.26 | |
| Spindle Ass'y | ||||
| 13 | 320234 | 6.96 | 8.42 | |
| Seal Plate | ||||
| 14 | 320228 | 1.35 | 1.63 | |
| Gear-box cover | ||||
| 15 | 320227 | 4.96 | 6.00 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 16 | 994192 | 1.04 | 1.26 | |
| Gear And Pinion Set | ||||
| 17 | 330032 | 20.90 | 25.29 | |
| Rubber Ring (b) | ||||
| 18 | 994208 | 1.04 | 1.26 | |
| Bearing Cover (a) | ||||
| 19 | 320220 | 2.55 | 3.09 | |
| Armature 230v | ||||
| 20 | 360762E | 67.65 | 81.86 | |
| Fan Guide | ||||
| 21 | 320215 | 1.35 | 1.63 | |
| Hex. Hd. Tapping Screw D5x60 | ||||
| 22 | 961501 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 23 | 340664C | |||
| Stator 220v-230v | ||||
| 23A | 340664H | 50.88 | 61.56 | |
| Brush holder connector | ||||
| 24 | 958032 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M5x14 | ||||
| 25 | 984509 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D5x35 (black) | ||||
| 26 | 323209 | 1.35 | 1.63 | |
| Gear Cover Ass'y Includ.4,5,17,39,40 | ||||
| 27 | 320217 | 17.76 | 21.49 | |
| Special Nut M10 | ||||
| 28 | 320226 | 1.35 | 1.63 | |
| Seal Washer | ||||
| 30 | 320221 | 1.35 | 1.63 | |
| Felt Packing | ||||
| 31 | 320222 | 1.35 | 1.63 | |
| Ball Bearing 6301vvcmps2l | ||||
| 32 | 6301VV | 8.55 | 10.35 | |
| Hose Band | ||||
| 33 | 328754 | 1.95 | 2.36 | |
| Dust Duct | ||||
| 34 | 328748 | 15.13 | 18.30 | |
| Cover | ||||
| 35 | 328752 | 6.30 | 7.62 | |
| Nut Wing | ||||
| 37 | 997467 | 4.20 | 5.08 | |
| Adaptor | ||||
| 38 | 328758 | 2.10 | 2.54 | |
| Ring | ||||
| 39 | 328761 | 1.95 | 2.36 | |
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 40 | 305720 | 1.05 | 1.27 | |
| Bolt (square) M6x57 | ||||
| 41 | 324877 | 1.65 | 2.00 | |
| Adapter (a) | ||||
| 42 | 328759 | 2.10 | 2.54 | |
| Adapter (b) | ||||
| 43 | 328760 | 2.10 | 2.54 | |
| Dust Cap | ||||
| 44 | 324865 | 6.45 | 7.80 | |
| Holder Sleeve (b) | ||||
| 46 | 885414 | 1.65 | 2.00 | |
| Sleeve | ||||
| 47 | 328841 | 1.05 | 1.27 | |
| Wing Nut M6 | ||||
| 48 | 314622 | 3.30 | 3.99 | |
| Label | ||||
| 49 | 311492 | 1.20 | 1.45 | |
| Ring | ||||
| 50 | 673489 | 1.04 | 1.26 | |
| Set Pin | ||||
| 51 | 321546 | 3.00 | 3.63 | |
| Lever | ||||
| 52 | 321545 | 3.00 | 3.63 | |
| Bolt M8x22 | ||||
| 53 | 306887 | 1.05 | 1.27 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 54 | 949457 | 1.05 | 1.27 | |
| Set Piece | ||||
| 55 | 321544 | 1.50 | 1.82 | |
| Wheel Guard Ass'y Includ.49-55 | ||||
| 56 | 328745 | 21.04 | 25.46 | |
| No longer available, no replacement | ||||
| 57 | 328843 | |||
| No information available, not orderable | ||||
| 58A | 376202 | |||
| No information available, not orderable | ||||
| 58B | 376202 | |||
| No information available, not orderable | ||||
| 59 | 937909Z | |||
| No information available, not orderable | ||||
| 59A | 373779 | |||
| Cover | ||||
| 60 | 328749 | 5.25 | 6.35 | |
| Holder | ||||
| 61 | 328750 | 6.30 | 7.62 | |
| Spring | ||||
| 62 | 314429 | 1.04 | 1.26 | |
| Guide Piece | ||||
| 63 | 328751 | 3.00 | 3.63 | |
| Washer Spring | ||||
| 64 | 974577 | 1.05 | 1.27 | |
| Roller | ||||
| 65 | 328755 | 2.10 | 2.54 | |
| Spindle Ass'y | ||||
| 66 | 328756 | 3.00 | 3.63 | |
| Bolt (square) M5 | ||||
| 67 | 328757 | 3.00 | 3.63 | |
| Base | ||||
| 68 | 328747 | 22.83 | 27.62 | |
| Dust Seal | ||||
| 69 | 320216 | 1.35 | 1.63 | |
| Ball Bearing 6000vvcmps2l | ||||
| 70 | 6000VV | 6.15 | 7.44 | |
| Bearing Bushing | ||||
| 71 | 321536 | 11.55 | 13.98 | |
| Housing Ass'y Includ.47,55,58 | ||||
| 72 | 325640 | 55.14 | 66.72 | |
| Handle (a) | ||||
| 74 | 325642 | 7.28 | 8.80 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 75 | 305812 | 1.04 | 1.26 | |
| Brush Cap | ||||
| 77 | 940540 | 1.04 | 1.26 | |
| Carbon Brush (auto Stop Type) (1 Pair) For Sin,ma | ||||
| 78 | 999074 | 14.40 | 17.42 | |
| Carbon Brush (1 Pair) | ||||
| 78 | 999044 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 79 | 980487 | 5.68 | 6.87 | |
| Hex Adjustment Screw M5x8 | ||||
| 80 | 938477 | 1.05 | 1.27 | |
| Switch | ||||
| 81 | 320238 | 22.55 | 27.29 | |
| Cord Clip | ||||
| 82 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 83 | 984750 | |||
| Handle Cover | ||||
| 84 | 325641 | 7.73 | 9.35 | |
| Threaded cable sleeve | ||||
| 85 | 981373 | 1.05 | 1.27 | |
| Cord Armor D10.7 | ||||
| 86 | 940778 | 2.10 | 2.54 | |
| Cord (cord Armor D8.8) | ||||
| 87 | 500450Z | 31.63 | 38.27 | |
| CORD FOR GBR 110 VOLT | ||||
| 87 | 321539 | 29.98 | 36.28 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 87 | 500247Z | 6.18 | 7.48 | |
| CORD (CORD ARMOR D10.7) | ||||
| 87A | 500492Z | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 88 | 328744 | |||
| U-nut (b) M8 Till 9.2001 | ||||
| 93 | 944950 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 501 | 320994 | |||
| No information available, not orderable | ||||
| 502A | 325491 | |||
| No information available, not orderable | ||||
| 502B | 376127 | |||
| No information available, not orderable | ||||
| 503 | 328844 | |||
| No information available, not orderable | ||||
| 601 | 310337 | |||
