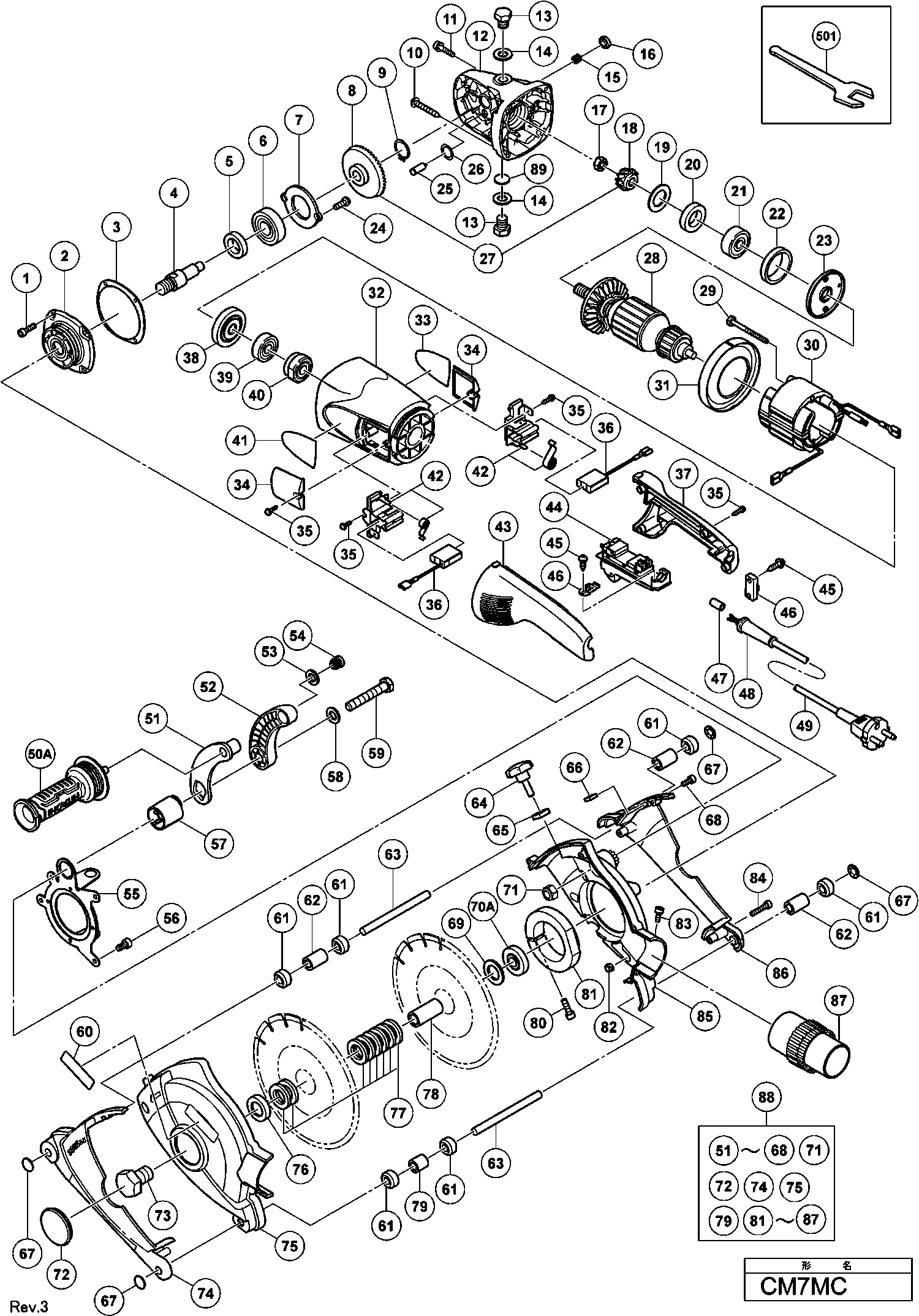

Technical drawing of model Hikoki CM7MC
Spare parts list of model Hikoki CM7MC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 1 | 994192 | 1.04 | 1.26 | |
| Gear-box cover | ||||
| 2 | 320227 | 4.96 | 6.00 | |
| Seal Plate | ||||
| 3 | 320228 | 1.35 | 1.63 | |
| Spindle Ass'y | ||||
| 4 | 320234 | 6.96 | 8.42 | |
| Felt Packing | ||||
| 5 | 990852 | 1.04 | 1.26 | |
| Ball Bearing 6302ddcmps2l | ||||
| 6 | 6302DD | 8.85 | 10.71 | |
| Bearing Cover (b) | ||||
| 7 | 320229 | 1.35 | 1.63 | |
| Spring Washer D12 (10 pieces) | ||||
| 9 | 939542 | 1.50 | 1.82 | |
| Tapping Screw (w/flange) D5x35 (black) | ||||
| 10 | 323209 | 1.35 | 1.63 | |
| Seal Lock Hex. Socket Hd. Bolt M5x14 | ||||
| 11 | 984509 | 1.05 | 1.27 | |
| Gear Cover Ass'y Includ.4,5,17,39,40 | ||||
| 12 | 320217 | 17.76 | 21.49 | |
| Bolt M14 | ||||
| 13 | 331050 | 4.13 | 4.99 | |
| No information available, not orderable | ||||
| 14 | 331045 | |||
| Spring | ||||
| 15 | 320219 | 1.35 | 1.63 | |
| Pushing Button | ||||
| 16 | 306888 | 1.04 | 1.26 | |
| Special Nut M10 | ||||
| 17 | 320226 | 1.35 | 1.63 | |
| Seal Washer | ||||
| 19 | 320221 | 1.35 | 1.63 | |
| Felt Packing | ||||
| 20 | 320222 | 1.35 | 1.63 | |
| Ball Bearing 6301ddcmps2l | ||||
| 21 | 6301DD | 6.75 | 8.17 | |
| Rubber Ring (b) | ||||
| 22 | 994208 | 1.04 | 1.26 | |
| Bearing Cover (a) | ||||
| 23 | 320220 | 2.55 | 3.09 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 24 | 949236 | 1.05 | 1.27 | |
| Seal Lock Screw (w/sp. Washer) M5x10 | ||||
| 24A | 992038 | 1.04 | 1.26 | |
| Lock Pin | ||||
| 25 | 306890 | 1.80 | 2.18 | |
| O-ring | ||||
| 26 | 320218 | 1.20 | 1.45 | |
| Gear And Pinion Set | ||||
| 27 | 330032 | 20.90 | 25.29 | |
| Armature 220v-230v | ||||
| 28 | 360594E | 77.00 | 93.17 | |
| Screw D5x75 (old 963454z) | ||||
| 29 | 984271 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 30 | 340546E | 50.10 | 60.62 | |
| VELD 110-120 VOLT | ||||
| 30 | 340546C | 46.80 | 56.63 | |
| Fan Guide | ||||
| 31 | 320215 | 1.35 | 1.63 | |
| Housing | ||||
| 32 | 321535 | 34.10 | 41.26 | |
| Brush Cover | ||||
| 34 | 320232 | 1.35 | 1.63 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 35 | 305812 | 1.04 | 1.26 | |
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| 36 | 999089 | 9.30 | 11.25 | |
| Carbon Brush (1 Pair) | ||||
| 36 | 999061 | 4.20 | 5.08 | |
| Handle (a) | ||||
| 37 | 320230 | 4.96 | 6.00 | |
| Dust Seal | ||||
| 38 | 320216 | 1.35 | 1.63 | |
| Ball Bearing 6000vvcmps2l | ||||
| 39 | 6000VV | 6.15 | 7.44 | |
| Bearing Bushing | ||||
| 40 | 321536 | 11.55 | 13.98 | |
| Brush Holder Set | ||||
| 42 | 322323 | 4.96 | 6.00 | |
| Handle | ||||
| 43 | 320231 | 3.75 | 4.54 | |
| Switch | ||||
| 44 | 320238 | 22.55 | 27.29 | |
| No information available, not orderable | ||||
| 45 | 984750 | |||
| Cord Clip | ||||
| 46 | 331336 | 1.20 | 1.45 | |
| Cord Clip | ||||
| 46 | 960266 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 47 | 981373 | 1.05 | 1.27 | |
| Cord Armor D10.7 | ||||
| 48 | 940778 | 2.10 | 2.54 | |
| Cord Armor D11.2 | ||||
| 48 | 331335 | 1.20 | 1.45 | |
| Cord 4m 2 X 1.0 H07rn-f W/plug 16a Cee Form 2p+e 1 | ||||
| 49 | 500465Z | 37.95 | 45.92 | |
| No information available, not orderable | ||||
| 50A | 336864 | |||
| Handle Arm (b) | ||||
| 51 | 331027 | 33.83 | 40.93 | |
| Handle Arm (a) | ||||
| 52 | 331058 | 16.15 | 19.54 | |
| Nylon Washer D12 | ||||
| 53 | 331053 | 1.05 | 1.27 | |
| Plug (1) | ||||
| 54 | 331037 | 1.05 | 1.27 | |
| Gear Box Bracket | ||||
| 55 | 331026 | 50.68 | 61.32 | |
| No longer available, no replacement | ||||
| 56 | 331048 | |||
| Handle Ratchet | ||||
| 57 | 331059 | 14.10 | 17.06 | |
| No longer available, no replacement | ||||
| 58 | 331043 | |||
| No longer available, no replacement | ||||
| 59 | 331044 | |||
| No longer available, no replacement | ||||
| 61 | 331028 | |||
| No longer available, no replacement | ||||
| 62 | 331031 | |||
| Spindle Ass'y | ||||
| 63 | 331029 | 10.88 | 13.16 | |
| Knob Bolt | ||||
| 64 | 331052 | 10.50 | 12.70 | |
| Washer | ||||
| 65 | 331062 | 2.48 | 2.99 | |
| No longer available, no replacement | ||||
| 66 | 331040 | |||
| Shaft Cap | ||||
| 67 | 331041 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 68 | 331046 | |||
| No information available, not orderable | ||||
| 69 | 331032 | |||
| No information available, not orderable | ||||
| 70A | 376202 | |||
| No longer available, no replacement | ||||
| 71 | 331042 | |||
| No information available, not orderable | ||||
| 72 | 331038 | |||
| Bolt M14 | ||||
| 73 | 331050 | 4.13 | 4.99 | |
| Dust Guard (a) | ||||
| 74 | 331056 | 28.13 | 34.03 | |
| No information available, not orderable | ||||
| 75 | 331054 | |||
| No information available, not orderable | ||||
| 76 | 331034 | |||
| No information available, not orderable | ||||
| 77 | 331033 | |||
| No information available, not orderable | ||||
| 78 | 331035 | |||
| No information available, not orderable | ||||
| 79 | 331030 | |||
| No longer available, no replacement | ||||
| 80 | 331049 | |||
| Gear Box Clamp | ||||
| 81 | 331060 | 26.26 | 31.78 | |
| No longer available, no replacement | ||||
| 82 | 331051 | |||
| No longer available, no replacement | ||||
| 83 | 331048 | |||
| No longer available, no replacement | ||||
| 84 | 331047 | |||
| No information available, not orderable | ||||
| 85 | 331055 | |||
| No information available, not orderable | ||||
| 86 | 331057 | |||
| No information available, not orderable | ||||
| 87 | 331061 | |||
| No information available, not orderable | ||||
| 88 | 331025 | |||
| Felt Washer | ||||
| 89 | 937033 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 331036 | |||
