Here you will find all available parts and drawings of the 'Hikoki CM75EAP'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

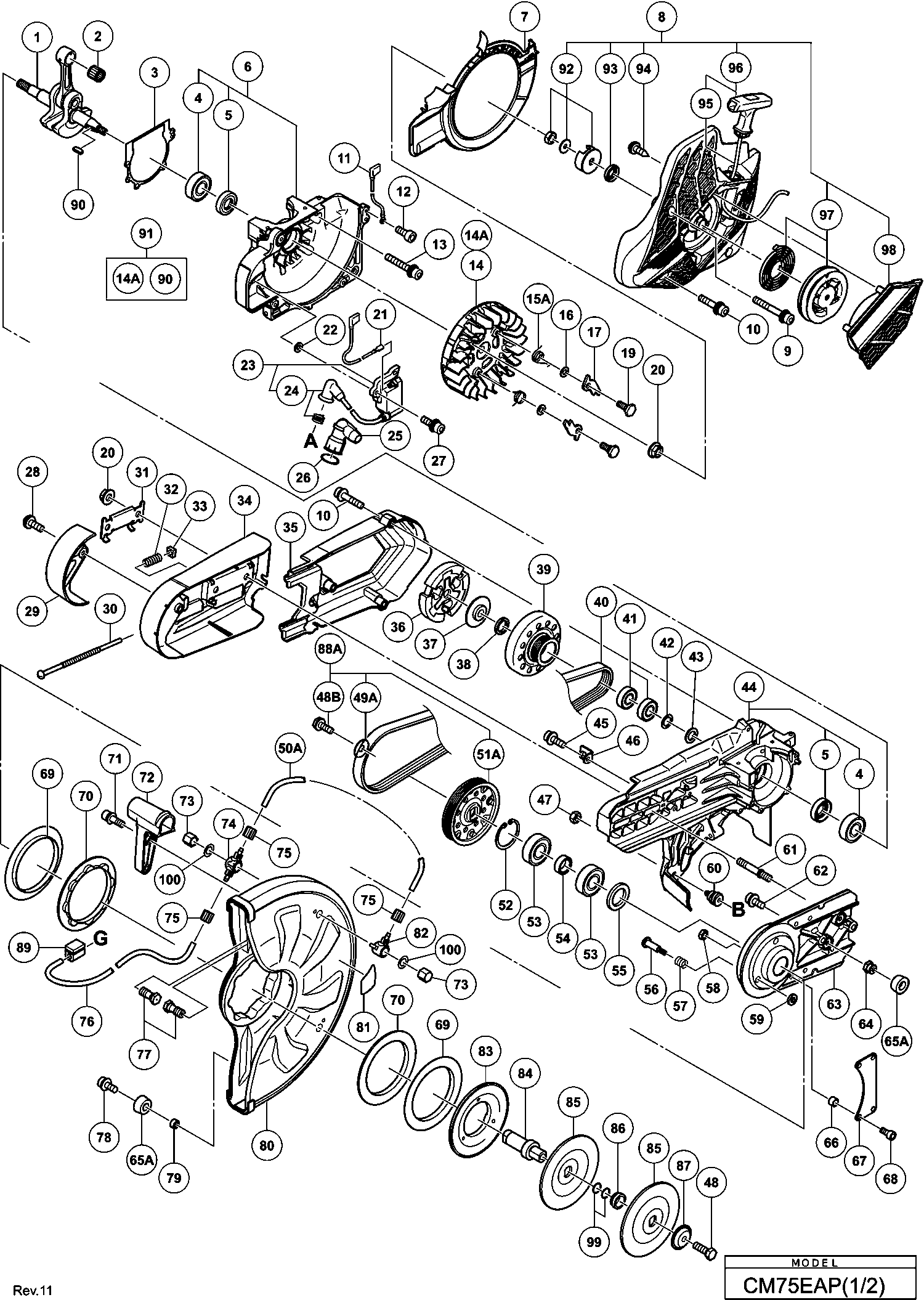

Technical drawing of model Hikoki CM75EAP

Spare parts list of model Hikoki CM75EAP

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Crank Shaft
1 6699801 30.53 36.94
Needle Bearing (a)
2 6699803 3.60 4.36
Crank Case Packing
3 6699800 1.04 1.26
Ball Bearing 6202c3
4 6202C3 4.35 5.26
Oil Seal
5 6698914 3.15 3.81
Crank Case (a) Includ.4,5
6 6600364 94.60 114.47
Fan Guide
7 6699875 3.15 3.81
No longer available, no replacement
8 6699876
Set Bolt M5
9 6600374 1.80 2.18
Set Bolt M5x25
10 6699871 1.20 1.45
No information available, not orderable
11 6699813
Earth Cord Since 8.2016
11A 6696567 2.10 2.54
Hex. Socket Hd. Bolt M4x10 (10 Pcs.) Till 12.2017
12 949812 2.40 2.90
Seal Lock Hex. Socket Hd. Bolt M5
13 6600365 1.80 2.18
No information available, not orderable
14 6699808
Magneto Rotor Since 2.2015
14A 6600458 12.90 15.61
No information available, not orderable
15 6699810
Starter Pawl Spring (b)
15A 6600477 1.05 1.27
Washer 0.8
16 6696857 1.05 1.27
Starter Pawl
17 6699811 1.04 1.26
Shim
18 6696434 1.04 1.26
Bolt
19 6696878 1.05 1.27
Flange Nut M8
20 6698581 1.20 1.45
Cord
21 6699812 1.04 1.26
No longer available, no replacement
22 6698700
Ignition Coil Ass'y Includ.24
23 6699809 26.40 31.94
Cord Set
24 6600434 11.25 13.61
Shield Cover
25 6699814 2.70 3.27
Shield Cover Washer
26 6600373 1.80 2.18
Hex. Socket Hd. Bolt (w/washers) M4x18
27 6698388 1.05 1.27
Seal Lock Hex. Socket Button Bolt M5x10
28 6699909 1.20 1.45
Cover Plate (1)
29 6699908 4.20 5.08
Tensioner Bolt
30 6699907 2.10 2.54
Tensioner Plate
31 6699904 2.10 2.54
Tensioner Spring
32 6699906 1.20 1.45
Tension Nut
33 6699905 1.20 1.45
Arm Cover
34 6699903 6.60 7.99
Clutch Cover
35 6699878 8.85 10.71
Clutch
36 6699823 20.90 25.29
Clutch Flange
37 6699822 4.20 5.08
Felt Packing
38 301946 1.04 1.26
Clutch Housing
39 6699821 12.90 15.61
Belt
40 6699877 10.65 12.89
Ball Bearing 6001dducmps2s (old 980925)
41 6001DD 6.45 7.80
Shim T0.2
42 6696946 1.68 2.03
Ring
43 6685072 1.15 1.39
Crank Case (b) Includ.4,5
44 6600366 128.01 154.90
Hex. Socket Hd. Bolt (w/washers) M5x16
45 6699826 1.05 1.27
Tensioner Base
46 6699825 1.20 1.45
No information available, not orderable
47 6698449
Flange Nut M6
47A 329934 1.73 2.09
Bolt M8 Till 6.2014
48 6699902 1.20 1.45
Bolt (w/flange) M8x15.5
48A 320971 1.05 1.27
No information available, not orderable
49A 6699900
Water Supply Hose
50 6699910 1.20 1.45
Water Supply Hose
50A 6600462 1.05 1.27
Pulley (b)
51A 6600436 12.15 14.70
Retaining Ring For D40 Hole
52 948391 1.65 2.00
Ball Bearing 6203ddcmps2l
53 6203DD 7.65 9.26
Bb Collar
54 6699880 2.10 2.54
Felt (1)
55 6699879 1.20 1.45
Bolt M5 (s)
56 6699896 1.20 1.45
Wheel Guard Spring
57 6699895 1.20 1.45
Lock Nut M5 (10 Pcs.)
58 949566 1.04 1.26
Washer M6 (10 Pcs.)
59 949425 1.05 1.27
No information available, not orderable
60 6699850
Spring Holder Since 11.2016
60A 6601390 2.85 3.45
Chain Bar Bolt
61 6699881 2.10 2.54
Hex. Socket Hd. Bolt (w/sp.washer) M5x12
62 6699176 1.04 1.26
Arm
63 6600367 64.08 77.53
Stopper Holder
64 6699883 1.20 1.45
Stop Rubber (2 Pcs.)
65A 6600442 2.10 2.54
Collar
66 6699866 1.20 1.45
Arm Plate
67 6600396 1.80 2.18
Hex. Socket Hd. Bolt M5x12 (precoat)
68 6696836 1.20 1.45
Plate (a)
69 6699885 2.10 2.54
Damper (a)
70 6699886 2.10 2.54
Set Bolt M5x16
71 6699889 1.20 1.45
Handle (w)
72 6699888 2.10 2.54
Cap Nut
73 6699892 2.10 2.54
Water Supply Joint (b)
74 6699891 1.20 1.45
Lock Nut
75 6699912 1.20 1.45
Water Supply Hose
76 6699911 1.20 1.45
Nozzle Bolt
77 6699893 4.20 5.08
Bolt
78 996399 1.04 1.26
Stopper Holder (b)
79 6600375 1.80 2.18
Wheel Guard (12")
80 6699887 87.45 105.81
Wheel Mark Label (12")
81 6600376 1.80 2.18
Water Supply Joint (a)
82 6699890 1.20 1.45
Flange (a)
83 6699894 18.56 22.46
Spindle (1)
84 6699882 11.85 14.34
Wheel Washer
85 6699897 5.70 6.90
Spindle Collar
86 6699898 3.15 3.81
Flange Washer
87 6699901 1.20 1.45
Pulley (b) Set (old 6699899)
88 6600438 14.70 17.79
Hose Holder
89 6600457 1.04 1.26
Woodruff Key Since 2.2915
90 6600459 1.04 1.26
Magneto Rotor Set Includ.14a,90 Till 1.2015
91 6600460 13.65 16.52
Cam Complete Set
92 6600469 7.05 8.53
Starter Grommet
93 6600471 5.85 7.08
Tapping Screw D4x16
94 6600466 1.04 1.26
Starter Rope
95 6600468 7.65 9.26
No longer available, no replacement
96 6600467
Reel Complete Set
97 6600470 21.04 25.46
Fan Case Cover
98 6600464 19.39 23.46
O-ring (s-12)
99 875638 1.65 2.00
Pulley Washer Since 9.2015
100 6600495 1.04 1.26
Tank Cap Includ.102
101 6600369 5.10 6.17
Tank Cap Packing
102 6685179 1.15 1.39
No information available, not orderable
103 6699828
Priming Pump Comp.
104 6685139 5.94 7.18
Fuel Pipe
105 6698722 9.75 11.80
Fuel Line (pink)
106 6699837 2.10 2.54
Fuel Pipe
106A 6601460 2.25 2.72
Tapping Screw (w/flange) D4x25 (black)
107 304035 1.04 1.26
Tank Mark Label (50:1)
108 6698921 1.20 1.45
Tank Mark Label (25:1) For Asia,tpe,kor
108 6698922 1.20 1.45
Tapping Screw (w/flange) D4x16 (black)
109 305812 1.04 1.26
Air Vent Cap
110 6699838 1.20 1.45
Inner Cap (b)
111 6600370 14.70 17.79
No longer available, no replacement
112 6698931
Return Grommet Till 7.2014
113 6697846 1.04 1.26
Rear Handle
114 6699827 26.68 32.28
Long Nut M6
116 6699852 1.20 1.45
Front Handle
117 6699842 22.83 27.62
Flanged Tapping Screw D6
118 6696872 1.05 1.27
Hex. Socket Hd. Bolt (w/flange) M6x20
119 881722 1.80 2.18
Antivibration Spring
120 6699849 1.20 1.45
Front Adapter
121 6699847 14.25 17.24
Grip End (b)
122 6699844 1.20 1.45
Hex. Socket Hd. Bolt M6x50
123 6699819 1.04 1.26
Muffler
124 6699816 31.08 37.60
Heat Protection Plate
125 6699815 1.80 2.18
Seal Lock Hex. Socket Hd. Bolt M6x20
126 6698899 1.20 1.45
Ring
127 6685068 1.15 1.39
Exhaust Pipe
128 6699818 1.04 1.26
Exhaust Gasket
129 6699817 1.04 1.26
Trigger Lockout Collar
130 6699836 1.20 1.45
Trigger Lockout
131 6699835 1.20 1.45
Needle Pin D3
132 6699834 1.20 1.45
Throttle Lever Spring
133 6699833 1.20 1.45
Throttle Lever
134 6699832 1.20 1.45
Throttle Rod
135 6699863 1.20 1.45
Cylinder Cover
136 6699865 9.15 11.07
Fuel Pipe
137 6698908 4.65 5.63
Clip D6
138 6685198 1.15 1.39
Pump Filter Body
139 6692285 7.26 8.79
Spring Holder
140 6699851 2.10 2.54
Antivibration Spring
141 6699824 2.10 2.54
No information available, not orderable
142 6699320
Decomp Cap
143 6600378 3.45 4.17
Decomp.
144 6698541 22.83 27.62
Grip End (a)
145 6699843 1.20 1.45
No information available, not orderable
146 6600371
No longer available, no replacement
146A 6600478
Insulator Clip
147 6699862 1.20 1.45
Insulator Plate
148 6699858 2.10 2.54
No longer available, no replacement
149 6699860
Fuel Pipe (fkm)
150 6699857 6.15 7.44
Carburetor Ass'y (c3m) Includ.152-165
151 6699856 62.70 75.87
Screw (d)
152 6600385 3.45 4.17
Pump Cover
153 6600386 10.35 12.52
Pump Gasket
154 6600387 3.45 4.17
Pump Diaphragm
155 6600388 3.45 4.17
Strainer
156 6600389 5.10 6.17
Screw (e)
157 6600390 3.45 4.17
Pin
158 6699082 1.05 1.27
Metering Lever Spring
159 6600391 3.45 4.17
Inlet Needle Valve
160 6699081 7.05 8.53
Metering Lever
161 6699084 1.65 2.00
Metering Chamber Gasket
162 6600392 5.10 6.17
Metering Diaphragm
163 6600393 9.75 11.80
Metaring Chamber Cover
164 6600394 42.76 51.74
Set Screw (c)
165 6699094 1.05 1.27
Fuel Pipe
166 6698873 5.10 6.17
Square Nut (b) M5
167 6699859 1.20 1.45
Hex. Socket Hd. Bolt (w/flange) M6x25
168 991712 1.05 1.27
Cylinder Packing
169 6600397 3.45 4.17
Piston Ring
170 6699806 2.10 2.54
Cir Clip
171 6699805 1.04 1.26
No longer available, no replacement
172 6699804
Piston Pin
173 6699802 1.65 2.00
Water Supply Connector
174 6699913 9.60 11.62
No longer available, no replacement
175 6699914
Valve
176 6699915 10.65 12.89
Coupler
177 6699916 3.15 3.81
Grommet
178 6698787 1.80 2.18
Throttle Lock Pin
179 6699829 1.20 1.45
Carburetor Packing
180 6699855 1.20 1.45
Carburetor Bracket
181 6699854 4.20 5.08
Pre Filter
182 6699872 5.10 6.17
Caution Label (eng)
183 6600382 3.45 4.17
Cleaner Knob
184 6699874 2.10 2.54
Knob Packing
185 6698570 1.20 1.45
Start Label (cm75) (ex)
186 6600381 1.80 2.18
Cleaner Box (b)
187 6699873 10.20 12.34
Rubber Rope
188 6699870 2.10 2.54
Cleaner Box (a)
189 6699869 14.25 17.24
RUBBER PEN
190 931701 1.05 1.27
Choke Button
191 6699864 1.20 1.45
Choke Rod Rubber
192 6685369 1.05 1.27
Paper Filter
193 6699868 6.90 8.35
Nylon Filter
194 6699867 4.20 5.08
Hex. Socket Hd. Bolt (w/washers) M5x55
195 6699861 1.20 1.45
No information available, not orderable
196 6696940
No longer available, no replacement
196A 6601275
No longer available, no replacement
197 6698400
Throttle Lock Pin Spring
198 6699830 1.20 1.45
Throttle Lock Pin Cap
199 6699831 1.20 1.45
Rear Foot
200 6699839 2.10 2.54
Antivibration Spring
201 6699840 1.20 1.45
Lower Guard
202 6699841 6.60 7.99
Muffler Guard
203A 6600443 42.49 51.41
No information available, not orderable
204 6699845
No information available, not orderable
205 6699846
FRONT FOOT RUBBER (B)
205A 6601393 1.50 1.82
Front Foot Plate
206 6699848 4.20 5.08
FRONT FOOT PLATE (B)
206A 6601392 2.25 2.72
Hex. Socket Hd. Bolt (w/washers) M5 Till 12.2016
207 6600372 1.80 2.18
No information available, not orderable
207A 6698386
Idle Sponge
208 6600056 1.05 1.27
Band
209 6698943 1.20 1.45
Earth Cord Set Includ.11a,208,209 Till 7.2016
210 6601373 1.35 1.63
Spring Holder Set Till 10.2016
211 6601391 3.75 4.54
Washer (b)
212 6699112 1.04 1.26
Front Foot Set Includ.19,205a-207a,212 Till 12.20
213 6601394 6.15 7.44
Combi Box Spanner 13x19
501 6698582 4.65 5.63
No information available, not orderable
502 6699918
No information available, not orderable
503 875769
Adapter Collar
504 6699919 6.30 7.62
No information available, not orderable
505 402327
