Here you will find all available parts and drawings of the 'Hikoki CM5SB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

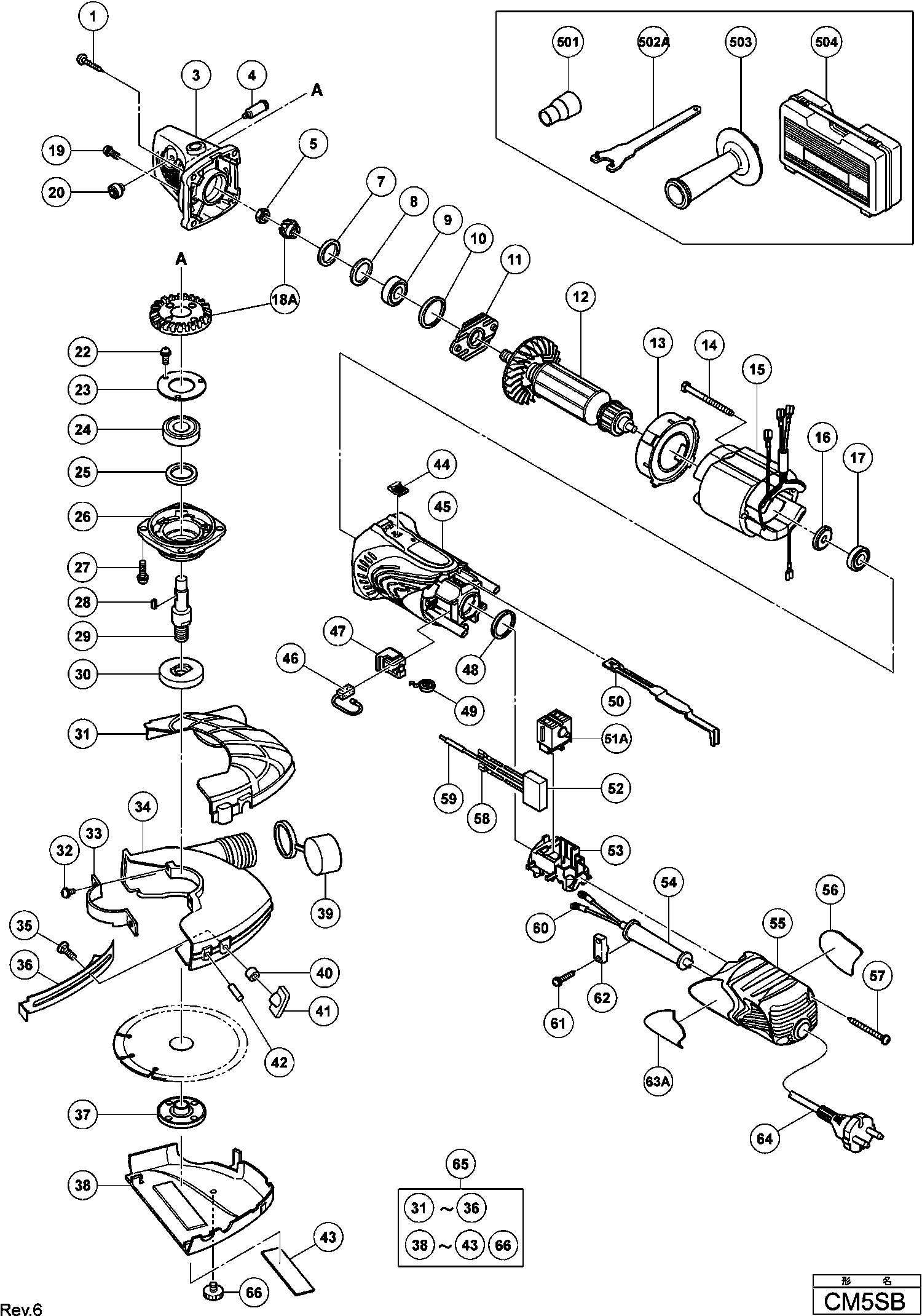

Technical drawing of model Hikoki CM5SB
Spare parts list of model Hikoki CM5SB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ANKER 110 VOLT | ||||
| *12 | 360734C | 46.04 | 55.71 | |
| ARMATURE 230-240 VOLT | ||||
| *12 | 360734E | 41.39 | 50.08 | |
| Stator 230v | ||||
| *15 | 340645E | 28.19 | 34.11 | |
| VELD 110 VOLT | ||||
| *15 | 340645C | 24.64 | 29.81 | |
| Spindle Ass'y | ||||
| *29 | 994301 | 14.25 | 17.24 | |
| No information available, not orderable | ||||
| *30 | 937817Z | |||
| Brand Plate | ||||
| *43A | 328922 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| *64 | 500439Z | |||
| Tapping Screw D5x25 (black) | ||||
| 1 | 320523 | 1.35 | 1.63 | |
| Gear Cover | ||||
| 3 | 321737 | 36.44 | 44.09 | |
| Lock Pin | ||||
| 4 | 301943 | 1.65 | 2.00 | |
| Nut M8 (10 Pcs.) | ||||
| 5 | 949558 | 1.05 | 1.27 | |
| Seal Ring (a) | ||||
| 7 | 308543 | 1.04 | 1.26 | |
| Washer (c) | ||||
| 8 | 980866 | 1.04 | 1.26 | |
| Ball bearing 629t12ddc3ps2-l | ||||
| 9 | 629T12 | 9.83 | 11.89 | |
| Rubber Ring | ||||
| 10 | 321733 | 1.35 | 1.63 | |
| Bearing Cover | ||||
| 11 | 321734 | 1.35 | 1.63 | |
| ANKER 110 VOLT | ||||
| 12 | 360734C | 46.04 | 55.71 | |
| ARMATURE 230-240 VOLT | ||||
| 12 | 360734E | 41.39 | 50.08 | |
| Fan Guide | ||||
| 13 | 321732 | 1.35 | 1.63 | |
| Hex. Hd. Tapping Screw D4x70 | ||||
| 14 | 982021 | 1.04 | 1.26 | |
| Stator 230v | ||||
| 15 | 340645E | 28.19 | 34.11 | |
| VELD 110 VOLT | ||||
| 15 | 340645C | 24.64 | 29.81 | |
| Dust Seal | ||||
| 16 | 315877 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 17 | 608VVM | 5.70 | 6.90 | |
| Gear And Pinion Set | ||||
| 18A | 329054 | 16.36 | 19.80 | |
| SEAL LOCK SCREW M4X10 | ||||
| 19 | 303255 | 1.04 | 1.26 | |
| Pushing Button | ||||
| 20 | 301944 | 1.04 | 1.26 | |
| Seal Lock Screw (w/sp. Washer) M4x8 | ||||
| 22 | 991207 | 1.04 | 1.26 | |
| Bearing Cover (b) | ||||
| 23 | 936680 | 1.04 | 1.26 | |
| Ball Bearing 6201ddcmps2l | ||||
| 24 | 6201DD | 6.30 | 7.62 | |
| Felt Packing | ||||
| 25 | 308546 | 1.04 | 1.26 | |
| Inner Cover | ||||
| 26 | 308545 | 7.35 | 8.89 | |
| Seal Lock Screw (w/sp. Washer) M5x16 | ||||
| 27 | 307046 | 1.04 | 1.26 | |
| Feather Key 3x3x8 | ||||
| 28 | 944109 | 1.70 | 2.06 | |
| Spindle Ass'y | ||||
| 29 | 994301 | 14.25 | 17.24 | |
| Spindle (b) | ||||
| 29 | 994302 | 13.89 | 16.80 | |
| No information available, not orderable | ||||
| 30 | 937817Z | |||
| Cover | ||||
| 31 | 328743 | 1.95 | 2.36 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 32 | 308386 | 1.05 | 1.27 | |
| Clamp Ring for Guard | ||||
| 33 | 301949 | 1.04 | 1.26 | |
| Dust Collector Cover (a) | ||||
| 34 | 328741 | 24.61 | 29.78 | |
| Nut | ||||
| 35 | 942808 | 1.05 | 1.27 | |
| Guide Bracket | ||||
| 36 | 328809 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 37 | 994324 | |||
| No information available, not orderable | ||||
| 37A | 339579 | |||
| Cover | ||||
| 38 | 328742 | 1.95 | 2.36 | |
| Dust Cap | ||||
| 39 | 324865 | 6.45 | 7.80 | |
| Sleeve | ||||
| 40 | 328841 | 1.05 | 1.27 | |
| Wing Nut M6 | ||||
| 41 | 314622 | 3.30 | 3.99 | |
| ROL PIN D6X16 (10 STUKS) | ||||
| 42 | 949785 | 1.74 | 2.11 | |
| Brand Plate | ||||
| 43 | 328922 | 1.95 | 2.36 | |
| Slide Knob | ||||
| 44 | 314428 | 1.04 | 1.26 | |
| Housing | ||||
| 45 | 325050 | 16.50 | 19.96 | |
| Carbon Brush (1 Pair) | ||||
| 46 | 999088 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 47 | 317810 | 4.80 | 5.81 | |
| Rubber Ring | ||||
| 48 | 957754 | 1.20 | 1.45 | |
| Spring | ||||
| 49 | 308536 | 1.65 | 2.00 | |
| Slide Bar | ||||
| 50 | 325051 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 51A | 329057 | |||
| SCHAKELAAR | ||||
| 51B | 377478 | 6.84 | 8.28 | |
| Interference Suppressor | ||||
| 52 | 317491 | 7.35 | 8.89 | |
| Switch Holder | ||||
| 53 | 325054 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 54 | 953327 | |||
| Tail Cover | ||||
| 55 | 325052 | 10.35 | 12.52 | |
| Brand Label | ||||
| 56A | 334347 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x45 (black) | ||||
| 57 | 301815 | 1.05 | 1.27 | |
| Faston Terminal For Noise Suppressor | ||||
| 58 | 319320 | 1.35 | 1.63 | |
| Earth Terminal For Tpe | ||||
| 59 | 314854 | 1.50 | 1.82 | |
| connecting terminal | ||||
| 60 | 980063 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 61 | 984750 | |||
| Cord Clip | ||||
| 62 | 937631 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 64 | 500240Z | 13.18 | 15.94 | |
| Cord (cord Armor D8.8) For Saf | ||||
| 64 | 500237Z | 11.40 | 13.79 | |
| No information available, not orderable | ||||
| 65 | 328740 | |||
| Knob Bolt M5 | ||||
| 66 | 329497 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 501 | 320994 | |||
| No information available, not orderable | ||||
| 502A | 325491 | |||
| No information available, not orderable | ||||
| 502B | 376127 | |||
| No information available, not orderable | ||||
| 503 | 994322 | |||
| No information available, not orderable | ||||
| 504 | 328845 | |||
| No information available, not orderable | ||||
| 601 | 310338 | |||
