Here you will find all available parts and drawings of the 'Hikoki CM4SB2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

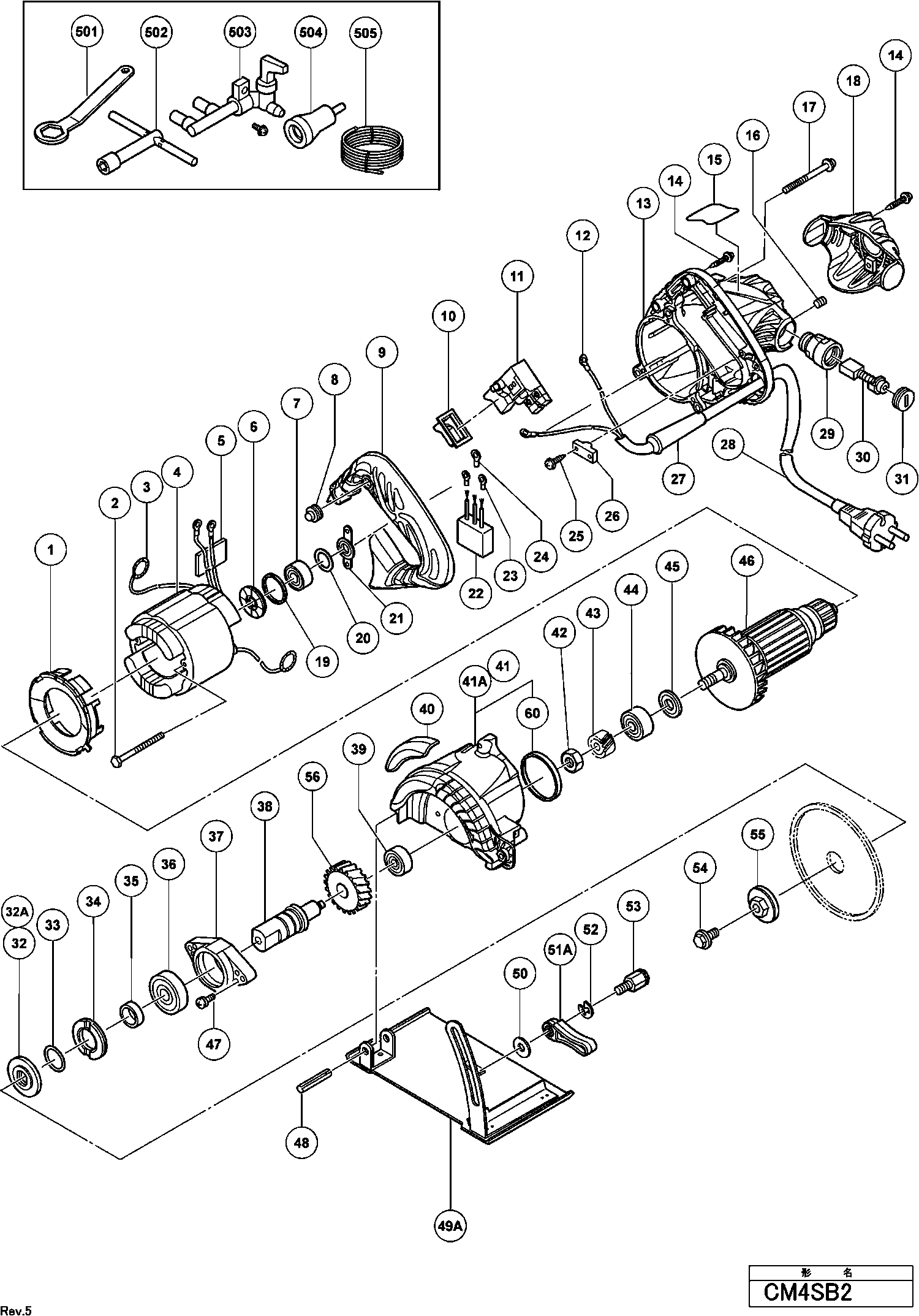

Technical drawing of model Hikoki CM4SB2
Spare parts list of model Hikoki CM4SB2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *11 | 325533 | |||
| No information available, not orderable | ||||
| *13B | 325516 | |||
| Cord Armor D10.1 | ||||
| *27 | 938051 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Pan | ||||
| *28 | 500447Z | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| *46A | 360919U | |||
| No information available, not orderable | ||||
| *4A | 340803F | |||
| WATER PLUG | ||||
| *503 | 303648 | 6.30 | 7.62 | |
| No information available, not orderable | ||||
| *504 | 956885 | |||
| No information available, not orderable | ||||
| *505 | 956883 | |||
| No information available, not orderable | ||||
| *9 | 325535 | |||
| No information available, not orderable | ||||
| 1 | 325526 | |||
| Hex. Hd. Tapping Screw D5x65 | ||||
| 2 | 960251 | 1.05 | 1.27 | |
| Brush Terminal | ||||
| 3 | 930703 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 4A | 340803F | |||
| SEAL PACKING | ||||
| 5 | 983858 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 6 | 325525 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 7 | 608VVM | 5.70 | 6.90 | |
| RUBBER COVER (B) | ||||
| 8 | 956866 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 9 | 325535 | |||
| No information available, not orderable | ||||
| 10 | 325527 | |||
| No information available, not orderable | ||||
| 11 | 325533 | |||
| connecting terminal | ||||
| 12 | 980063 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 13 | 325516 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 14 | 302086 | 1.05 | 1.27 | |
| Hex Adjustment Screw M5x8 | ||||
| 16 | 938477 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M5x25 | ||||
| 17 | 317751 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 18 | 325522 | |||
| No information available, not orderable | ||||
| 19 | 325524 | |||
| No information available, not orderable | ||||
| 20 | 325956 | |||
| No information available, not orderable | ||||
| 21 | 325523 | |||
| Noise Suppressor | ||||
| 22 | 994273 | 4.29 | 5.19 | |
| connecting terminal | ||||
| 23 | 980063 | 1.04 | 1.26 | |
| Terminal For Noise Suppressor | ||||
| 24 | 938108 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 25 | 984750 | |||
| Cord Clip | ||||
| 26 | 960266 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 27 | 938051 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 28 | 500447Z | 6.60 | 7.99 | |
| Brush Holder | ||||
| 29 | 958900 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 29A | 370926 | |||
| Carbon Brush (1 Pair) | ||||
| 30 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 31 | 945161 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 32 | 956879 | |||
| O-ring (1ap-20) | ||||
| 33 | 944486 | 1.05 | 1.27 | |
| Bearing Cap | ||||
| 34 | 956872 | 2.70 | 3.27 | |
| Spacer bushing | ||||
| 35 | 303323 | 2.40 | 2.90 | |
| Ball Bearing 6002vvcmps2l | ||||
| 36 | 6002VV | 7.35 | 8.89 | |
| No information available, not orderable | ||||
| 37 | 325521 | |||
| No information available, not orderable | ||||
| 38 | 325519 | |||
| Ball Bearing 606vv | ||||
| 39 | 606ZZM | 15.40 | 18.63 | |
| No information available, not orderable | ||||
| 41A | 329056 | |||
| No information available, not orderable | ||||
| 42 | 325536 | |||
| No information available, not orderable | ||||
| 43 | 325517 | |||
| Ball Bearing 629vv | ||||
| 44 | 629VVM | 5.85 | 7.08 | |
| Bearing Ring | ||||
| 45 | 958915 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 46A | 360919U | |||
| No information available, not orderable | ||||
| 47 | 325638 | |||
| Roll Pin D6x36 (10 Pcs.) | ||||
| 48 | 949874 | 5.85 | 7.08 | |
| No information available, not orderable | ||||
| 49A | 325528 | |||
| Washer M6 (10 Pcs.) | ||||
| 50 | 949425 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 51A | 329055 | |||
| Washer Spring | ||||
| 52 | 942827 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 53 | 325530 | |||
| No information available, not orderable | ||||
| 54 | 303326 | |||
| No information available, not orderable | ||||
| 55 | 956878 | |||
| No information available, not orderable | ||||
| 56 | 325637 | |||
| Rubber Ring | ||||
| 60 | 957754 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 501 | 941057 | |||
| No information available, not orderable | ||||
| 502 | 940543 | |||
| No information available, not orderable | ||||
| 601 | 321192 | |||
| No information available, not orderable | ||||
| 602 | 939586 | |||
| No information available, not orderable | ||||
| 603 | 939587 | |||
