Here you will find all available parts and drawings of the 'Hikoki CL14DSL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

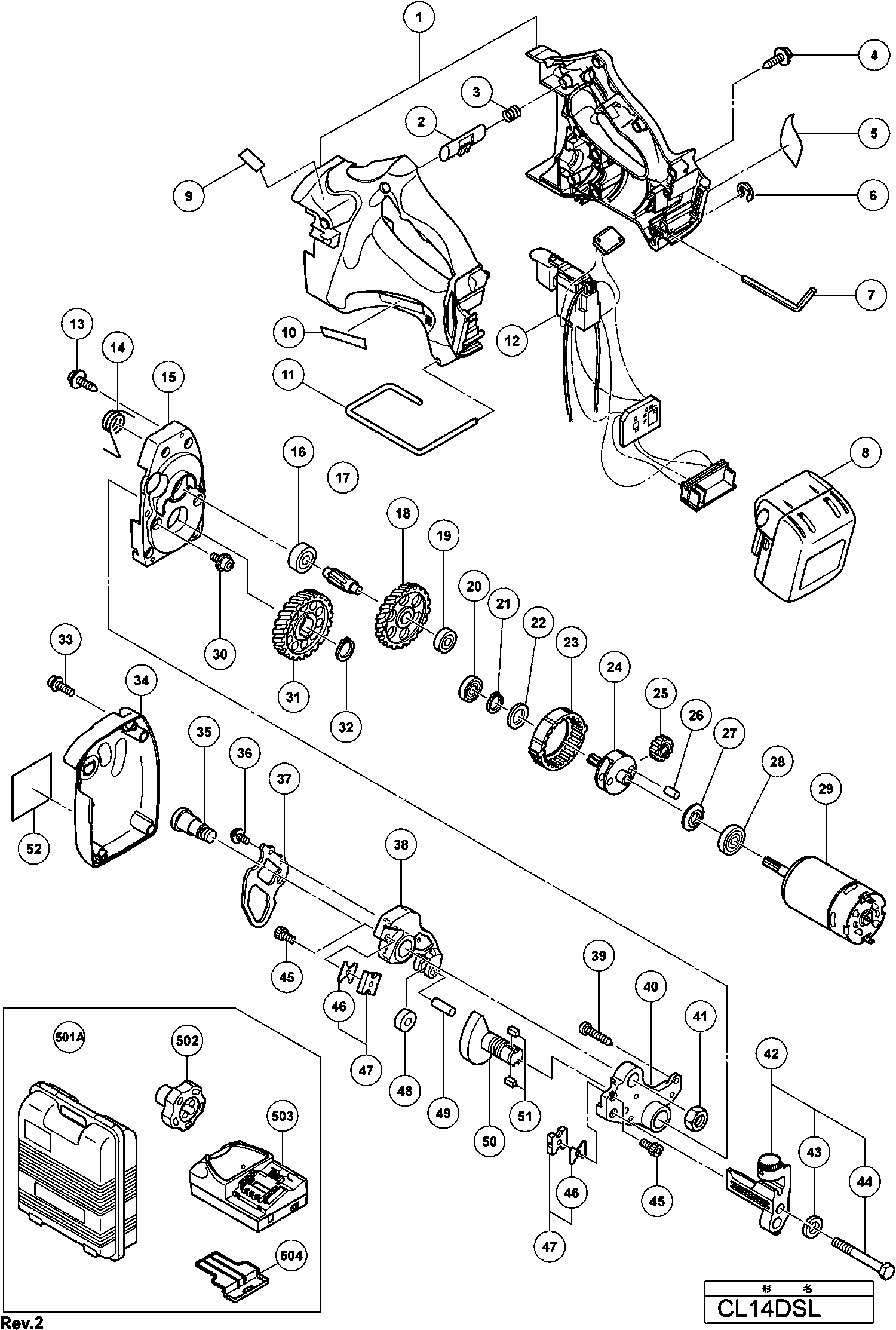

Technical drawing of model Hikoki CL14DSL
Spare parts list of model Hikoki CL14DSL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SWITCH SET (OLD 327321) | ||||
| *12 | 370482 | 51.01 | 61.73 | |
| No information available, not orderable | ||||
| *46 | 308780 | |||
| No information available, not orderable | ||||
| *47 | 998479 | |||
| No information available, not orderable | ||||
| *502 | 308567 | |||
| No information available, not orderable | ||||
| *8 | 334904 | |||
| Housing (a).(b) Set | ||||
| 1 | 327322 | 104.78 | 126.78 | |
| Pushing Button (a) | ||||
| 2 | 319402 | 3.30 | 3.99 | |
| Spring | ||||
| 3 | 327319 | 3.45 | 4.17 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 4 | 301653 | 1.04 | 1.26 | |
| Retaining Ring (e-type) For D4 Shaft | ||||
| 6 | 968643 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 7 | 944458 | |||
| No information available, not orderable | ||||
| 8 | 335786 | |||
| No information available, not orderable | ||||
| 8A | 338887 | |||
| Metal Hook (old 307603) | ||||
| 11 | 319401 | 9.00 | 10.89 | |
| SWITCH SET (OLD 327321) | ||||
| 12 | 370482 | 51.01 | 61.73 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 13 | 305558 | 1.04 | 1.26 | |
| Return Spring | ||||
| 14 | 307624 | 4.80 | 5.81 | |
| Gear Cover | ||||
| 15 | 307622 | 46.75 | 56.57 | |
| Ball Bearing 629vv | ||||
| 16 | 629VVM | 5.85 | 7.08 | |
| Third Pinion | ||||
| 17 | 319407 | 16.09 | 19.47 | |
| Second Gear | ||||
| 18 | 319406 | 46.75 | 56.57 | |
| Ball Bearing 608vvc2ps2l | ||||
| 19 | 608VVM | 5.70 | 6.90 | |
| Ball bearing 609vvmc2ps2s | ||||
| 20 | 609VVM | 6.00 | 7.26 | |
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 21 | 939544 | 2.13 | 2.57 | |
| Ring | ||||
| 22 | 302714 | 1.05 | 1.27 | |
| Ring Gear | ||||
| 23 | 310254 | 6.45 | 7.80 | |
| Second Gear | ||||
| 24 | 319405 | 64.21 | 77.70 | |
| Gear | ||||
| 25 | 319404 | 6.45 | 7.80 | |
| Pin | ||||
| 26 | 307609 | 8.25 | 9.98 | |
| Ring | ||||
| 27 | 307608 | 1.95 | 2.36 | |
| Ball Bearing 6001vv | ||||
| 28 | 6001VV | 6.60 | 7.99 | |
| Motor Cl14dsl | ||||
| 29 | 327320 | 52.39 | 63.39 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 30 | 998471 | 1.05 | 1.27 | |
| Final Gear | ||||
| 31 | 319393 | 35.06 | 42.43 | |
| Retaining Ring For D18 Shaft (10 Pcs.) | ||||
| 32 | 939546 | 3.60 | 4.36 | |
| Machine Screw (w/washers) M4x20 (black) | ||||
| 33 | 307606 | 1.05 | 1.27 | |
| Cover | ||||
| 34 | 329843 | 12.15 | 14.70 | |
| Cover | ||||
| 34A | 329843 | 12.15 | 14.70 | |
| Bolt (a) | ||||
| 35 | 319396 | 28.05 | 33.94 | |
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 36 | 987203 | 1.05 | 1.27 | |
| Eccentric | ||||
| 37 | 319398 | 1.65 | 2.00 | |
| Bracket (a) | ||||
| 38 | 319397 | 142.86 | 172.86 | |
| Tapping Screw D5x35 | ||||
| 39 | 931875 | 1.05 | 1.27 | |
| Bracket (b) | ||||
| 40 | 319395 | 221.65 | 268.20 | |
| Lock Nut M12 (10 Pcs.) | ||||
| 41 | 949574 | 3.00 | 3.63 | |
| Stud Guide Ass'y Includ.44,45 | ||||
| 42 | 309180 | 58.44 | 70.71 | |
| Spring Washer M10 (10 Pcs.) | ||||
| 43 | 949458 | 1.05 | 1.27 | |
| Bolt W3/8x75 | ||||
| 44 | 309621 | 4.95 | 5.99 | |
| Special Bolt M5x9 | ||||
| 45 | 998486 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 46 | 308780 | |||
| No information available, not orderable | ||||
| 47 | 998479 | |||
| No information available, not orderable | ||||
| 47A | 383464 | |||
| Roller (a) | ||||
| 48 | 327317 | 4.80 | 5.81 | |
| Roller Pin | ||||
| 49 | 327318 | 3.30 | 3.99 | |
| Eccentric | ||||
| 50 | 319394 | 84.56 | 102.32 | |
| Key 5x5x10 | ||||
| 51 | 948015 | 1.05 | 1.27 | |
| Ferrite Core For Europe,rus,aut,isr | ||||
| 53 | 318247 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501A | 334928 | |||
| No information available, not orderable | ||||
| 502 | 308569 | |||
| Battery Cover | ||||
| 504 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 601 | 998479 | |||
| No information available, not orderable | ||||
| 601A | 383464 | |||
| No information available, not orderable | ||||
| 602 | 308566 | |||
| No information available, not orderable | ||||
| 603 | 308781 | |||
| No information available, not orderable | ||||
| 604 | 308563 | |||
| No information available, not orderable | ||||
| 605 | 309181 | |||
| No information available, not orderable | ||||
| 606 | 308565 | |||
| No information available, not orderable | ||||
| 607 | 308780 | |||
| No information available, not orderable | ||||
| 608 | 308567 | |||
| No information available, not orderable | ||||
| 609 | 308568 | |||
| No information available, not orderable | ||||
| 610 | 308569 | |||
| No information available, not orderable | ||||
| 611 | 308570 | |||
| No information available, not orderable | ||||
| 612 | 321153 | |||
