Here you will find all available parts and drawings of the 'Hikoki CJ90VST'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

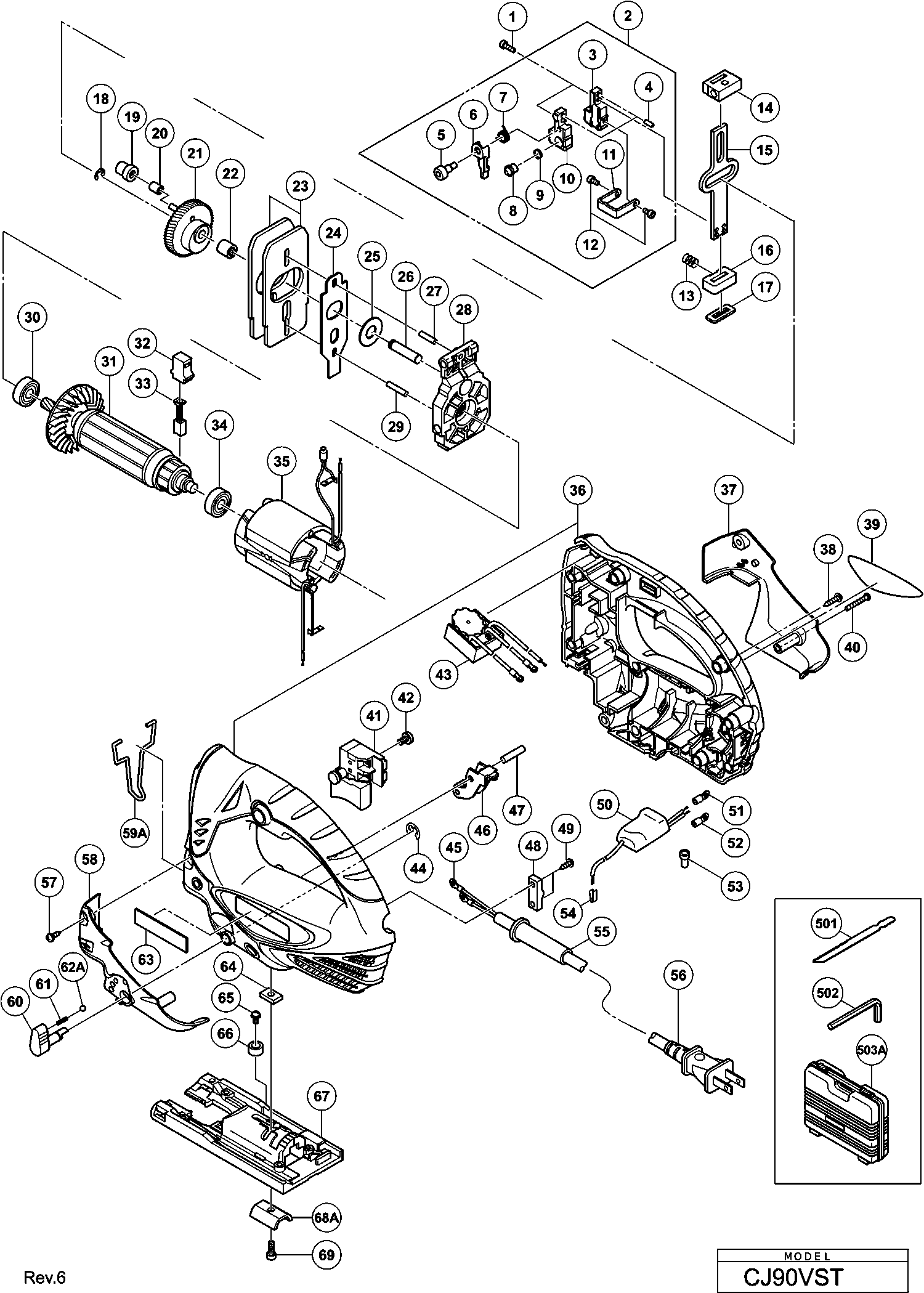

Technical drawing of model Hikoki CJ90VST
Spare parts list of model Hikoki CJ90VST
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Needle-roller Bearing | ||||
| *22 | 332983 | 2.10 | 2.54 | |
| Armature 230v | ||||
| *31 | 360893E | 38.23 | 46.25 | |
| ARMATURE 110 VOLT | ||||
| *31 | 360893C | 35.70 | 43.20 | |
| Stator 220v-240v | ||||
| *35 | 340774E | 18.56 | 22.46 | |
| Controller 220v-230v | ||||
| *43 | 332832 | 22.83 | 27.62 | |
| 110 V controller | ||||
| *43 | 332831 | 21.28 | 25.75 | |
| No information available, not orderable | ||||
| *503A | 337883 | |||
| Cord Armor D10.2 Till 11.1982 For Aus | ||||
| *55 | 930026 | 3.00 | 3.63 | |
| Cord Armor D8.2 | ||||
| *55 | 930487 | 2.25 | 2.72 | |
| Cord (cord Armor D8.8) For Pan | ||||
| *56 | 500447Z | 6.60 | 7.99 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| *56 | 500247Z | 6.18 | 7.48 | |
| SEAL LOCK HEX. SOCKET HD. BOLT M3X10 | ||||
| 1 | 332446 | 1.05 | 1.27 | |
| Blade Holder Ass'y Includ.3-12 | ||||
| 2 | 332443 | 18.08 | 21.87 | |
| Blade Holder (a) | ||||
| 3 | 332429 | 3.15 | 3.81 | |
| Pin D3 | ||||
| 4 | 332436 | 1.05 | 1.27 | |
| Special Bolt M4 | ||||
| 5 | 332434 | 1.05 | 1.27 | |
| Lever | ||||
| 6 | 332432 | 6.90 | 8.35 | |
| Spring (d) | ||||
| 7 | 332438 | 1.05 | 1.27 | |
| Holder Pin (b) | ||||
| 8 | 332435 | 3.15 | 3.81 | |
| Spring (b) | ||||
| 9 | 332439 | 1.20 | 1.45 | |
| Blade Holder (b) | ||||
| 10 | 332430 | 3.15 | 3.81 | |
| Bow | ||||
| 11 | 332426 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M3x6 | ||||
| 12 | 325077 | 1.65 | 2.00 | |
| Spring | ||||
| 13 | 332437 | 1.05 | 1.27 | |
| Plunger Holder (a) | ||||
| 14 | 332427 | 2.10 | 2.54 | |
| Spindle Ass'y | ||||
| 15 | 332422 | 4.20 | 5.08 | |
| Plunger Holder (b) | ||||
| 16 | 332428 | 1.20 | 1.45 | |
| Gasket | ||||
| 17 | 332441 | 1.20 | 1.45 | |
| Retaining Ring For D7 Shaft | ||||
| 18 | 994251 | 1.05 | 1.27 | |
| Connecting Piece (a) | ||||
| 19 | 332829 | 2.10 | 2.54 | |
| Needle-roller Bearing | ||||
| 20 | 325242 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 21 | 332445 | |||
| Gear | ||||
| 21A | 337759 | 16.78 | 20.30 | |
| Needle-roller Bearing | ||||
| 22 | 332983 | 2.10 | 2.54 | |
| Balance Weight | ||||
| 23 | 332424 | 2.10 | 2.54 | |
| Orbital Cam | ||||
| 24 | 332423 | 2.10 | 2.54 | |
| Washer | ||||
| 25 | 957540 | 1.04 | 1.26 | |
| Spindle Ass'y | ||||
| 26 | 332828 | 1.20 | 1.45 | |
| Needle Roller | ||||
| 27 | 998426 | 1.05 | 1.27 | |
| Gear Holder Ass'y Includ.26,27,29 | ||||
| 28 | 332444 | 12.45 | 15.06 | |
| Needle Roller D4x20 Till 10.1987 (till 9.1987 For | ||||
| 29 | 943364 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 30 | 608VVM | 5.70 | 6.90 | |
| Armature 230v | ||||
| 31 | 360893E | 38.23 | 46.25 | |
| ARMATURE 110 VOLT | ||||
| 31 | 360893C | 35.70 | 43.20 | |
| Brush Holder | ||||
| 32 | 955203 | 2.40 | 2.90 | |
| Carbon Brush (1 Pair) | ||||
| 33 | 999041 | 4.50 | 5.44 | |
| Ball Bearing 608vvc2ps2l | ||||
| 34 | 608VVM | 5.70 | 6.90 | |
| Stator 220v-240v | ||||
| 35 | 340774E | 18.56 | 22.46 | |
| FIELD 110 VOLT | ||||
| 35 | 340774C | 17.32 | 20.96 | |
| Casing Box DUO 110 - Set | ||||
| 36 | 332442 | 20.90 | 25.29 | |
| Side Cover (b) | ||||
| 37 | 332419 | 3.15 | 3.81 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 38 | 301653 | 1.04 | 1.26 | |
| Machine Screw M4x30 (black) | ||||
| 40 | 332447 | 1.20 | 1.45 | |
| Switch | ||||
| 41 | 325085 | 9.90 | 11.98 | |
| Switch | ||||
| 41A | 339021 | 9.90 | 11.98 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 42 | 305499 | 1.05 | 1.27 | |
| Controller 220v-230v | ||||
| 43 | 332832 | 22.83 | 27.62 | |
| 110 V controller | ||||
| 43 | 332831 | 21.28 | 25.75 | |
| Ring | ||||
| 44 | 673489 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 45 | 980063 | 1.04 | 1.26 | |
| Roller Holder | ||||
| 46 | 332448 | 10.65 | 12.89 | |
| Needle Roller | ||||
| 47 | 332433 | 1.20 | 1.45 | |
| Cord Clip | ||||
| 48 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 49 | 984750 | |||
| Varistor | ||||
| 50 | 332835 | 6.90 | 8.35 | |
| Terminal | ||||
| 51 | 311741 | 1.04 | 1.26 | |
| Terminal (a) M3.5 (10 Pcs.) | ||||
| 52 | 960356 | 3.00 | 3.63 | |
| Connector 50091 (10 Pcs.) | ||||
| 53 | 959140 | 3.30 | 3.99 | |
| Earth Terminal | ||||
| 54 | 302488 | 1.04 | 1.26 | |
| Cord Armor D10.2 Till 11.1982 For Aus | ||||
| 55 | 930026 | 3.00 | 3.63 | |
| Cord Armor D8.2 | ||||
| 55 | 930487 | 2.25 | 2.72 | |
| Cord (cord Armor D8.8) | ||||
| 56 | 500450Z | 31.63 | 38.27 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 56 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 56 | 500240Z | 13.18 | 15.94 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 56 | 500447Z | 6.60 | 7.99 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| 56 | 500247Z | 6.18 | 7.48 | |
| Screw with flange D4x12 (black) | ||||
| 57 | 325083 | 1.65 | 2.00 | |
| Side Cover (a) | ||||
| 58 | 332418 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 59 | 332440 | |||
| Guard Bar | ||||
| 59A | 338039 | 1.04 | 1.26 | |
| Change Knob | ||||
| 60 | 332421 | 3.15 | 3.81 | |
| Spring | ||||
| 61 | 982454 | 1.04 | 1.26 | |
| Steel Ball 5/32 (10 Pcs.) | ||||
| 62A | 335297 | 1.04 | 1.26 | |
| Plate Nut | ||||
| 64 | 332425 | 1.20 | 1.45 | |
| Machine Screw (w/washer) M4x8 (black) | ||||
| 65 | 315500 | 1.35 | 1.63 | |
| Rubber Ring | ||||
| 66 | 321576 | 1.35 | 1.63 | |
| Base | ||||
| 67 | 321573 | 14.99 | 18.13 | |
| Base Locker Cj120v/va | ||||
| 68 | 321575 | 6.46 | 7.82 | |
| Base Locker | ||||
| 68A | 339663 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 69 | 949821 | 2.55 | 3.09 | |
| Gear Ass'y Includ.21a,22 (1 Pc.) Till 5.2016 | ||||
| 70 | 370721 | 17.74 | 21.46 | |
| No information available, not orderable | ||||
| 501 | 879357 | |||
| No information available, not orderable | ||||
| 502 | 944458 | |||
| No information available, not orderable | ||||
| 503 | 332420 | |||
| No information available, not orderable | ||||
| 601 | 879336 | |||
| No information available, not orderable | ||||
| 602 | 879337 | |||
| No information available, not orderable | ||||
| 603 | 879338 | |||
| No information available, not orderable | ||||
| 604 | 879339 | |||
| No information available, not orderable | ||||
| 605 | 879340 | |||
| No information available, not orderable | ||||
| 606 | 879341 | |||
| No information available, not orderable | ||||
| 607 | 963400 | |||
| No information available, not orderable | ||||
| 608 | 321593 | |||
| METAL BASE PLATE 145 MM LONG | ||||
| 609 | 321992 | 26.40 | 31.94 | |
| Plastic base plate 150mm long | ||||
| 610 | 321993 | 12.15 | 14.70 | |
| Special Bolt | ||||
| 611 | 321996 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 612 | 321591 | |||
| No information available, not orderable | ||||
| 613 | 325149 | |||
| Splinter Guard | ||||
| 614 | 321590 | 1.50 | 1.82 | |
