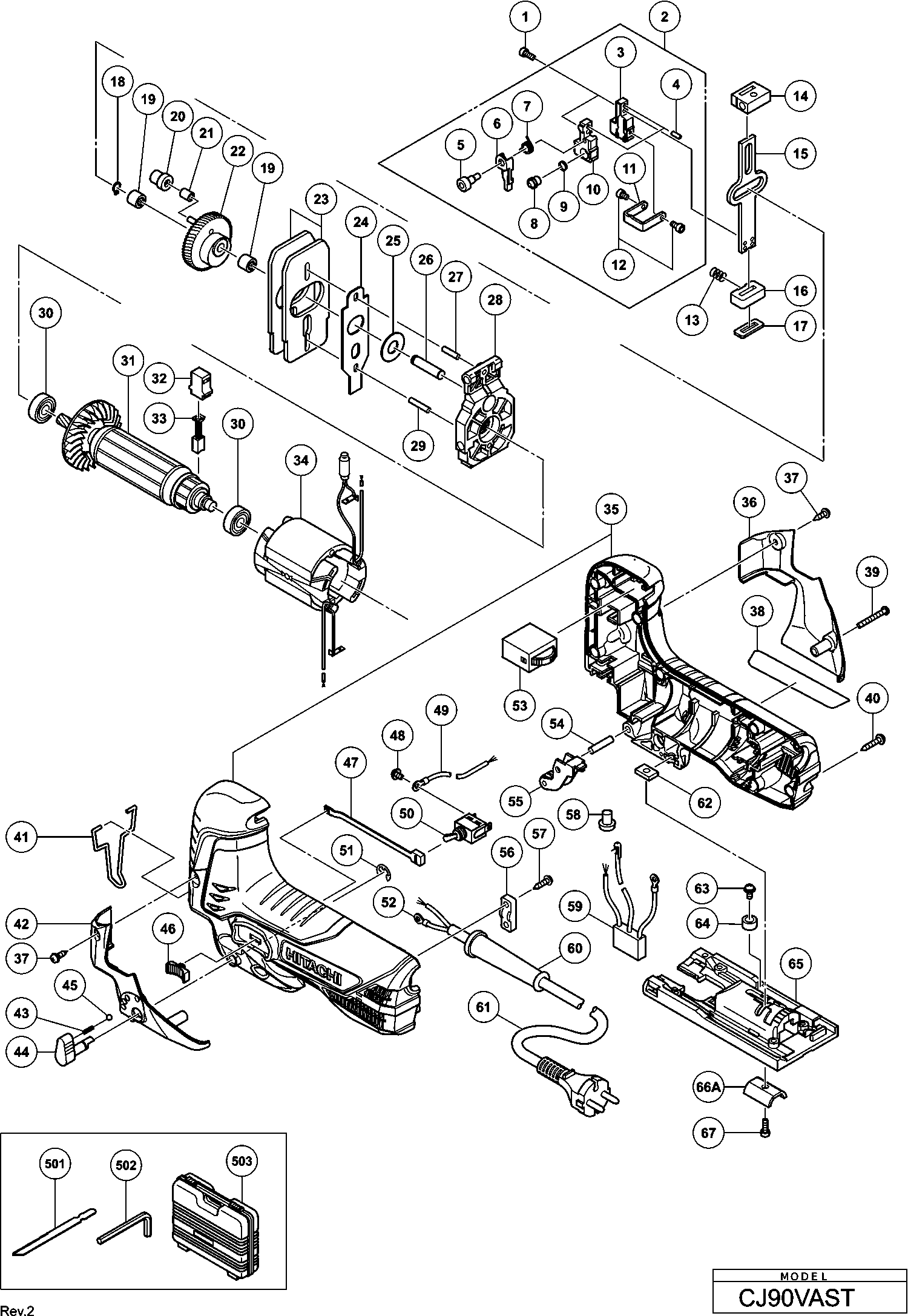

Technical drawing of model Hikoki CJ90VAST
Spare parts list of model Hikoki CJ90VAST
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| *61 | 500247Z | 6.18 | 7.48 | |
| SEAL LOCK HEX. SOCKET HD. BOLT M3X10 | ||||
| 1 | 332446 | 1.05 | 1.27 | |
| Blade Holder Ass'y Includ.3-12 | ||||
| 2 | 332443 | 18.08 | 21.87 | |
| Blade Holder (a) | ||||
| 3 | 332429 | 3.15 | 3.81 | |
| Pin D3 | ||||
| 4 | 332436 | 1.05 | 1.27 | |
| Special Bolt M4 | ||||
| 5 | 332434 | 1.05 | 1.27 | |
| Lever | ||||
| 6 | 332432 | 6.90 | 8.35 | |
| Spring (d) | ||||
| 7 | 332438 | 1.05 | 1.27 | |
| Holder Pin (b) | ||||
| 8 | 332435 | 3.15 | 3.81 | |
| Spring (b) | ||||
| 9 | 332439 | 1.20 | 1.45 | |
| Blade Holder (b) | ||||
| 10 | 332430 | 3.15 | 3.81 | |
| Bow | ||||
| 11 | 332426 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M3x6 | ||||
| 12 | 325077 | 1.65 | 2.00 | |
| Spring | ||||
| 13 | 332437 | 1.05 | 1.27 | |
| Plunger Holder (a) | ||||
| 14 | 332427 | 2.10 | 2.54 | |
| Spindle Ass'y | ||||
| 15 | 332422 | 4.20 | 5.08 | |
| Plunger Holder (b) | ||||
| 16 | 332428 | 1.20 | 1.45 | |
| Gasket | ||||
| 17 | 332441 | 1.20 | 1.45 | |
| Retaining Ring For D7 Shaft | ||||
| 18 | 994251 | 1.05 | 1.27 | |
| Needle-roller Bearing | ||||
| 19 | 332983 | 2.10 | 2.54 | |
| Connecting Piece (a) | ||||
| 20 | 332829 | 2.10 | 2.54 | |
| Needle-roller Bearing | ||||
| 21 | 325242 | 4.80 | 5.81 | |
| Gear | ||||
| 22 | 337759 | 16.78 | 20.30 | |
| Balance Weight | ||||
| 23 | 332424 | 2.10 | 2.54 | |
| Orbital Cam | ||||
| 24 | 332423 | 2.10 | 2.54 | |
| Washer | ||||
| 25 | 957540 | 1.04 | 1.26 | |
| Spindle Ass'y | ||||
| 26 | 332828 | 1.20 | 1.45 | |
| Needle Roller | ||||
| 27 | 998426 | 1.05 | 1.27 | |
| Gear Holder Ass'y Includ.26,27,29 | ||||
| 28 | 332444 | 12.45 | 15.06 | |
| Needle Roller D4x20 Till 10.1987 (till 9.1987 For | ||||
| 29 | 943364 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 30 | 608VVM | 5.70 | 6.90 | |
| Armature 230v | ||||
| 31 | 360893E | 38.23 | 46.25 | |
| Brush Holder | ||||
| 32 | 955203 | 2.40 | 2.90 | |
| Carbon Brush (1 Pair) | ||||
| 33 | 999041 | 4.50 | 5.44 | |
| Stator Wiring 230v | ||||
| 34 | 340774G | 19.94 | 24.12 | |
| Casing Box DUO 110 - Set | ||||
| 35 | 337756 | 13.89 | 16.80 | |
| Casing Box DUO 110 - Set | ||||
| 35A | 337756 | 13.89 | 16.80 | |
| Side Cover (b) | ||||
| 36 | 337758 | 3.15 | 3.81 | |
| Screw with flange D4x12 (black) | ||||
| 37 | 325083 | 1.65 | 2.00 | |
| Machine Screw M4x30 (black) | ||||
| 39 | 332447 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 40 | 301653 | 1.04 | 1.26 | |
| Guard Bar | ||||
| 41 | 338039 | 1.04 | 1.26 | |
| Side Cover (a) | ||||
| 42 | 337757 | 3.30 | 3.99 | |
| Spring | ||||
| 43 | 982454 | 1.04 | 1.26 | |
| Change Knob | ||||
| 44 | 332421 | 3.15 | 3.81 | |
| Steel Ball 5/32 (10 Pcs.) | ||||
| 45 | 335297 | 1.04 | 1.26 | |
| Slide Knob | ||||
| 46 | 321595 | 2.70 | 3.27 | |
| Slide Bar | ||||
| 47 | 321594 | 3.75 | 4.54 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 48 | 305499 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 49 | 337762 | |||
| Switch | ||||
| 50 | 330698 | 6.75 | 8.17 | |
| Ring | ||||
| 51 | 673489 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 52 | 980063 | 1.04 | 1.26 | |
| Controller | ||||
| 53 | 337760 | 13.80 | 16.70 | |
| Needle Roller | ||||
| 54 | 332433 | 1.20 | 1.45 | |
| Roller Holder | ||||
| 55 | 332448 | 10.65 | 12.89 | |
| Cord Clip | ||||
| 56 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 57 | 984750 | |||
| Connector 50092 (10 Pcs.) | ||||
| 58 | 959141 | 3.75 | 4.54 | |
| Capacitor | ||||
| 59 | 337761 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 60 | 953327 | |||
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 61 | 500247Z | 6.18 | 7.48 | |
| Plate Nut | ||||
| 62 | 332425 | 1.20 | 1.45 | |
| Machine Screw (w/washer) M4x8 (black) | ||||
| 63 | 315500 | 1.35 | 1.63 | |
| Rubber Ring | ||||
| 64 | 321576 | 1.35 | 1.63 | |
| Base | ||||
| 65 | 321573 | 14.99 | 18.13 | |
| Base Locker Cj120v/va | ||||
| 66 | 321575 | 6.46 | 7.82 | |
| Base Locker | ||||
| 66A | 339663 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M5x16 (10 Pcs.) | ||||
| 67 | 949821 | 2.55 | 3.09 | |
| Ferrite Core Except For Sin,mal,uae | ||||
| 68 | 334379 | 4.65 | 5.63 | |
| No information available, not orderable | ||||
| 501 | 879357 | |||
| No information available, not orderable | ||||
| 502 | 944458 | |||
| No information available, not orderable | ||||
| 503 | 337883 | |||
| No information available, not orderable | ||||
| 601 | 879336 | |||
| No information available, not orderable | ||||
| 602 | 879337 | |||
| No information available, not orderable | ||||
| 603 | 879338 | |||
| No information available, not orderable | ||||
| 604 | 879339 | |||
| No information available, not orderable | ||||
| 605 | 879340 | |||
| No information available, not orderable | ||||
| 606 | 879341 | |||
| No information available, not orderable | ||||
| 607 | 963400 | |||
| No information available, not orderable | ||||
| 608 | 321593 | |||
| METAL BASE PLATE 145 MM LONG | ||||
| 609 | 321992 | 26.40 | 31.94 | |
| Plastic base plate 150mm long | ||||
| 610 | 321993 | 12.15 | 14.70 | |
| Special Bolt | ||||
| 611 | 321996 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 612 | 321591 | |||
| No information available, not orderable | ||||
| 613 | 325149 | |||
| Splinter Guard | ||||
| 614 | 321590 | 1.50 | 1.82 | |
