Here you will find all available parts and drawings of the 'Hikoki CJ36DB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

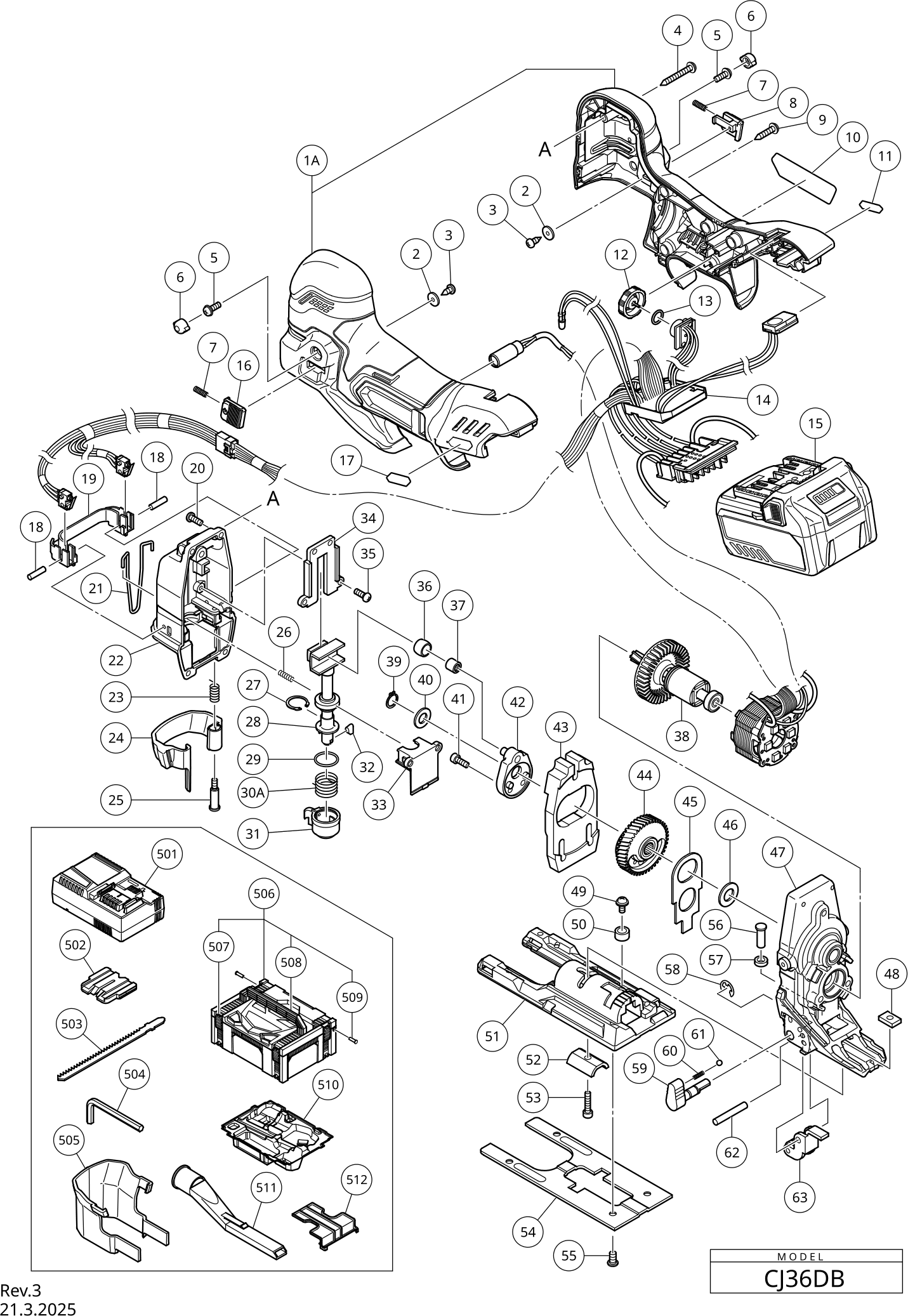

Technical drawing of model Hikoki CJ36DB
Spare parts list of model Hikoki CJ36DB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| BEHUIZING (A+B) (OUD 375872) | ||||
| 1A | 377215 | 11.06 | 13.38 | |
| Washer (1) | ||||
| 2 | 333916 | 1.04 | 1.26 | |
| Tapping Screw D3x6 | ||||
| 3 | 696352 | 1.13 | 1.36 | |
| Tapping Screw (w/flange) D4x40 (black) | ||||
| 4 | 306664 | 1.05 | 1.27 | |
| Seal Lock Screw (w/washer) M4x10 | ||||
| 5 | 321577 | 2.70 | 3.27 | |
| Rubber Cover | ||||
| 6 | 339294 | 1.04 | 1.26 | |
| Spring | ||||
| 7 | 324307 | 1.88 | 2.27 | |
| SLIDE KNOB (B) | ||||
| 8 | 375868 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 9 | 301653 | 1.04 | 1.26 | |
| MV LABEL (B) | ||||
| 11 | 373914 | 1.04 | 1.26 | |
| Dial | ||||
| 12 | 337397 | 1.50 | 1.82 | |
| O-ring (s-10) | ||||
| 13 | 987105 | 1.05 | 1.27 | |
| STATOR FET PCB ASS'Y | ||||
| 14 | 341060 | 159.50 | 193.00 | |
| No information available, not orderable | ||||
| 15 | 371750 | |||
| SLIDE KNOB (A) | ||||
| 16 | 375867 | 1.04 | 1.26 | |
| MV LABEL (A) | ||||
| 17 | 373913 | 1.04 | 1.26 | |
| NEEDLE PIN D3 | ||||
| 18 | 375866 | 1.04 | 1.26 | |
| SWITCH HOLDER | ||||
| 19 | 375865 | 1.04 | 1.26 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 20 | 949217 | 1.05 | 1.27 | |
| Guard Bar | ||||
| 21 | 339016 | 1.04 | 1.26 | |
| Upper Cover | ||||
| 22 | 375864 | 12.60 | 15.25 | |
| Lever Spring | ||||
| 23 | 339015 | 1.04 | 1.26 | |
| LEVER | ||||
| 24 | 375856 | 2.55 | 3.09 | |
| Lever Bolt | ||||
| 25 | 339014 | 1.04 | 1.26 | |
| Spring | ||||
| 26 | 339001 | 1.04 | 1.26 | |
| Retaining Ring D18 | ||||
| 27 | 339296 | 1.35 | 1.63 | |
| Spindle Ass'y | ||||
| 28 | 339002 | 23.65 | 28.62 | |
| O-ring (p-15) | ||||
| 29 | 311814 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 30A | 382823 | |||
| Holder Cover | ||||
| 31 | 339282 | 9.60 | 11.62 | |
| Holder Pin | ||||
| 32 | 339004 | 1.04 | 1.26 | |
| Plunger Cover | ||||
| 33 | 375853 | 4.05 | 4.90 | |
| Guide Plate | ||||
| 34 | 339009 | 2.10 | 2.54 | |
| Seal Lock Screw M4x10 | ||||
| 35 | 326573 | 1.65 | 2.00 | |
| Connecting Piece | ||||
| 36 | 339007 | 2.25 | 2.72 | |
| Needle Bearing | ||||
| 37 | 940917 | 7.50 | 9.08 | |
| Rotor Pinion Ass'y Includ.26 | ||||
| 38 | 361125 | 19.80 | 23.96 | |
| Retaining Ring For D8 Shaft | ||||
| 39 | 940079 | 1.04 | 1.26 | |
| Washer | ||||
| 40 | 963351 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 For Switch H | ||||
| 41 | 983162 | 1.05 | 1.27 | |
| Weight Holder | ||||
| 42 | 339285 | 6.00 | 7.26 | |
| Balance Weight | ||||
| 43 | 339000 | 10.50 | 12.70 | |
| GEAR | ||||
| 44 | 375852 | 11.40 | 13.79 | |
| Orbital Cam | ||||
| 45 | 338999 | 1.04 | 1.26 | |
| Washer | ||||
| 46 | 957540 | 1.04 | 1.26 | |
| Gear Cover Ass'y Includ.3,17 | ||||
| 47 | 375871 | 16.50 | 19.96 | |
| Plate Nut | ||||
| 48 | 332425 | 1.20 | 1.45 | |
| Machine Screw (With Washer) M4X5 | ||||
| 49 | 375857 | 1.04 | 1.26 | |
| Rubber Ring | ||||
| 50 | 321576 | 1.35 | 1.63 | |
| Base Body | ||||
| 51 | 375854 | 7.65 | 9.26 | |
| Base Locker | ||||
| 52 | 339663 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M5x18 (10 Pcs.) | ||||
| 53 | 949658 | 1.80 | 2.18 | |
| BASE PLATE | ||||
| 54 | 375855 | 4.50 | 5.44 | |
| Special Bolt | ||||
| 55 | 321996 | 1.65 | 2.00 | |
| Orbital Pin | ||||
| 56 | 339019 | 1.80 | 2.18 | |
| Felt | ||||
| 57 | 305740 | 1.04 | 1.26 | |
| Ring | ||||
| 58 | 673489 | 1.04 | 1.26 | |
| Change Knob | ||||
| 59 | 338992 | 1.95 | 2.36 | |
| Spring | ||||
| 60 | 982454 | 1.04 | 1.26 | |
| Steel Ball 5/32 (10 Pcs.) | ||||
| 61 | 335297 | 1.04 | 1.26 | |
| Needle Roller | ||||
| 62 | 338990 | 1.04 | 1.26 | |
| Roller Holder | ||||
| 63 | 339297 | 9.60 | 11.62 | |
| Splinter Guard | ||||
| 502 | 338997 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 503 | 879357 | |||
| No information available, not orderable | ||||
| 504 | 944458 | |||
| Chip Cover | ||||
| 505 | 338996 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 506 | 336471 | |||
| No information available, not orderable | ||||
| 507 | 336472 | |||
| No information available, not orderable | ||||
| 508 | 336473 | |||
| No information available, not orderable | ||||
| 509 | 336474 | |||
| No information available, not orderable | ||||
| 510 | 375869 | |||
| Battery Cover | ||||
| 512 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 601 | 325149 | |||
| Grease (attolub Ms No.2) 500g | ||||
| 602 | 309922 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 603 | 930035 | |||
| No information available, not orderable | ||||
| 604 | 321593 | |||
| Dust Collector | ||||
| 605 | 370492 | 3.75 | 4.54 | |
| Sub Base | ||||
| 606 | 339018 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 607 | 963400 | |||
| No information available, not orderable | ||||
| 611 | 879339 | |||
