Here you will find all available parts and drawings of the 'Hikoki CJ18DSL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

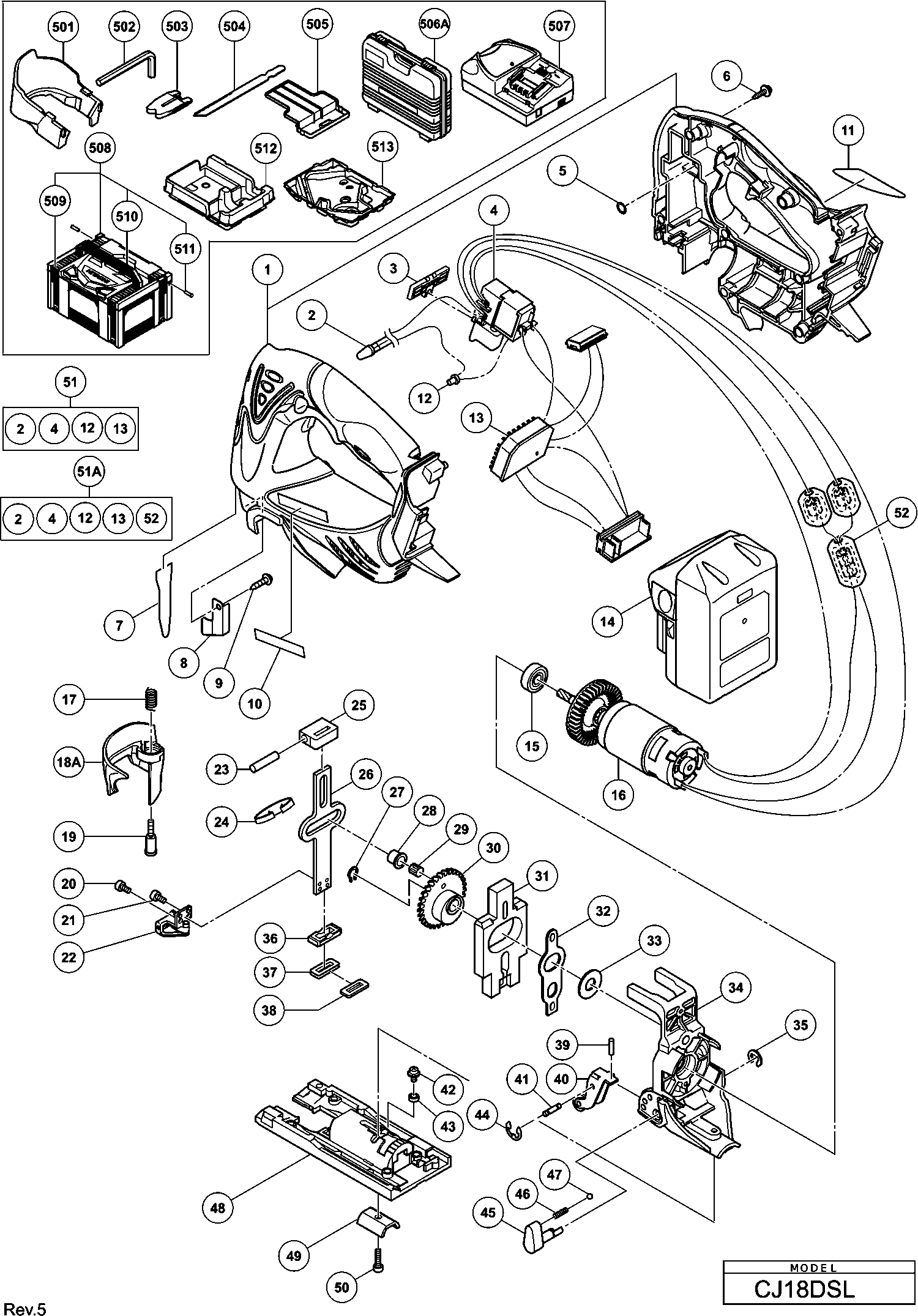

Technical drawing of model Hikoki CJ18DSL
Spare parts list of model Hikoki CJ18DSL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *14 | 335790 | |||
| Motor Dc 18v | ||||
| *16 | 328361 | 38.09 | 46.09 | |
| Battery Cover | ||||
| *505 | 329897 | 1.80 | 2.18 | |
| Switch Ass'y Includ.2,4,12,13 Except For Europe | ||||
| *51 | 330069 | 60.91 | 73.70 | |
| Housing (a).(b) Set | ||||
| 1 | 330071 | 34.24 | 41.43 | |
| Led | ||||
| 2 | 328336 | 9.90 | 11.98 | |
| Pushing Button | ||||
| 3 | 319760 | 1.05 | 1.27 | |
| Switch | ||||
| 4 | 328335 | 48.40 | 58.56 | |
| O-ring (p-6) | ||||
| 5 | 984528 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 6 | 301653 | 1.04 | 1.26 | |
| Guard Bar | ||||
| 7 | 328349 | 1.20 | 1.45 | |
| Fence | ||||
| 8 | 321592 | 2.70 | 3.27 | |
| Screw D3x8 with washer | ||||
| 9 | 984327 | 1.04 | 1.26 | |
| Connector 50091 (10 Pcs.) | ||||
| 12 | 959140 | 3.30 | 3.99 | |
| Controller Terminal Set | ||||
| 13 | 330070 | 58.58 | 70.88 | |
| No information available, not orderable | ||||
| 14 | 335790 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 15 | 608VVM | 5.70 | 6.90 | |
| Motor Dc 18v | ||||
| 16 | 328361 | 38.09 | 46.09 | |
| Lever Spring Cj120v/va | ||||
| 17 | 321580 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 18 | 328347 | |||
| Lever (old 328347) | ||||
| 18A | 370009 | 1.35 | 1.63 | |
| Bolt | ||||
| 19 | 328348 | 2.10 | 2.54 | |
| Seal Lock Hex. Socket Hd. Bolt M3x8 | ||||
| 20 | 325241 | 1.65 | 2.00 | |
| Seal Lock Hex. Socket Hd. Bolt M3x6 | ||||
| 21 | 325077 | 1.65 | 2.00 | |
| Blade Holder | ||||
| 22 | 325076 | 26.95 | 32.61 | |
| Pin D6 | ||||
| 23 | 983564 | 3.00 | 3.63 | |
| Plate Spring | ||||
| 24 | 325071 | 3.30 | 3.99 | |
| Plunger Holder (a) | ||||
| 25 | 325070 | 6.45 | 7.80 | |
| Plunger | ||||
| 26 | 328343 | 7.65 | 9.26 | |
| Retaining Ring For D7 Shaft | ||||
| 27 | 994251 | 1.05 | 1.27 | |
| Connector | ||||
| 28 | 328342 | 1.20 | 1.45 | |
| Needle-roller Bearing | ||||
| 29 | 325242 | 4.80 | 5.81 | |
| Gear | ||||
| 30 | 328341 | 18.15 | 21.96 | |
| Balance Weight | ||||
| 31 | 328340 | 28.88 | 34.94 | |
| Orbital Cam | ||||
| 32 | 328339 | 6.45 | 7.80 | |
| Washer | ||||
| 33 | 957540 | 1.04 | 1.26 | |
| Gear Holder | ||||
| 34 | 328328 | 45.65 | 55.24 | |
| Ring | ||||
| 35 | 673489 | 1.04 | 1.26 | |
| Plunger Holder (b) | ||||
| 36 | 328344 | 1.20 | 1.45 | |
| Packing Cover | ||||
| 37 | 328346 | 4.80 | 5.81 | |
| Gasket | ||||
| 38 | 328345 | 1.20 | 1.45 | |
| Needle Roller | ||||
| 39 | 328329 | 1.20 | 1.45 | |
| Roller Holder | ||||
| 40 | 328330 | 16.36 | 19.80 | |
| Pin | ||||
| 41 | 328331 | 3.15 | 3.81 | |
| Machine Screw (w/washer) M4x8 (black) | ||||
| 42 | 315500 | 1.35 | 1.63 | |
| Rubber Ring | ||||
| 43 | 321576 | 1.35 | 1.63 | |
| Retaining Ring (e-type) For D3 Shaft Till 6.1998 | ||||
| 44 | 872971 | 1.05 | 1.27 | |
| Knob (1) | ||||
| 45 | 328332 | 8.70 | 10.53 | |
| Spring | ||||
| 46 | 982454 | 1.04 | 1.26 | |
| Steel Ball D3.97 (10 Pcs.) | ||||
| 47 | 959155 | 1.04 | 1.26 | |
| Base | ||||
| 48 | 321573 | 14.99 | 18.13 | |
| Base Locker Cj120v/va | ||||
| 49 | 321575 | 6.46 | 7.82 | |
| Hex. Socket Hd. Bolt M5x14 (10 Pcs.) | ||||
| 50 | 949665 | 2.10 | 2.54 | |
| Switch Ass'y Includ.2,4,12,13 Except For Europe | ||||
| 51 | 330069 | 60.91 | 73.70 | |
| Switch Ass'y Includ.2,4,12,13,52 Since 3.2012 | ||||
| 51A | 334877 | 74.11 | 89.68 | |
| Internal Wire Ferrite Set Since 3.2012 For Europe | ||||
| 52 | 334853 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 501 | 328352 | |||
| No information available, not orderable | ||||
| 502 | 944458 | |||
| Splinter Guard | ||||
| 503 | 321590 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 504 | 879357 | |||
| Battery Cover | ||||
| 505 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 506 | 328351 | |||
| No information available, not orderable | ||||
| 506A | 339042 | |||
| No information available, not orderable | ||||
| 508 | 337108 | |||
| No information available, not orderable | ||||
| 509 | 336472 | |||
| No information available, not orderable | ||||
| 510 | 336473 | |||
| No information available, not orderable | ||||
| 511 | 336474 | |||
| No information available, not orderable | ||||
| 512 | 337110 | |||
| No information available, not orderable | ||||
| 513 | 337111 | |||
| No information available, not orderable | ||||
| 601 | 879336 | |||
| No information available, not orderable | ||||
| 602 | 879337 | |||
| No information available, not orderable | ||||
| 603 | 879338 | |||
| No information available, not orderable | ||||
| 604 | 879339 | |||
| No information available, not orderable | ||||
| 605 | 879340 | |||
| No information available, not orderable | ||||
| 606 | 879341 | |||
| No information available, not orderable | ||||
| 607 | 963400 | |||
| No information available, not orderable | ||||
| 608 | 321593 | |||
| METAL BASE PLATE 145 MM LONG | ||||
| 609 | 321992 | 26.40 | 31.94 | |
| Plastic base plate 150mm long | ||||
| 610 | 321993 | 12.15 | 14.70 | |
| Special Bolt | ||||
| 611 | 321996 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 612 | 321591 | |||
| No information available, not orderable | ||||
| 613 | 325149 | |||
