Here you will find all available parts and drawings of the 'Hikoki CH78ED'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

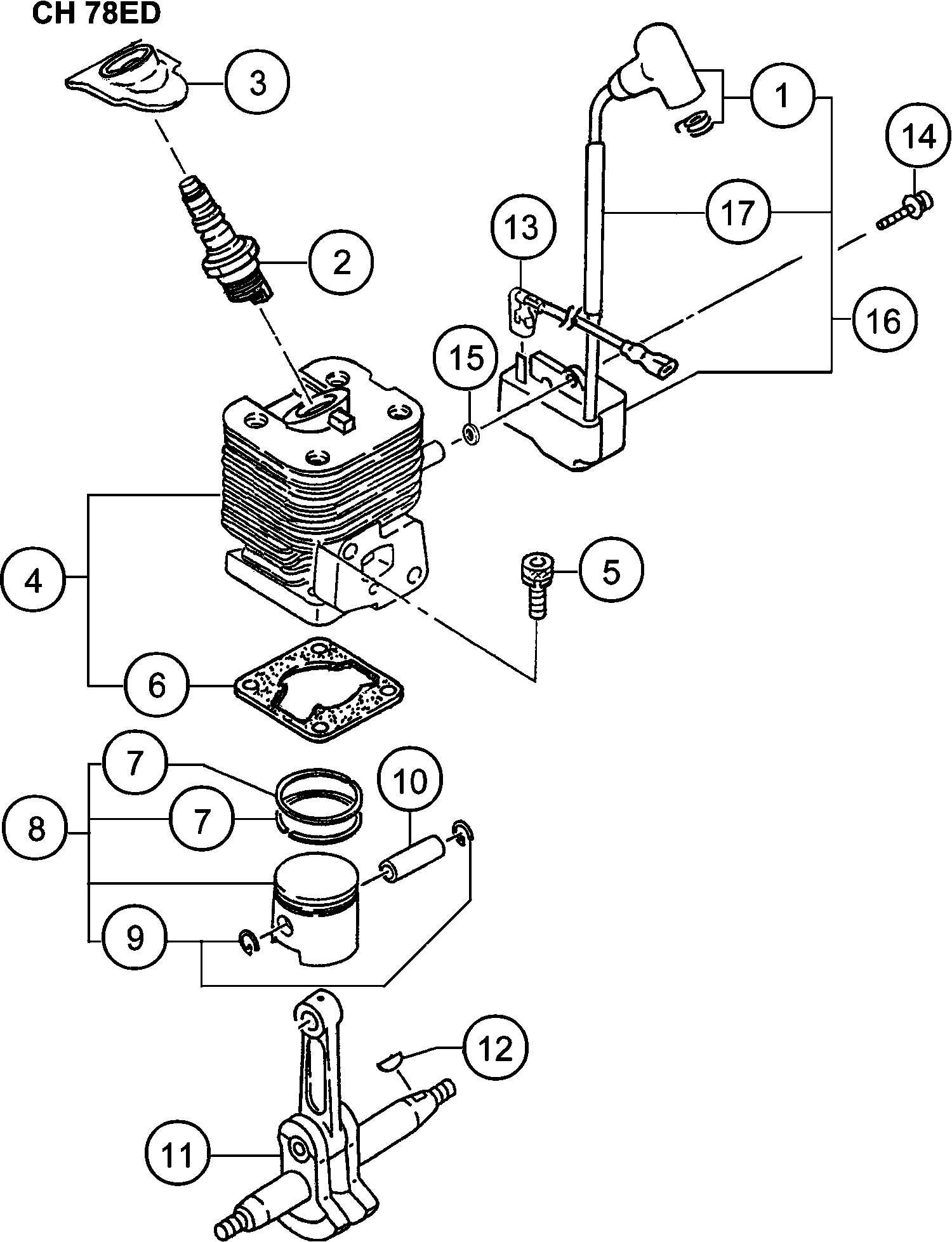

Technical drawing of model Hikoki CH78ED
Spare parts list of model Hikoki CH78ED
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Plug Cap | ||||
| 1 | 6684894 | 8.58 | 10.38 | |
| Spark Plug Ass'y Rcj8y | ||||
| 2 | 6699328 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 3 | 6688334 | |||
| Cylinder Set | ||||
| 4 | 6685462 | 66.40 | 80.34 | |
| Hex.hole Bolt M5x18/s | ||||
| 5 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 6 | 6685728 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 7 | 6684588 | 8.58 | 10.38 | |
| Piston Set (old 030-01680-90) | ||||
| 8 | 6685877 | 28.14 | 34.05 | |
| Circlip | ||||
| 9 | 6685078 | 1.15 | 1.39 | |
| Piston Pin | ||||
| 10 | 6686016 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 11 | 6686176 | |||
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 12 | 6684899 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 13 | 6687840 | |||
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 14 | 6684599 | 2.15 | 2.60 | |
| Washer T1.6 | ||||
| 15 | 6684600 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 16 | 6687704 | |||
| No information available, not orderable | ||||
| 17 | 6688316 | |||
| Gear Shaft Shim 0.20 | ||||
| 31 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 31 | 6684605 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 32 | 6688047 | |||
| No information available, not orderable | ||||
| 33 | 6601158 | |||
| Oil Seal | ||||
| 34 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 35 | 6684608 | 3.80 | 4.60 | |
| No longer available, no replacement | ||||
| 36 | 6686705 | |||
| Stud Bolt 6x22 | ||||
| 37 | 6686771 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 38 | 6684786 | 2.15 | 2.60 | |
| Hex. Hole Bolt 5x45 | ||||
| 39 | 6695055 | 1.15 | 1.39 | |
| Spring Washer 5 | ||||
| 40 | 6684834 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 41 | 6687418 | 28.14 | 34.05 | |
| Ring | ||||
| 42 | 6684971 | 1.04 | 1.26 | |
| Bolt Washer M8 | ||||
| 43 | 6684611 | 2.15 | 2.60 | |
| Hex. Nut M8 | ||||
| 44 | 6684612 | 2.15 | 2.60 | |
| Intake Manifold Gasket | ||||
| 51 | 6689874 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 52 | 6689937 | |||
| Hex. Hole Bolt M5x25ws | ||||
| 53 | 6695515 | 1.15 | 1.39 | |
| Carburetor Gasket | ||||
| 54 | 6689828 | 3.30 | 3.99 | |
| O-ring P-15 | ||||
| 55 | 6698966 | 1.04 | 1.26 | |
| Cleaner Body Comp. | ||||
| 56 | 6690119 | 4.45 | 5.38 | |
| Collar 7.5 | ||||
| 57 | 6690804 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 58 | 6691261 | |||
| No information available, not orderable | ||||
| 59 | 6684658 | |||
| Blow Over Check Board | ||||
| 60 | 6690843 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 61 | 6684662 | 2.15 | 2.60 | |
| Screw M5x60 | ||||
| 62 | 6684660 | 2.15 | 2.60 | |
| Cleaner Sponge | ||||
| 63 | 6690364 | 1.15 | 1.39 | |
| Cleaner Cover | ||||
| 64 | 6690415 | 5.28 | 6.38 | |
| Special Screw | ||||
| 65 | 6689737 | 1.15 | 1.39 | |
| Carburetor Set Wyl139a | ||||
| 66 | 6690461 | 62.31 | 75.40 | |
| No longer available, no replacement | ||||
| 67 | 6688174 | |||
| Clip D6 | ||||
| 68 | 6685198 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 69 | 6684620 | |||
| No information available, not orderable | ||||
| 70A | 6699738 | |||
| No information available, not orderable | ||||
| 71 | 6685049 | |||
| Collar 5.8 Till G103930 | ||||
| 73 | 6692244 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 74 | 6684625 | |||
| Hex. Hole Bolt 5x18ps | ||||
| 75 | 6695505 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 76 | 6691337 | |||
| Priming Pump Comp. | ||||
| 77 | 6685139 | 5.94 | 7.18 | |
| Fuel Pipe 2.5x4x80 | ||||
| 78 | 6692347 | 1.15 | 1.39 | |
| Fuel Pipe 2.5x4x70 | ||||
| 79 | 6692346 | 1.15 | 1.39 | |
| Return Grommet Till 7.2014 | ||||
| 80 | 6697846 | 1.04 | 1.26 | |
| Muffler Protector | ||||
| 91 | 6692772 | 9.90 | 11.98 | |
| Muffler Set For Europe | ||||
| 92 | 6692455 | 93.09 | 112.64 | |
| Ring | ||||
| 94 | 6684639 | 2.15 | 2.60 | |
| Hex. Hole Screw 6x55 | ||||
| 95 | 6695086 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 96 | 6692646 | |||
| Fan Housing | ||||
| 97 | 6686957 | 16.79 | 20.31 | |
| Recoil Spring Till 7.2014 | ||||
| 98 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel | ||||
| 99 | 6693066 | 3.30 | 3.99 | |
| Set Screw Till 7.2014 | ||||
| 100 | 6693633 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 101 | 6693405 | |||
| Primary Cord Grommet | ||||
| 102 | 6688049 | 1.15 | 1.39 | |
| Rope Till 7.2014 | ||||
| 103 | 6693168 | 2.31 | 2.80 | |
| Starter Handle | ||||
| 104 | 6693237 | 1.15 | 1.39 | |
| Hex. Hole Bolt 4x15/ps | ||||
| 105 | 6684682 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 106 | 6692718 | |||
| Muffler Arrestor (old 732-04400-20) | ||||
| 107 | 6692696 | 2.31 | 2.80 | |
| Ring | ||||
| 108 | 6684661 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 109 | 6695471 | |||
| Screw 5x8/s (old 994-14050-081) | ||||
| 110 | 6695332 | 1.05 | 1.27 | |
| Clutch | ||||
| 111 | 6688494 | 9.74 | 11.78 | |
| Tapping Screw 4.5x10 (old 990-73045-104) | ||||
| 112 | 6695104 | 1.15 | 1.39 | |
| Bolt 4x12ps | ||||
| 113 | 6695441 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 114 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl (old 788-06500-20) | ||||
| 115 | 6693319 | 2.31 | 2.80 | |
| Throttle Set Screw | ||||
| 121 | 6684698 | 4.29 | 5.19 | |
| Swivel | ||||
| 122 | 6684697 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 123 | 6684696 | 2.15 | 2.60 | |
| O-RING (old 550-25100-20) | ||||
| 124 | 6684695 | 4.29 | 5.19 | |
| Main Jet #35 | ||||
| 125 | 6691873 | 6.28 | 7.59 | |
| Pump Gasket (old 577-25100-20) | ||||
| 126 | 6691457 | 7.10 | 8.59 | |
| Pump Diaphragm | ||||
| 127 | 6684693 | 8.58 | 10.38 | |
| Inlet Screen | ||||
| 128 | 6684700 | 4.29 | 5.19 | |
| Pump Body Comp. | ||||
| 129 | 6691435 | 15.26 | 18.47 | |
| No longer available, no replacement | ||||
| 130 | 6685220 | |||
| Metering Diaphragm Comp. | ||||
| 131 | 6690830 | 11.88 | 14.37 | |
| Diaphragm Cover-metering | ||||
| 132 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 133 | 6691312 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 141 | 6688672 | |||
| STOP RING C-26, INNER (OLD 993-51026-002) | ||||
| 142 | 6695294 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 143 | 6695524 | |||
| No information available, not orderable | ||||
| 144 | 6695526 | |||
| Clutch Housing Comp. | ||||
| 145 | 6688571 | 17.40 | 21.05 | |
| Gear 1 Since C024001 | ||||
| 146 | 6688968 | 19.36 | 23.43 | |
| Gear 2 Since C024001 | ||||
| 147 | 6688978 | 14.38 | 17.39 | |
| Cam-rod Comp. | ||||
| 148 | 6686810 | 34.19 | 41.37 | |
| Cam Shaft | ||||
| 149 | 6686791 | 50.21 | 60.76 | |
| Gear Case Gasket (old 303-33185-20) | ||||
| 150 | 6688910 | 1.15 | 1.39 | |
| Ball Bearing #608 | ||||
| 151 | 6684738 | 8.58 | 10.38 | |
| Grease Stop | ||||
| 152 | 6686655 | 1.15 | 1.39 | |
| Collar | ||||
| 153 | 6688293 | 3.30 | 3.99 | |
| Hex. Hole Bolt M5x25/s | ||||
| 154 | 6684709 | 2.15 | 2.60 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 155 | 6688643 | 1.15 | 1.39 | |
| Hex. Hole Bolt 6x18/s | ||||
| 156 | 6695495 | 1.15 | 1.39 | |
| Hex Hole Button Screw 6x15 | ||||
| 157 | 6695079 | 1.15 | 1.39 | |
| Ring | ||||
| 158 | 6695183 | 1.15 | 1.39 | |
| Fixing Plate | ||||
| 159 | 6686467 | 2.31 | 2.80 | |
| Support Plate | ||||
| 160 | 6690758 | 2.31 | 2.80 | |
| Hex. Socket Hd. Bolt M4x10 | ||||
| 161 | 6685093 | 1.15 | 1.39 | |
| Spring Nut 6 | ||||
| 162 | 6695475 | 1.15 | 1.39 | |
| Spring Nut 6 | ||||
| 164 | 6695475 | 1.15 | 1.39 | |
| Cutter Guide 830l M6 Since A157901 | ||||
| 181 | 6687151 | 40.24 | 48.69 | |
| Hex. Hole Screw 6x25 | ||||
| 183 | 6695074 | 1.15 | 1.39 | |
| Ring | ||||
| 184 | 6684822 | 2.15 | 2.60 | |
| Cutter B 852l For (cp) | ||||
| 186 | 6687113 | 50.21 | 60.76 | |
| Cutter A For (cp) | ||||
| 187 | 6687091 | 48.25 | 58.38 | |
| No longer available, no replacement | ||||
| 188 | 6687187 | |||
| Bolt | ||||
| 189 | 6687158 | 1.15 | 1.39 | |
| Blade Holder | ||||
| 190 | 6687180 | 2.31 | 2.80 | |
| Bolt | ||||
| 192 | 6687168 | 1.15 | 1.39 | |
| Handle B Comp. (old 051-33185-81 & 6686310) | ||||
| 193 | 6686311 | 14.21 | 17.20 | |
| Handle Grip | ||||
| 194 | 6684708 | 6.44 | 7.79 | |
| Flange nut | ||||
| 195 | 6695170 | 1.15 | 1.39 | |
| Ring | ||||
| 196 | 6684639 | 2.15 | 2.60 | |
| Ring | ||||
| 197 | 6695219 | 1.15 | 1.39 | |
| Cutter Cover, L-773 (old 138-33215-20) | ||||
| 198 | 6687308 | 5.11 | 6.19 | |
| Gathering Plate, Oblong (old 350-33210-20) | ||||
| 199 | 6689539 | 17.55 | 21.24 | |
| Gear Case Comp. | ||||
| 221 | 6688684 | 15.13 | 18.30 | |
| Stop Ring C-15, Outer | ||||
| 222 | 6695285 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 223 | 6697745 | |||
| Ball Bearing #6002z | ||||
| 224 | 6695538 | 6.60 | 7.99 | |
| No longer available, no replacement | ||||
| 225 | 6688570 | |||
| Guide Plate (old 075-33160-20) | ||||
| 226 | 6686612 | 1.15 | 1.39 | |
| Cam Rod | ||||
| 227 | 6686811 | 5.78 | 6.99 | |
| Gear 2 Comp. | ||||
| 228 | 6688625 | 30.25 | 36.60 | |
| Gear Case Gasket (old 303-33160-20) | ||||
| 229 | 6688909 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 230 | 6692101 | |||
| No longer available, no replacement | ||||
| 231 | 6687144 | |||
| Protection Plate | ||||
| 232 | 6687289 | 12.88 | 15.58 | |
| Hex. Hole Flush Bolt 6x25 | ||||
| 233 | 6695075 | 1.15 | 1.39 | |
| Cutter A (812l) | ||||
| 234 | 6687092 | 60.35 | 73.02 | |
| No longer available, no replacement | ||||
| 235 | 6686654 | |||
| No longer available, no replacement | ||||
| 236 | 6687187 | |||
| Bolt | ||||
| 237 | 6687158 | 1.15 | 1.39 | |
| Flange nut | ||||
| 238 | 6695170 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M4x12 | ||||
| 239 | 6684595 | 2.15 | 2.60 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 240 | 6688643 | 1.15 | 1.39 | |
| Hex. Hole Bolt 6x18/s | ||||
| 241 | 6695495 | 1.15 | 1.39 | |
| Support Plate | ||||
| 242 | 6690762 | 3.30 | 3.99 | |
| Lock Nut 6 Ups-p | ||||
| 243 | 6695175 | 1.15 | 1.39 | |
| Ring | ||||
| 244 | 6684639 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 245 | 6688846 | |||
| Spring Nut 6 | ||||
| 247 | 6695475 | 1.15 | 1.39 | |
| Guard Plate | ||||
| 248 | 6687275 | 2.31 | 2.80 | |
| Hex. Hole Bolt 4x10s | ||||
| 249 | 6695484 | 1.15 | 1.39 | |
| Ball Bearing 608 Zz C3 | ||||
| 250 | 6695547 | 3.30 | 3.99 | |
| Handle Grip A | ||||
| 261 | 6686338 | 4.95 | 5.99 | |
| No information available, not orderable | ||||
| 262 | 6686349 | |||
| Throttle Lever | ||||
| 263 | 6688229 | 2.31 | 2.80 | |
| Safety Lever | ||||
| 264 | 6688238 | 2.31 | 2.80 | |
| Throttle Lever Spring | ||||
| 265 | 6686414 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 266 | 6687766 | |||
| Stop Button Mark | ||||
| 267 | 6694585 | 1.15 | 1.39 | |
| Cap | ||||
| 268 | 6693002 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 269 | 6695412 | |||
| Screw 4x25/ws | ||||
| 270 | 6695411 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 271 | 6686356 | |||
| Handle A Comp. (old 050-33185-80) | ||||
| 272 | 6686275 | 22.24 | 26.91 | |
| Throttle Wire 270+49 | ||||
| 273 | 6693877 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 274 | 6687558 | |||
| Screw 4x16ws (old 994-16040-161) | ||||
| 275 | 6695404 | 1.15 | 1.39 | |
| Nylon Lock Nut 4 | ||||
| 276 | 6695163 | 1.15 | 1.39 | |
| Screw 3x10 | ||||
| 277 | 6684913 | 2.15 | 2.60 | |
| Button Stop | ||||
| 278 | 6688366 | 1.15 | 1.39 | |
| Cord Clamp | ||||
| 279 | 6688015 | 1.15 | 1.39 | |
| Hex.hole Bolt M5x12/s | ||||
| 280 | 6684667 | 2.15 | 2.60 | |
| Handle Bracket (old 058-33185-20) | ||||
| 281 | 6686370 | 6.28 | 7.59 | |
| Handle Dumper Rubber | ||||
| 282 | 6686396 | 2.31 | 2.80 | |
| Flame For (tp) | ||||
| 301 | 6688377 | 5.94 | 7.18 | |
| Handle | ||||
| 302 | 6688097 | 9.90 | 11.98 | |
| Damper Collar B | ||||
| 303 | 6688485 | 1.15 | 1.39 | |
| Damper B | ||||
| 304 | 6688412 | 1.15 | 1.39 | |
| Ring | ||||
| 305 | 6689680 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 306 | 6684786 | 2.15 | 2.60 | |
| Handle Support Comp. | ||||
| 308 | 6686111 | 2.31 | 2.80 | |
| Hex. Hole Bolt 5x40 | ||||
| 309 | 6695054 | 1.15 | 1.39 | |
| Spring Washer 5 | ||||
| 310 | 6684834 | 2.15 | 2.60 | |
| Washer M5 (black) | ||||
| 311 | 6684918 | 2.15 | 2.60 | |
| Handle B (old 051-33290-20) | ||||
| 321 | 6686314 | 5.11 | 6.19 | |
| Handle A Since C023891 | ||||
| 322 | 6686279 | 5.11 | 6.19 | |
| Throttle Lever Since C023891 | ||||
| 323 | 6688230 | 1.15 | 1.39 | |
| Safety Lever Or | ||||
| 324 | 6688240 | 1.15 | 1.39 | |
| Throttle Lever Spring | ||||
| 325 | 6688244 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 326 | 6687767 | |||
| Lock Lever Since C023891 | ||||
| 327 | 6688246 | 1.15 | 1.39 | |
| Spring (old 245-33290-20) | ||||
| 328 | 6688279 | 1.15 | 1.39 | |
| Ring | ||||
| 329 | 6685070 | 1.15 | 1.39 | |
| Tapping Screw D4x10 | ||||
| 330 | 6685161 | 1.15 | 1.39 | |
| Tapping Screw D4.5x16 | ||||
| 331 | 6684636 | 2.15 | 2.60 | |
| Throttle Wire Comp. | ||||
| 332 | 6693940 | 4.45 | 5.38 | |
| Button Stop | ||||
| 333 | 6688366 | 1.15 | 1.39 | |
| Screw 3x10 | ||||
| 334 | 6684913 | 2.15 | 2.60 | |
| Protection Tube 150l | ||||
| 335 | 6687524 | 1.15 | 1.39 | |
| Stop Button Mark | ||||
| 336 | 6694588 | 1.15 | 1.39 | |
| Combi. Box Spanner 10x19 ,plus | ||||
| 501 | 6685997 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 502 | 6684813 | |||
| Combi Box Spanner 10/19mm | ||||
| 503 | 6685257 | 3.30 | 3.99 | |
| Cymbol Mark Ch78ed(cp) (old 929-52102-20) New | ||||
| 601 | 6694749 | 1.05 | 1.27 | |
| Symbol Ch78ed(tp) (old 929-52101-20) | ||||
| 602 | 6694748 | 1.15 | 1.39 | |
