Here you will find all available parts and drawings of the 'Hikoki CH66EB3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

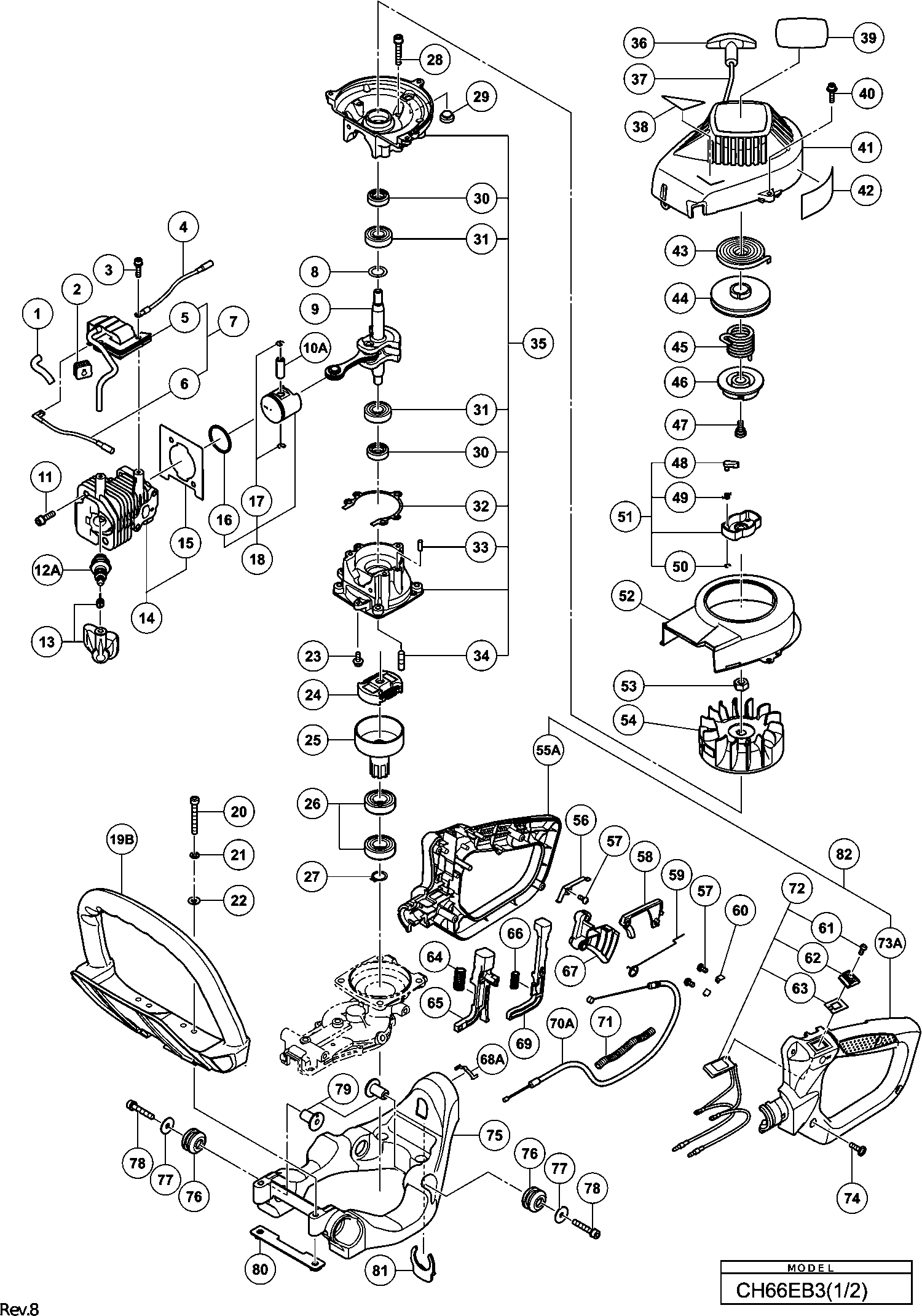

Technical drawing of model Hikoki CH66EB3
Spare parts list of model Hikoki CH66EB3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Insulator Tube 50l | ||||
| 1 | 6684597 | 2.15 | 2.60 | |
| Grommet | ||||
| 2 | 6688050 | 1.15 | 1.39 | |
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 3 | 6684599 | 2.15 | 2.60 | |
| Cord (old 274-51705-80) | ||||
| 4 | 6688477 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 6 | 6687918 | |||
| Gear Shaft Shim 0.20 | ||||
| 8 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 8 | 6684605 | 2.15 | 2.60 | |
| Crank Shaft Comp | ||||
| 9 | 6686208 | 40.24 | 48.69 | |
| Piston Pin | ||||
| 10A | 6696944 | 3.33 | 4.02 | |
| Hex.hole Bolt M5x18/s | ||||
| 11 | 6684586 | 2.15 | 2.60 | |
| Spark Plug Ass'y Bpmr6a | ||||
| 12A | 6699319 | 8.91 | 10.78 | |
| Spark Plug Cap | ||||
| 13 | 6687476 | 4.45 | 5.38 | |
| Cylinder Ass'y | ||||
| 14 | 6685480 | 40.24 | 48.69 | |
| Cylinder Gasket | ||||
| 15 | 6685744 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 16 | 6686118 | 4.45 | 5.38 | |
| Cir Clip | ||||
| 17 | 6684590 | 2.15 | 2.60 | |
| Piston Set Includ.16,17 | ||||
| 18 | 6685892 | 20.11 | 24.34 | |
| Handle | ||||
| 19B | 6699079 | 5.25 | 6.35 | |
| Hex. Hole Bolt 5x40 | ||||
| 20 | 6695054 | 1.15 | 1.39 | |
| Spring Washer 5 | ||||
| 21 | 6684834 | 2.15 | 2.60 | |
| Washer M5 (black) | ||||
| 22 | 6684918 | 2.15 | 2.60 | |
| Bolt 4x12ps | ||||
| 23 | 6695441 | 1.15 | 1.39 | |
| Clutch | ||||
| 24 | 6688494 | 9.74 | 11.78 | |
| No longer available, no replacement | ||||
| 25 | 6688570 | |||
| Ball Bearing #6002z | ||||
| 26 | 6695538 | 6.60 | 7.99 | |
| Stop Ring C-15, Outer | ||||
| 27 | 6695285 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 28 | 6684786 | 2.15 | 2.60 | |
| Anti-vibe Rubber | ||||
| 29 | 6691822 | 1.15 | 1.39 | |
| Oil Seal | ||||
| 30 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 31 | 6684608 | 3.80 | 4.60 | |
| Crank Case Gasket | ||||
| 32 | 6686720 | 1.15 | 1.39 | |
| Knock Pin 4x12 (old 999-05041-203) | ||||
| 33 | 6695521 | 1.15 | 1.39 | |
| Stud Bolt 6x22 | ||||
| 34 | 6686771 | 1.15 | 1.39 | |
| Crank Case Ass'y | ||||
| 35 | 6686574 | 42.20 | 51.06 | |
| Starter Handle | ||||
| 36 | 6693237 | 1.15 | 1.39 | |
| Rope 3x890 | ||||
| 37 | 6693172 | 2.31 | 2.80 | |
| Hex.hole Bolt 4x18ps | ||||
| 40 | 6695502 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 41 | 6687014 | |||
| Recoil Spring Till 7.2014 | ||||
| 43 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel | ||||
| 44 | 6693072 | 5.11 | 6.19 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 45 | 6684677 | 8.58 | 10.38 | |
| Cam Plate | ||||
| 46 | 6684678 | 6.44 | 7.79 | |
| Set Screw (old 839-03045-20) | ||||
| 47 | 6684679 | 2.15 | 2.60 | |
| Starter Pawl | ||||
| 48 | 6684685 | 4.29 | 5.19 | |
| Starter Pawl Spring | ||||
| 49 | 6684684 | 4.29 | 5.19 | |
| Stop Ring E-5 Since C237092 | ||||
| 50 | 6684683 | 2.15 | 2.60 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 50 | 6685101 | 1.15 | 1.39 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 51 | 6684681 | 13.20 | 15.97 | |
| Deflector | ||||
| 52 | 6687209 | 6.44 | 7.79 | |
| Hex. Nut M8 | ||||
| 53 | 6684612 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 54 | 6687396 | |||
| No information available, not orderable | ||||
| 55A | 6698868 | |||
| Earth Terminal | ||||
| 56 | 6696350 | 1.05 | 1.27 | |
| Tapping Screw D3x6 | ||||
| 57 | 696352 | 1.13 | 1.36 | |
| Trigger Lockout | ||||
| 58 | 6696344 | 1.05 | 1.27 | |
| Throttle Lever Spring | ||||
| 59 | 6696345 | 1.05 | 1.27 | |
| Tab Terminal | ||||
| 60 | 6696355 | 1.05 | 1.27 | |
| Screw 3x10 | ||||
| 61 | 6684913 | 2.15 | 2.60 | |
| Button Stop | ||||
| 62 | 6688366 | 1.15 | 1.39 | |
| Stop Button Mark | ||||
| 63 | 6694588 | 1.15 | 1.39 | |
| Spring (a) | ||||
| 64 | 6696348 | 1.05 | 1.27 | |
| Lock Lever | ||||
| 65 | 6696346 | 1.05 | 1.27 | |
| Spring (b) | ||||
| 66 | 6696349 | 1.05 | 1.27 | |
| Throttle Lever | ||||
| 67 | 6696343 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 68A | 6698784 | |||
| Release Lever | ||||
| 69 | 6696347 | 1.05 | 1.27 | |
| Throttle Wire Comp. | ||||
| 70A | 6698828 | 3.15 | 3.81 | |
| Protection Tube 150l | ||||
| 71 | 6687524 | 1.15 | 1.39 | |
| Stop Switch Ass'y (a) Includ.63-65 | ||||
| 72 | 6696354 | 14.19 | 17.17 | |
| Handle B | ||||
| 73A | 6698869 | 4.65 | 5.63 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 74 | 305812 | 1.04 | 1.26 | |
| Frame | ||||
| 75 | 6696363 | 8.85 | 10.71 | |
| Damper B | ||||
| 76 | 6688412 | 1.15 | 1.39 | |
| Ring | ||||
| 77 | 6689680 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 78 | 6684786 | 2.15 | 2.60 | |
| Damper Collar B | ||||
| 79 | 6688485 | 1.15 | 1.39 | |
| Handle Support Comp. | ||||
| 80 | 6686111 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 81 | 6696359 | |||
| No longer available, no replacement | ||||
| 82 | 6698870 | |||
| Tapping Screw D4.5x16 | ||||
| 91 | 6684636 | 2.15 | 2.60 | |
| Muffler Protector | ||||
| 92 | 6692795 | 6.93 | 8.38 | |
| Hex. Socket Hd. Bolt M5x50 | ||||
| 93 | 6685114 | 1.15 | 1.39 | |
| Ring | ||||
| 94 | 6684661 | 2.15 | 2.60 | |
| Muffler Ass'y | ||||
| 95 | 6692477 | 13.04 | 15.78 | |
| Heat Shield | ||||
| 96 | 6687252 | 2.31 | 2.80 | |
| Muffler Gasket | ||||
| 97 | 6692744 | 1.15 | 1.39 | |
| Intake Pipe Gasket | ||||
| 98 | 6689891 | 1.15 | 1.39 | |
| Carb. Insulator Set,spare | ||||
| 99 | 6689966 | 6.93 | 8.38 | |
| Hex. Hole Bolt M5x25ws | ||||
| 100 | 6695515 | 1.15 | 1.39 | |
| Carburetor Gasket | ||||
| 101 | 6689839 | 1.15 | 1.39 | |
| Carburetor Set, Wyl120 Since B028601 | ||||
| 102 | 6690487 | 72.30 | 87.48 | |
| No information available, not orderable | ||||
| 103 | 6684628 | |||
| No information available, not orderable | ||||
| 104 | 6695670 | |||
| Cleaner Body Comp. | ||||
| 105 | 6690119 | 4.45 | 5.38 | |
| Collar 7.5 | ||||
| 106 | 6690804 | 1.15 | 1.39 | |
| Choke Valve Till B028600 | ||||
| 107 | 6691272 | 2.31 | 2.80 | |
| Choke Valve Since B028601 | ||||
| 107 | 6691274 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 108 | 6684658 | |||
| Blow Over Check Board | ||||
| 109 | 6690843 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 110 | 6684662 | 2.15 | 2.60 | |
| Screw M5x60 | ||||
| 111 | 6684660 | 2.15 | 2.60 | |
| Cleaner Sponge | ||||
| 112 | 6690364 | 1.15 | 1.39 | |
| Cleaner Cover | ||||
| 113 | 6690415 | 5.28 | 6.38 | |
| Special Screw | ||||
| 114 | 6689737 | 1.15 | 1.39 | |
| Swivel | ||||
| 115 | 6684697 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 116 | 6684696 | 2.15 | 2.60 | |
| O-RING (old 550-25100-20) | ||||
| 117 | 6684695 | 4.29 | 5.19 | |
| Main Jet #34.5 Since B028601 | ||||
| 118 | 6691888 | 6.28 | 7.59 | |
| Main Jet #40 Till B023800 | ||||
| 118 | 6691845 | 4.45 | 5.38 | |
| Inlet Screen | ||||
| 119 | 6684700 | 4.29 | 5.19 | |
| Pump Body Comp. | ||||
| 120 | 6691430 | 36.15 | 43.74 | |
| Diaphragm Cover-metering | ||||
| 121 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 122 | 6691312 | 1.15 | 1.39 | |
| Throttle Set Screw | ||||
| 123 | 6684698 | 4.29 | 5.19 | |
| Throttle Valve Till B023800 | ||||
| 124 | 6684883 | 18.75 | 22.69 | |
| Pump Gasket (old 577-25100-20) | ||||
| 125 | 6691457 | 7.10 | 8.59 | |
| Pump Diaphragm | ||||
| 126 | 6684693 | 8.58 | 10.38 | |
| No longer available, no replacement | ||||
| 127 | 6685220 | |||
| No longer available, no replacement | ||||
| 128 | 6690827 | |||
| Priming Pump Comp. | ||||
| 129 | 6685139 | 5.94 | 7.18 | |
| Fuel Pipe 2.5x4x80 | ||||
| 130 | 6692347 | 1.15 | 1.39 | |
| Collar 5.8 Till G103930 | ||||
| 131 | 6692244 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x18ps | ||||
| 132 | 6695505 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 133 | 6696360 | |||
| Air Vent Assembly (old 564-06611-90) | ||||
| 134 | 6691389 | 10.23 | 12.37 | |
| Air Vent Valve Ass'y For Aus | ||||
| 136 | 6692171 | 4.95 | 5.99 | |
| No information available, not orderable | ||||
| 137 | 6684625 | |||
| Tank Cap D Ass'y, Black (old 595-06516-90 & 669171 | ||||
| 138 | 6691763 | 7.59 | 9.18 | |
| Fuel Pipe 2.5x4x70 | ||||
| 139 | 6692346 | 1.15 | 1.39 | |
| Return Grommet Till 7.2014 | ||||
| 140A | 6697846 | 1.04 | 1.26 | |
| Clip,6.3 Dia. | ||||
| 141 | 6684619 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 142A | 6698874 | |||
| Fuel Pipe | ||||
| 143A | 6698715 | 9.75 | 11.80 | |
| Cutter Cover (old 138-33171-20/6687300) | ||||
| 144 | 6687302 | 8.58 | 10.38 | |
| Guard Plate | ||||
| 145 | 6687275 | 2.31 | 2.80 | |
| Flange nut | ||||
| 146 | 6695170 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 147 | 6687285 | |||
| Protection Plate | ||||
| 147A | 6601209 | 13.86 | 16.77 | |
| Support Plate | ||||
| 148 | 6690762 | 3.30 | 3.99 | |
| Lock Nut 6 Ups-p | ||||
| 149 | 6695175 | 1.15 | 1.39 | |
| Ring | ||||
| 150 | 6684639 | 2.15 | 2.60 | |
| Gear Case Comp. | ||||
| 151 | 6688684 | 15.13 | 18.30 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 152 | 6688643 | 1.15 | 1.39 | |
| Spring Nut 6 | ||||
| 153 | 6695475 | 1.15 | 1.39 | |
| Hex. Hole Bolt 6x18/s | ||||
| 154 | 6695495 | 1.15 | 1.39 | |
| Cutter Guide 734l M6 | ||||
| 155 | 6687147 | 26.16 | 31.66 | |
| Guide Plate (old 075-33160-20) | ||||
| 156 | 6686612 | 1.15 | 1.39 | |
| Cam Rod | ||||
| 157 | 6686811 | 5.78 | 6.99 | |
| No longer available, no replacement | ||||
| 158 | 6687086 | |||
| Gear 2 Comp. | ||||
| 159A | 6698773 | 18.84 | 22.79 | |
| Gear Case Gasket (old 303-33160-20) | ||||
| 160 | 6688909 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 161 | 6692101 | |||
| Ball Bearing 608 Zz C3 | ||||
| 162 | 6695547 | 3.30 | 3.99 | |
| No longer available, no replacement | ||||
| 163 | 6688846 | |||
| Hex. Socket Hd. Bolt (w/sp.washer) M4x12 | ||||
| 164 | 6684595 | 2.15 | 2.60 | |
| Hex. Hole Flush Bolt 6x25 | ||||
| 165 | 6695075 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 166 | 6686654 | |||
| No longer available, no replacement | ||||
| 167 | 6687187 | |||
| Bolt | ||||
| 168 | 6687158 | 1.15 | 1.39 | |
| Hex. Hole Bolt 4x10s | ||||
| 169 | 6695484 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 170 | 6698931 | |||
| No information available, not orderable | ||||
| 501 | 6684813 | |||
| Combi. Box Spanner 10x19 ,plus | ||||
| 502 | 6685997 | 4.45 | 5.38 | |
