Here you will find all available parts and drawings of the 'Hikoki CH65Y'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

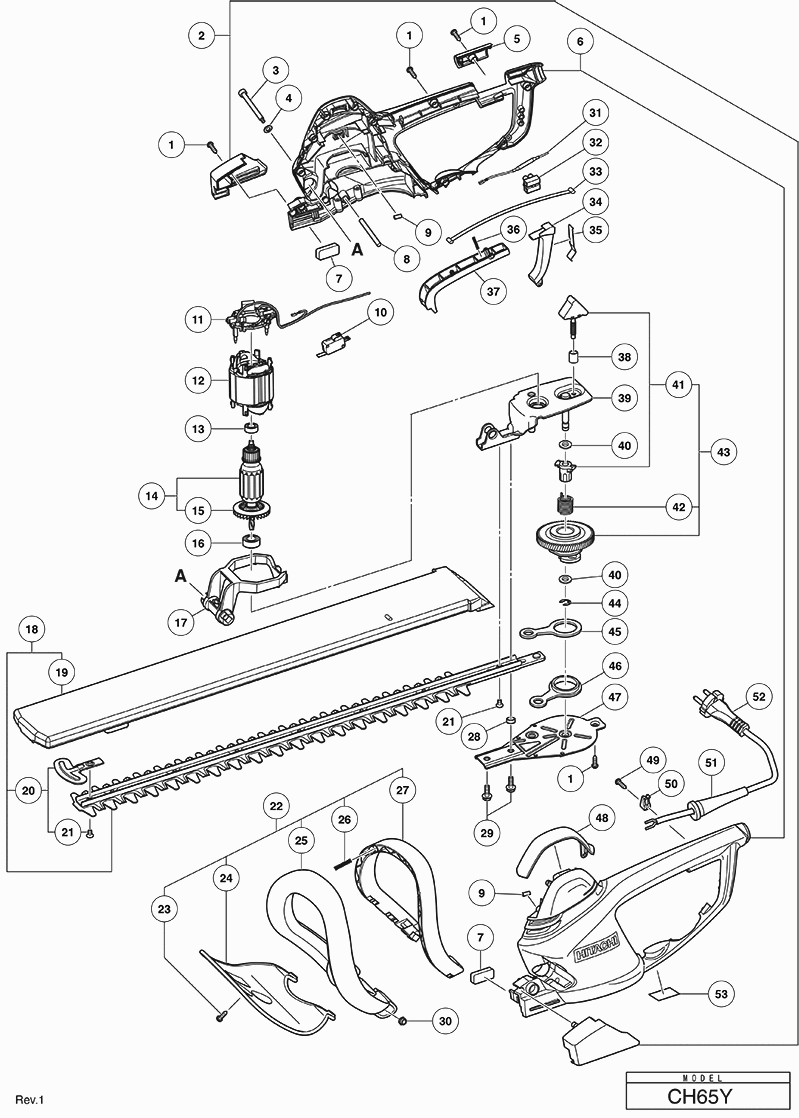

Technical drawing of model Hikoki CH65Y
Spare parts list of model Hikoki CH65Y
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cable | ||||
| *52 | 371273 | 1.65 | 2.00 | |
| Screw | ||||
| 1 | 371241 | 1.04 | 1.26 | |
| Front Case | ||||
| 2 | 371248 | 2.40 | 2.90 | |
| Screw | ||||
| 3 | 371239 | 1.05 | 1.27 | |
| Washer | ||||
| 4 | 371240 | 1.04 | 1.26 | |
| Cord Cover | ||||
| 5 | 371243 | 1.04 | 1.26 | |
| Housing (a).(b) Set | ||||
| 6 | 371242 | 16.36 | 19.80 | |
| Housing (a).(b) Set | ||||
| 6A | 371242 | 16.36 | 19.80 | |
| Felt | ||||
| 7 | 371249 | 2.55 | 3.09 | |
| Spindle Ass'y | ||||
| 8 | 371250 | 1.04 | 1.26 | |
| Rubber | ||||
| 9 | 371251 | 1.04 | 1.26 | |
| Switch | ||||
| 10 | 371268 | 2.25 | 2.72 | |
| Carbon Brush Ass'y | ||||
| 11 | 371267 | 7.80 | 9.44 | |
| Field | ||||
| 12 | 371274 | 9.45 | 11.43 | |
| Ball Bearing 626-2z | ||||
| 13 | 371275 | 1.05 | 1.27 | |
| Armature | ||||
| 14 | 371277 | 36.03 | 43.59 | |
| Fan (1) | ||||
| 15 | 371276 | 1.04 | 1.26 | |
| Ball Bearing 608-2z | ||||
| 16 | 371278 | 1.05 | 1.27 | |
| Shift Fork | ||||
| 17 | 371279 | 1.35 | 1.63 | |
| Blade Ass'y Includ.19,20 | ||||
| 18 | 371296 | 68.20 | 82.52 | |
| Blade Case | ||||
| 19 | 371282 | 4.20 | 5.08 | |
| Hand Protector Includ.21 | ||||
| 20 | 371283 | 1.05 | 1.27 | |
| Screw | ||||
| 21 | 371263 | 1.04 | 1.26 | |
| Sub Handle Ass'y Includ.23-27 | ||||
| 22 | 371238 | 14.16 | 17.14 | |
| Tapping Screw St4.2x13 | ||||
| 23 | 371233 | 1.04 | 1.26 | |
| Protector | ||||
| 24 | 371234 | 2.40 | 2.90 | |
| Sub Handle (b) | ||||
| 25 | 371235 | 7.20 | 8.71 | |
| Spring (a) | ||||
| 26 | 371237 | 1.04 | 1.26 | |
| Sub Handle (a) | ||||
| 27 | 371236 | 4.35 | 5.26 | |
| Sleeve | ||||
| 28 | 371265 | 1.04 | 1.26 | |
| Bolt | ||||
| 29 | 371297 | 1.04 | 1.26 | |
| Nut | ||||
| 30 | 371298 | 1.04 | 1.26 | |
| Wiring Harness | ||||
| 31 | 371244 | 1.95 | 2.36 | |
| Connector | ||||
| 32 | 371245 | 1.04 | 1.26 | |
| Nylon Rope | ||||
| 33 | 371246 | 1.04 | 1.26 | |
| Rear Trigger | ||||
| 34 | 371256 | 1.04 | 1.26 | |
| Spring | ||||
| 35 | 371255 | 1.04 | 1.26 | |
| Spring | ||||
| 36 | 371247 | 1.04 | 1.26 | |
| Trigger (1) | ||||
| 37 | 371257 | 1.20 | 1.45 | |
| Sleeve | ||||
| 38 | 371252 | 1.04 | 1.26 | |
| Bearing Support | ||||
| 39 | 371253 | 11.40 | 13.79 | |
| Washer | ||||
| 40 | 371254 | 2.25 | 2.72 | |
| Brake Pin Set | ||||
| 41 | 371258 | 9.60 | 11.62 | |
| Clutch Spring | ||||
| 42 | 371259 | 2.10 | 2.54 | |
| Gear Ass'y Includ.41,42 | ||||
| 43 | 371260 | 50.19 | 60.73 | |
| Washer Spring | ||||
| 44 | 371261 | 1.04 | 1.26 | |
| Cam Rod (a) | ||||
| 45 | 371262 | 2.55 | 3.09 | |
| Cam Rod (b) | ||||
| 46 | 371264 | 2.55 | 3.09 | |
| Bottom Cover | ||||
| 47 | 371266 | 4.35 | 5.26 | |
| Head Cover | ||||
| 48 | 371269 | 1.35 | 1.63 | |
| Screw | ||||
| 49 | 371270 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 50 | 371271 | 1.04 | 1.26 | |
| Cord Armor | ||||
| 51 | 371272 | 1.04 | 1.26 | |
| Cable | ||||
| 52 | 371273 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 52A | 500439Z | |||
| Grease | ||||
| 601 | 371299 | 39.88 | 48.25 | |
| Grease | ||||
| 602 | 371300 | 14.10 | 17.06 | |
| No information available, not orderable | ||||
| 603 | 371303 | |||
| No information available, not orderable | ||||
| 604 | 371304 | |||
