Here you will find all available parts and drawings of the 'Hikoki CH27EPA'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

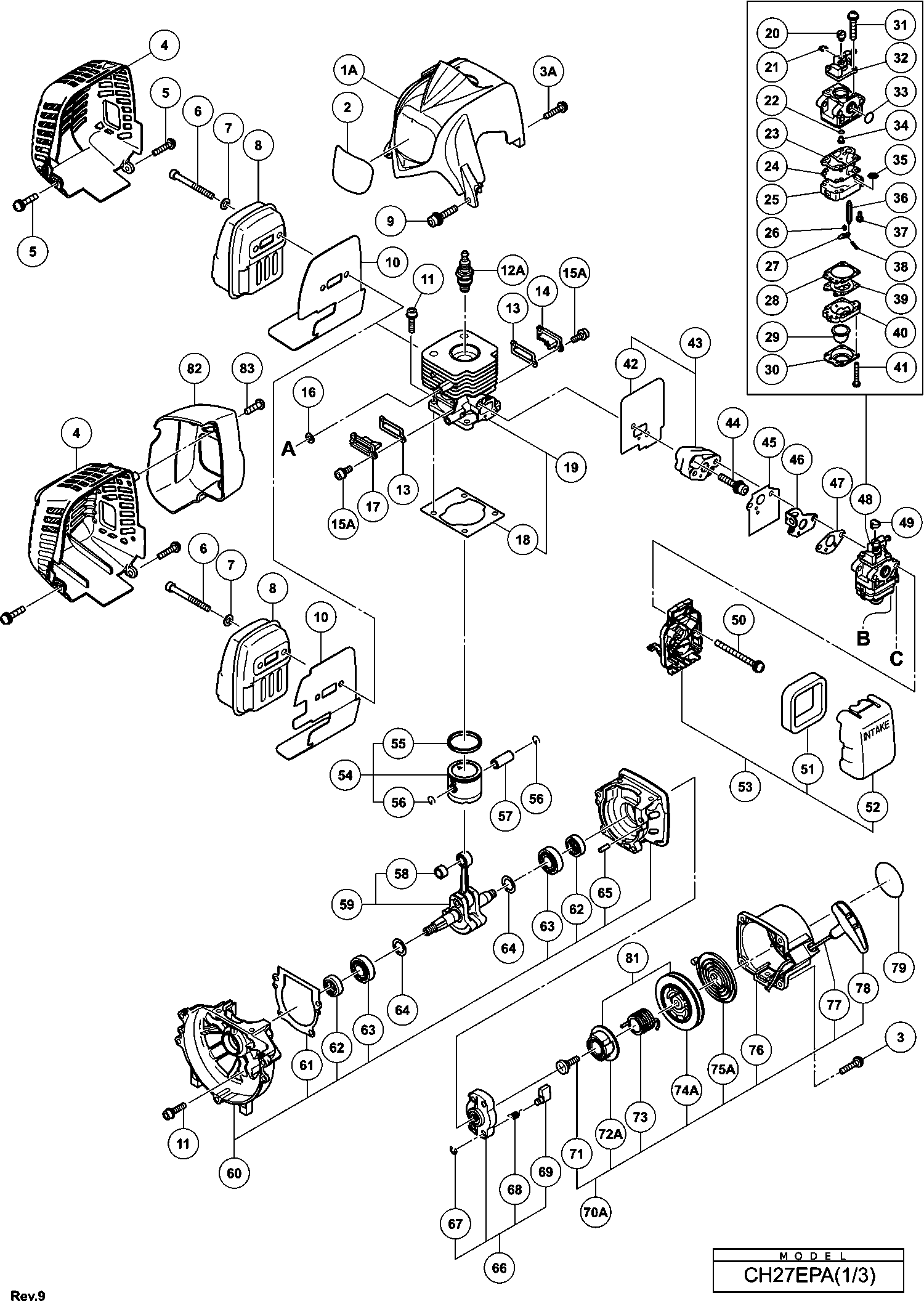

Technical drawing of model Hikoki CH27EPA

Spare parts list of model Hikoki CH27EPA

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Cylinder Cover
1 6698481 6.45 7.80
Cylinder Cover
1A 6697921 6.10 7.38
M4 Screw (black)
3A 6699780 1.04 1.26
Muffler Cover Since 11.2013
4 6600336 6.45 7.80
Muffler Cover
4 6698493 4.20 5.08
Screw 5x16/ps
5 6695386 1.15 1.39
Hex. Hole Bolt M6x55
6 6684638 2.15 2.60
Hex.hole Bolt 6x65 (old 990-51060-653)
6 6695067 1.15 1.39
Ring
7 6684639 2.15 2.60
Muffler
8 6698477 11.85 14.34
Muffler (b) For Europe
8 6600461 7.50 9.08
Seal Lock Hex. Socket Hd. Bolt M5x30
9 6698950 1.20 1.45
Heat Protection Panel Since 11.2013
10 6600324 1.35 1.63
Hex. Hole Bolt 5x20s
11 6695491 1.15 1.39
Spark Plug Ass'y Bmr7a
12A 6699316 8.91 10.78
Spark Plug Ass'y Cj6 Except For Aus,nzl
12A 6699322 2.48 2.99
Cover Packing
13 6697684 1.04 1.26
Scavenging Cover (a)
14 6698484 2.10 2.54
Hex. Socket Hd. Bolt (w/sp.washer) M4x12
15A 6684595 2.15 2.60
Washer T1.6
16 6684600 2.15 2.60
Scavenging Cover (b)
17 6698485 2.10 2.54
Cylinder Gasket
18 6697681 1.04 1.26
Cylinder Set Pn Includ.18
19 6697679 33.58 40.63
Swivel
20 6684697 6.44 7.79
Stop Ring
21 6684696 2.15 2.60
O-RING (old 550-25100-20)
22 6684695 4.29 5.19
Pump Gasket
23 6684692 29.19 35.32
Pump Diaphragm
24 6684693 8.58 10.38
Pump Body
25 6699942 14.38 17.39
Metering Lever Spring
26 6696323 4.63 5.60
Control Lever
27 6685217 3.30 3.99
Diaphragm Gasket
28 6684691 8.58 10.38
Priming Body
29 6684689 6.44 7.79
Diaphragm Cover
30 6684688 8.58 10.38
Throttle Set Screw
31 6684698 4.29 5.19
Throttle Valve Till B023800
32 6684883 18.75 22.69
No information available, not orderable
33 6695670
Main Jet #32
34 6699943 5.11 6.19
Inlet Screen
35 6684700 4.29 5.19
Needle Valve
36 6685215 5.28 6.38
No longer available, no replacement
37 6691305
Hinge Pin
38 6685219 1.15 1.39
Metering Diaphragm
39 6684690 18.00 21.78
Priming Pump Comp.
40 6684687 16.34 19.77
Set Screw
41 6684699 2.15 2.60
Intake Packing
42 6697691 1.04 1.26
Carburetor Insulator Set Pn Includ.42
43 6698954 4.45 5.38
Seal Lock Hex. Socket Bolt (w/washers)m5
44 6698844 1.20 1.45
Carburetor Packing
45 6684616 2.15 2.60
Throttle Wire Fixing Plate
46 6684629 4.29 5.19
Carburetor Gasket (old 402-0602K-21/6689836)
47 6684615 2.15 2.60
Carburetor Ass'y Includ.20-41
48 6698960 40.24 48.69
No information available, not orderable
49 6684628
Plus Screw 5x60ws Till Z315900
50 6695431 1.15 1.39
Cleaner Element
51 6690347 4.45 5.38
Air Cleaner Cap
52 6690139 4.45 5.38
Air Filter
53 6698961 5.45 6.59
Piston Set Pn Includ.56,57
54 6697683 11.05 13.37
Piston Ring
55 6686121 4.45 5.38
Cir Clip
56 6684590 2.15 2.60
Piston Pin
57 6684591 4.29 5.19
Needle Bearing Hk0810b
58 6695590 3.30 3.99
Crank Shaft Ass'y Includ.58
59 6698962 13.04 15.78
Crank Case Ass'y Includ.62-64,66
60 6697687 25.11 30.39
Crank Case Packing
61 6697688 1.04 1.26
Oil Seal
62 6684607 4.29 5.19
Ball Bearing 6001 C3
63 6684608 3.80 4.60
Crank Shaft Washer
64 6697685 1.04 1.26
Knock Pin 4x12 (old 999-05041-203)
65 6695521 1.15 1.39
Starter Pulley Ass'y For (s) Type Since 7.2012 Fo
66 6684681 13.20 15.97
Stop Ring E-5 Since C237092
67 6684683 2.15 2.60
D4e Retaining Ring (old 993-55040-001)
67 6685101 1.15 1.39
Starter Pawl Spring
68 6684684 4.29 5.19
Starter Pawl
69 6684685 4.29 5.19
No information available, not orderable
70A 6699995
Set Screw (old 839-03045-20)
71 6684679 2.15 2.60
Cam Plate For (s) Type Since 9.2013 For Aus
72A 6699996 2.55 3.09
Damper Spring For (s) Type Since 7.2012 For Aus
73 6684677 8.58 10.38
No information available, not orderable
74 6684676
Starter Rope Reel For (s) Type Since 9.2013 For A
74A 6699997 8.41 10.18
Recoil Spring Till 7.2014
75A 6684675 11.55 13.98
Recoil Starter Body Comp. For (s) Type Since 7.20
76 6684673 19.06 23.07
Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo
77 6684674 4.29 5.19
Starter Handle
78 6684680 2.15 2.60
Till 8.2013 For Aus
81 6699691 6.10 7.38
Muffler Rear Cover Since 11.2013
82 6600335 8.55 10.35
Tapping Screw D4 Since 11.2013
83 6600332 1.04 1.26
Tapping Screw D4
101 6697190 1.04 1.26
Handle (b)
102 6696487 3.45 4.17
Lock Lever
103 6696490 1.04 1.26
Lever (1)
104 6696488 1.04 1.26
Spring
105 6698819 1.04 1.26
STOP SWITCH (OLD 170-04063-80)
106 6685239 3.30 3.99
Stop Switch Cord
107 6698820 2.80 3.39
Protection Tube
108 6698822 1.04 1.26
Throttle Wire
109 6698821 4.13 4.99
Handle (a)
110 6696486 3.45 4.17
Hex.hole Bolt M5x12/s
111 6684667 2.15 2.60
Hex. Hole Bolt M5x25/s
112 6684709 2.15 2.60
Anti-vibe Rubber (a)
113 6684666 4.29 5.19
Pipe Holder (a)
114 6698643 2.10 2.54
Pipe Holder (b)
115 6698644 2.10 2.54
Anti-vibe Rubber (b)
116 6684665 4.29 5.19
Stop Ring C-12 Outer
117 6684664 2.15 2.60
No information available, not orderable
118 6698486
Fan Case
118A 6697922 11.71 14.17
Clutch Drum Comp.
119 6684663 19.06 23.07
Step Bolt Till F113050
120 6689627 1.15 1.39
Ring
121 6684648 2.15 2.60
Clutch Plate (a)
122 6689528 1.15 1.39
Clutch Set Since J038101
123 6697655 6.76 8.18
No information available, not orderable
124 6697619
Hex. Nut M8
125 6684612 2.15 2.60
Bolt Washer M8
126 6684611 2.15 2.60
Hex. Hole Bolt 4x18ws Till H124040
127 6695508 1.15 1.39
Ignition Coil Comp.
128 6699937 44.01 53.26
Ignition Coil Comp.
128 6699936 30.25 36.60
Earth Cord For Europe,aus,nzl
130 6699940 2.15 2.60
Clip
131 6699939 1.98 2.39
Flange Nut M4 For Europe,aus,nzl
132 6699938 1.04 1.26
Cord
135 6698992 1.98 2.39
Cord
136 6697690 1.98 2.39
Magneto Rotor Comp.
137 6698396 8.70 10.53
Shield Tube 3x5x180
138 6684618 4.29 5.19
Fuel Pipe 3x5x85
139 6684880 2.15 2.60
No longer available, no replacement
140A 6698402
No information available, not orderable
141 6684625
Return Grommet Till 7.2014
142A 6697846 1.04 1.26
Spacer (1)
143 6698496 1.05 1.27
Tank
144A 6600317 7.95 9.62
Stand
145 6694787 3.30 3.99
Flange Bolt
146 6696557 1.05 1.27
No information available, not orderable
147 6684620
Clip,6.3 Dia.
148 6684619 2.15 2.60
Lock Nut 6 Ups-p
161 6695175 1.15 1.39
Ring
162 6684639 2.15 2.60
Support Plate
163 6690744 11.23 13.58
Hex. Hole Bolt 6x12
164 6695078 1.15 1.39
Ring
165 6684822 2.15 2.60
COMPLETE GREASE NIPPLE (OLD 300-32250-80)
166 6688643 1.15 1.39
Grease Stop
167 6686659 1.15 1.39
Plus Bolt 6x14
168 6695016 1.15 1.39
No information available, not orderable
170 6694556
Hex Hole Bolt 4x8
171 6695035 1.15 1.39
Gear Case Cover (a)
172 6689167 1.15 1.39
Handle
173 6688089 4.45 5.38
Hex Hole Button Screw 6x15
174 6695079 1.15 1.39
Ball Bearing 608dd
175 608DDM 5.55 6.72
STOP RING C-22, INNER (OLD 993-51022-002)
176 6695293 1.15 1.39
Gear Shaft
177 6698957 45.23 54.72
Ball Bearing 608vv
178 333945 1.80 2.18
Anti-vibration Loop Handle Assembly (old 500-37286
179 6696088 14.35 17.36
Handle Grip (old 503-3738e-20)
180 6691098 6.44 7.79
Hex.nut 6
181 6684835 2.15 2.60
Ring
182 6689681 1.15 1.39
Tapping Screw 5x20
183 6695255 1.15 1.39
Level Mark
184 6684851 2.15 2.60
Level Mark
186 6684852 2.15 2.60
Main Pipe 1450l
187 6698963 23.45 28.37
Drive Shaft 1483l
188A 6697879 14.03 16.97
Hanger D24
189 6689277 3.30 3.99
Cap (a)
190 6698515 2.10 2.54
Hex. Hole Bolt 5x10
191 6695042 1.15 1.39
Grease Stop
192 6686669 1.15 1.39
Handle Knob A Comp. (old 512-32286-80)
193 6691200 3.30 3.99
Gear Case A,24 Dia
194 6688653 30.25 36.60
Hex. Hole Bolt M5x25/s
195 6684709 2.15 2.60
Pinion (1)
196 6698958 13.70 16.58
Stop Ring S-12, Outer (old 993-52012-002)
198 6695302 1.15 1.39
Stop Ring C-24,inner
199 6684732 2.15 2.60
Handle Bracket A
200 6691134 2.31 2.80
Bolt 6x43/p (black)
201 6684838 2.15 2.60
Cutter Cover
202 6687301 8.41 10.18
Cutter Guide 625.5mm (old 122-32286-21)
203 6687125 24.20 29.28
Cutter (a)
204 6687079 46.29 56.01
No longer available, no replacement
205 6687187
Bolt
206 6687162 1.15 1.39
Flange nut
207 6695170 1.15 1.39
Spacer
208 6688633 1.15 1.39
Hex. Hole Flush Bolt 6x25
209 6695075 1.15 1.39
Grease Stop
210 6686647 1.15 1.39
Cam-rod Holding Plate (old 105-32280-20)
211 6686826 1.15 1.39
Hex. Hole Bolt 4x10s
212 6695484 1.15 1.39
Bolt
213 6687158 1.15 1.39
Retaining Ring E-type D6
214 6695310 1.15 1.39
Gear (1)
215 6698959 21.78 26.35
STOP RING C-26, INNER (OLD 993-51026-002)
216 6695294 1.15 1.39
Hex Hole Flush Screw 6x16
218 6695073 1.15 1.39
Grease Stop
219 6686666 1.15 1.39
Cam-rod Guide Plate (old 075-32280-20)
220 6686611 1.15 1.39
Cam Rod (a)
221 6699732 22.09 26.73
Cam Shaft Comp.
222 6686790 36.15 43.74
No information available, not orderable
223 6698772
Gear case cover B (old 328-32286-21)
224 6689173 24.20 29.28
Gear Case Cover (b)
224A 6600479 22.24 26.91
Hex. Socket Hd. Bolt (w/sp.washer) M4x12
225 6684595 2.15 2.60
Special Washer
226 6699934 1.04 1.26
Gear Case Packing
227 6699733 1.04 1.26
Combi. Box Spanner 10x19 ,plus
501 6685997 4.45 5.38
No information available, not orderable
502 6684813
No information available, not orderable
503 6692867
No information available, not orderable
504 6684766
