Here you will find all available parts and drawings of the 'Hikoki CH22EPA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

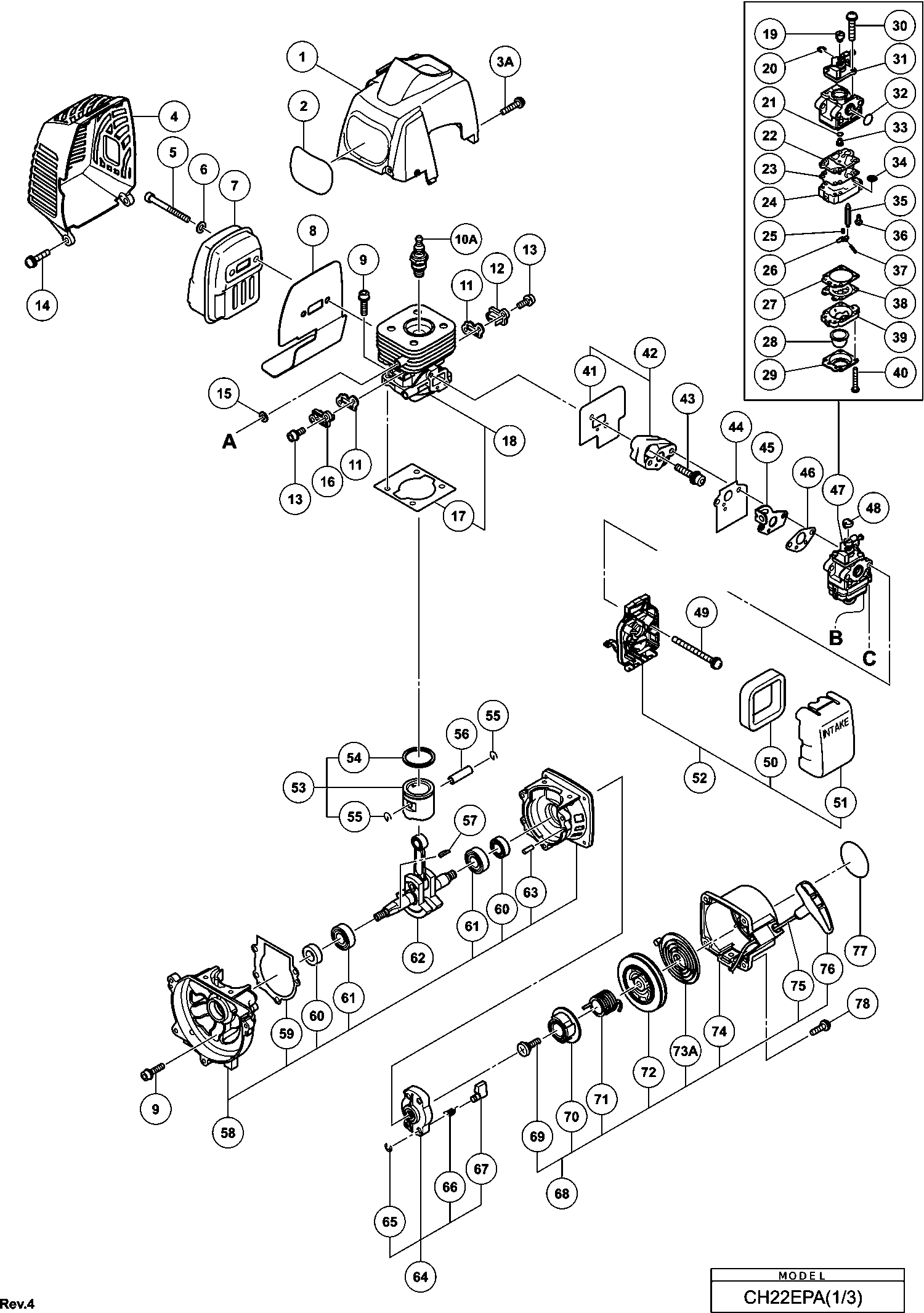

Technical drawing of model Hikoki CH22EPA
Spare parts list of model Hikoki CH22EPA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 6697680 | |||
| M4 Screw (black) | ||||
| 3A | 6699780 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 4 | 6699015 | |||
| Hex. Hole Bolt M6x55 | ||||
| 5 | 6684638 | 2.15 | 2.60 | |
| Ring | ||||
| 6 | 6684639 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 7 | 6699935 | |||
| No information available, not orderable | ||||
| 8 | 6696553 | |||
| Hex. Hole Bolt 5x20s | ||||
| 9 | 6695491 | 1.15 | 1.39 | |
| Spark Plug Ass'y Bmr7a | ||||
| 10A | 6699316 | 8.91 | 10.78 | |
| No information available, not orderable | ||||
| 11 | 6696922 | |||
| Intake Cover (a) | ||||
| 12 | 6696535 | 1.05 | 1.27 | |
| Hex. Hole Bolt 4x12ws Till C026900 | ||||
| 13 | 6695507 | 1.15 | 1.39 | |
| Screw 5x16/ps | ||||
| 14 | 6695386 | 1.15 | 1.39 | |
| Washer T1.6 | ||||
| 15 | 6684600 | 2.15 | 2.60 | |
| Intake Cover (b) | ||||
| 16 | 6696536 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 17 | 6696920 | |||
| No information available, not orderable | ||||
| 18 | 6697962 | |||
| Swivel | ||||
| 19 | 6684697 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 20 | 6684696 | 2.15 | 2.60 | |
| O-RING (old 550-25100-20) | ||||
| 21 | 6684695 | 4.29 | 5.19 | |
| Pump Gasket | ||||
| 22 | 6684692 | 29.19 | 35.32 | |
| Pump Diaphragm | ||||
| 23 | 6684693 | 8.58 | 10.38 | |
| No information available, not orderable | ||||
| 24 | 6699942 | |||
| Metering Lever Spring | ||||
| 25 | 6696323 | 4.63 | 5.60 | |
| Control Lever | ||||
| 26 | 6685217 | 3.30 | 3.99 | |
| Diaphragm Gasket | ||||
| 27 | 6684691 | 8.58 | 10.38 | |
| Priming Body | ||||
| 28 | 6684689 | 6.44 | 7.79 | |
| Diaphragm Cover | ||||
| 29 | 6684688 | 8.58 | 10.38 | |
| Throttle Set Screw | ||||
| 30 | 6684698 | 4.29 | 5.19 | |
| Throttle Valve Till B023800 | ||||
| 31 | 6684883 | 18.75 | 22.69 | |
| No information available, not orderable | ||||
| 32 | 6695670 | |||
| No information available, not orderable | ||||
| 33 | 6699943 | |||
| Inlet Screen | ||||
| 34 | 6684700 | 4.29 | 5.19 | |
| Needle Valve | ||||
| 35 | 6685215 | 5.28 | 6.38 | |
| No longer available, no replacement | ||||
| 36 | 6691305 | |||
| Hinge Pin | ||||
| 37 | 6685219 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 38 | 6684690 | |||
| Priming Pump Comp. | ||||
| 39 | 6684687 | 16.34 | 19.77 | |
| Set Screw | ||||
| 40 | 6684699 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 41 | 6696933 | |||
| No information available, not orderable | ||||
| 42 | 6699016 | |||
| Seal Lock Hex. Socket Bolt (w/washers)m5 | ||||
| 43 | 6698844 | 1.20 | 1.45 | |
| Carburetor Packing | ||||
| 44 | 6684616 | 2.15 | 2.60 | |
| Throttle Wire Fixing Plate | ||||
| 45 | 6684629 | 4.29 | 5.19 | |
| Carburetor Gasket (old 402-0602K-21/6689836) | ||||
| 46 | 6684615 | 2.15 | 2.60 | |
| Carburetor Ass'y Includ.20-41 | ||||
| 47 | 6698960 | 40.24 | 48.69 | |
| No longer available, no replacement | ||||
| 48 | 6691337 | |||
| Plus Screw 5x60ws Till Z315900 | ||||
| 49 | 6695431 | 1.15 | 1.39 | |
| Cleaner Element | ||||
| 50 | 6690347 | 4.45 | 5.38 | |
| Air Cleaner Cap | ||||
| 51 | 6690139 | 4.45 | 5.38 | |
| Air Filter | ||||
| 52 | 6698961 | 5.45 | 6.59 | |
| No information available, not orderable | ||||
| 53 | 6697682 | |||
| Piston Ring | ||||
| 54 | 6686118 | 4.45 | 5.38 | |
| Cir Clip | ||||
| 55 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 56 | 6696944 | 3.33 | 4.02 | |
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 57 | 6684899 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 58 | 6697686 | |||
| No information available, not orderable | ||||
| 59 | 6696925 | |||
| Oil Seal | ||||
| 60 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 61 | 6684608 | 3.80 | 4.60 | |
| No information available, not orderable | ||||
| 62 | 6699017 | |||
| Knock Pin 4x12 (old 999-05041-203) | ||||
| 63 | 6695521 | 1.15 | 1.39 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 64 | 6684681 | 13.20 | 15.97 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 65 | 6685101 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 66 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl | ||||
| 67 | 6684685 | 4.29 | 5.19 | |
| Set Screw (old 839-03045-20) | ||||
| 69 | 6684679 | 2.15 | 2.60 | |
| Cam Plate | ||||
| 70 | 6684678 | 6.44 | 7.79 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 71 | 6684677 | 8.58 | 10.38 | |
| Recoil Spring Till 7.2014 | ||||
| 73A | 6684675 | 11.55 | 13.98 | |
| No information available, not orderable | ||||
| 74 | 6684673 | |||
| Starter Handle | ||||
| 76 | 6684680 | 2.15 | 2.60 | |
| Screw 4x16/ps | ||||
| 78 | 6695374 | 1.15 | 1.39 | |
| Tapping Screw D4 | ||||
| 101 | 6697190 | 1.04 | 1.26 | |
| Handle (b) | ||||
| 102 | 6696487 | 3.45 | 4.17 | |
| Lock Lever | ||||
| 103 | 6696490 | 1.04 | 1.26 | |
| Lever (1) | ||||
| 104 | 6696488 | 1.04 | 1.26 | |
| Spring | ||||
| 105 | 6698819 | 1.04 | 1.26 | |
| STOP SWITCH (OLD 170-04063-80) | ||||
| 106 | 6685239 | 3.30 | 3.99 | |
| Stop Switch Cord | ||||
| 107 | 6698820 | 2.80 | 3.39 | |
| Protection Tube | ||||
| 108 | 6698822 | 1.04 | 1.26 | |
| Throttle Wire | ||||
| 109 | 6698821 | 4.13 | 4.99 | |
| No information available, not orderable | ||||
| 110 | 6696486 | |||
| Hex.hole Bolt M5x12/s | ||||
| 111 | 6684667 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x25/s | ||||
| 112 | 6684709 | 2.15 | 2.60 | |
| Anti-vibe Rubber (a) | ||||
| 113 | 6684666 | 4.29 | 5.19 | |
| Pipe Holder (a) | ||||
| 114 | 6698643 | 2.10 | 2.54 | |
| Pipe Holder (b) | ||||
| 115 | 6698644 | 2.10 | 2.54 | |
| Anti-vibe Rubber (b) | ||||
| 116 | 6684665 | 4.29 | 5.19 | |
| Clutch Drum Comp. | ||||
| 118 | 6684663 | 19.06 | 23.07 | |
| Step Bolt Till F113050 | ||||
| 119 | 6689627 | 1.15 | 1.39 | |
| Ring | ||||
| 120 | 6684648 | 2.15 | 2.60 | |
| Clutch Plate (a) | ||||
| 121 | 6689528 | 1.15 | 1.39 | |
| Clutch Set Since J038101 | ||||
| 122 | 6697655 | 6.76 | 8.18 | |
| No information available, not orderable | ||||
| 123 | 6697619 | |||
| Hex. Nut M8 | ||||
| 124 | 6684612 | 2.15 | 2.60 | |
| Bolt Washer M8 | ||||
| 125 | 6684611 | 2.15 | 2.60 | |
| Hex. Hole Bolt 4x18ws Till H124040 | ||||
| 126 | 6695508 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 127 | 6699286 | |||
| No information available, not orderable | ||||
| 128A | 6601421 | |||
| No information available, not orderable | ||||
| 129 | 6699933 | |||
| No information available, not orderable | ||||
| 130 | 6698992 | |||
| No information available, not orderable | ||||
| 131 | 6697690 | |||
| Magneto Rotor Comp. | ||||
| 132 | 6699289 | 25.71 | 31.11 | |
| Stop Ring C-12 Outer | ||||
| 133 | 6684664 | 2.15 | 2.60 | |
| Tapping Screw D4.5x16 | ||||
| 134 | 6684636 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 135 | 6684618 | |||
| Fuel Pipe 3x5x95 | ||||
| 136 | 6692358 | 1.15 | 1.39 | |
| Return Grommet Till 7.2014 | ||||
| 137 | 6697846 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 138A | 6698402 | |||
| No information available, not orderable | ||||
| 139 | 6684625 | |||
| Tank | ||||
| 140 | 6696569 | 4.59 | 5.55 | |
| No information available, not orderable | ||||
| 141 | 6684620 | |||
| Clip,6.3 Dia. | ||||
| 142 | 6684619 | 2.15 | 2.60 | |
| Stand | ||||
| 143 | 6696556 | 2.10 | 2.54 | |
| Flange Bolt | ||||
| 144 | 6696557 | 1.05 | 1.27 | |
| Lock Nut 6 Ups-p | ||||
| 161 | 6695175 | 1.15 | 1.39 | |
| Ring | ||||
| 162 | 6684639 | 2.15 | 2.60 | |
| Support Plate | ||||
| 163 | 6690744 | 11.23 | 13.58 | |
| Hex. Hole Bolt 6x12 | ||||
| 164 | 6695078 | 1.15 | 1.39 | |
| Ring | ||||
| 165 | 6684822 | 2.15 | 2.60 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 166 | 6688643 | 1.15 | 1.39 | |
| Grease Stop | ||||
| 167 | 6686659 | 1.15 | 1.39 | |
| Plus Bolt 6x14 | ||||
| 168 | 6695016 | 1.15 | 1.39 | |
| Hex Hole Bolt 4x8 | ||||
| 171 | 6695035 | 1.15 | 1.39 | |
| Gear Case Cover (a) | ||||
| 172 | 6689167 | 1.15 | 1.39 | |
| Handle | ||||
| 173 | 6688089 | 4.45 | 5.38 | |
| Hex Hole Button Screw 6x15 | ||||
| 174 | 6695079 | 1.15 | 1.39 | |
| Ball Bearing 608dd | ||||
| 175 | 608DDM | 5.55 | 6.72 | |
| STOP RING C-22, INNER (OLD 993-51022-002) | ||||
| 176 | 6695293 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 177 | 6698957 | |||
| Ball Bearing 608vv | ||||
| 178 | 333945 | 1.80 | 2.18 | |
| Anti-vibration Loop Handle Assembly (old 500-37286 | ||||
| 179 | 6696088 | 14.35 | 17.36 | |
| Handle Grip (old 503-3738e-20) | ||||
| 180 | 6691098 | 6.44 | 7.79 | |
| Hex.nut 6 | ||||
| 181 | 6684835 | 2.15 | 2.60 | |
| Ring | ||||
| 182 | 6689681 | 1.15 | 1.39 | |
| Tapping Screw 5x20 | ||||
| 183 | 6695255 | 1.15 | 1.39 | |
| Front Handle | ||||
| 184 | 6688096 | 7.75 | 9.38 | |
| Hex. Hole Bolt 5x55 | ||||
| 186 | 6695056 | 1.15 | 1.39 | |
| Spring Washer 5 | ||||
| 187 | 6684834 | 2.15 | 2.60 | |
| Washer M5 (black) | ||||
| 188 | 6684918 | 2.15 | 2.60 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 189 | 6684714 | 2.15 | 2.60 | |
| Ring | ||||
| 190 | 6695194 | 1.15 | 1.39 | |
| Bracket A | ||||
| 191 | 6688103 | 2.31 | 2.80 | |
| Level Mark | ||||
| 192 | 6684851 | 2.15 | 2.60 | |
| Level Mark | ||||
| 194 | 6684852 | 2.15 | 2.60 | |
| Main Pipe L=945 For (s) | ||||
| 195 | 6699930 | 32.53 | 39.36 | |
| Drive Shaft 978l | ||||
| 196 | 6689440 | 14.68 | 17.76 | |
| Drive Shaft 633l | ||||
| 196 | 6689439 | 12.88 | 15.58 | |
| Hanger D24 | ||||
| 197 | 6689277 | 3.30 | 3.99 | |
| Cap (a) | ||||
| 198 | 6698515 | 2.10 | 2.54 | |
| Hex. Hole Bolt 5x10 | ||||
| 199 | 6695042 | 1.15 | 1.39 | |
| Grease Stop | ||||
| 200 | 6686669 | 1.15 | 1.39 | |
| ANGLE LIMITTER (OLD 222-32286-20) | ||||
| 201 | 6688159 | 2.31 | 2.80 | |
| Handle Knob A Comp. (old 512-32286-80) | ||||
| 202 | 6691200 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 203 | 6688653 | |||
| Hex. Hole Bolt M5x25/s | ||||
| 204 | 6684709 | 2.15 | 2.60 | |
| Pinion (1) | ||||
| 205 | 6698958 | 13.70 | 16.58 | |
| Stop Ring S-12, Outer (old 993-52012-002) | ||||
| 207 | 6695302 | 1.15 | 1.39 | |
| Stop Ring C-24,inner | ||||
| 208 | 6684732 | 2.15 | 2.60 | |
| Handle Bracket A | ||||
| 209 | 6691134 | 2.31 | 2.80 | |
| Bolt 6x43/p (black) | ||||
| 210 | 6684838 | 2.15 | 2.60 | |
| Cutter Cover | ||||
| 211 | 6687301 | 8.41 | 10.18 | |
| Protection Plate | ||||
| 212A | 6601208 | 13.86 | 16.77 | |
| Cutter Guide 625.5mm (old 122-32286-21) | ||||
| 213 | 6687125 | 24.20 | 29.28 | |
| Cutter (a) | ||||
| 214 | 6687079 | 46.29 | 56.01 | |
| No longer available, no replacement | ||||
| 215 | 6687187 | |||
| No longer available, no replacement | ||||
| 216 | 6687162 | |||
| Flange nut | ||||
| 217 | 6695170 | 1.15 | 1.39 | |
| Bracket B | ||||
| 218 | 6688104 | 3.30 | 3.99 | |
| Hex.nut 6 | ||||
| 219 | 6684835 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 220 | 6685075 | |||
| Spacer | ||||
| 221 | 6688633 | 1.15 | 1.39 | |
| Hex. Hole Flush Bolt 6x25 | ||||
| 222 | 6695075 | 1.15 | 1.39 | |
| Grease Stop | ||||
| 223 | 6686647 | 1.15 | 1.39 | |
| Cam-rod Holding Plate (old 105-32280-20) | ||||
| 224 | 6686826 | 1.15 | 1.39 | |
| Hex. Hole Bolt 4x10s | ||||
| 225 | 6695484 | 1.15 | 1.39 | |
| Bolt | ||||
| 226 | 6687158 | 1.15 | 1.39 | |
| Retaining Ring E-type D6 | ||||
| 227 | 6695310 | 1.15 | 1.39 | |
| Gear (1) | ||||
| 228 | 6698959 | 21.78 | 26.35 | |
| STOP RING C-26, INNER (OLD 993-51026-002) | ||||
| 229 | 6695294 | 1.15 | 1.39 | |
| Ball Bearing #6000zz | ||||
| 230 | 6695525 | 6.93 | 8.38 | |
| Hex Hole Flush Screw 6x16 | ||||
| 231 | 6695073 | 1.15 | 1.39 | |
| Grease Stop | ||||
| 232 | 6686666 | 1.15 | 1.39 | |
| Cam-rod Guide Plate (old 075-32280-20) | ||||
| 233 | 6686611 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 235 | 6686790 | |||
| No information available, not orderable | ||||
| 236 | 6698772 | |||
| Gear Case Cover (b) | ||||
| 237 | 6600479 | 22.24 | 26.91 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M4x12 | ||||
| 238 | 6684595 | 2.15 | 2.60 | |
| Special Washer | ||||
| 239 | 6699934 | 1.04 | 1.26 | |
| Gear Case Packing | ||||
| 240 | 6699733 | 1.04 | 1.26 | |
| Combi. Box Spanner 10x19 ,plus | ||||
| 501 | 6685997 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 502 | 6684813 | |||
| No information available, not orderable | ||||
| 503 | 6692867 | |||
| No information available, not orderable | ||||
| 504 | 6684766 | |||
