Here you will find all available parts and drawings of the 'Hikoki CH22EAP2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

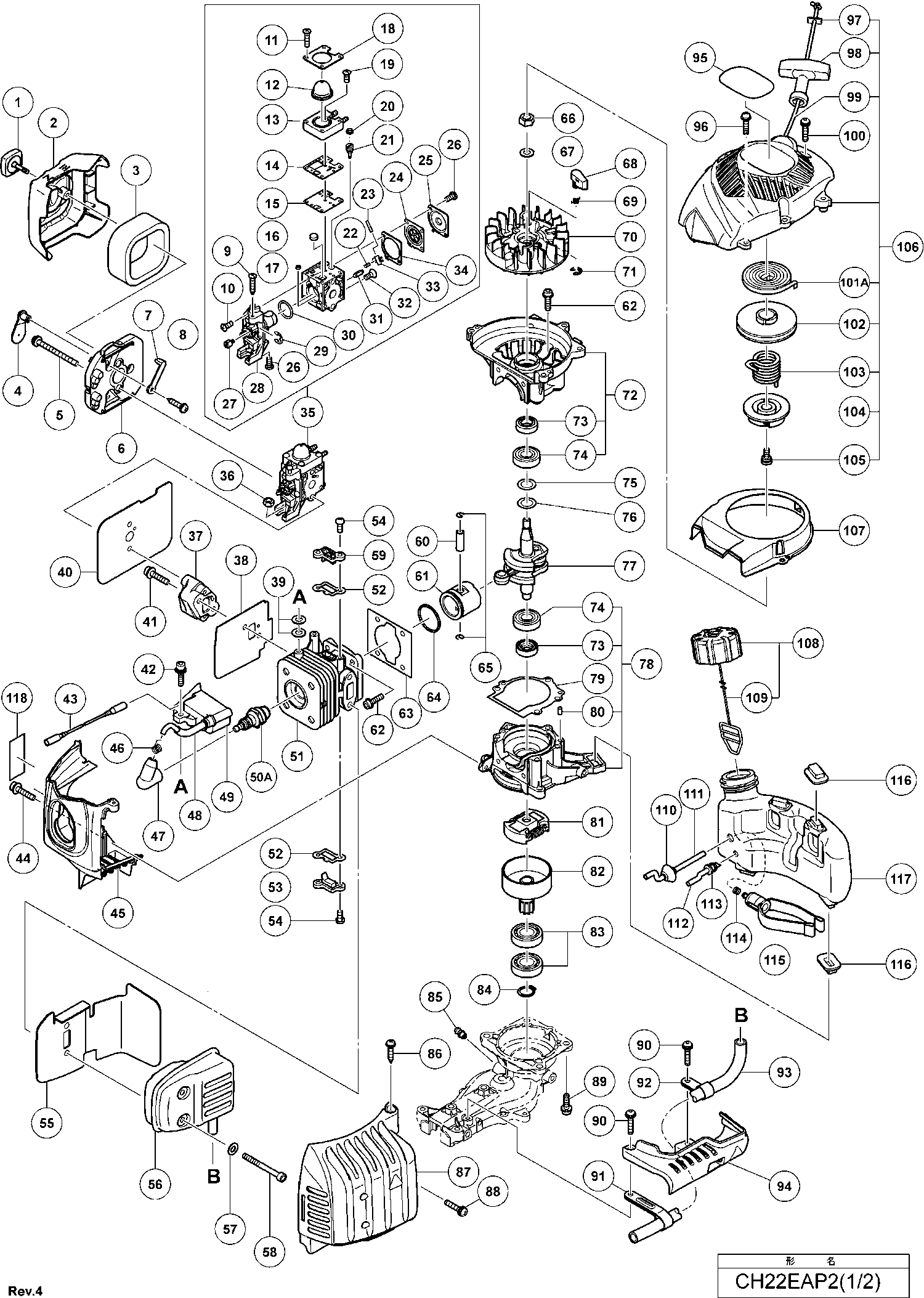

Technical drawing of model Hikoki CH22EAP2
Spare parts list of model Hikoki CH22EAP2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cleaner Sponge | ||||
| 3 | 6690365 | 1.15 | 1.39 | |
| Machine Screw (w/washers) M5x65 (black) | ||||
| 5A | 312440 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 8 | 309470 | |||
| Lock Nut M6 (10 Pcs.) | ||||
| 36 | 949567 | 1.05 | 1.27 | |
| Spark Plug Ass'y Bmr7a | ||||
| 50B | 6699316 | 8.91 | 10.78 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 57 | 949432 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 58 | 6696819 | |||
| Bolt Washer D7 | ||||
| 67 | 6696880 | 1.05 | 1.27 | |
| Retaining Ring D4 | ||||
| 71 | 6685336 | 1.05 | 1.27 | |
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 84 | 939544 | 2.13 | 2.57 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 86 | 302089 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 88 | 887021 | |||
| No longer available, no replacement | ||||
| 112A | 6601399 | |||
| Spring Washer M5 | ||||
| 144 | 6698884 | 1.80 | 2.18 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 155 | 305812 | 1.04 | 1.26 | |
| Nylon Nut M5 | ||||
| 161 | 305491 | 1.65 | 2.00 | |
| U-nut M5 For 780mm Silver Color Blade | ||||
| 165 | 6699108 | 1.65 | 2.00 | |
| Washer (b) | ||||
| 166 | 6699112 | 1.04 | 1.26 | |
| Washer M7 For 780mm Silver Color Blade | ||||
| 167 | 6699111 | 1.04 | 1.26 | |
| Shoulder Button Bolt M5x25 For 780mm Silver Color | ||||
| 168 | 6699109 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 182 | 6699176 | |||
| No longer available, no replacement | ||||
| 208 | 6600358 | |||
| Grease For Impact Wrench (100g) | ||||
| 601 | 971042 | 17.60 | 21.30 | |
