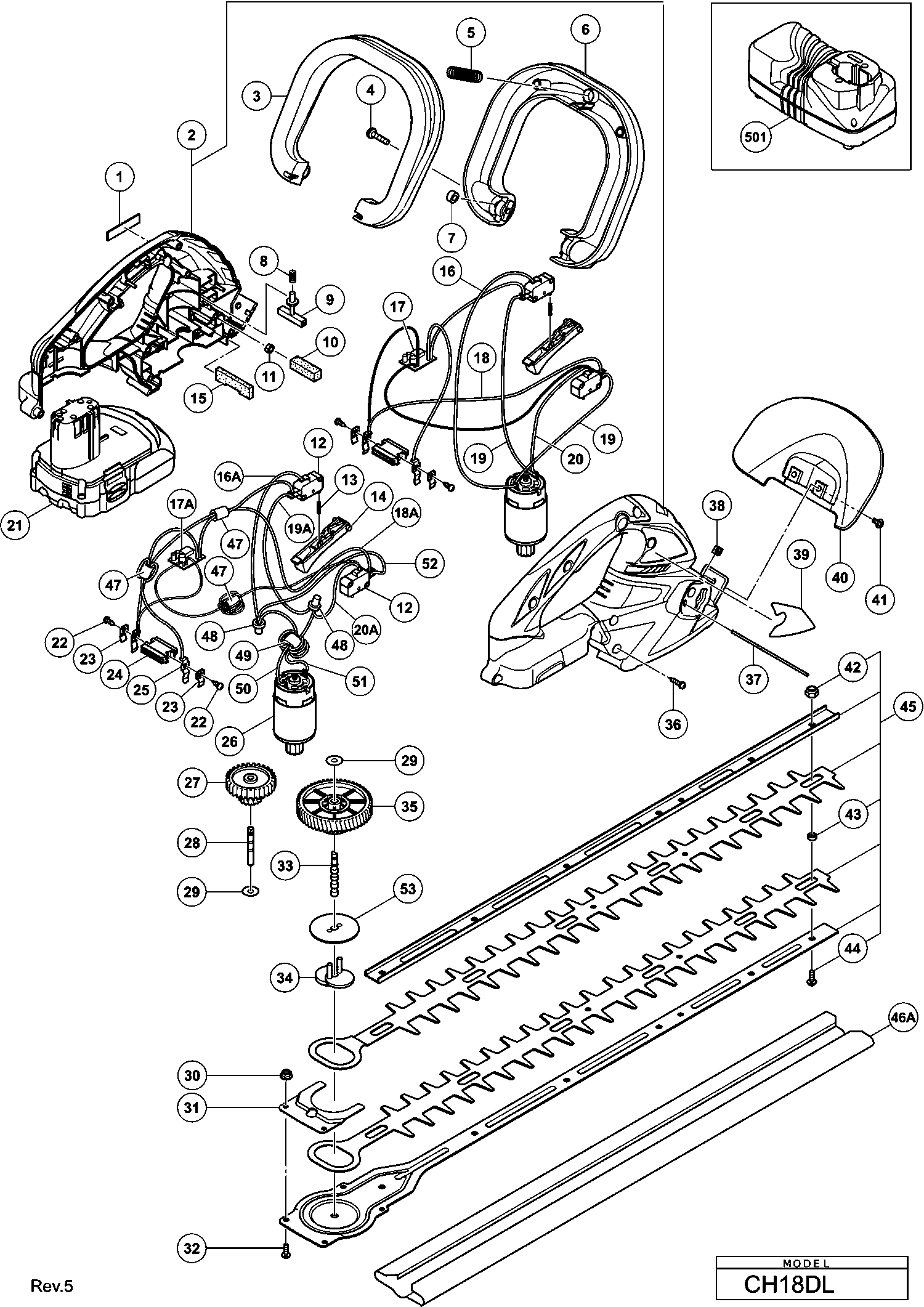

Technical drawing of model Hikoki CH18DL
Spare parts list of model Hikoki CH18DL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Name Plate | ||||
| 1 | 330719 | 2.10 | 2.54 | |
| Housing (a).(b) Set | ||||
| 2 | 333333 | 17.74 | 21.46 | |
| Handle (a) | ||||
| 3 | 333338 | 4.20 | 5.08 | |
| Machine Screw (w/washers) M5x30 | ||||
| 4 | 880561 | 1.05 | 1.27 | |
| Spring (c) | ||||
| 5 | 333341 | 1.20 | 1.45 | |
| Handle (b) | ||||
| 6 | 333339 | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 7 | 333340 | |||
| Spring (d) | ||||
| 8 | 333344 | 1.20 | 1.45 | |
| Push Pin | ||||
| 9 | 333343 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 10 | 333760 | |||
| Nut M5 (black) | ||||
| 11 | 302012 | 1.05 | 1.27 | |
| Switch | ||||
| 12 | 333325 | 3.15 | 3.81 | |
| Spring | ||||
| 13 | 324307 | 1.88 | 2.27 | |
| Trigger | ||||
| 14 | 333761 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 15 | 996678 | |||
| No information available, not orderable | ||||
| 16 | 333769 | |||
| Internal Wire (black) | ||||
| 16A | 334610 | 1.20 | 1.45 | |
| Printed Circuit Board For Aus,nzl,rus | ||||
| 17 | 333763 | 13.80 | 16.70 | |
| Printed Circuit Board | ||||
| 17A | 334611 | 13.80 | 16.70 | |
| No information available, not orderable | ||||
| 18 | 333327 | |||
| Terminal (brown) | ||||
| 18A | 334612 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 19 | 333768 | |||
| Internal Wire (brown) | ||||
| 19A | 334613 | 1.20 | 1.45 | |
| Internal Wiring (red) | ||||
| 20 | 323166 | 1.20 | 1.45 | |
| Internal wire (red) | ||||
| 20A | 334614 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 21 | 327731 | |||
| Screw | ||||
| 22 | 958715 | 1.04 | 1.26 | |
| Spring | ||||
| 23 | 996118 | 2.55 | 3.09 | |
| Terminal Piece | ||||
| 24 | 320997 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 25 | 327155 | |||
| Motor Dc 18v | ||||
| 26 | 333323 | 13.35 | 16.15 | |
| First Gear | ||||
| 27 | 333334 | 13.80 | 16.70 | |
| Spindle (b) | ||||
| 28 | 329832 | 1.88 | 2.27 | |
| Washer D15 | ||||
| 29 | 329835 | 1.88 | 2.27 | |
| No information available, not orderable | ||||
| 30 | 996683 | |||
| Intermediate Plate | ||||
| 31 | 325624 | 1.80 | 2.18 | |
| Machine Screw (w/sp. Washer) M4x16(black | ||||
| 32 | 696997 | 1.80 | 2.18 | |
| Chute | ||||
| 33 | 333335 | 2.10 | 2.54 | |
| Eccentric | ||||
| 34 | 333780 | 10.20 | 12.34 | |
| Final Gear | ||||
| 35 | 333336 | 4.20 | 5.08 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 36 | 301653 | 1.04 | 1.26 | |
| Shaft (d) | ||||
| 37 | 333342 | 1.20 | 1.45 | |
| Nut M4 | ||||
| 38 | 330056 | 1.88 | 2.27 | |
| Protector | ||||
| 40 | 330879 | 6.90 | 8.35 | |
| Machine Screw (w/washer) M4x12 (black) | ||||
| 41 | 333781 | 1.20 | 1.45 | |
| Nylon Nut M5 | ||||
| 42 | 333772 | 2.10 | 2.54 | |
| Spacer bushing | ||||
| 43 | 333775 | 3.15 | 3.81 | |
| Machine Screw (w/sp. Washer) M5x14 | ||||
| 44 | 333773 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 45 | 333776 | |||
| Blade Case (for 520mm) | ||||
| 46A | 339039 | 14.10 | 17.06 | |
| Ferrite Core For Europe,rus,aut,isr | ||||
| 47 | 318247 | 1.05 | 1.27 | |
| Connector 50092 (10 Pcs.) | ||||
| 48 | 959141 | 3.75 | 4.54 | |
| Ferrite Core Except For Sin,mal,uae | ||||
| 49 | 334379 | 4.65 | 5.63 | |
| Internal Wire (black) | ||||
| 50 | 334615 | 1.20 | 1.45 | |
| Internal wire (red) | ||||
| 51 | 334616 | 1.20 | 1.45 | |
| Internal Wire (brown) Except For Aus,nzl,rus | ||||
| 52 | 334617 | 1.20 | 1.45 | |
| Washer (a) | ||||
| 53 | 333765 | 1.20 | 1.45 | |
