Here you will find all available parts and drawings of the 'Hikoki CH14DL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

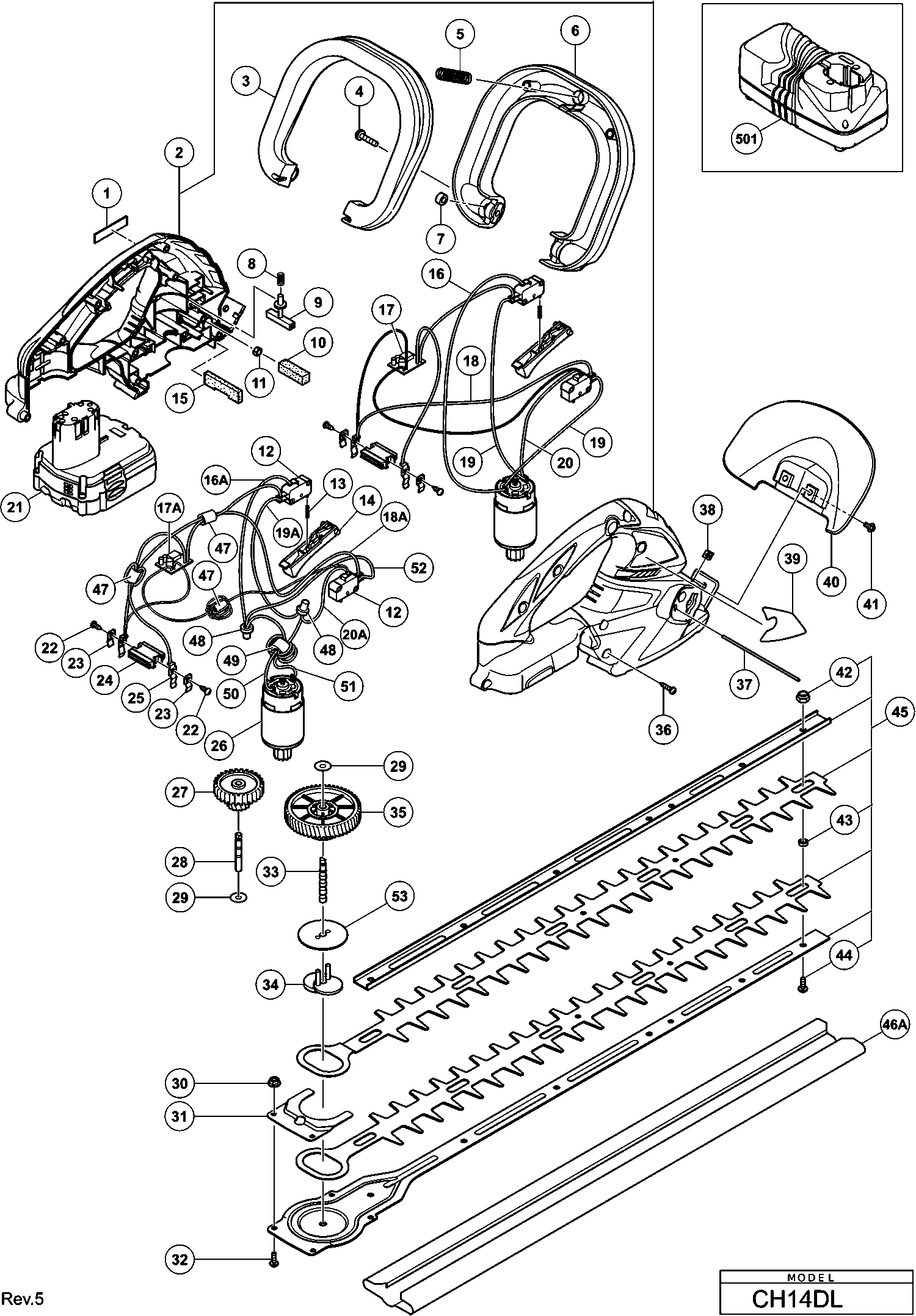

Technical drawing of model Hikoki CH14DL
Spare parts list of model Hikoki CH14DL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Name Plate | ||||
| 1 | 330719 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 2 | 333332 | |||
| Handle (a) | ||||
| 3 | 333338 | 4.20 | 5.08 | |
| Machine Screw (w/washers) M5x30 | ||||
| 4 | 880561 | 1.05 | 1.27 | |
| Spring (c) | ||||
| 5 | 333341 | 1.20 | 1.45 | |
| Handle (b) | ||||
| 6 | 333339 | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 7 | 333340 | |||
| Spring (d) | ||||
| 8 | 333344 | 1.20 | 1.45 | |
| Push Pin | ||||
| 9 | 333343 | 1.20 | 1.45 | |
| PAKKING | ||||
| 10 | 333760 | 1.00 | 1.21 | |
| Nut M5 (black) | ||||
| 11 | 302012 | 1.05 | 1.27 | |
| Switch | ||||
| 12 | 333325 | 3.15 | 3.81 | |
| Spring | ||||
| 13 | 324307 | 1.88 | 2.27 | |
| Trigger | ||||
| 14 | 333761 | 1.04 | 1.26 | |
| VILT | ||||
| 15 | 996678 | 1.00 | 1.21 | |
| BEDRADING ZWART | ||||
| 16 | 333769 | 1.00 | 1.21 | |
| Internal Wire (black) | ||||
| 16A | 334610 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 17 | 333763 | |||
| Printed Circuit Board | ||||
| 17A | 334611 | 13.80 | 16.70 | |
| No information available, not orderable | ||||
| 18 | 333327 | |||
| Terminal (brown) | ||||
| 18A | 334612 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 19 | 333768 | |||
| Internal Wire (brown) | ||||
| 19A | 334613 | 1.20 | 1.45 | |
| Internal Wiring (red) | ||||
| 20 | 323166 | 1.20 | 1.45 | |
| Internal wire (red) | ||||
| 20A | 334614 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 21 | 327729 | |||
| Screw | ||||
| 22 | 958715 | 1.04 | 1.26 | |
| Spring | ||||
| 23 | 996118 | 2.55 | 3.09 | |
| Terminal Piece | ||||
| 24 | 320997 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 25 | 327155 | |||
| No information available, not orderable | ||||
| 26 | 333322 | |||
| First Gear | ||||
| 27 | 333334 | 13.80 | 16.70 | |
| Spindle (b) | ||||
| 28 | 329832 | 1.88 | 2.27 | |
| Washer D15 | ||||
| 29 | 329835 | 1.88 | 2.27 | |
| MOER | ||||
| 30 | 996683 | 1.00 | 1.21 | |
| Intermediate Plate | ||||
| 31 | 325624 | 1.80 | 2.18 | |
| Machine Screw (w/sp. Washer) M4x16(black | ||||
| 32 | 696997 | 1.80 | 2.18 | |
| Chute | ||||
| 33 | 333335 | 2.10 | 2.54 | |
| Eccentric | ||||
| 34 | 333780 | 10.20 | 12.34 | |
| Final Gear | ||||
| 35 | 333336 | 4.20 | 5.08 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 36 | 301653 | 1.04 | 1.26 | |
| Shaft (d) | ||||
| 37 | 333342 | 1.20 | 1.45 | |
| Nut M4 | ||||
| 38 | 330056 | 1.88 | 2.27 | |
| Protector | ||||
| 40 | 330879 | 6.90 | 8.35 | |
| Machine Screw (w/washer) M4x12 (black) | ||||
| 41 | 333781 | 1.20 | 1.45 | |
| Nylon Nut M5 | ||||
| 42 | 333772 | 2.10 | 2.54 | |
| Spacer bushing | ||||
| 43 | 333775 | 3.15 | 3.81 | |
| Machine Screw (w/sp. Washer) M5x14 | ||||
| 44 | 333773 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 45 | 333776 | |||
| No information available, not orderable | ||||
| 46A | 339039 | |||
| Ferrite Core For Europe,rus,aut,isr | ||||
| 47 | 318247 | 1.05 | 1.27 | |
| Connector 50092 (10 Pcs.) | ||||
| 48 | 959141 | 3.75 | 4.54 | |
| Ferrite Core Except For Sin,mal,uae | ||||
| 49 | 334379 | 4.65 | 5.63 | |
| Internal Wire (black) | ||||
| 50 | 334615 | 1.20 | 1.45 | |
| Internal wire (red) | ||||
| 51 | 334616 | 1.20 | 1.45 | |
| Internal Wire (brown) Except For Aus,nzl,rus | ||||
| 52 | 334617 | 1.20 | 1.45 | |
| Washer (a) | ||||
| 53 | 333765 | 1.20 | 1.45 | |
