Here you will find all available parts and drawings of the 'Hikoki CH10DL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

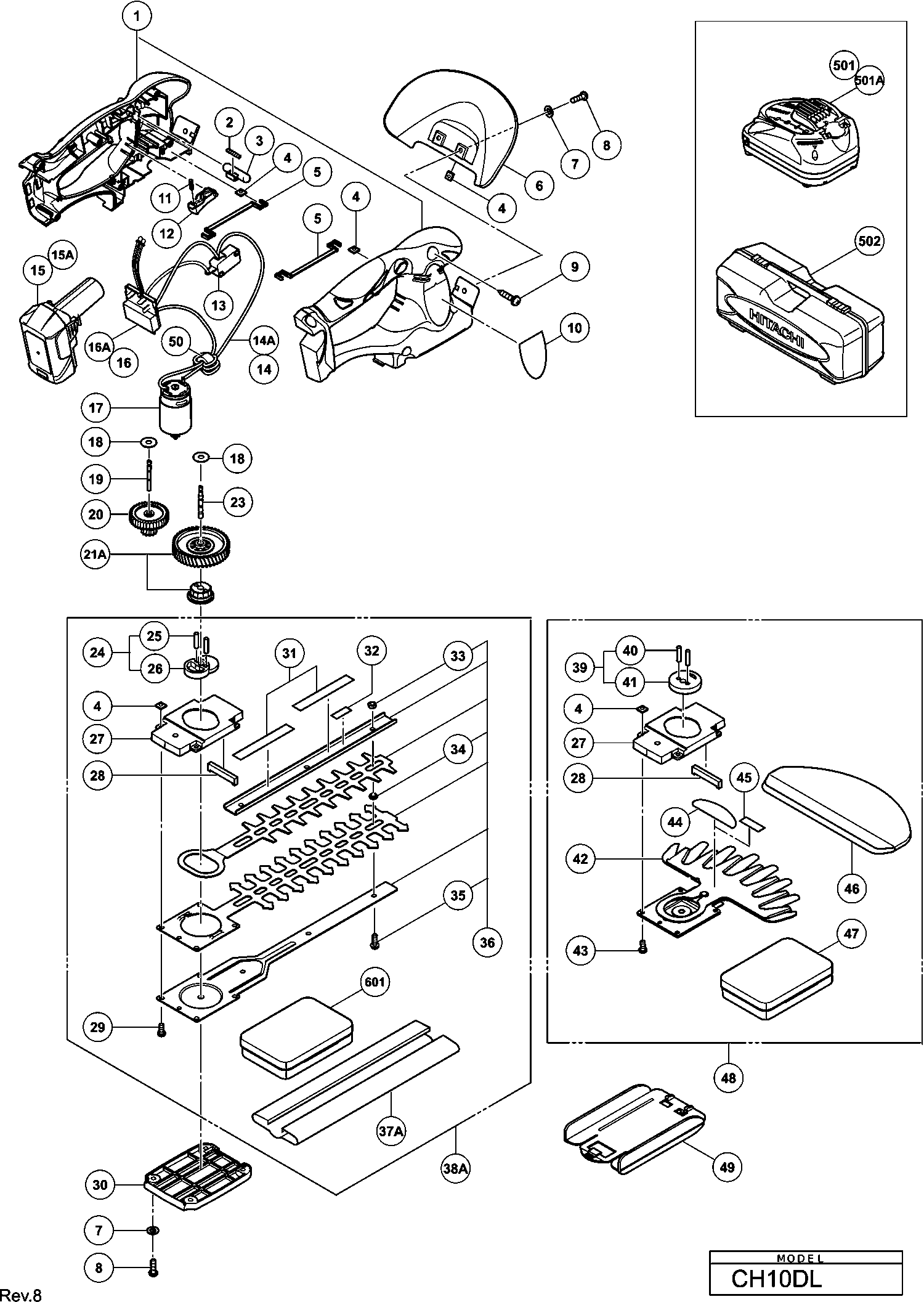

Technical drawing of model Hikoki CH10DL
Spare parts list of model Hikoki CH10DL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 330882 | |||
| Spring | ||||
| 2 | 324306 | 1.88 | 2.27 | |
| No longer available, no replacement | ||||
| 3 | 324298 | |||
| Nut M4 | ||||
| 4 | 330056 | 1.88 | 2.27 | |
| No longer available, no replacement | ||||
| 5 | 329837 | |||
| Protector | ||||
| 6 | 330879 | 6.90 | 8.35 | |
| Washer M4 (10 Pcs.) | ||||
| 7 | 949423 | 1.05 | 1.27 | |
| Machine Screw M4x12 (10 Pcs.) | ||||
| 8 | 949217 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 9 | 301653 | 1.04 | 1.26 | |
| Spring | ||||
| 11 | 324307 | 1.88 | 2.27 | |
| TREKKER | ||||
| 12 | 324299 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 13 | 320786 | |||
| No information available, not orderable | ||||
| 14 | 330058 | |||
| Internal wire | ||||
| 14A | 334608 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 15 | 331067 | |||
| No information available, not orderable | ||||
| 15A | 329371 | |||
| No longer available, no replacement | ||||
| 16 | 329839 | |||
| Controller (c) | ||||
| 16A | 334609 | 28.60 | 34.61 | |
| Motor Dc 10.8v | ||||
| 17 | 330880 | 15.81 | 19.13 | |
| Washer D15 | ||||
| 18 | 329835 | 1.88 | 2.27 | |
| Spindle (b) | ||||
| 19 | 329832 | 1.88 | 2.27 | |
| First Gear | ||||
| 20 | 330055 | 3.75 | 4.54 | |
| Final Gear Set | ||||
| 21A | 331755 | 5.70 | 6.90 | |
| No longer available, no replacement | ||||
| 23 | 329830 | |||
| No information available, not orderable | ||||
| 24 | 330878 | |||
| No information available, not orderable | ||||
| 27 | 331507 | |||
| No longer available, no replacement | ||||
| 28 | 331508 | |||
| Machine Screw M4x8 (black) | ||||
| 29 | 323211 | 1.05 | 1.27 | |
| Bottom Cover | ||||
| 30 | 330883 | 3.45 | 4.17 | |
| No longer available, no replacement | ||||
| 33 | 319931 | |||
| No longer available, no replacement | ||||
| 34 | 996689 | |||
| Machine Screw M4x12 (10 Pcs.) | ||||
| 35 | 949217 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 37 | 330884 | |||
| Blade Case (for 190mm) | ||||
| 37A | 339040 | 13.95 | 16.88 | |
| No information available, not orderable | ||||
| 38 | 330881 | |||
| No information available, not orderable | ||||
| 38A | 331257 | |||
| Eccentric | ||||
| 39 | 330886 | 6.60 | 7.99 | |
| Machine Screw M4x8 (black) | ||||
| 43 | 323211 | 1.05 | 1.27 | |
| Protective cover | ||||
| 46 | 328030 | 5.55 | 6.72 | |
| No information available, not orderable | ||||
| 47 | 330057 | |||
| No information available, not orderable | ||||
| 48 | 331258 | |||
| Adjuster | ||||
| 49 | 328023 | 5.55 | 6.72 | |
| Ferrite Core Except For Sin,mal,uae | ||||
| 50 | 334379 | 4.65 | 5.63 | |
| No information available, not orderable | ||||
| 502 | 330885 | |||
| No information available, not orderable | ||||
| 601 | 330057 | |||
