Here you will find all available parts and drawings of the 'Hikoki CH105EC'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

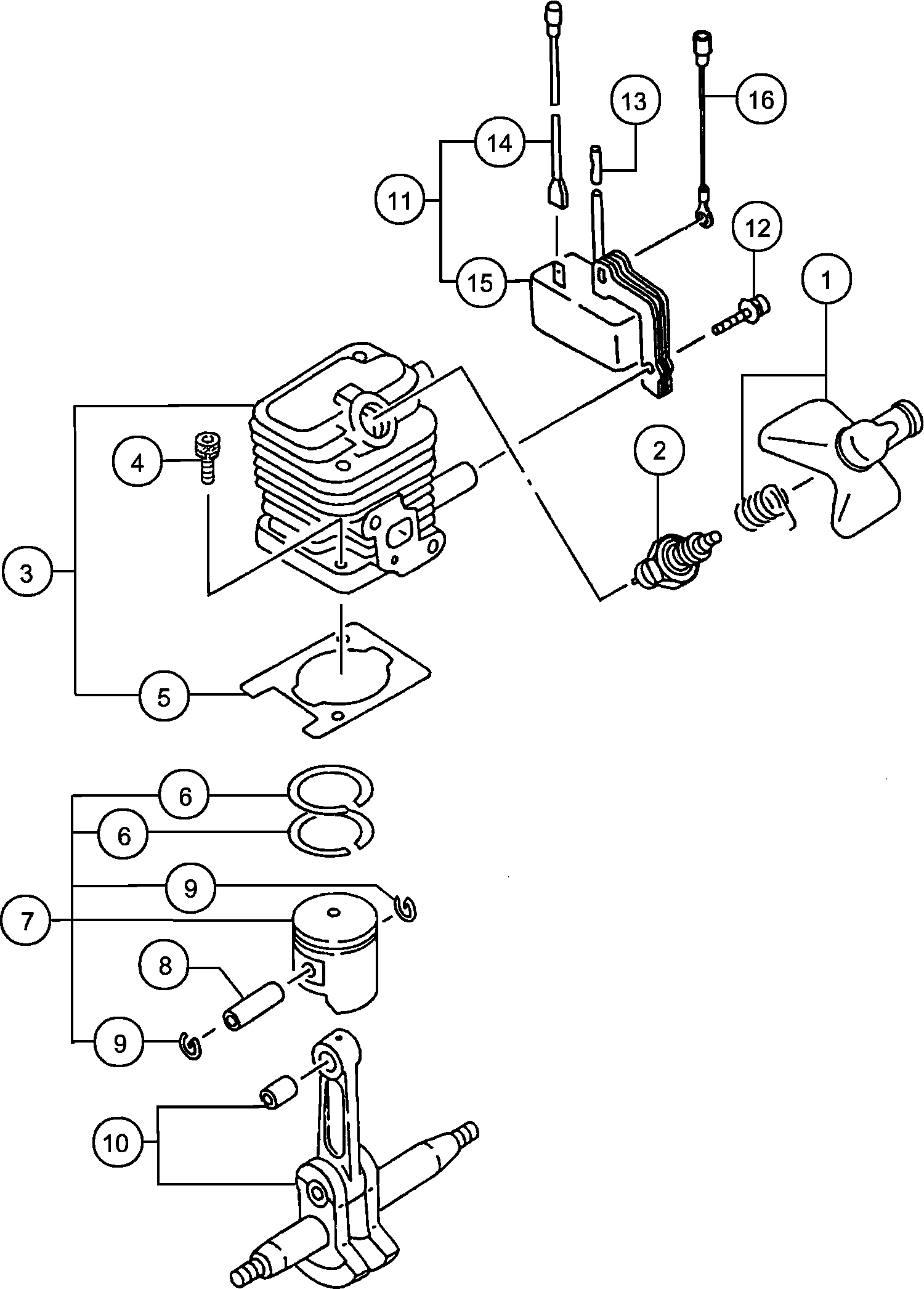

Technical drawing of model Hikoki CH105EC
Spare parts list of model Hikoki CH105EC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Cap | ||||
| 1 | 6687476 | 4.45 | 5.38 | |
| Spark Plug Ass'y Rcj8y | ||||
| 2 | 6699328 | 3.30 | 3.99 | |
| Cylinder Ass'y | ||||
| 3 | 6685481 | 44.31 | 53.62 | |
| No information available, not orderable | ||||
| 4 | 6684668 | |||
| Cylinder Gasket | ||||
| 5 | 6685744 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 6 | 6684588 | 8.58 | 10.38 | |
| Piston Ass'y | ||||
| 7 | 6685893 | 22.24 | 26.91 | |
| Piston Pin | ||||
| 8 | 6684591 | 4.29 | 5.19 | |
| Piston Pin Circlip (old 039-01620-20) | ||||
| 9 | 6686028 | 1.15 | 1.39 | |
| Crank Shaft Comp. | ||||
| 10 | 6686205 | 72.30 | 87.48 | |
| Ignition Coil Ass'y | ||||
| 11 | 6695927 | 34.19 | 41.37 | |
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 12 | 6684599 | 2.15 | 2.60 | |
| Insulator Tube 50l | ||||
| 13 | 6684597 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 14 | 6687866 | |||
| Ignition Coil Comp. | ||||
| 15 | 6695939 | 38.26 | 46.30 | |
| Cord (old 274-51705-80) | ||||
| 16 | 6688477 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 21 | 6601159 | |||
| Crank Case Gasket | ||||
| 22 | 6686720 | 1.15 | 1.39 | |
| Oil Seal | ||||
| 23 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 24 | 6684608 | 3.80 | 4.60 | |
| Gear Shaft Shim 0.20 | ||||
| 25 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 25 | 6684605 | 2.15 | 2.60 | |
| Anti-vibe Rubber | ||||
| 26 | 6691822 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 27 | 6684786 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 28 | 6687389 | 26.16 | 31.66 | |
| Bolt Washer M8 | ||||
| 29 | 6684611 | 2.15 | 2.60 | |
| Ring | ||||
| 30 | 6684971 | 1.04 | 1.26 | |
| Hex. Nut M8 | ||||
| 31 | 6684612 | 2.15 | 2.60 | |
| Stud Bolt 6x22 | ||||
| 32 | 6686771 | 1.15 | 1.39 | |
| Intake Pipe Gasket | ||||
| 41 | 6689891 | 1.15 | 1.39 | |
| Carb. Insulator Set,spare | ||||
| 42 | 6689966 | 6.93 | 8.38 | |
| Hex. Hole Bolt M5x25ws | ||||
| 43 | 6695515 | 1.15 | 1.39 | |
| Carburetor Gasket | ||||
| 44 | 6689839 | 1.15 | 1.39 | |
| O-ring P-15 | ||||
| 45 | 6698966 | 1.04 | 1.26 | |
| Cleaner Body Comp. | ||||
| 46 | 6690119 | 4.45 | 5.38 | |
| Collar 7.5 | ||||
| 47 | 6690804 | 1.15 | 1.39 | |
| Choke Valve Since B028601 | ||||
| 48 | 6691274 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 49 | 6684658 | |||
| Blow Over Check Board | ||||
| 50 | 6690843 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 51 | 6684662 | 2.15 | 2.60 | |
| Screw M5x60 | ||||
| 52 | 6684660 | 2.15 | 2.60 | |
| Cleaner Sponge | ||||
| 53 | 6690364 | 1.15 | 1.39 | |
| Cleaner Cover | ||||
| 54 | 6690417 | 5.94 | 7.18 | |
| Special Screw | ||||
| 55 | 6689737 | 1.15 | 1.39 | |
| Carburetor Set, Wyl120 Since B028601 | ||||
| 56 | 6690487 | 72.30 | 87.48 | |
| Shield Tube Ass'y (old 223-06500-90) | ||||
| 57 | 6685247 | 2.31 | 2.80 | |
| Clip D6 | ||||
| 58 | 6685198 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 59 | 6684620 | |||
| No information available, not orderable | ||||
| 60 | 6691582 | |||
| Collar 5.8 Till G103930 | ||||
| 61 | 6692244 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x18ps | ||||
| 62 | 6695505 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 63 | 6691337 | |||
| Tank Cap D Ass'y, Black (old 595-06516-90 & 669171 | ||||
| 64 | 6691763 | 7.59 | 9.18 | |
| Priming Pump Comp. | ||||
| 65 | 6685139 | 5.94 | 7.18 | |
| Fuel Pipe 2.5x4x80 | ||||
| 66 | 6692347 | 1.15 | 1.39 | |
| Fuel Pipe 2.5x4x70 | ||||
| 67 | 6692346 | 1.15 | 1.39 | |
| Return Grommet Till 7.2014 | ||||
| 68 | 6697846 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 69 | 6684625 | |||
| Muffler Protector | ||||
| 81 | 6692799 | 5.61 | 6.79 | |
| Muffler Gasket | ||||
| 82 | 6692744 | 1.15 | 1.39 | |
| Heat Shield | ||||
| 83 | 6687252 | 2.31 | 2.80 | |
| Muffler Ass'y | ||||
| 84 | 6692477 | 13.04 | 15.78 | |
| Ring | ||||
| 85 | 6684661 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x50 | ||||
| 86 | 6685114 | 1.15 | 1.39 | |
| Fan Housing | ||||
| 87 | 6687010 | 16.79 | 20.31 | |
| Recoil Spring Till 7.2014 | ||||
| 88 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel | ||||
| 89 | 6693066 | 3.30 | 3.99 | |
| Set Screw Till 7.2014 | ||||
| 90 | 6693633 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 91 | 6693405 | |||
| Grommet | ||||
| 92 | 6688050 | 1.15 | 1.39 | |
| Rope Till 7.2014 | ||||
| 93 | 6693168 | 2.31 | 2.80 | |
| Starter Handle | ||||
| 94 | 6693237 | 1.15 | 1.39 | |
| Hex. Hole Bolt 4x15/ps | ||||
| 95 | 6684682 | 2.15 | 2.60 | |
| Clutch | ||||
| 96 | 6688494 | 9.74 | 11.78 | |
| Tapping Screw D4.5x16 | ||||
| 97 | 6684636 | 2.15 | 2.60 | |
| Bolt 4x12ps | ||||
| 98 | 6695441 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 99 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl (old 788-06500-20) | ||||
| 100 | 6693319 | 2.31 | 2.80 | |
| Throttle Set Screw | ||||
| 111 | 6684698 | 4.29 | 5.19 | |
| Swivel | ||||
| 112 | 6684697 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 113 | 6684696 | 2.15 | 2.60 | |
| O-RING (old 550-25100-20) | ||||
| 115 | 6684695 | 4.29 | 5.19 | |
| Main Jet #34.5 Since B028601 | ||||
| 116 | 6691888 | 6.28 | 7.59 | |
| Pump Gasket (old 577-25100-20) | ||||
| 117 | 6691457 | 7.10 | 8.59 | |
| Pump Diaphragm | ||||
| 118 | 6684693 | 8.58 | 10.38 | |
| Inlet Screen | ||||
| 119 | 6684700 | 4.29 | 5.19 | |
| Pump Body Comp. | ||||
| 120 | 6691430 | 36.15 | 43.74 | |
| No longer available, no replacement | ||||
| 121 | 6685220 | |||
| No longer available, no replacement | ||||
| 122 | 6690827 | |||
| Diaphragm Cover-metering | ||||
| 123 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 124 | 6691312 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 131 | 6688672 | |||
| STOP RING C-26, INNER (OLD 993-51026-002) | ||||
| 132 | 6695294 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 133 | 6695524 | |||
| No information available, not orderable | ||||
| 134 | 6695526 | |||
| Clutch Housing Comp. | ||||
| 135 | 6688571 | 17.40 | 21.05 | |
| Gear 1 Since C024001 | ||||
| 136 | 6688968 | 19.36 | 23.43 | |
| Gear 2 Since C024001 | ||||
| 137 | 6688978 | 14.38 | 17.39 | |
| Cam-rod Comp. | ||||
| 138 | 6686810 | 34.19 | 41.37 | |
| Cam Shaft | ||||
| 139 | 6686791 | 50.21 | 60.76 | |
| Gear Case Gasket (old 303-33185-20) | ||||
| 140 | 6688910 | 1.15 | 1.39 | |
| Ball Bearing #608 | ||||
| 141 | 6684738 | 8.58 | 10.38 | |
| Grease Stop | ||||
| 142 | 6686655 | 1.15 | 1.39 | |
| Collar | ||||
| 143 | 6688293 | 3.30 | 3.99 | |
| Hex. Hole Bolt M5x25/s | ||||
| 144 | 6684709 | 2.15 | 2.60 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 145 | 6688643 | 1.15 | 1.39 | |
| Hex. Hole Bolt 6x18/s | ||||
| 146 | 6695495 | 1.15 | 1.39 | |
| Hex Hole Button Screw 6x15 | ||||
| 147 | 6695079 | 1.15 | 1.39 | |
| Ring | ||||
| 148 | 6695183 | 1.15 | 1.39 | |
| Fixing Plate | ||||
| 149 | 6686467 | 2.31 | 2.80 | |
| Support Plate | ||||
| 150 | 6690758 | 2.31 | 2.80 | |
| Hex. Socket Hd. Bolt M4x10 | ||||
| 151 | 6685093 | 1.15 | 1.39 | |
| Spring Nut 6 | ||||
| 152 | 6695475 | 1.15 | 1.39 | |
| Spring Nut 6 | ||||
| 155 | 6695475 | 1.15 | 1.39 | |
| Cuter Guide 1105l M6 Since A138351 | ||||
| 171 | 6687141 | 50.21 | 60.76 | |
| Hex. Hole Screw 6x25 | ||||
| 173 | 6695074 | 1.15 | 1.39 | |
| Ring | ||||
| 174 | 6684822 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 175 | 6687111 | |||
| Cutter A 1132l | ||||
| 176 | 6687089 | 78.35 | 94.80 | |
| No longer available, no replacement | ||||
| 177 | 6687187 | |||
| Bolt | ||||
| 178 | 6687158 | 1.15 | 1.39 | |
| Blade Holder | ||||
| 179 | 6687180 | 2.31 | 2.80 | |
| Bolt | ||||
| 180 | 6687168 | 1.15 | 1.39 | |
| Handle B Comp. (old 051-33185-81 & 6686310) | ||||
| 181 | 6686311 | 14.21 | 17.20 | |
| Handle Grip | ||||
| 182 | 6684708 | 6.44 | 7.79 | |
| Flange nut | ||||
| 183 | 6695170 | 1.15 | 1.39 | |
| Ring | ||||
| 184 | 6684639 | 2.15 | 2.60 | |
| Ring | ||||
| 185 | 6695219 | 1.15 | 1.39 | |
| Blade Cover Since B028601 | ||||
| 187 | 6687304 | 7.59 | 9.18 | |
| Gathering Plate, Oblong (old 350-33210-20) | ||||
| 188 | 6689539 | 17.55 | 21.24 | |
| Handle Grip A | ||||
| 201 | 6686338 | 4.95 | 5.99 | |
| No information available, not orderable | ||||
| 202 | 6686349 | |||
| Throttle Lever | ||||
| 203 | 6688229 | 2.31 | 2.80 | |
| Safety Lever | ||||
| 204 | 6688238 | 2.31 | 2.80 | |
| Throttle Lever Spring | ||||
| 205 | 6686414 | 2.31 | 2.80 | |
| Stop Switch Comp. | ||||
| 206 | 6687758 | 8.91 | 10.78 | |
| Stop Button Mark | ||||
| 207 | 6694585 | 1.15 | 1.39 | |
| Cap | ||||
| 208 | 6693002 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 209 | 6695412 | |||
| Screw 4x25/ws | ||||
| 210 | 6695411 | 1.15 | 1.39 | |
| Handle Grip Ass'y | ||||
| 211 | 6686354 | 28.14 | 34.05 | |
| Handle A Comp. (old 050-33185-80) | ||||
| 212 | 6686275 | 22.24 | 26.91 | |
| Throttle Wire 270+49 | ||||
| 213 | 6693877 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 214 | 6687558 | |||
| Screw 4x16ws (old 994-16040-161) | ||||
| 215 | 6695404 | 1.15 | 1.39 | |
| Nylon Lock Nut 4 | ||||
| 216 | 6695163 | 1.15 | 1.39 | |
| Screw 3x10 | ||||
| 217 | 6684913 | 2.15 | 2.60 | |
| Button Stop | ||||
| 218 | 6688366 | 1.15 | 1.39 | |
| Cord Clamp | ||||
| 219 | 6688015 | 1.15 | 1.39 | |
| Hex.hole Bolt M5x12/s | ||||
| 220 | 6684667 | 2.15 | 2.60 | |
| Handle Bracket (old 058-33185-20) | ||||
| 221 | 6686370 | 6.28 | 7.59 | |
| Handle Dumper Rubber | ||||
| 222 | 6686396 | 2.31 | 2.80 | |
| Combi Box Spanner 10/19mm | ||||
| 501 | 6685257 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 502 | 6684813 | |||
| Name Plate Tbc240sfs (old 906-52003-20) New | ||||
| 601 | 6694374 | 1.05 | 1.27 | |
